Create an HTTP step template

The Harness Template Library enables you to standardize and distribute reusable step templates across teams that use Harness.

To demonstrate how to create, configure, and use HTTP step templates, this topic adds an HTTP template to a CD pipeline, but you can add HTTP step templates to other pipelines that support this step type.

This topic assumes you're familiar with Harness' key concepts.

Objectives

You'll learn how to:

  • Create an HTTP step template.
  • Define template parameters.
  • Use the HTTP step template in a pipeline.

Step 1: Create a step template

You can create a step template from your account, org, or project. ​This topic explains the steps to create a step template from the project scope.

To create a inline step template from the project scope, do the following:

  1. In your Harness, go to your project.

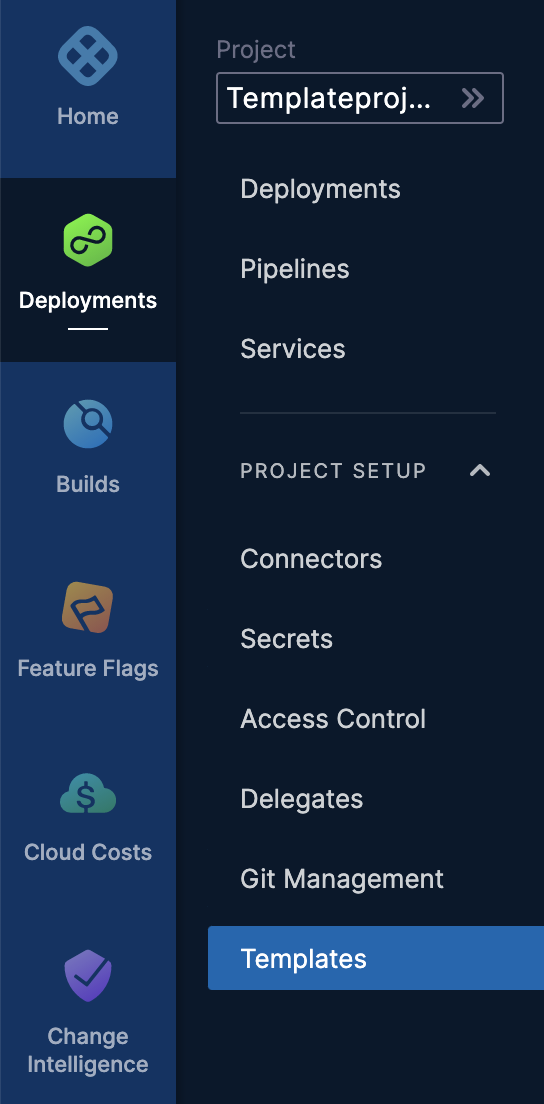

  2. Select Project Settings, then, under Project-level resources, select Templates.

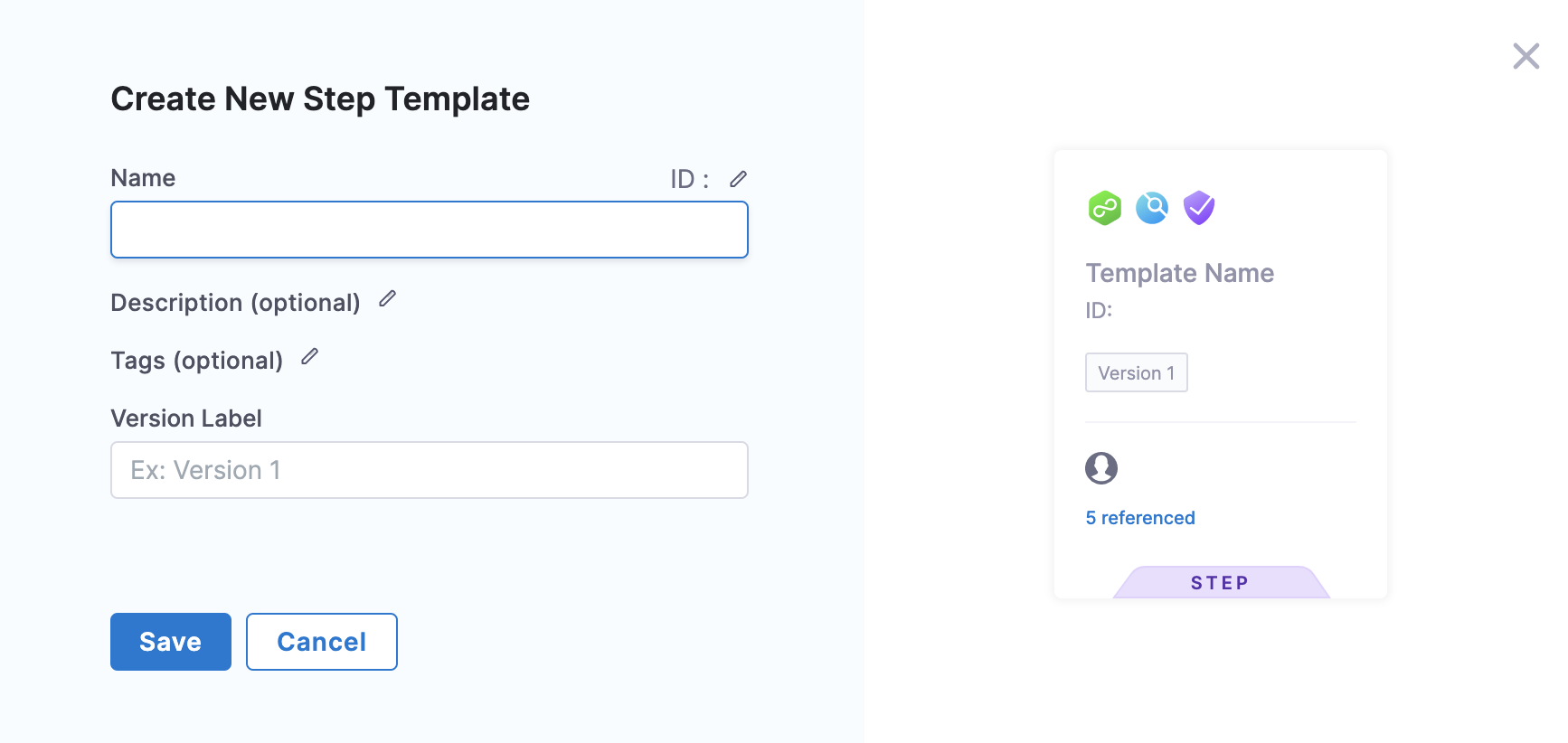

  3. Select + New Template, and then select Step. The Create New Step Template settings open.

  4. In Name, enter a name for the template, for example Quickstart.

  5. (Optional) Select the pencil icon to enter a Description.

  6. (Optional) Select the pencil icon to add Tags.

  7. In Version Label, enter a version for the template.​

  8. Under How do you want to set up your template?, select Inline.

  9. Click Start. The Step Library panel opens.

Step 2: Add step parameters

To add step parameters, do the following:

  1. Follow the steps above to create a template.

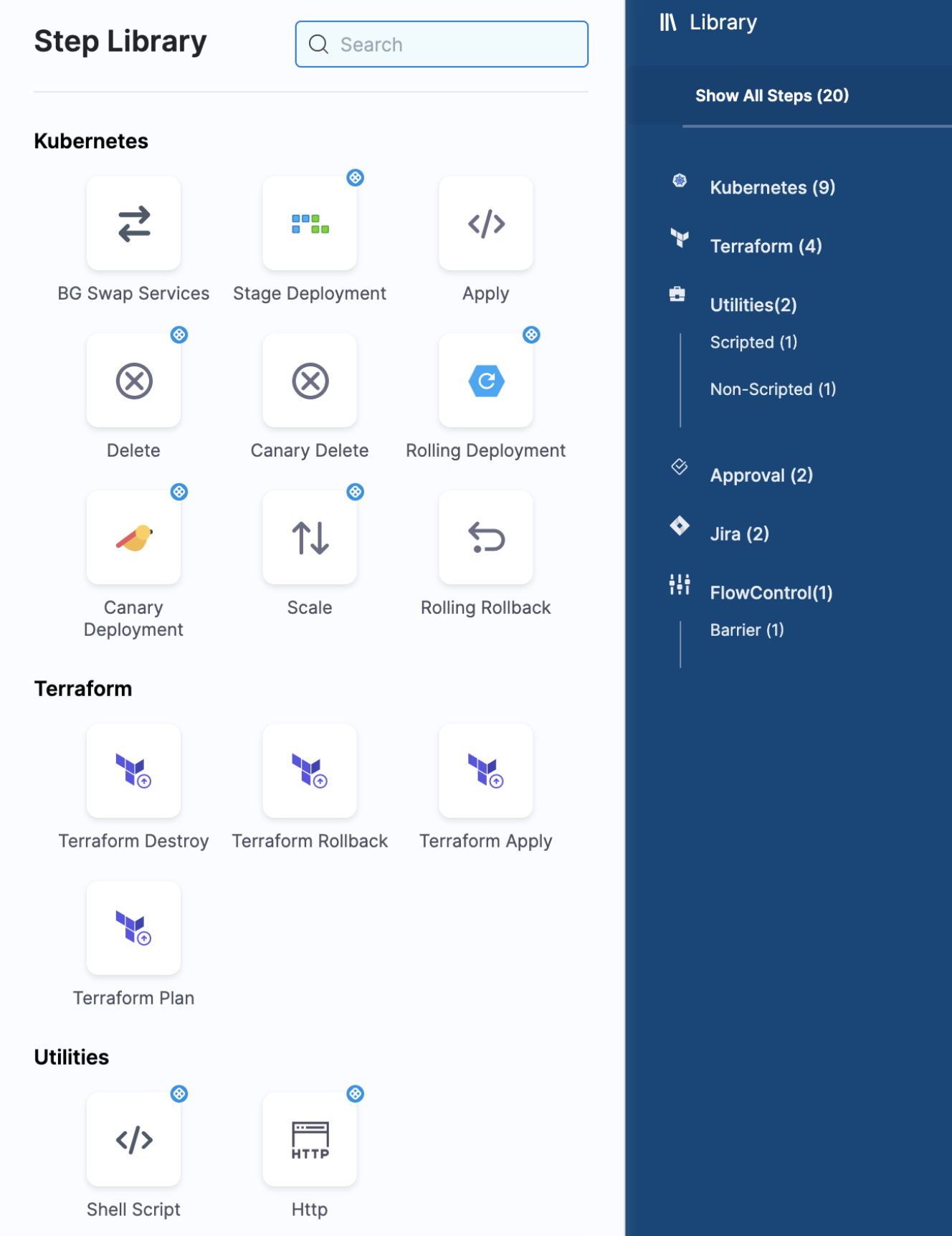

  2. In Step Library, select HTTP under Utilities.

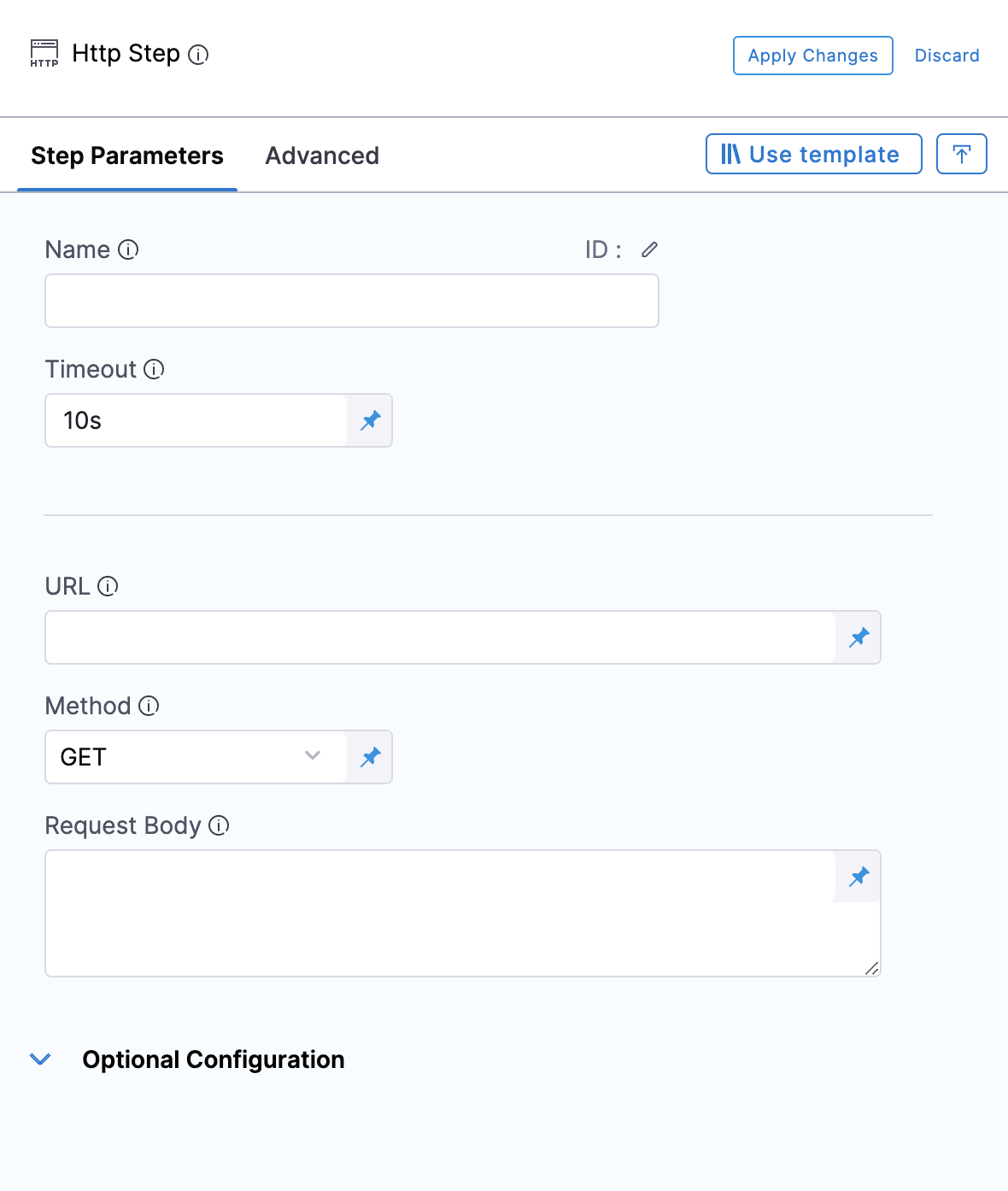

    The Step Parameters settings open.

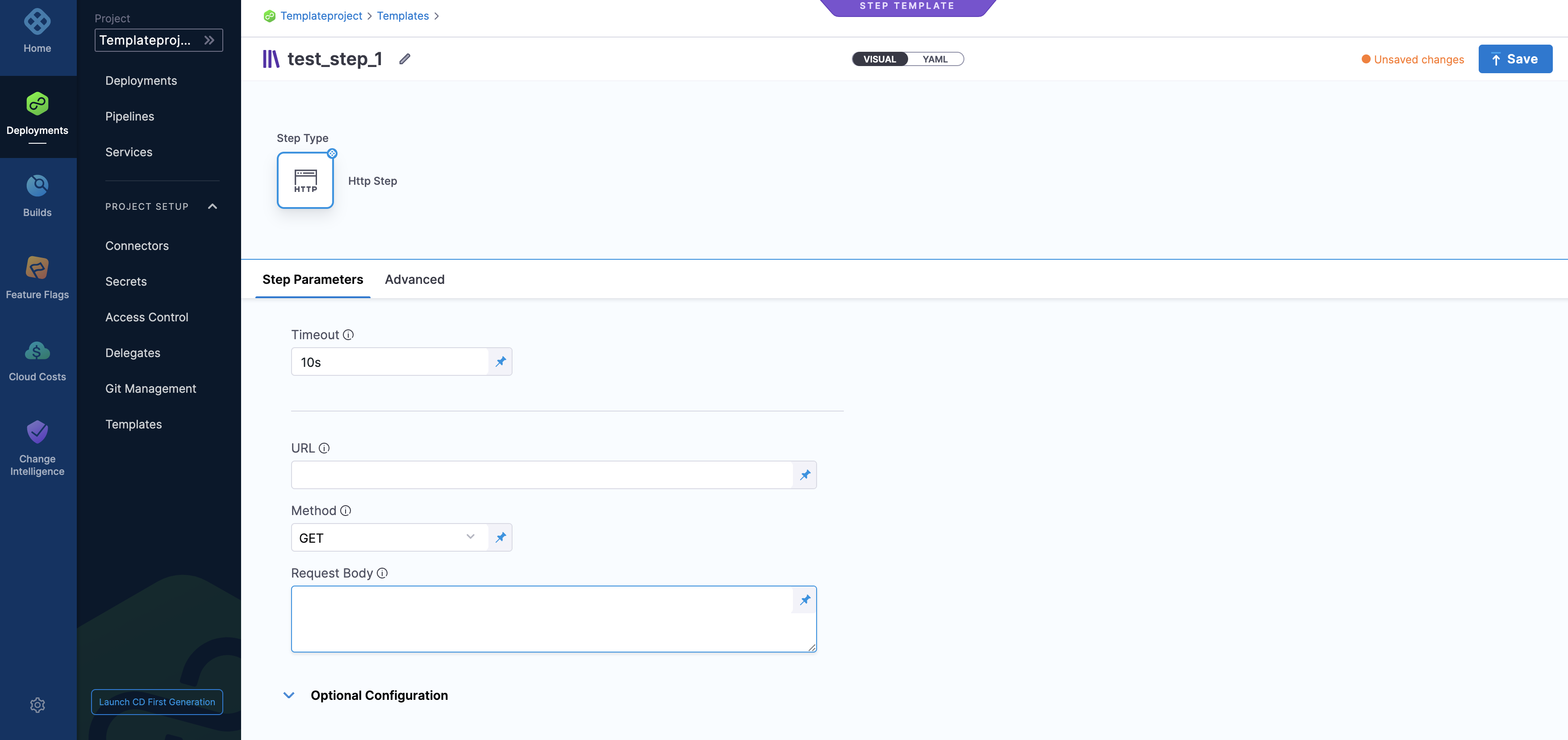

  3. In Timeout, enter a timeout value for this step. You can enter 10s.

  4. In URL, enter the URL for the HTTP call.

  5. In Method, select GET.

  6. Select Save. The new template displays under the Templates list.

Step 3: Add the HTTP step template to a pipeline

To add a step template in a pipeline execution, do the following:

  1. In Harness, select your pipeline.

  2. Select the step, and then select Add Step. The Step Library panel opens.

  3. In Step Library, select HTTP under Utilities. The HTTP Step settings open.

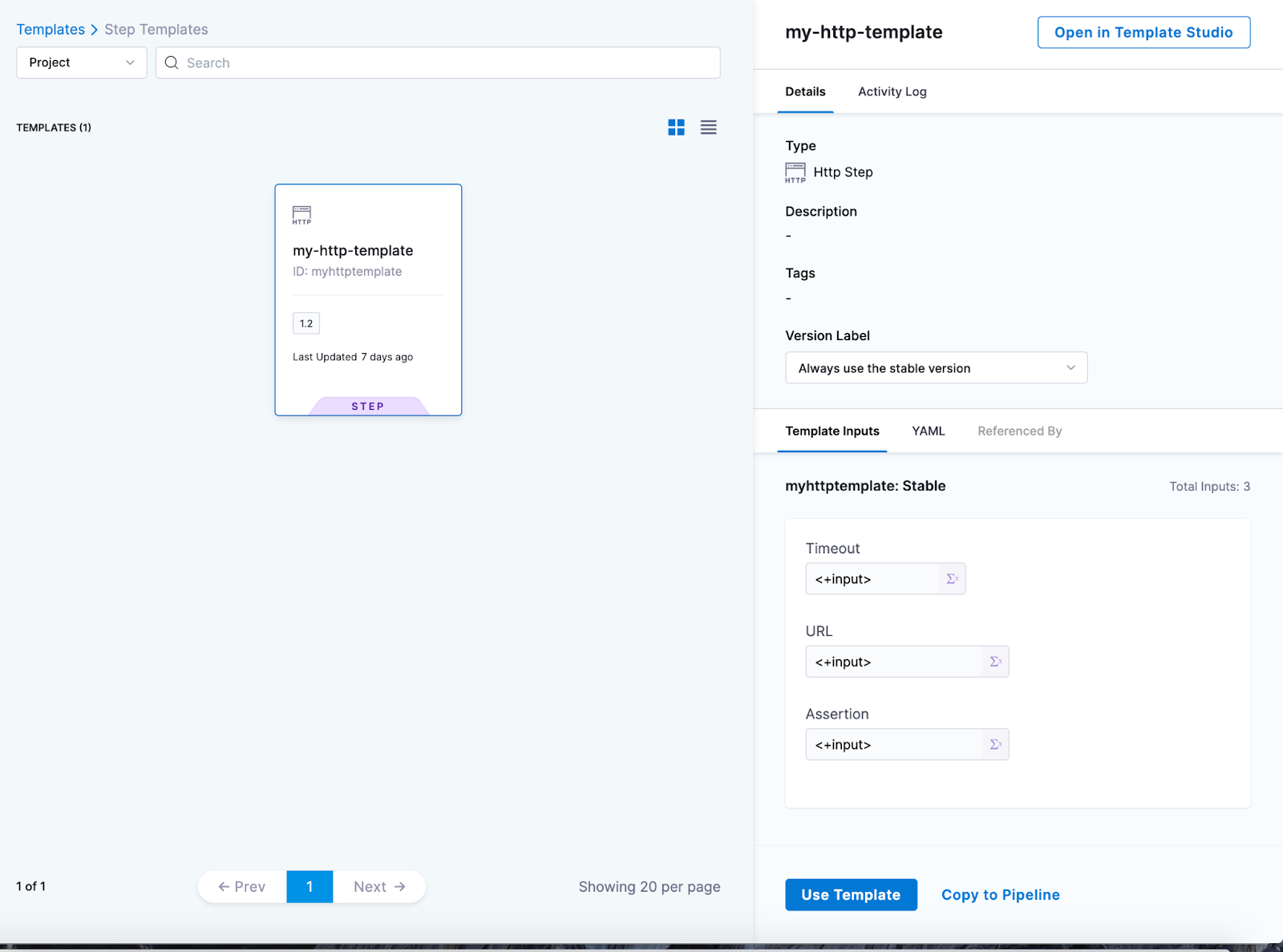

  4. Click Use Template. The next page lists all the Project-level templates.

  5. Select the template that you created.

  6. Select the Activity Log to track all template events. It shows you details like who created the template and template version changes.

  7. In Details, from the Version Label list, select Always use the stable version.

    Selecting this option ensures that any changes that you make to this version are propagated automatically to the pipelines using this template.

  8. Select Use Template.

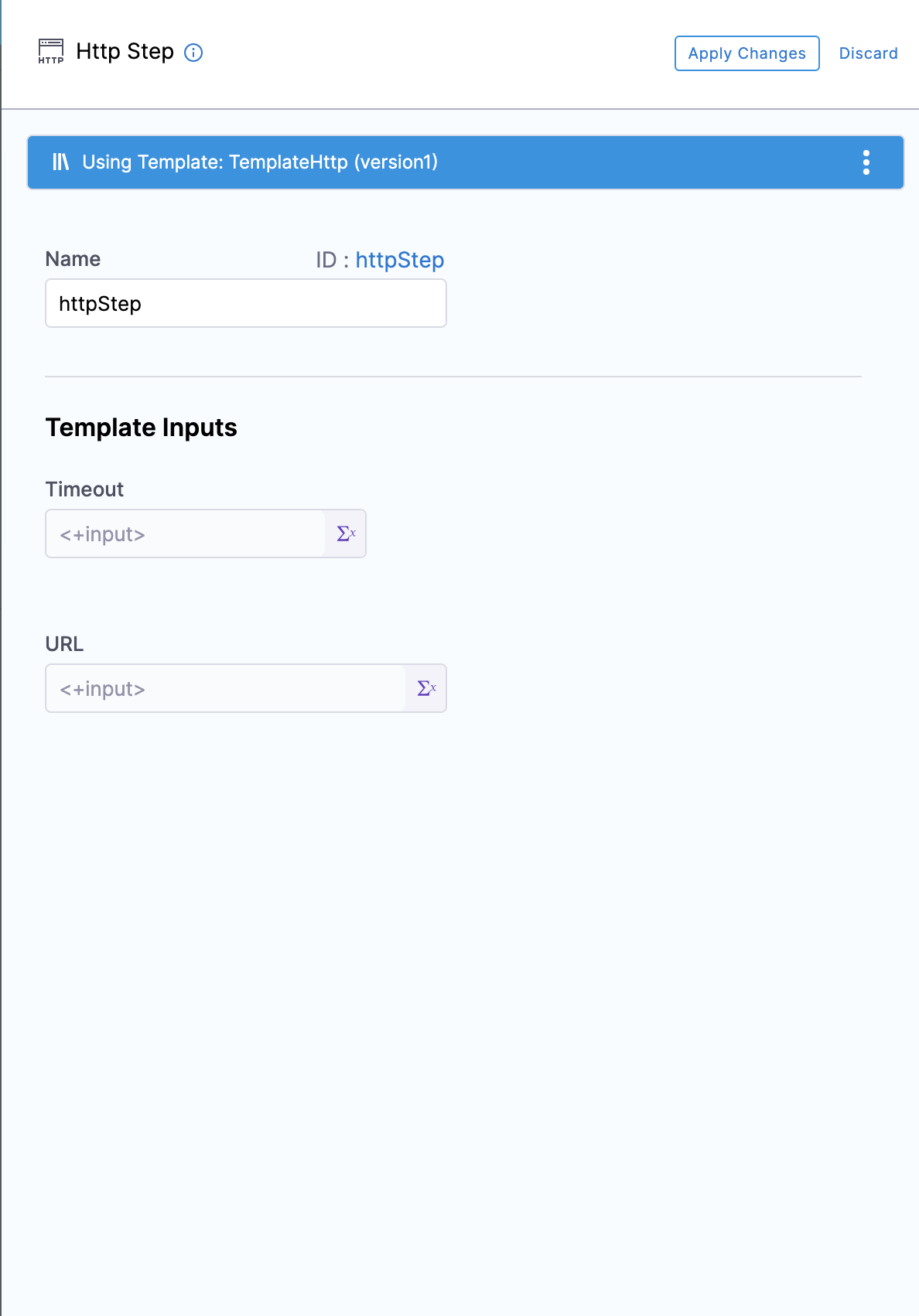

  9. In Name, enter Quickstart.

  10. Under Template Inputs, select Timeout, and then select Runtime input.

  11. Click URL and select Runtime input.

    Use Runtime Inputs instead of variable expressions: when you want to template settings in a stage or step template, use Runtime inputs instead of variable expressions. When Harness tries to resolve variable expressions to specific stage-level settings using fully-qualified names, it can cause issues at runtime. Every pipeline where the stage or step template is inserted must utilize the exact same names for fully-qualified name references to operate. With runtime inputs, you can supply values for a setting at deployment runtime.

  12. Select Apply Changes.

  13. Select Save.
