Set up an AWS VM build infrastructure

note

Currently, this feature is behind the Feature Flag CI_VM_INFRASTRUCTURE. Contact Harness Support to enable the feature.

This topic describes how to use AWS VMs as Harness CI build infrastructure. To do this, you will create an Ubuntu VM and install a Harness Delegate and Drone VM Runner on it. The runner creates VMs dynamically in response to CI build requests. You can also configure the runner to hibernate AWS Linux and Windows VMs when they aren't needed.

This is one of several CI build infrastructure options. For example, you can also set up a Kubernetes cluster build infrastructure.

The following diagram illustrates a CI build farm using AWS VMs. The Harness Delegate communicates directly with your Harness instance. The VM runner maintains a pool of VMs for running builds. When the delegate receives a build request, it forwards the request to the runner, which runs the build on an available VM.

info

This is an advanced configuration. Before beginning, you should be familiar with:

Prepare the AWS EC2 instance

These are the requirements to configure the AWS EC2 instance. This instance is the primary VM where you will host your Harness Delegate and runner.

Configure authentication for the EC2 instance

The recommended authentication method is an IAM role with an access key and secret (AWS secret). You can use an access key and secret without an IAM role, but this is not recommended for security reasons.

  1. Create or select an IAM role for the primary VM instance. This IAM role must have CRUD permissions on EC2. This role provides the runner with temporary security credentials to create VMs and manage the build pool. For details, go to the Amazon documentation on AmazonEC2FullAccess Managed policy.
  2. If you plan to run Windows builds, go to the AWS documentation for additional configuration for Windows IAM roles for tasks. This additional configuration is required because containers running on Windows can't directly access the IAM profile on the host. For example, you must add the AdministratorAccess policy to the IAM role associated with the access key and access secret.
  3. If you haven't done so already, create an access key and secret for the IAM role.

Launch the EC2 instance

  1. In the AWS EC2 Console, launch a VM instance that will host your Harness Delegate and runner. This instance must use an Ubuntu AMI that is t2.large or greater.

    The primary VM must be Ubuntu. The build VMs (in your VM pool) can be Ubuntu, AWS Linux, or Windows Server 2019 or higher. All machine images must have Docker installed.

  2. Attach a key pair to your EC2 instance. Create a key pair if you don't already have one.

  3. You don't need to enable Allow HTTP/HTTPS traffic.

Configure ports and security group settings

  1. Create a Security Group in the EC2 console. You need the Security Group ID to configure the runner. For information on creating Security Groups, go to the AWS documentation on authorizing inbound traffic for your Linux instances.
  2. In the Security Group's Inbound Rules, allow ingress on port 9079. This is required for security groups within the VPC.
  3. In the EC2 console, go to your EC2 VM instance's Inbound Rules, and allow ingress on port 22.
  4. If you want to run Windows builds and be able to RDP into your build VMs, you must also allow ingress on port 3389.
  5. Set up VPC firewall rules for the build instances on EC2.

Install Docker and attach IAM role

  1. SSH into your EC2 instance.
  2. Install Docker.
  3. Install Docker Compose.
  4. Attach the IAM role to the EC2 VM. For instructions, go to the AWS documentation on attaching an IAM role to an instance.

Use a custom Windows AMI

If you plan to use a custom Windows AMI in your AWS VM build farm, you must delete state.run-once from your custom AMI.

In Windows, sysprep checks if state.run-once exists at C:\ProgramData\Amazon\EC2Launch\state.run-once. If the file exists, sysprep doesn't run post-boot scripts (such as cloudinit, which is required for Harness VM build infrastructure). Therefore, you must delete this file from your AMI so it doesn't block the VM init script.

If you get an error about an unrecognized refreshenv command, you might need to install Chocolatey and add it to $profile to enable the refreshenv command.

Configure the Drone pool on the AWS VM

The pool.yml file defines the VM spec and pool size for the VM instances used to run the pipeline. A pool is a group of instantiated VMs that are immediately available to run CI pipelines. You can configure multiple pools in pool.yml, such as a Windows VM pool and a Linux VM pool. To avoid unnecessary costs, you can configure pool.yml to hibernate VMs when not in use.

  1. Create a /runner folder on your delegate VM and cd into it:

    mkdir /runner
    cd /runner
  2. In the /runner folder, create a pool.yml file.

  3. Modify pool.yml as described in the following example and the Pool settings reference.

Example pool.yml

The following pool.yml example defines both an Ubuntu pool and a Windows pool.

version: "1"
instances:
- name: ubuntu-ci-pool ## The settings nested below this define the Ubuntu pool.
default: true
type: amazon
pool: 1
limit: 4
platform:
os: linux
arch: amd64
spec:
account:
region: us-east-2 ## To minimize latency, use the same region as the delegate VM.
availability_zone: us-east-2c ## To minimize latency, use the same availability zone as the delegate VM.
access_key_id: XXXXXXXXXXXXXXXXX
access_key_secret: XXXXXXXXXXXXXXXXXXX
key_pair_name: XXXXX
ami: ami-051197ce9cbb023ea
size: t2.nano
iam_profile_arn: arn:aws:iam::XXXX:instance-profile/XXXXX
network:
security_groups:
- sg-XXXXXXXXXXX
- name: windows-ci-pool ## The settings nested below this define the Windows pool.
default: true
type: amazon
pool: 1
limit: 4
platform:
os: windows
spec:
account:
region: us-east-2 ## To minimize latency, use the same region as the delegate VM.
availability_zone: us-east-2c ## To minimize latency, use the same availability zone as the delegate VM.
access_key_id: XXXXXXXXXXXXXXXXXXXXXX
access_key_secret: XXXXXXXXXXXXXXXXXXXXXX
key_pair_name: XXXXX
ami: ami-088d5094c0da312c0
size: t3.large
hibernate: true
network:
security_groups:
- sg-XXXXXXXXXXXXXX

Pool settings reference

You can configure the following settings in your pool.yml file. You can also learn more in the Drone documentation for the Pool File and Amazon drivers.

SettingTypeExampleDescription
nameStringname: windows_poolUnique identifier of the pool. You will need to specify this pool name in Harness when you set up the CI stage build infrastructure.
poolIntegerpool: 1Warm pool size number. Denotes the number of VMs in ready state to be used by the runner.
limitIntegerlimit: 3Maximum number of VMs the runner can create at any time. pool indicates the number of warm VMs, and the runner can create more VMs on demand up to the limit.
For example, assume pool: 3 and limit: 10. If the runner gets a request for 5 VMs, it immediately provisions the 3 warm VMs (from pool) and provisions 2 more, which are not warm and take time to initialize.
platformKey-value pairs, stringsGo to platform example.Specify VM platform operating system (os: linux or os: windows). arch and variant are optional. os_name: amazon-linux is required for AL2 AMIs. The default configuration is os: linux and arch: amd64.
specKey-value pairs, variousGo to Example pool.yml and the examples in the following rows.Configure settings for the build VMs and AWS instance. Contains a series of individual and mapped settings, including account, tags, ami, size, hibernate, iam_profile_arn, network, user_data, user_data_path, and disk. Details about these settings are provided below.
accountKey-value pairs, stringsGo to account example.AWS account configuration, including region and access key authentication.
  • region: AWS region. To minimize latency, use the same region as the delegate VM.
  • availability_zone: AWS region availability zone. To minimize latency, use the same availability zone as the delegate VM.
  • access_key_id: The AWS access key for authentication. If using an IAM role, this is the access key associated with the IAM role.
  • access_key_secret: The secret associated with the specified access_key_id.
  • key_pair_name: The key pair name specified when you set up the EC2 instance. Don't include .pem.
tagsKey-vale pairs, stringsGo to tags example.Optional tags to apply to the instance.
amiStringami: ami-092f63f22143765a3The AMI ID. You can use the same AMI as your EC2 instance or search for AMIs in your Availability Zone for supported models (Ubuntu, AWS Linux, Windows 2019+). AMI IDs differ by Availability Zone.
sizeStringsize: t3.largeThe AMI size, such as t2.nano, t2.micro, m4.large, and so on. Make sure the size is large enough to handle your builds.
hibernateBooleanhibernate: trueWhen set to true (which is the default), VMs hibernate after startup. When false, VMs are always in a running state. This option is supported for AWS Linux and Windows VMs. Hibernation for Ubuntu VMs is not currently supported. For more information, go to the AWS documentation on hibernating on-demand Linux instances.
iam_profile_arnStringiam_profile_arn: arn:aws:iam::XXXX:instance-profile/XXXIf using IAM roles, this is the instance profile ARN of the IAM role to apply to the build instances.
networkKey-value pairs, variousGo to network example.AWS network information, including security groups. For more information on these attributes, go to the AWS documentation on creating security groups.
  • security_groups: List of security group IDs as strings.
  • vpc: If using VPC, this is the VPC ID as an integer.
  • vpc_security_groups: If using VPC, this is a list of VPC security group IDs as strings.
  • private_ip: Boolean.
  • subnet_id: The subnet ID as a string.
user_data or user_data_pathKey-value pairs, stringsGo to user data example.Define custom user data to apply to the instance. Provide cloud-init data either directly in user_data or as a path to a file in user_data_path.
diskKey-value pairs, variousGo to disk example.Optional AWS block information.
  • size: Integer, size in GB.
  • type: gp2, io1, or standard.
  • iops: If type: io1, then iops: iops.

platform example

    instance:
platform:
os: linux
arch: amd64
version:
os_name: amazon-linux

account example

      account:
region: us-east-2
availability_zone: us-east-2c
access_key_id: XXXXX
access_key_secret: XXXXX
key_pair_name: XXXXX

tags example

      tags:
owner: USER
ttl: '-1'

network example

      network:
private_ip: true
subnet_id: subnet-XXXXXXXXXX
security_groups:
- sg-XXXXXXXXXXXXXX

user data example

Provide cloud-init data in either user_data_path or user_data.

      user_data_path: /path/to/custom/user-data.yml
      user_data: |
#cloud-config
apt:
sources:
docker.list:
source: deb [arch={{ .Architecture }}] https://download.docker.com/linux/ubuntu $RELEASE stable
keyid: KEY_TO_IMPORT
packages:
- wget
- docker-ce
write_files:
- path: {{ .CaCertPath }}
permissions: '0600'
encoding: b64
content: {{ .CACert | base64 }}
- path: {{ .CertPath }}
permissions: '0600'
encoding: b64
content: {{ .TLSCert | base64 }}
- path: {{ .KeyPath }}
permissions: '0600'
encoding: b64
content: {{ .TLSKey | base64 }}
runcmd:
- 'wget "{{ .LiteEnginePath }}/lite-engine-{{ .Platform }}-{{ .Architecture }}" -O /usr/bin/lite-engine'
- 'chmod 777 /usr/bin/lite-engine'
- 'touch /root/.env'
- 'touch /tmp/some_directory'
- '/usr/bin/lite-engine server --env-file /root/.env > /var/log/lite-engine.log 2>&1 &'

disk example

      disk:
size: 16
type: io1
iops: iops

Start the runner

SSH into your EC2 instance and run the following command to start the runner:

docker run -v /runner:/runner -p 3000:3000 drone/drone-runner-aws:latest  delegate --pool /runner/pool.yml

This command mounts the volume to the Docker runner container and provides access to pool.yml, which is used to authenticate with AWS and pass the spec for the pool VMs to the container. It also exposes port 3000.

You might need to modify the command to use sudo and specify the runner directory path, for example:

sudo docker run -v ./runner:/runner -p 3000:3000 drone/drone-runner-aws:latest  delegate --pool /runner/pool.yml
What does the runner do?

When a build starts, the delegate receives a request for VMs on which to run the build. The delegate forwards the request to the runner, which then allocates VMs from the warm pool (specified by pool in pool.yml) and, if necessary, spins up additional VMs (up to the limit specified in pool.yml).

The runner includes lite engine, and the lite engine process triggers VM startup through a cloud init script. This script downloads and installs Scoop package manager, Git, the Drone plugin, and lite engine on the build VMs. The plugin and lite engine are downloaded from GitHub releases. Scoop is downloaded from get.scoop.sh.

Firewall restrictions can prevent the script from downloading these dependencies. Make sure your images don't have firewall or anti-malware restrictions that are interfering with downloading the dependencies. For more information, go to Troubleshooting.

Install the delegate

Install a Harness Docker Delegate on your AWS EC2 instance.

  1. In Harness, go to Account Settings, select Account Resources, and then select Delegates.

    You can also create delegates at the project scope. In your Harness project, select Project Settings, and then select Delegates.

  2. Select New Delegate or Install Delegate.

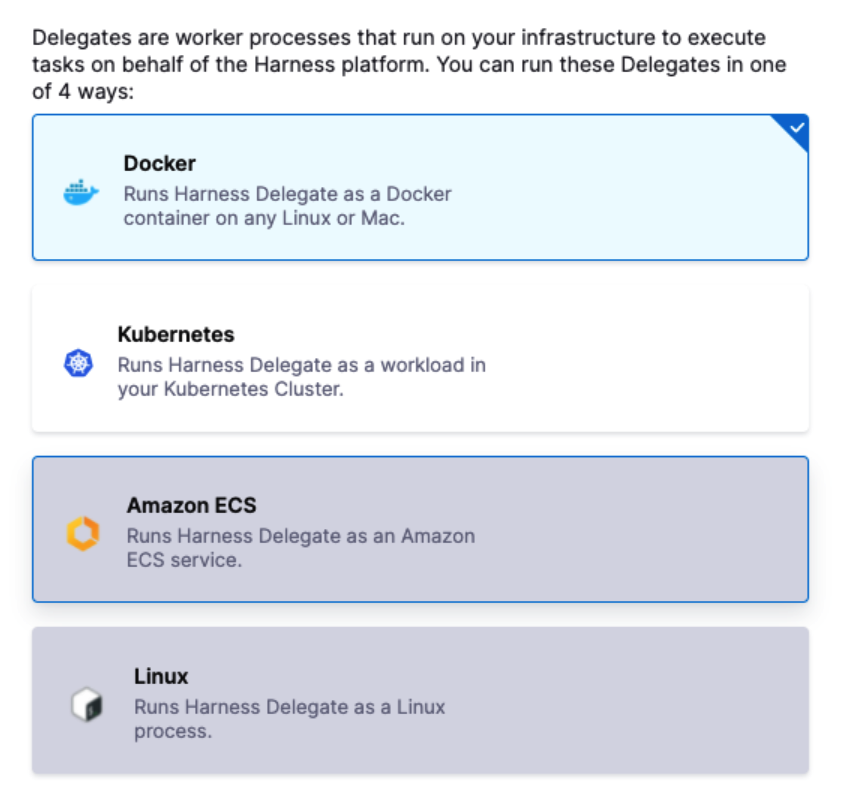

  3. Select Docker.

  4. Enter a Delegate Name.

  5. Copy the delegate install command and paste it in a text editor.

  6. To the first line, add --network host, and, if required, sudo. For example:

    sudo docker run --cpus=1 --memory=2g --network host
  7. SSH into your EC2 instance and run the delegate install command.

tip

The delegate install command uses the default authentication token for your Harness account. If you want to use a different token, you can create a token and then specify it in the delegate install command:

  1. In Harness, go to Account Settings, then Account Resources, and then select Delegates.
  2. Select Tokens in the header, and then select New Token.
  3. Enter a token name and select Apply to generate a token.
  4. Copy the token and paste it in the value for DELEGATE_TOKEN.

For more information about delegates and delegate installation, go to Delegate installation overview.

Verify connectivity

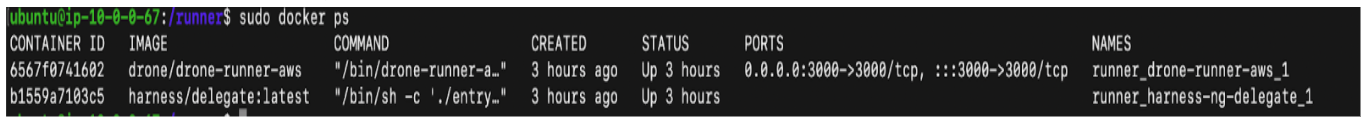

  1. Verify that the delegate and runner containers are running correctly. You might need to wait a few minutes for both processes to start. You can run the following commands to check the process status:

    docker ps
    docker logs DELEGATE_CONTAINER_ID
    docker logs RUNNER_CONTAINER_ID

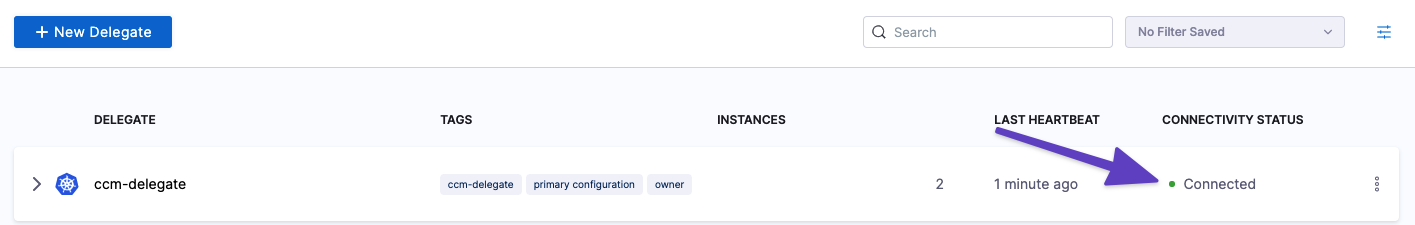

  2. In the Harness UI, verify that the delegate appears in the delegates list. It might take two or three minutes for the Delegates list to update. Make sure the Connectivity Status is Connected. If the Connectivity Status is Not Connected, make sure the Docker host can connect to https://app.harness.io.

The delegate and runner are now installed, registered, and connected.

Specify build infrastructure

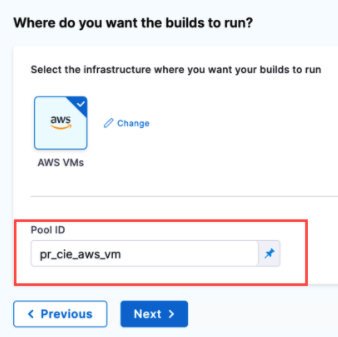

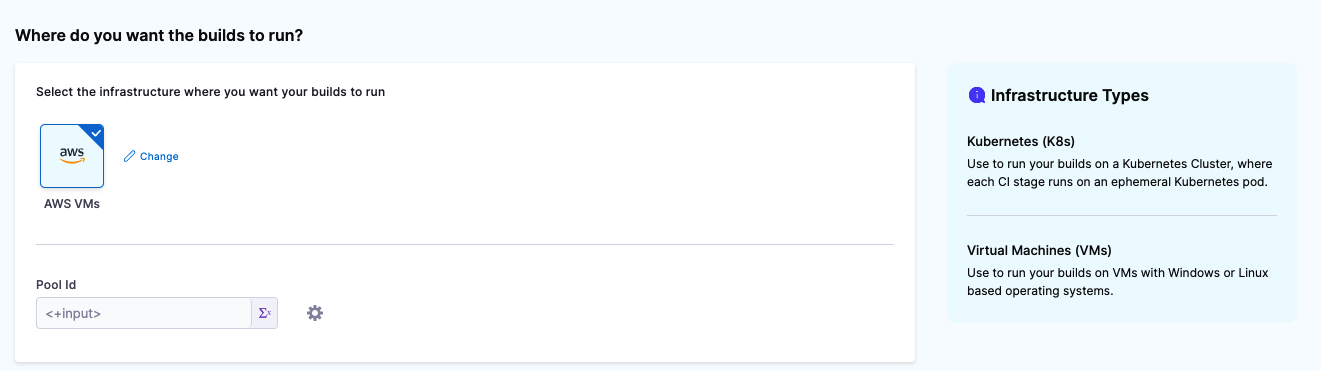

Configure your pipeline's Build (CI) stage to use your AWS VMs as build infrastructure.

    - stage:
name: build
identifier: build
description: ""
type: CI
spec:
cloneCodebase: true
infrastructure:
type: VM
spec:
type: Pool
spec:
poolName: POOL_NAME_FROM_POOL_YML
os: Linux
execution:
steps:
...

Delegate selectors with self-managed VM build infrastructures

note

Currently, delegate selectors for self-managed VM build infrastructures is behind the feature flag CI_ENABLE_VM_DELEGATE_SELECTOR. Contact Harness Support to enable the feature.

Although you must install a delegate to use a self-managed VM build infrastructure, you can choose to use a different delegate for executions and cleanups in individual pipelines or stages. To do this, use pipeline-level delegate selectors or stage-level delegate selectors.

Delegate selections take precedence in the following order:

  1. Stage
  2. Pipeline
  3. Platform (build machine delegate)

This means that if delegate selectors are present at the pipeline and stage levels, then these selections override the platform delegate, which is the delegate that you installed on your primary VM with the runner. If a stage has a stage-level delegate selector, then it uses that delegate. Stages that don't have stage-level delegate selectors use the pipeline-level selector, if present, or the platform delegate.

For example, assume you have a pipeline with three stages called alpha, beta, and gamma. If you specify a stage-level delegate selector on alpha and you don't specify a pipeline-level delegate selector, then alpha uses the stage-level delegate, and the other stages (beta and gamma) use the platform delegate.

Early access feature: Use delegate selectors for codebase tasks
note

Currently, delegate selectors for CI codebase tasks is behind the feature flag CI_CODEBASE_SELECTOR. Contact Harness Support to enable the feature.

By default, delegate selectors aren't applied to delegate-related CI codebase tasks.

With this feature flag enabled, Harness uses your delegate selectors for delegate-related codebase tasks. Delegate selection for these tasks takes precedence in order of pipeline selectors over connector selectors.

Troubleshoot AWS VM build infrastructure

Go to the CI Knowledge Base for questions and issues related to self-managed VM build infrastructures, including:
