YAML Reference: Pipelines

Updated 2 weeks ago by Michael Cretzman

This topic describes the YAML schema for a Pipeline.

It includes common examples of the major schema entries.

New to Harness YAML? See Harness YAML Quickstart.

In this topic:

Visual Summary

Here's a very quick video showing you how to build a Pipeline using YAML:

Pipeline Studio YAML Editor

The Pipeline Studio includes visual and YAML editors.

The best way to get started with YAML is to do a CI or CD quickstart and then view the YAML in Pipeline Studio.

See ​CD Quickstarts and CI Quickstarts.

The YAML editor validates YAML before allowing you to save it.

To learn how to use the YAML editor, see Harness YAML Quickstart for CD.

Autocomplete and Command Palette

The YAML editor has an autocomplete feature that makes it very easy to see what entries are available.

The keyboard command for autocomplete is Ctrl + Space.

If an entry already has a value, the autocomplete will not show you other options. You need to delete the value and then enter Ctrl + Space.

The command palette keyboard command is F1.

The command palette displays the keyboard shortcuts for all commands.

Limitations

The visual editor lets you create Connectors inline but the YAML editor does not. For the YAML editor you need the entity Id of the Connector first. Typically, the Id is entered as the value for the connectorRef key.

This is a minor limitation as once you have entered in the Id you can configure the rest of the settings in YAML using autocomplete.

For example, here is a Connector with the name GCP Example and Id GCP_Example. You can see the Id used in the YAML as connectorRef: GCP_Example:

Connector

YAML

...
type: Gcr
spec:
connectorRef: GCP_Example
imagePath: library/bar
registryHostname: gcr.io
tag: <+input>
identifier: foo
...

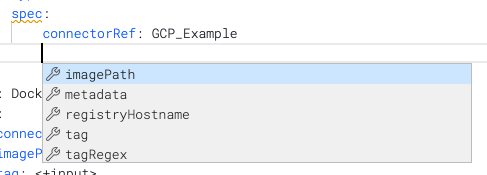

Once you have entered the Id in connectorRef, you can use autocomplete to view the remaining settings:

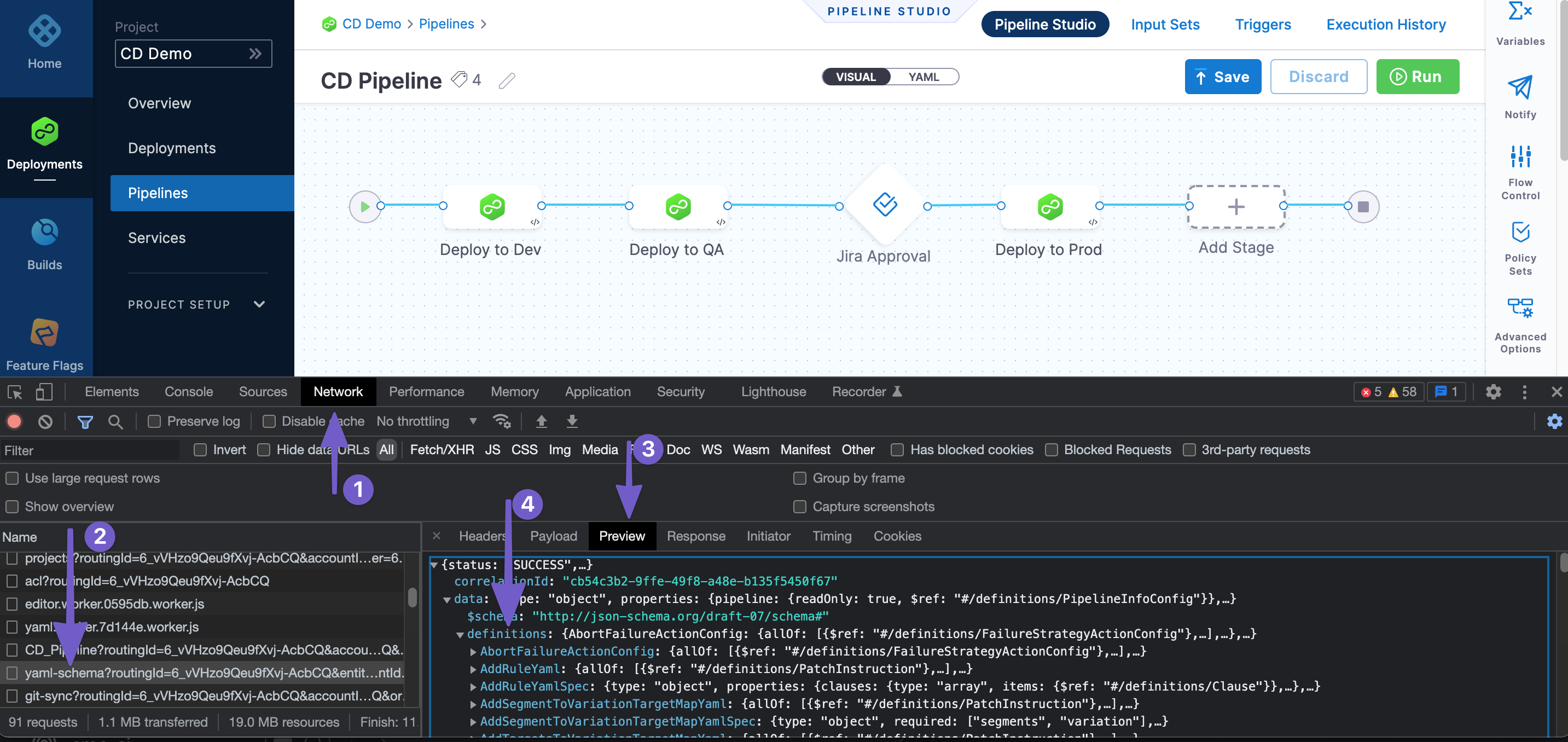

Schema Overview

Harness Pipeline YAML lets you model your release process declaratively. Each Pipeline entity, component, and setting has a YAML entry.

Entries

Entries are standard YAML associative arrays using key: value.

Settings are not quoted.

Indentation

Whitespace indentation is 4 spaces.

Conventions

Pipeline syntax uses the following conventions:

  • Quotes indicate an empty string. Values do not need quotes. Once you enter a value and save the quotes are removed.
  • Entries are listed as key: keyword. The key is a data type that corresponds to a setting such as skipResourceVersioning. The keyword is a literal definition for the setting, like false or K8sManifest.
  • Brackets indicate an inline series branch (an array of the data type). For example variables: []. To edit, you delete the brackets, enter a new line, and enter a dash -. Now you can use autocomplete to see the available entries.
  • Curly braces indicate an array separated by new lines. For example, tags: {}. To enter the entries for this type, delete the curly braces, enter a new line, and then enter the key: value pairs. For example:
    ...
    tags:
    docs: "CD"
    yaml example: ""
    ...
  • The block style indicator | turns every newline within the string into a literal newline and adds one line at the end. The - indicates removes newlines from the end. For example:
    ...
    script: |-
    echo "hello"

    echo <+pipeline.name>
    ...

Pipeline

A Pipeline can have an unlimited number of configurations. This section simply covers the basic YAML schema.

Schema

This is the basic schema for a Pipeline:

pipeline:
name: ""
identifier: ""
projectIdentifier: ""
orgIdentifier: ""
tags: {}
stages:
- stage:
flowControl:
notificationRules:

The projectIdentifier and orgIdentifier must match existing Project and Org Ids.

From here you can add stages, Service, Infrastructure, and Execution. Harness will not allow you to save your Pipeline until these three components are set up.

Example

Here is a very basic Pipeline that meets the minimum requirements and uses a Shell Script step:

pipeline:
name: YAML
identifier: YAML
projectIdentifier: CD_Examples
orgIdentifier: default
tags: {}
stages:
- stage:
name: Deploy
identifier: Deploy
description: ""
type: Deployment
spec:
serviceConfig:
serviceRef: nginx
serviceDefinition:
type: Kubernetes
spec:
variables: []
infrastructure:
environmentRef: helmchart
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: <+input>
namespace: <+input>
releaseName: release-<+INFRA_KEY>
allowSimultaneousDeployments: false
execution:
steps:
- step:
type: ShellScript
name: Echo
identifier: Echo
spec:
shell: Bash
onDelegate: true
source:
type: Inline
spec:
script: echo "hello"
environmentVariables: []
outputVariables: []
executionTarget: {}
timeout: 10m
rollbackSteps: []
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback

See also:

Stage

A Stage is a subset of a Pipeline that contains the logic to perform one major segment of the Pipeline process. Stages are based on the different milestones of your Pipeline, such as building, approving, and delivering.

Schema

stages:
- stage:
name: ""
identifier: ""
description: ""
type: Deployment
spec:
serviceConfig:
serviceRef: ""
serviceDefinition:
type: ""
spec:
variables: []
infrastructure:
environmentRef: ""
infrastructureDefinition:
type: ""
spec:
connectorRef: ""
namespace: ""
releaseName: release-""
allowSimultaneousDeployments: ""
execution:
steps:
- step:
type: ""
name: ""
identifier: ""
spec:
rollbackSteps: []
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback

Rollback steps, failure strategies, and execution conditions are set at the end of the stage YAML.

...
rollbackSteps: []
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback
...

Example

stages:
- stage:
name: Deploy
identifier: Deploy
description: ""
type: Deployment
spec:
serviceConfig:
serviceRef: nginx
serviceDefinition:
type: Kubernetes
spec:
variables: []
infrastructure:
environmentRef: helmchart
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: <+input>
namespace: <+input>
releaseName: release-<+INFRA_KEY>
allowSimultaneousDeployments: false
execution:
steps:
- step:
type: ShellScript
name: Echo
identifier: Echo
spec:
shell: Bash
onDelegate: true
source:
type: Inline
spec:
script: echo "hello"
environmentVariables: []
outputVariables: []
executionTarget: {}
timeout: 10m
rollbackSteps: []
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback

See also:

Service

A Service represents your microservices, Serverless functions, and other workloads logically.

A Service is a logical entity to be deployed, monitored, or changed independently.

When a Service is added to the stage in a Pipeline, you define its Service Definition. Service Definitions represent the real artifacts, manifests, and variables of a Service. They are the actual files and variable values.

Schema

spec:
serviceConfig:
serviceRef: ""
serviceDefinition:
type: ""
spec:
variables: []

If you propagate a Service from a previous stage, the YAML indicated it this way:

spec:
serviceConfig:
useFromStage:
stage: ""

Example

spec:
serviceConfig:
serviceRef: nginx
serviceDefinition:
type: Kubernetes
spec:
variables: []

See also:

Infrastructure

Infrastructure is defined under Environments. Environments represent your deployment targets logically (QA, Prod, etc). You can add the same Environment to as many Stages as you need.

Schema

infrastructure:
environmentRef: ""
infrastructureDefinition:
type: ""
spec:
connectorRef: ""
namespace: ""
releaseName: release-""
allowSimultaneousDeployments: true|false

Example

infrastructure:
environmentRef: <+input>
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: <+input>
namespace: <+input>
releaseName: release-<+INFRA_KEY>
allowSimultaneousDeployments: false

That example is for the platform agnostic Kubernetes infrastructure. For a different infrastructure, such as GCP, it would look slightly different:

 infrastructure:
environmentRef: <+input>
infrastructureDefinition:
type: KubernetesGcp
spec:
connectorRef: <+input>
cluster: <+input>
namespace: <+input>
releaseName: release-<+INFRA_KEY>
allowSimultaneousDeployments: false

See also:

Execution

The stage Execution contains the steps for the stage.

Schema

execution:
steps:
- step:
identifier: ""
name: ""
type: ""
rollbackSteps: []

Example

Here is an example using the Shell Script step.

execution:
steps:
- step:
type: ShellScript
name: Step
identifier: Step
spec:
shell: Bash
onDelegate: true
source:
type: Inline
spec:
script: echo "hello"
environmentVariables: []
outputVariables: []
executionTarget: {}
timeout: 10m
rollbackSteps: []

See also:

Steps and Step Groups

A step is an individual operation in a stage.

Steps can be run in sequential and parallel order.

A Step Group is a collection of steps that share the same logic such as the same rollback strategy.

Schema

Step:

- step:
identifier:
name:
type:

Step Group:

- stepGroup:
name:
identifier:
steps:
- step:
identifier:
name:
type:

Example

Each step has different entries.

Here is an example of a Canary Deployment step.

- step:
name: Canary Deployment
identifier: canaryDeployment
type: K8sCanaryDeploy
timeout: 10m
spec:
instanceSelection:
type: Count
spec:
count: 1
skipDryRun: false

See also:

Fixed Value, Runtime Input, and Expression

You can use Fixed Value, Runtime Input, and Expressions for most settings.

  • Fixed value: The value is simply entered in the value of the key: value entry.
  • Runtime input: You simple enter <+input> in the value of the key: value entry.
  • Expression: You simply enter <+ in the value of the key: value entry and a list of available expressions appears. Select the expression to use.

See also:

Flow Control

Barriers allow you to synchronize different stages in your Pipeline, and control the flow of your deployment systematically.

The Flow Control YAML is at the end of the Pipeline YAML, but it is not mandatory.

Schema

pipeline:
name: ""
identifier: ""
projectIdentifier: ""
orgIdentifier: ""
tags: {}
stages:
...
flowControl:
barriers:
- name: ""
identifier: ""

Example

flowControl:
barriers:
- name: mybarrier
identifier: mybarrier

See also:

Notification Rules

You can send Pipeline event notifications using email and popular communication and incident management platforms.

Event notifications are set up using Notification Rules in your Pipeline. You select the types of events to send, and then select how you want to send notifications. When those events occur, Harness sends event information to those channels and recipients.

The Notification Rules YAML is at the end of the Pipeline YAML, but it is not mandatory.

Schema

pipeline:
name: ""
identifier: ""
projectIdentifier: ""
orgIdentifier: ""
tags: {}
stages:
...
notificationRules:
- name: ""
pipelineEvents:
- type: ""
notificationMethod:
type: ""
spec:
userGroups: []
recipients:
- ""
enabled: true|false

Example

notificationRules:
- name: mynotification
pipelineEvents:
- type: AllEvents
notificationMethod:
type: Email
spec:
userGroups: []
recipients:
- john.doe@harness.io
enabled: true

See also:

Triggers

Triggers are used to automate the execution of Pipelines based on some event like new artifact/manifest, or run on a schedule or an external webhook.

Trigger YAML is not part of the main Pipeline YAML, but Triggers can be configure using YAML in the Triggers tab of the Pipeline.

Schema

Webhook:

trigger:
name: ""
identifier: ""
enabled: true|false
description: ""
tags: {}
orgIdentifier: ""
projectIdentifier: ""
pipelineIdentifier: ""
source:
type: Webhook
spec:
type: Github
spec:
type: ""
spec:
connectorRef: ""
autoAbortPreviousExecutions: true|false
payloadConditions:
- key: ""
operator: ""
value: ""
- key: ""
operator: ""
value: ""
- key: ""
operator: ""
value: ""
headerConditions: []
actions: []

Schedule (Cron):

trigger:
name: ""
identifier: ""
enabled: true|false
tags: {}
orgIdentifier: ""
projectIdentifier: ""
pipelineIdentifier: ""
source:
type: Scheduled
spec:
type: Cron
spec:
expression: ""

Custom:

trigger:
name: ""
identifier: ""
enabled: true|false
description: ""
tags: {}
orgIdentifier: ""
projectIdentifier: ""
pipelineIdentifier: ""
source:
type: Webhook
spec:
type: Custom
spec:
payloadConditions: []
headerConditions: []

Example

Here's a Webhook Trigger for a Pipeline with Runtime Input settings. Runtime Input settings in a Pipeline result in the inputYaml section of the Trigger.

trigger:
name: mytrigger
identifier: mytrigger
enabled: true
description: ""
tags: {}
orgIdentifier: default
projectIdentifier: CD_Examples
pipelineIdentifier: YAML
source:
type: Webhook
spec:
type: Github
spec:
type: PullRequest
spec:
connectorRef: quickstart
autoAbortPreviousExecutions: false
payloadConditions:
- key: changedFiles
operator: Equals
value: filename
- key: sourceBranch
operator: Equals
value: foo
- key: targetBranch
operator: Equals
value: bar
headerConditions: []
actions: []
inputYaml: |
pipeline:
identifier: YAML
stages:
- stage:
identifier: Deploy
type: Deployment
spec:
infrastructure:
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: Kubernetes_Quickstart
namespace: default
- stage:
identifier: Canary
type: Deployment
spec:
infrastructure:
environmentRef: helmchart
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: Kubernetes_Quickstart
namespace: default

See also:

Input Sets and Overlays

Harness Input Sets are collections of runtime inputs for a Pipeline provided before execution. Runtime inputs contain the values that you would be prompted to provide when you executed the Pipeline.

Overlays are groups of Input Sets. Overlays enable you to provide several Input Sets when executing a Pipeline.

Schema

The Input Set YAML depends on the settings in your Pipeline that use Runtime Inputs.

Input Set:

inputSet:
name: ""
tags: {}
identifier: ""
orgIdentifier: ""
projectIdentifier: ""
pipeline:
identifier: ""
stages:
- stage:
identifier: ""
type: ""
spec:
infrastructure:
infrastructureDefinition:
type: ""
spec:
connectorRef: ""
namespace: ""

Overlay:

overlayInputSet:
name: ""
identifier: ""
orgIdentifier: ""
projectIdentifier: ""
pipelineIdentifier: ""
inputSetReferences:
- ""
- ""
tags: {}

Example

Input Set:

inputSet:
name: My Input Set 1
tags: {}
identifier: My_Input_Set
orgIdentifier: default
projectIdentifier: CD_Examples
pipeline:
identifier: YAML
stages:
- stage:
identifier: Deploy
type: Deployment
spec:
infrastructure:
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: Kubernetes_Quickstart
namespace: default
- stage:
identifier: Canary
type: Deployment
spec:
infrastructure:
environmentRef: helmchart
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: Kubernetes_Quickstart
namespace: default

Overlay:

overlayInputSet:
name: My Overlay Set
identifier: My_Overlay_Set
orgIdentifier: default
projectIdentifier: CD_Examples
pipelineIdentifier: YAML
inputSetReferences:
- My_Input_Set
- My_Input_Set_2
tags: {}

See also:

Connectors

Connectors contain the information necessary to integrate and work with 3rd party tools.

Harness uses Connectors at Pipeline runtime to authenticate and perform operations with a 3rd party tool.

In the visual editor, Connectors can be added inline as your build your Pipeline.

In YAML editor, Connectors are not configured inline. You can only reference existing Connectors.

When you create a Connector, you can use YAML.

Here's what the YAML for a Connector looks like:

connector:
name: cd-doc
identifier: cddoc
description: ""
orgIdentifier: default
projectIdentifier: CD_Examples
type: K8sCluster
spec:
credential:
type: InheritFromDelegate
delegateSelectors:
- example

You reference a Connector in your Pipeline by using its Id in connectorRef:

...
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: cddoc
namespace: default
releaseName: release-<+INFRA_KEY>
...

See also:


Please Provide Feedback
