This topic describes what is Relay Proxy and how to use it with Harness Feature Flags (FF).

The Relay Proxy enables your apps to connect directly to Feature Flag services without having to make a significant number of outbound connections to FF services. Relay Proxy establishes a connection to the Feature Flags configuration data and relays that connection to clients in an organization's network.

Before You Begin

Why Relay Proxy?

In the following cases, you might want to set up Relay Proxy:

Air-gap Deployments: You can deploy the proxy in your network if you don't have or can't allow external access to your apps. Local apps connect directly to the proxy, and the proxy has external access to the remote feature flag service to synchronize configuration.

Offline Mode: This is identical to air-gaped, except that the proxy does not have a connection to the internet. In that scenario, the configuration must be loaded from the outside using configuration files. Configuration files are used to link your programmes to the proxy.

High Availability / Reliability: The feature flag service is extremely reliable. We will fail over to the failover cluster in the event of a major failure. However, in the event of a full network loss, the Relay Proxy ensures that your apps continue to run even after restarts.

If you decide to use the Relay Proxy, make sure it has a good place in your network design. For your app to run, it needs to be able to contact the Relay Proxy, and the architecture differs depending on the type of app. For example, if you want to link the Relay Proxy to any client-side apps, don't put it inside a firewall.

Relay Proxy Architecture

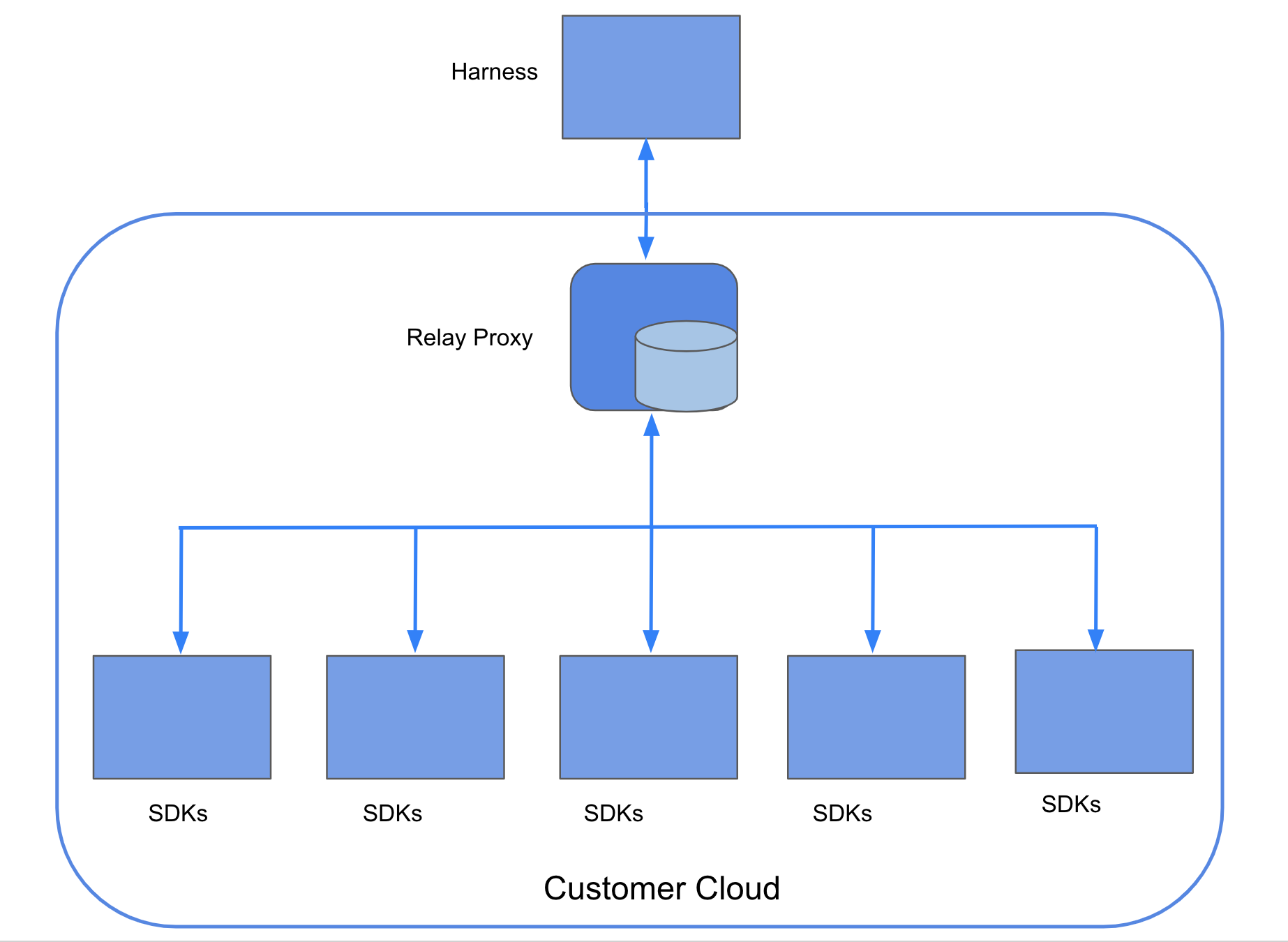

The following diagram displays how Relay Proxy communicates with your apps and Harness Feature Flags:

The FF Relay Proxy resides between the SDKs and the hosted Harness Feature Flag services. On startup, proxy loads the necessary data from the FF services to ensure that it is completely functional even if the network connection drops temporarily.

The Proxy creates an instance of the Go SDK for each API key that’s passed to it as a part of the Proxy Configuration, and each instance of the SDK uses the Cache implementation. The Go SDK then takes care of populating this cache on startup and keeping it up to current whenever the remote service changes. When the Go SDK starts up, it retrieves all of the Features and Segments and then sends a request to the remote server to listen for any updates. Whenever there is an update in the remote service, it sends out an event, and when the embedded SDK sees one of these events, it sends a request to the remote service to get the most recent flag values and save them to the cache.

The Proxy can also use streaming functionality if it is configured with Redis. See Proxy Configuration to view the variables that you need to configure for Redis.

Configuration Variables

The configuration variables used in the proxy are listed in the following table:

Environment Variable

Type

Flag

Example

Usage

ACCOUNT_IDENTIFIER

string

-account-identifier

zAbbD-FLS425IEO7OLzXYz

The Account that you want the Proxy to pull down and load config for

ORG_IDENTIFIER

string

-org-identifier

featureflagsqa

The Organization that you want the Proxy to pull down and load config for

ADMIN_SERVICE

string

-admin-service

https://qa/harness.io/gateway/cf

Used for creating the Client that interacts with the FeatureFlags Admin Service to retrieve Target and AuthConfig

SERVICE_TOKEN

string

-service-token

ZHNvdWZoNjczMjR0aGZiLWk1NC0tMGRzZg==

Token that the Proxy can use to authenticate with the Admin service

AUTH_SECRET

string

-auth-secret

somethingSecret

A secret that is used by the proxy to sign the JWTs that it sends to the SDKs

SDK_BASE_URL

string

-sdkBaseUrl

https://config.feature-flags-qa.harness.io/api/1.0

The Base URL that the internal Go SDK connects to

SDK_EVENTS_URL

string

-sdkEventsUrl

https://event.feature-flags.qa.harness.io/api/1.0

The Event URL that the internal Go SDK connects to

API_KEYS

string

-apiKey

5ecb5049-e071-4beb-ae43-381aa8f0d3a2, a7cb7fc6-c4fa-4ecb-b01f-068456f3e500

The API Keys of the environments you want to configure the Proxy to work with.

For example, create an SDK key called Proxy Key in your Environment and pass it in via the API_KEYS env. Then all the other applications in that Environment would be able to use the Proxy.

TARGET_POLL_DURATION

int

target-poll-duration

30

Time in seconds that determines how frequently the Proxy polls Feature Flags to get the latest Targets

REDIS_ADDRESS

string

redis-address

localhost:6379

Configures the Proxy to use Redis rather than an in-memory cache.

Configuring the Proxy with Redis also enables streaming

REDIS_PASSWORD

string

redis-password

a-secret

(Optional) This is required only if the Redis server is password protected

REDIS_DB

int

redis-db

1

(Optional) After connecting to the Redis server, it allows you to select which database to use. In most cases using the default database is desired

FLAG_STREAM_ENABLED

boolean

flag-stream-enabled

true

Allows the proxy to get flag updates by connecting to Harness in streaming mode.

This variable defaults to true. While updating Harness flags, if you have networking issues when receiving streaming events, set this to false.

FLAG_POLL_INTERVAL

int

flag-poll-interval

5

How often (in minutes) the proxy polls for flag updates. This variable applies only if FLAG_STREAM_ENABLED is set to false.

What Data Does the Proxy Store?

The Proxy stores authentication, feature, target, and segment configurations in a cache.

  • Keys are stored against a map of fields and values in the feature, target, and segment settings.
  • The authentication configuration is stored as a key-value pair, with the key being a hashed API key and the value being an environment ID.

When the proxy starts, an embedded Go server SDK retrieves the Feature and Segment config and populates the cache.

How Does Proxy Fetch Client and Server SDK Configuration Details?

Client and Server SDKs fetch the evaluation details in the same way as they would if they were interacting with the FF Services on ff-server.

Blog Post

The following blog post walks you through Relay Proxy:

In-Depth: Harness Feature Flags Relay Proxy
