Harness CD GitOps Quickstart

Updated 1 month ago by Michael Cretzman

Currently, this feature is behind the feature flags ARGO_PHASE1 and ARGO_PHASE2_MANAGED. Contact Harness Support to enable the feature.

Harness provides native GitOps functionality that lets you deploy services by syncing the Kubernetes manifests in your source repos with your target clusters.

What is GitOps? GitOps automates Kubernetes-based deployments by syncing declarative specifications (your manifests) with your target environments. In GitOps, Git is the single source of truth for the desired state of a cluster and its applications. GitOps continually converges the target state (cluster) in accordance with the desired state (manifests). This method turns your deployed applications and infrastructures into fully-traceable and fully-versioned artifacts.

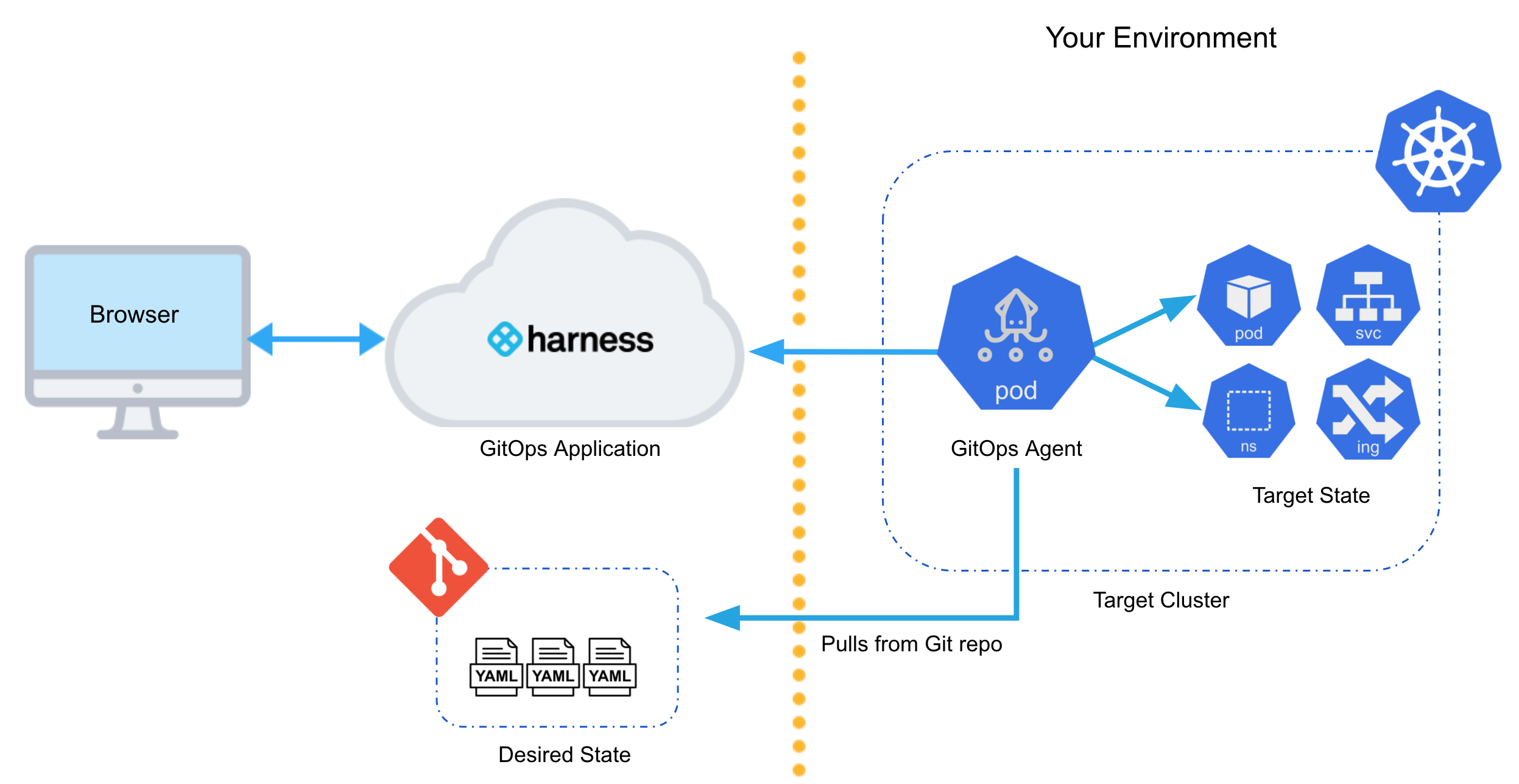

You set up Harness GitOps by installing a GitOps Agent in your environment. Next, you define how to manage the desired and target state in a GitOps Application in Harness. The GitOps Agent performs the sync operations defined in the Application and reacts to events in the source and target states.

This quickstart shows you how to set up Harness GitOps using one of your Kubernetes clusters.

Objectives

You'll learn how to:

  • Install a Harness GitOps Agent in your target cluster.
  • Set up a Harness GitOps Cluster to points to the target cluster.
  • Set up a Harness GitOps Repository that points to the source manifest repo.
  • Set up a Harness GitOps Application that collects the Agent Cluster, and Repository, and defines the sync policy for GitOps.
  • Perform GitOps using your Harness GitOps Application.

For a quick summary of Harness GitOps concepts, see Harness GitOps Basics.

Before You Begin

  • (Optional) GitHub and DockerHub account: this quickstart uses a publicly available manifest in GitHub and a public Docker image. You will be using anonymous credentials for connection, but you can use your own credentials if you like.
    We'll be using public manifests from https://github.com/argoproj/argocd-example-apps.
  • Target Kubernetes cluster: you can use a cluster in any cloud platform. Harness makes a platform-agnostic connection to the cluster.

Set up your Kubernetes Cluster

You'll need a target Kubernetes cluster for the Harness GitOps Agent and deployment. Ensure your cluster meets the following requirements:

  • Number of nodes: 2.
  • vCPUs, Memory, Disk Size: the Harness GitOps Agent only needs 1vCPUs, 2GB memory, 20GB disk, but you'll also be running Kubernetes and the deployed service.
    A cluster with 2vCPUs, 8GB memory, 50GB disk is sufficient. In GKE, the e2-standard-2 machine type is enough for this quickstart.
  • Networking: outbound HTTPS for the Harness connection to app.harness.io, github.com, and hub.docker.com. Allow TCP port 22 for SSH.
  • Kubernetes service account with the permissions need to create your desired state. The Harness GitOps Agent requires either cluster-admin or admin permissions in the target namespace:
    • Create Deployment, Service, StatefulSet, Network Policy, Service Account, Role, ClusterRole, RoleBinding, ClusterRoleBinding, ConfigMap, Secret.
    • Permission to apply CustomResourceDefinition.
      For more information, see User-Facing Roles from Kubernetes.

Step 1: Add a Harness GitOps Agent

A Harness GitOps Agent is a worker process that runs in your environment and performs GitOps tasks.

You need to set up an Agent before you can set up a Cluster, Repository, or Application, as the Agent is selected in all three of these.

Typically, you install the Agent in the target cluster, but you can install it any cluster and it can connect to remote clusters using the credentials you provide.

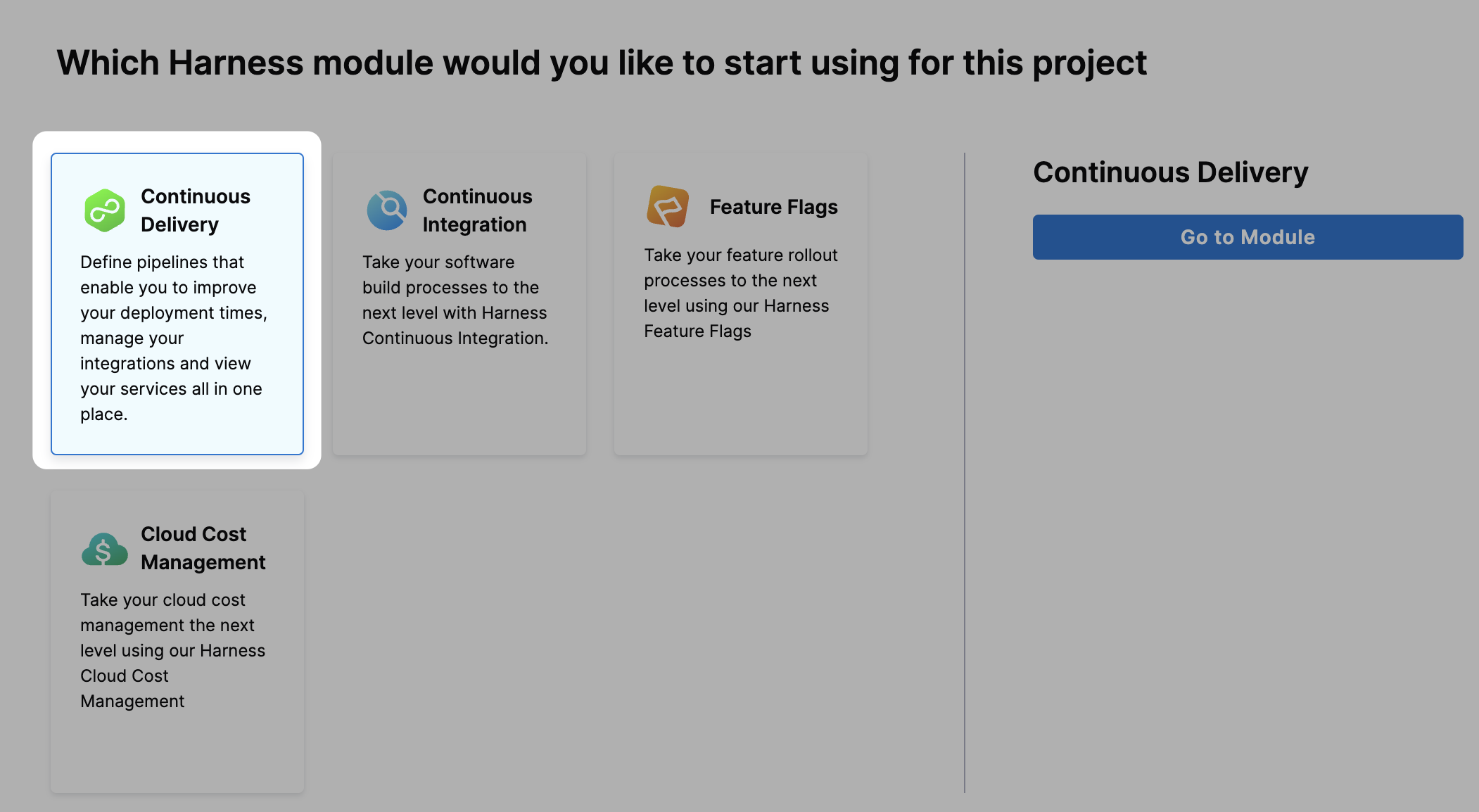

Ensure your Harness Project has the Continuous Delivery module enabled.

In your Harness Project, click GitOps.

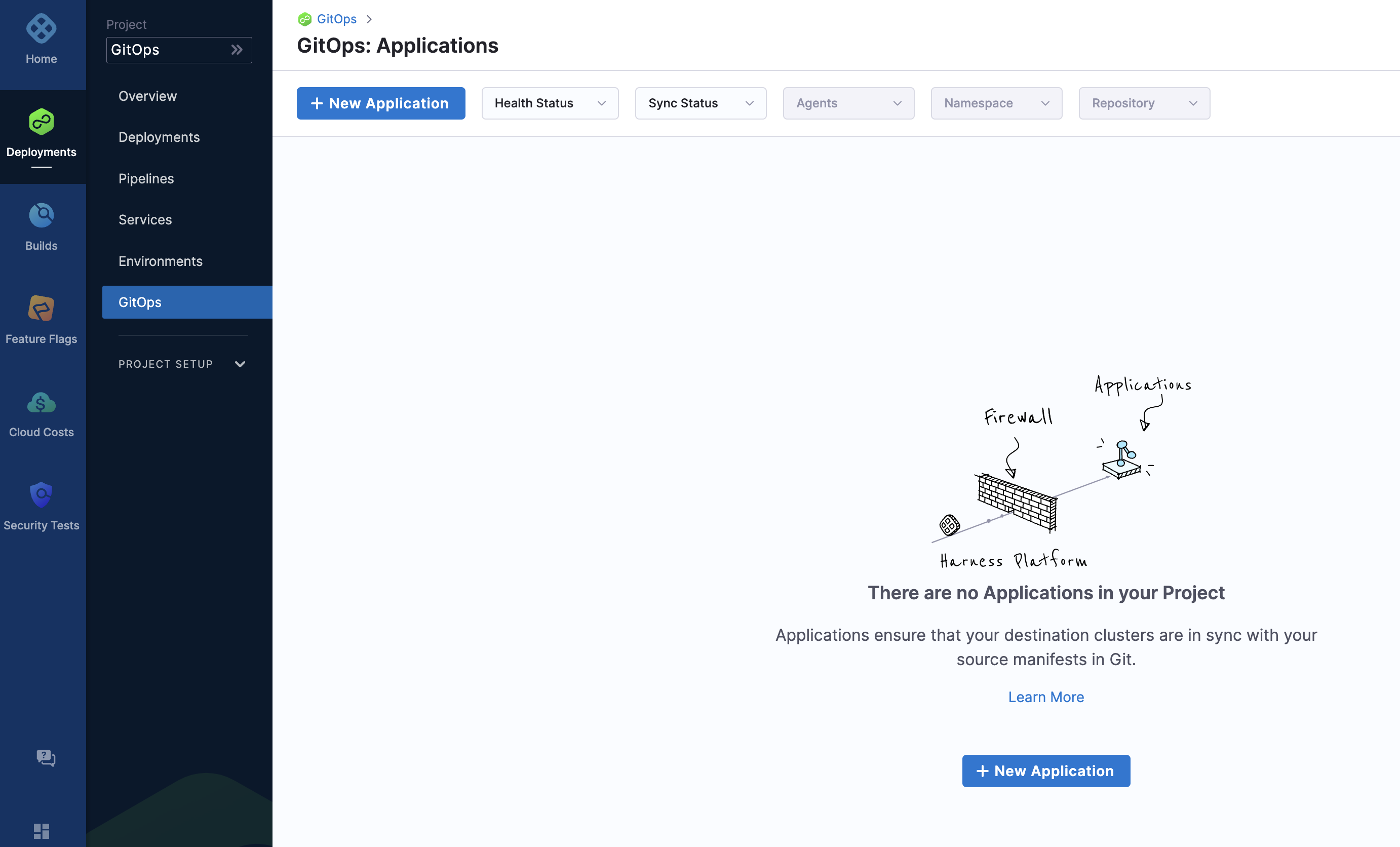

The Harness GitOps Overview, Applications, and Settings appear. If this is the first time GitOps has been set up in the Project, the Applications will be empty.

All entities other than Applications are in Settings.

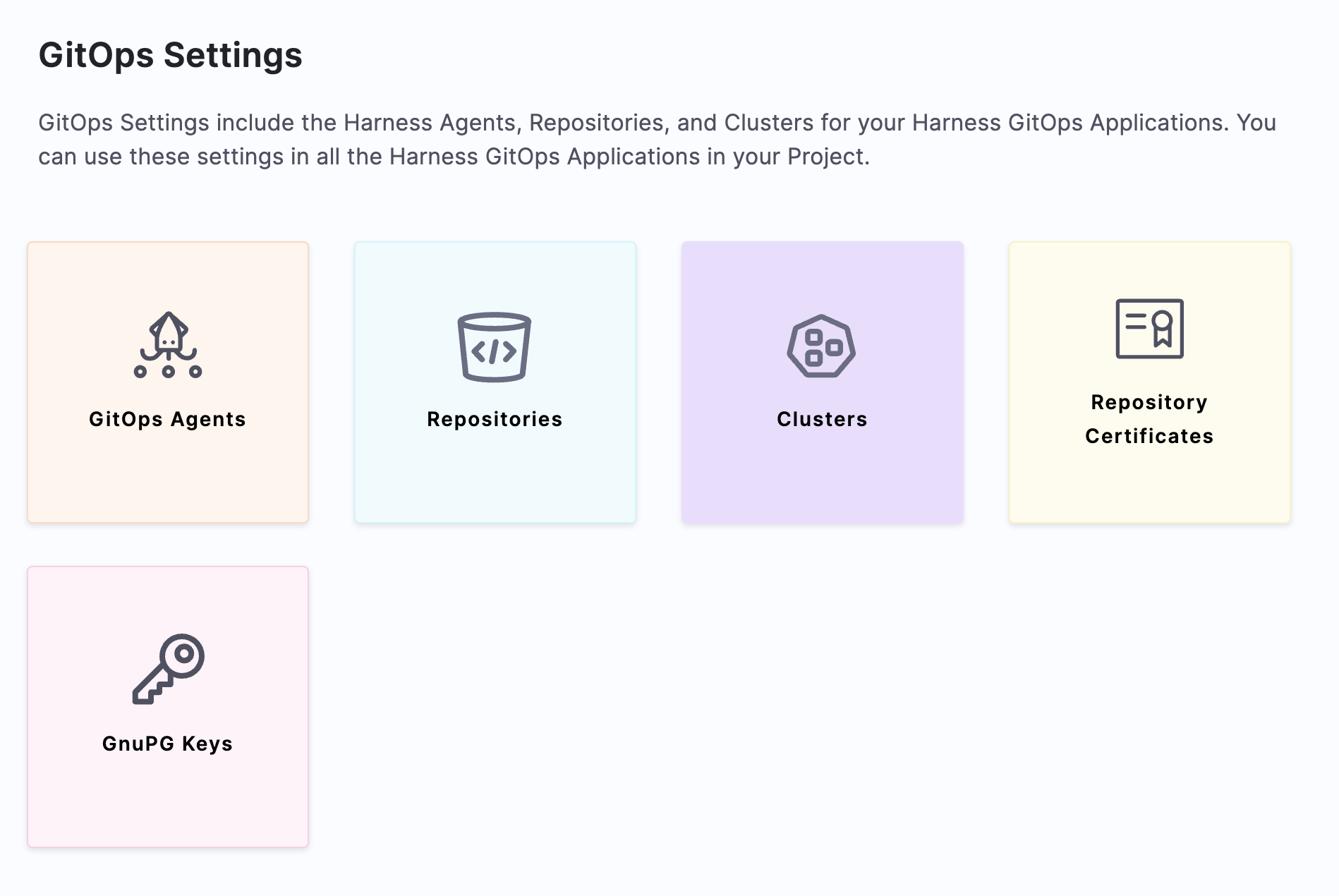

Click Settings. The Harness GitOps settings appear.

Click GitOps Agents.

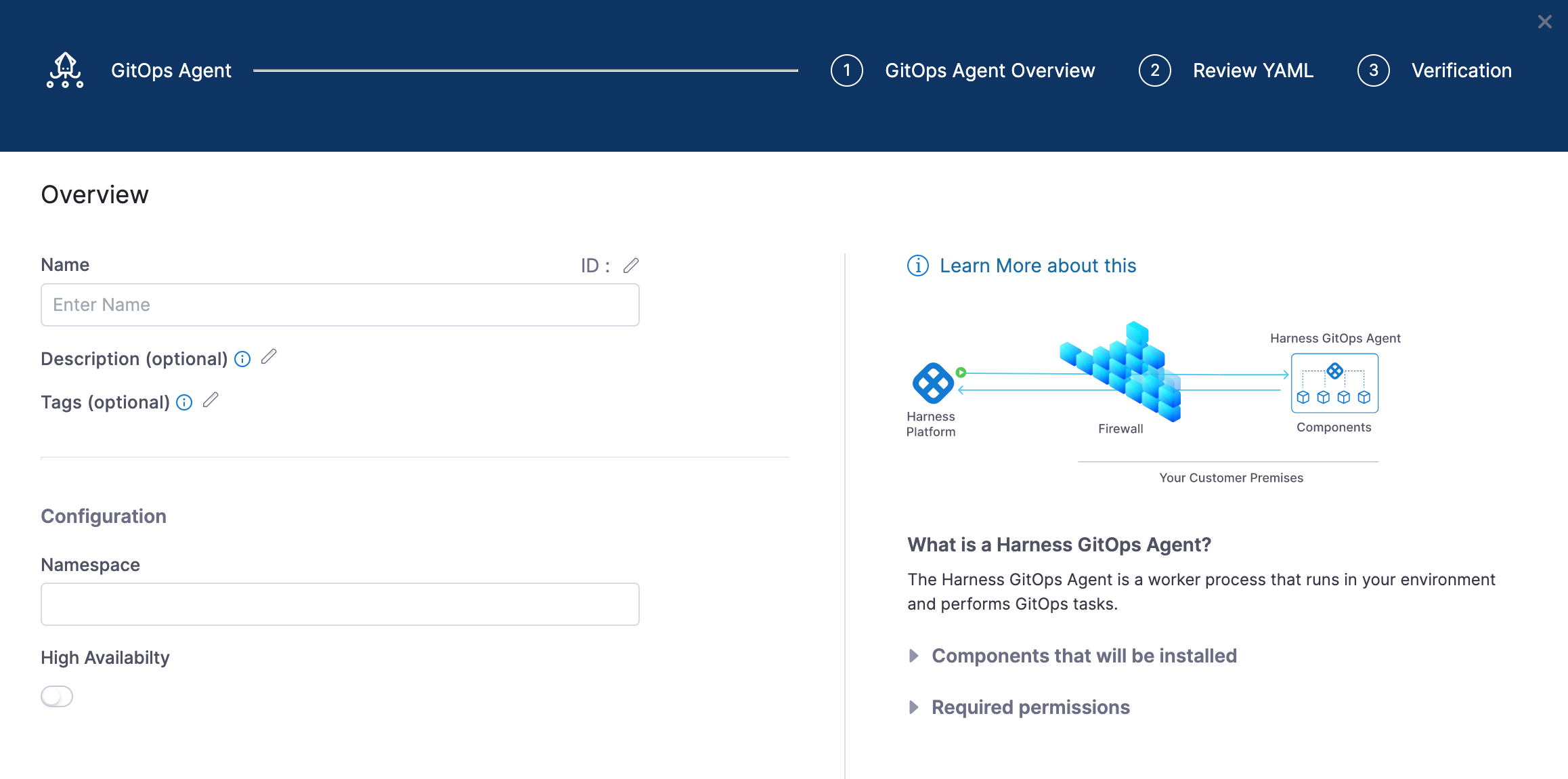

Click New GitOps Agent. The Agent wizard appears.

In Name, enter the name example.

In Namespace, enter the namespace where you want to install the Harness GitOps Agent. Typically, this is the target namespace for your deployment. For this quickstart, we use default.

Click Next. The Review YAML settings appear.

This is the manifest YAML for the Harness GitOps Agent. You will download this YAML file and run it in your Harness GitOps Agent cluster.

Click Download & Continue. You are prompted to save the YAML file.

Open a terminal and navigate to the folder where you downloaded the YAML file.

In the same terminal, log into the Kubernetes cluster where you want to install the Agent.

For example, here's a typical GKE login:

gcloud container clusters get-credentials <cluster_name> --zone us-central1-c --project <project_name>

Run the following command to apply the YAML file you downloaded (in this example, default was the namespace entered in the Namespace setting):

kubectl apply -f gitops-agent.yaml -n default

In this output example you can see all of the Harness GitOps objects created in Kubernetes:

% kubectl apply -f harness-gitops-agent.yaml -n default
customresourcedefinition.apiextensions.k8s.io/applications.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/appprojects.argoproj.io created
serviceaccount/argocd-application-controller created
serviceaccount/argocd-redis created
serviceaccount/example-agent created
role.rbac.authorization.k8s.io/example-agent created
role.rbac.authorization.k8s.io/argocd-application-controller created
clusterrole.rbac.authorization.k8s.io/argocd-application-controller-default created
clusterrole.rbac.authorization.k8s.io/example-agent created
rolebinding.rbac.authorization.k8s.io/argocd-application-controller created
rolebinding.rbac.authorization.k8s.io/argocd-redis created
clusterrolebinding.rbac.authorization.k8s.io/argocd-application-controller-default created
rolebinding.rbac.authorization.k8s.io/example-agent created
clusterrolebinding.rbac.authorization.k8s.io/example-agent created
configmap/argocd-cm created
configmap/argocd-cmd-params-cm created
configmap/argocd-gpg-keys-cm created
configmap/argocd-rbac-cm created
configmap/argocd-ssh-known-hosts-cm created
configmap/argocd-tls-certs-cm created
secret/argocd-secret created
service/argocd-metrics created
service/argocd-redis created
service/argocd-repo-server created
deployment.apps/argocd-redis created
deployment.apps/argocd-repo-server created
statefulset.apps/argocd-application-controller created
networkpolicy.networking.k8s.io/argocd-application-controller-network-policy created
networkpolicy.networking.k8s.io/argocd-redis-network-policy created
networkpolicy.networking.k8s.io/argocd-repo-server-network-policy created
secret/example-agent created
configmap/example-agent created
deployment.apps/example-agent created
configmap/example-agent-upgrader created
role.rbac.authorization.k8s.io/example-agent-upgrader created
rolebinding.rbac.authorization.k8s.io/example-agent-upgrader created
serviceaccount/example-agent-upgrader created
Warning: batch/v1beta1 CronJob is deprecated in v1.21+, unavailable in v1.25+; use batch/v1 CronJob
cronjob.batch/example-agent-upgrader created

Back in Harness, click Continue.

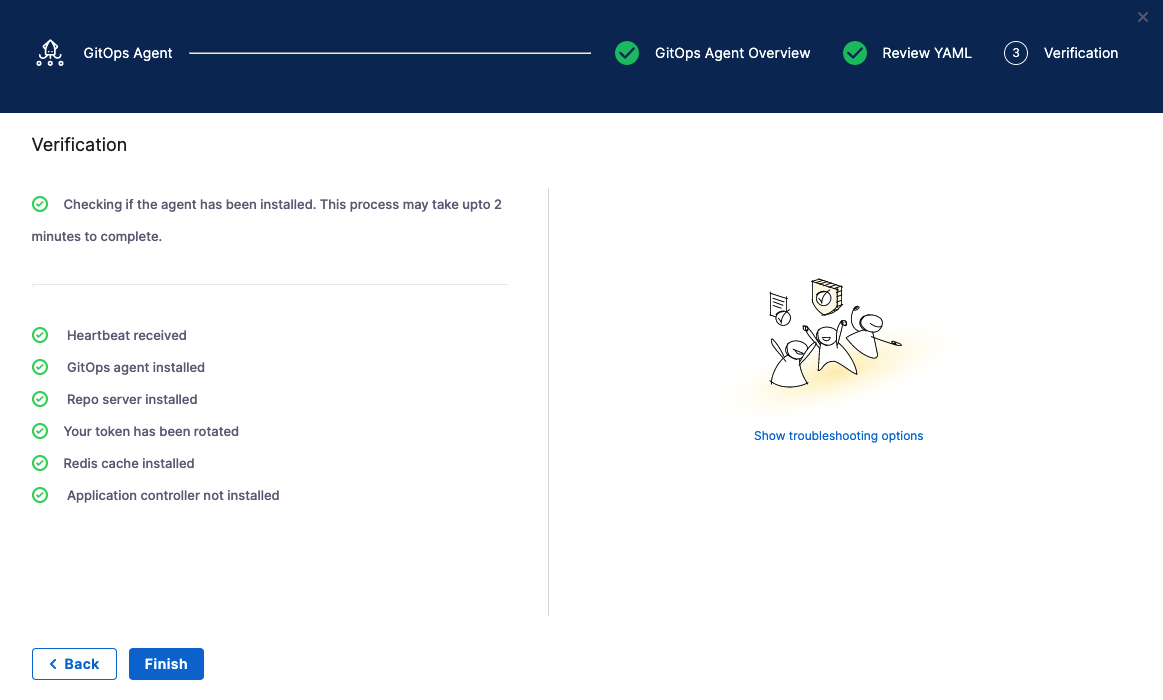

Harness indicates that the Harness GitOps Agents is registered.

Click Finish.

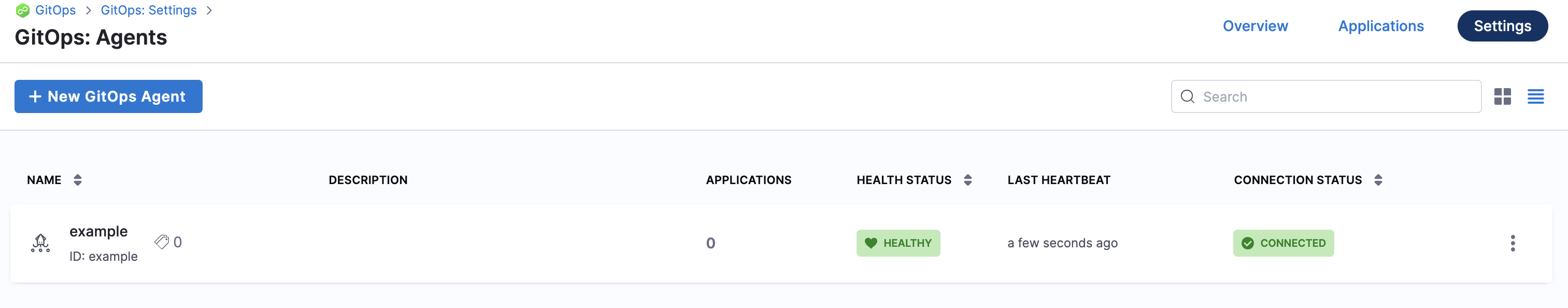

The Agents list shows the new Agent as Healthy and Connected.

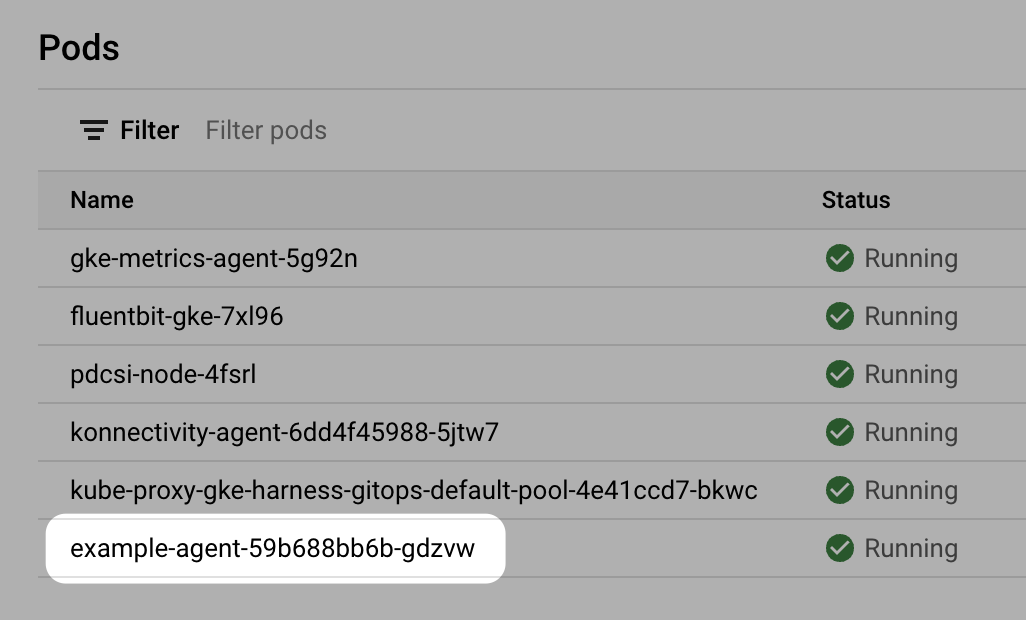

In your cloud platform Kubernetes cluster you can see the agent workload:

Now that you have the Harness GitOps Agent installed, running, and registered, you can configure the remaining components.

Step 2: Add a Harness GitOps Repository

GitOps Repositories store the source manifests you want to sync with destination environments.

In the Repository setup, you will select the Agent to use when synching state.

You will also provide the credentials to use when connecting to the Git repository.

We're going to use a publicly available GitHub repo and manifests located at https://github.com/argoproj/argocd-example-apps/tree/master/guestbook. We'll make an anonymous connection, so no GitHub credentials are required.

In your Harness Project, click GitOps, and then click Settings.

Click Repositories.

Click New Repository.

In Specify Repository Type, click Git.

Enter the following.

In Repository Name, enter guestbook.

In GitOps Agent, select the Agent you just added and click Apply Selected.

For this quickstart, we'll make an anonymous connection to a GitHub repo over HTTPS.

In Repository URL, enter the URL: https://github.com/argoproj/argocd-example-apps.

Click Continue.

In Credentials, in Connection Type, select HTTPS.

In Authentication, select Anonymous.

Click Save & Continue. Harness validates the connection.

The connection is verified.

If you encounter errors, check that you have the correct repo URL and selected HTTPS.

Click Finish. You now have a Harness GitOps Repository added.

Step 3: Add a Harness GitOps Cluster

Clusters are the target deployment environments that are synced with the source manifests you add as GitOps Repositories.

In the Cluster setup, you will select the Harness GitOps Agent to use when synching state.

You will also provide the credentials to use when connecting to the target cluster. In this quickstart, we'll connect using the cluster master URL and a Service Account Token for the default namespace.

In your Harness Project, click GitOps, and then click Settings.

Click Clusters, and then click New Cluster.

In Name, enter example.

In GitOps Agent, select the Agent you added earlier in this quickstart, and then click Continue.

In Details, click Use the credentials of a specific Harness GitOps Agent. This Cluster will use the Agent's Kubernetes role permissions for connections.

Using Specify Kubernetes Cluster URL and credentials

If you want to use Specify Kubernetes Cluster URL and credentials, do the following:

In Master URL, enter the master URL for your cluster. You can just log into your cluster and run kubectl cluster-info. Use the URL listed in the output Kubernetes master is running at.

In Authentication, select Service Account.

In Service Account Token, paste in the Service Account Token for the cluster's default namespace.

To use a Kubernetes Service Account (SA) and token, you will need to either use an existing SA that has cluster-admin or admin permissions in the namespace, or create a new SA and grant it the permissions. This is described in Add a Kubernetes Cluster Connector.

Here's an example of a SA and ClusterRoleBinding with cluster-admin:

apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ServiceAccount
metadata:
name: harness-service-account
namespace: default
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
name: harness-admin
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: harness-service-account
namespace: default

To get a list of the SAs, run kubectl get serviceAccounts.

Once you have the SA, use the following commands to get its token (replace {SA name} with the Service Account name and {target namespace} with the target namespace name, such as default):

SERVICE_ACCOUNT_NAME={SA name}

NAMESPACE={target namespace}

SECRET_NAME=$(kubectl get sa "${SERVICE_ACCOUNT_NAME}" --namespace "${NAMESPACE}" -o=jsonpath='{.secrets[].name}')

TOKEN=$(kubectl get secret "${SECRET_NAME}" --namespace "${NAMESPACE}" -o=jsonpath='{.data.token}' | base64 -d)

echo $TOKEN

The token output is decoded and ready to be pasted into Harness.

In Namespace, enter default.

Click Save & Continue.

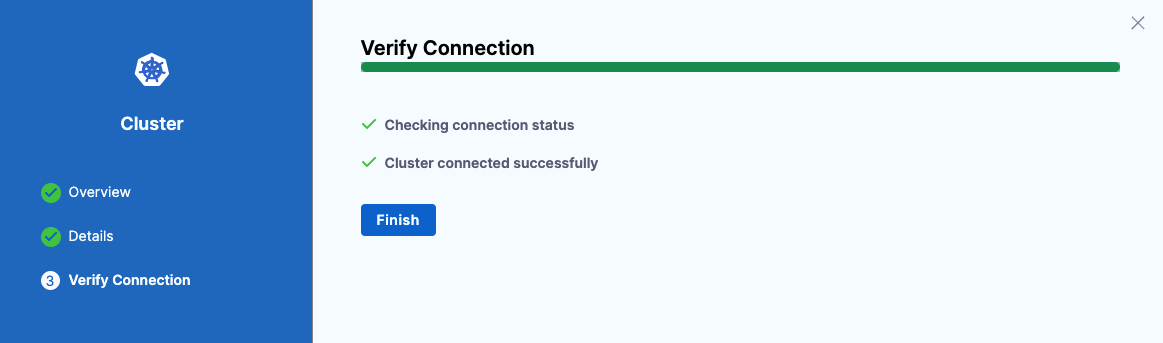

Harness validates the connection to the cluster from the Harness GitOps Agent.

In this quickstart, the Agent is running inside the target cluster, but you might use an Agent outside a target cluster in your own scenarios. So long as the Agent you select can connect to the target cluster's master URL, you can add the cluster in Harness GitOps.

Now that you have a Harness GitOps Agent, Repository, and Cluster set up, you're ready to add a Harness GitOps Application.

Step 4: Add a Harness GitOps Application

A GitOps Application syncs a source manifest with a target cluster using a GitOps Agent.

In the Application setup, you will select the Agent, Repository, and Cluster to use when synching state.

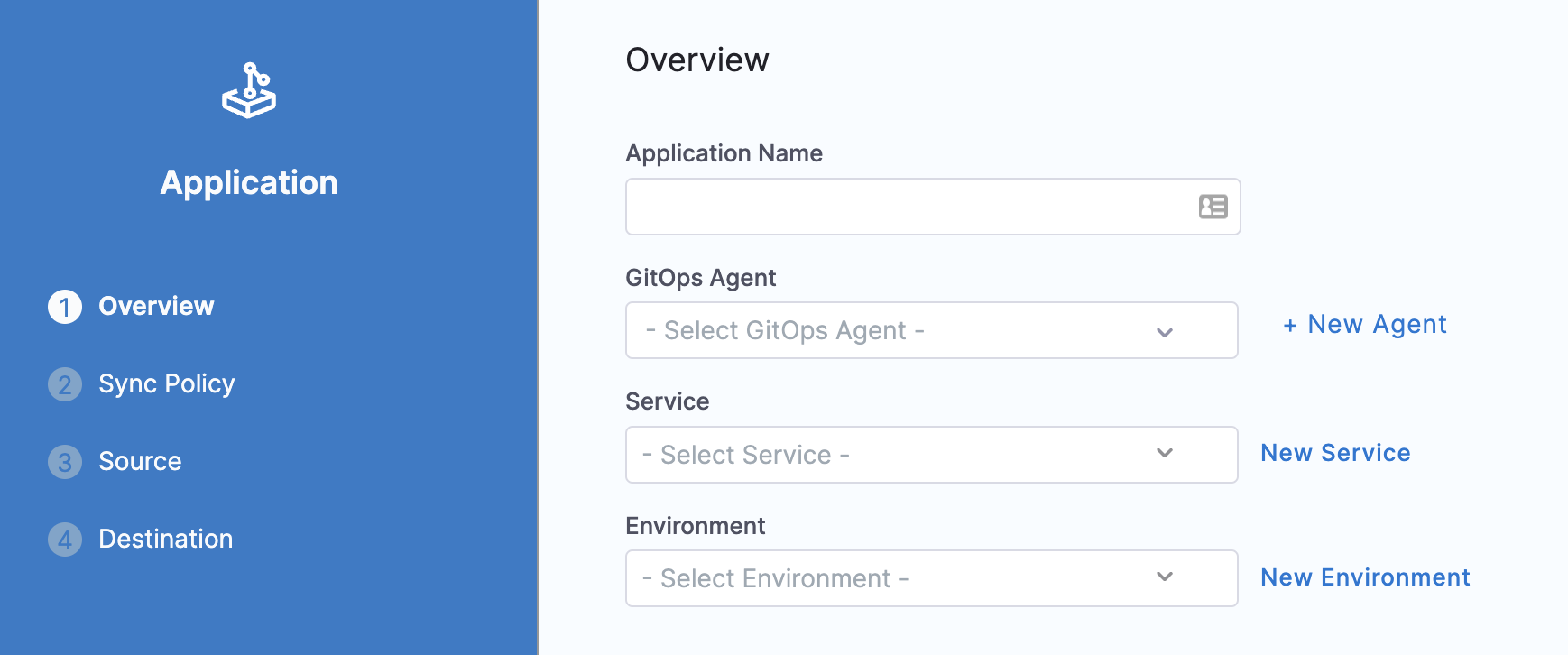

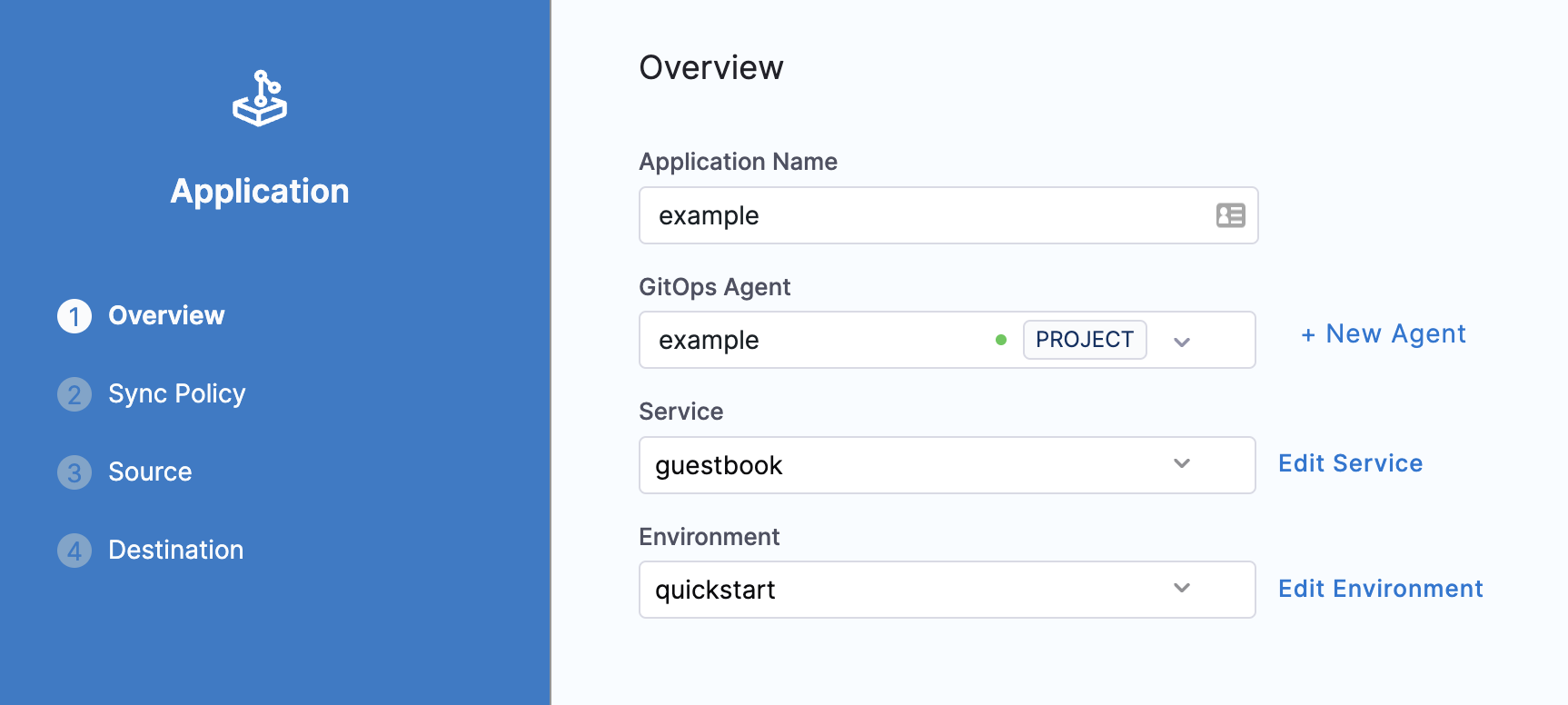

In your Harness Project, click GitOps, and then click New Application.

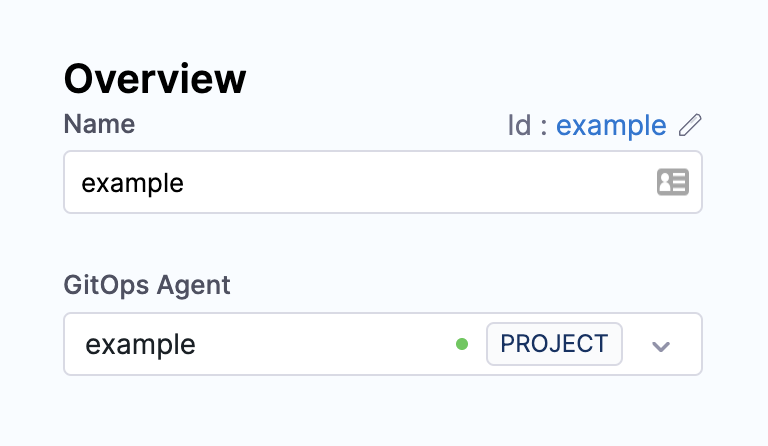

In Application Name, enter example.

In GitOps Agent, select the Agent you added earlier.

In Service, click New Service, and name the Service guestbook.

In Environment, click New Environment, name the Environment quickstart, and select Pre-Production.

Click Continue.

In Sync Policy, you can define the following:

  • Sync Options to define how the Application syncs state.
  • Prune Policy for garbage collection of orphaned resources.
  • The Source manifest to use (Kubernetes, Helm chart, Kustomization, etc).
  • The Destination cluster and namespace.

For this quickstart, we'll simply select a manual sync policy and no other options. You can change any of these settings by editing your Application or whenever you sync.

In Sync Policy, click Manual, and then click Continue.

In Source, you specify the source repo to use.

In Repository Type, click Git.

Click in Repository URL and select the URL you entered in your Harness GitOps Repository: https://github.com/argoproj/argocd-example-apps.

In Revision Type, select Branch.

In Revision, select master.

Wait a moment for Path to populate. Harness will pull the paths from the repo.

In Path, select helm-guestbook. This is the location of this app in the repo: https://github.com/argoproj/argocd-example-apps/tree/master/helm-guestbook.

In Helm, in Values Files, select values.yaml.

Scroll down to see Parameters. All of the parameters from values.yaml are displayed and can be edited. This lets you modify values.yaml parameters in your Harness GitOps Application.

Do not change the parameters for this quickstart.

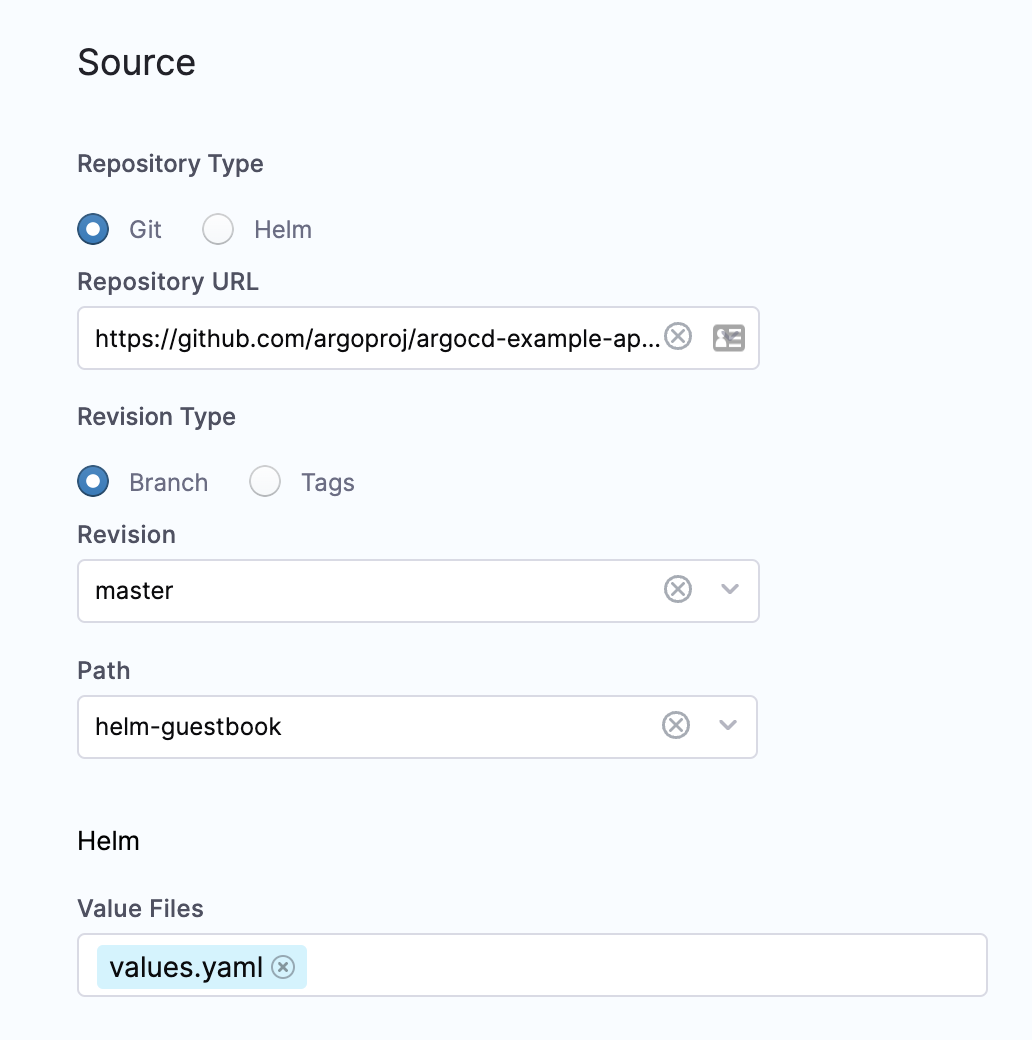

When you're done, Source will look like this:

Click Continue.

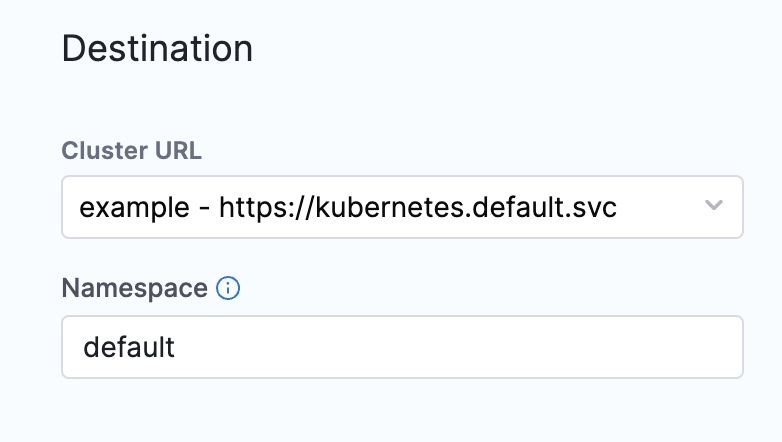

In Destination, click in Cluster URL and select the Cluster you added earlier. You can see its name and master URL. Since a Harness GitOps Cluster contains the authentication settings needed to access the cluster, your Harness GitOps Application can select any Cluster.

In Namespace, enter default.

Click Finish.

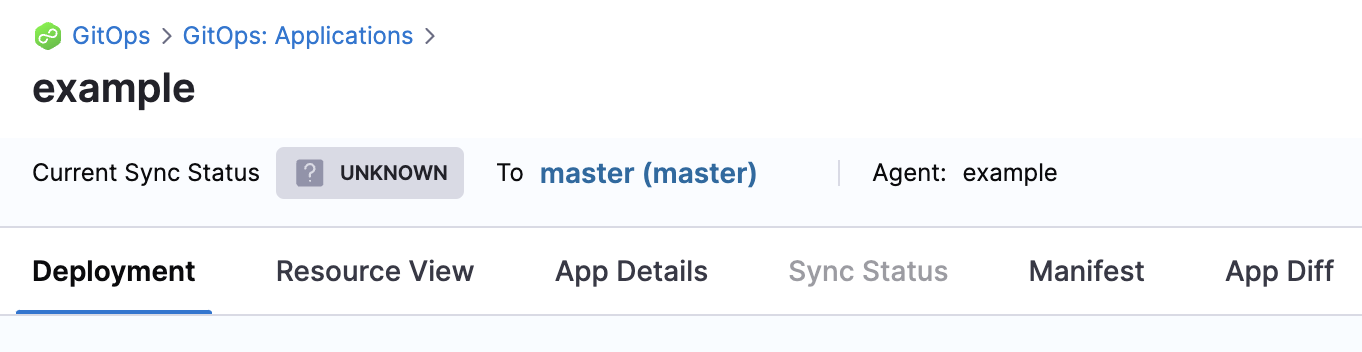

The new Application is created. At first, it will be UNKNOWN.

Now we can manually sync the Application.

Step 5: Perform GitOps

Now that you have everything set up, you can sync the source state with the desired state.

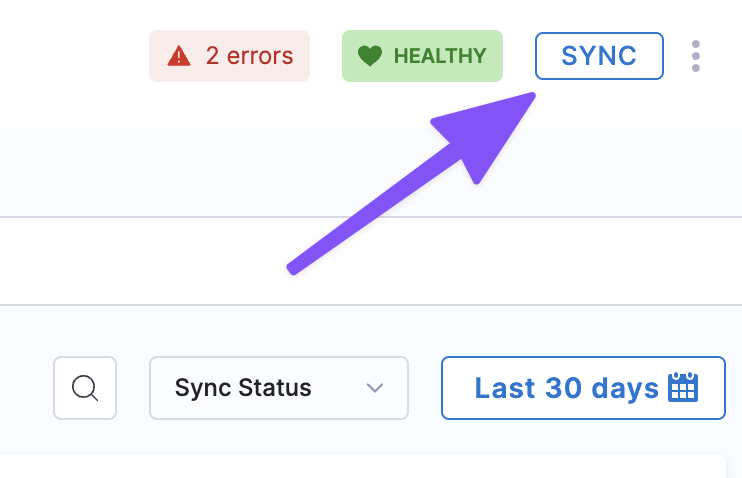

In your Application, click SYNC.

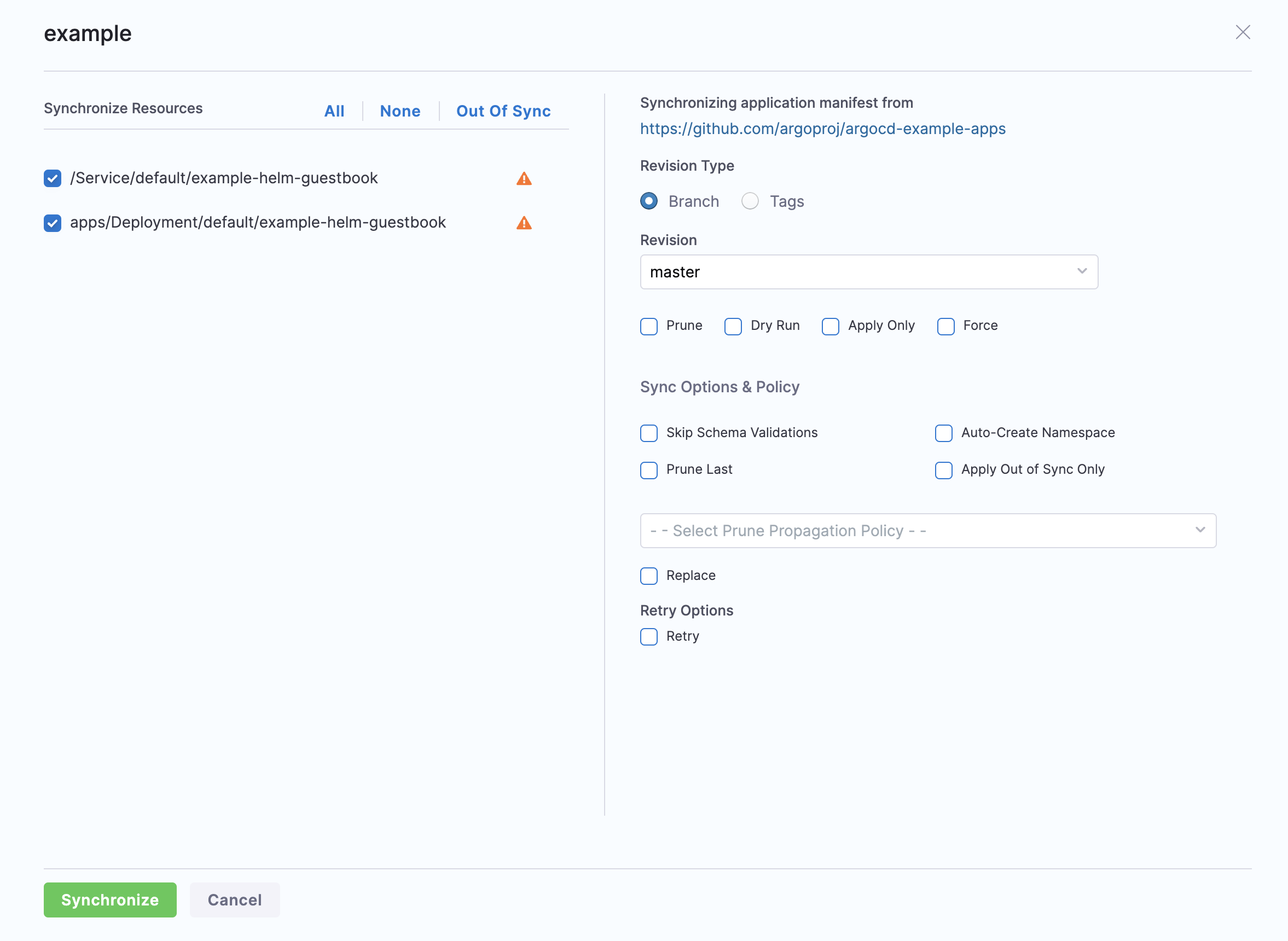

The Synchronize settings appear.

Here you can change any of the Sync Policy options you set in the Application.

Click Synchronize.

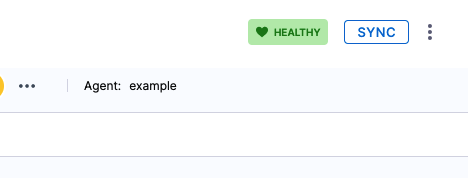

You will see the status Progressing and then HEALTHY.

Congratulations! You've performed GitOps with Harness!

Let's look in the cluster to verify the deployment.

kubectl get pods -n default

You will see the example-helm-guestbook Pods running.

NAME                                      READY   STATUS    RESTARTS   AGE
...
example-helm-guestbook-74b6547d8c-74ckv 1/1 Running 0 5m22s
...

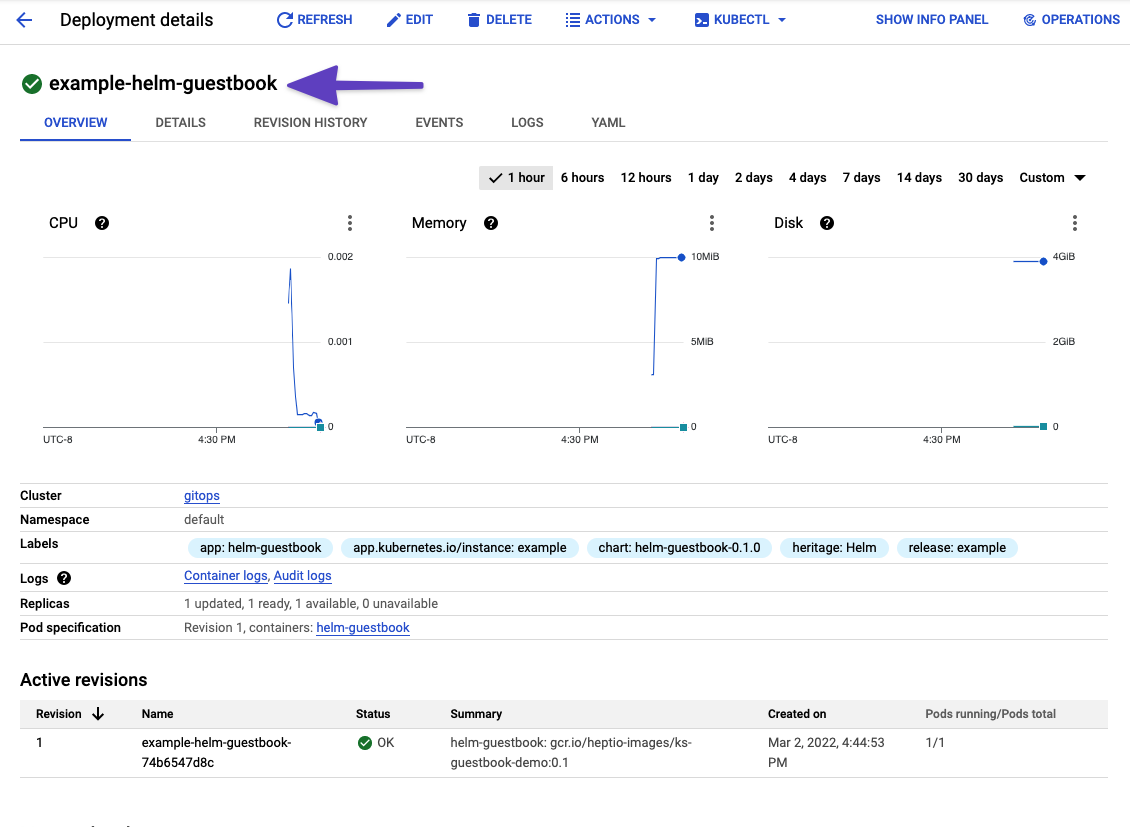

Here's what the deployment looks like in GCP.

Step 6: Using the Application

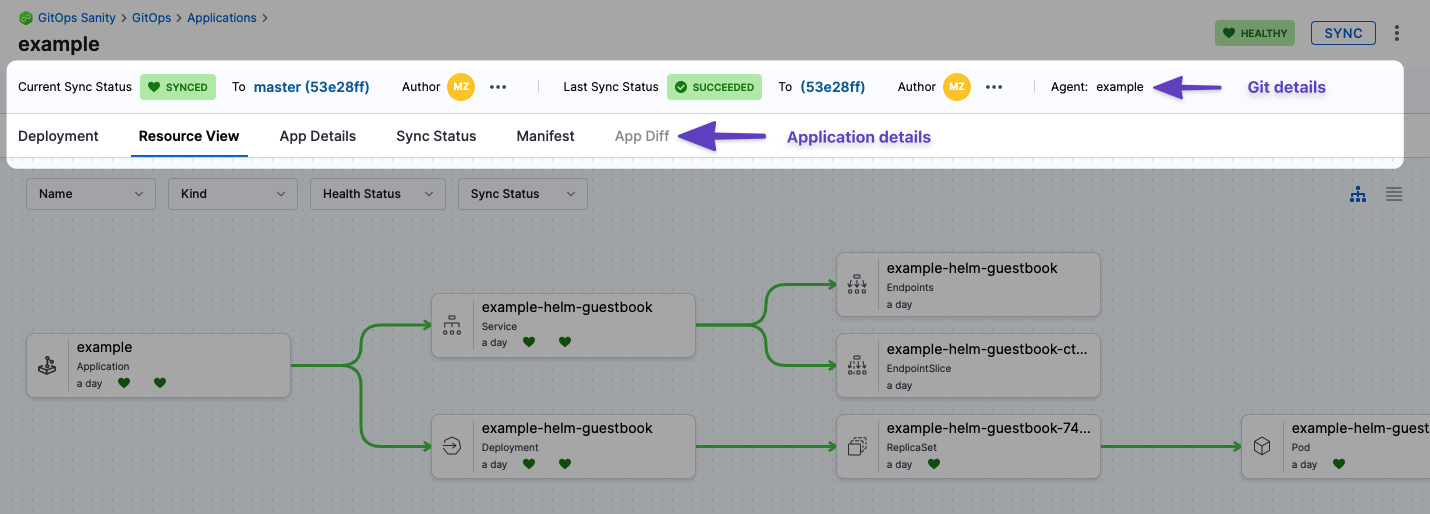

Back in your Harness Application, you can view details on sync status, desired and live states, and perform GitOps.

  • Git details: you can see the Git commit used as the source for the sync. Clicking the commit Ids opens the commit in the source provider.
  • Deployment: the deployments dashboard shows when the Application was deployed (synced).
  • Resource View: displays the desired to target state mapping of each Kubernetes object. Click any item to see its logs and manifest.
    The Resource View lets you inspect the live target infrastructure by:
    • Name: Kubernetes object names.
    • Kind: Kubernetes object types.
    • Health Status: the health status of the Application. For example, is it syncing correctly (Healthy)?
    • Sync Status: sort Kubernetes objects by their sync status.
  • App Details: displays the settings of the Application. You can edit the settings and apply your changes, including the Sync Options & Policy.
  • Sync Status: displays all of the sync operations performed by the Application.
  • Manifest: displays the manifest of the Application. This is not the same as the source manifest in the Git source repo.
    You can edit the manifest in Manifest and the changes are synced in the target infrastructure, but when you do a full sync from your source repo the state of the source repo overwrites any changes made in Manifest.
  • App Diff: displays a diff against the live state in the cluster and desired state in Git. Here's an example:

You can also initiate a Sync or Refresh from the main GitOps page.

Refresh will pull the latest commit from Git and display whether the current Sync State is Synced or Out of Sync. It does not sync with the live cluster state. You can Refresh, then use App Diff to view the diff between the desired Git state with the live cluster state.

Sync will sync the desired Git state with the live cluster state.

Cleaning Up

To delete the Harness GitOps Agent from your Kubernetes cluster, you delete the StatefulSet for the Agent. Once created, the StatefulSet ensures that the desired number of pods are running and available at all times. Deleting the pod without deleting the StatefulSet will result in the pod being recreated.

For example, if you have the Agent pod name gitops-agent-6877dbf7bf-wg6xv, you can delete the StatefulSet with the following command:

$ kubectl delete statefulset -n default gitops-agent-6877dbf7bf

You can also simply delete and recreate the namespace which will delete all resources except for RoleBindings, ServiceAccounts or NetworkPolicy:

kubectl delete namespace {namespace}

kubectl create namespace {namespace}

Next Steps

In this tutorial, you learned how to:

  • Install a Harness GitOps Agent in your target cluster.
  • Set up a Harness GitOps Cluster to points to the target cluster.
  • Set up a Harness GitOps Repository that points to the source manifest repo.
  • Set up a Harness GitOps Application that collects the Agent Cluster, and Repository, and defines the sync policy for GitOps.
  • Perform GitOps using your Harness GitOps Application.

Next, try Harness GitOps using one of your own repos and target clusters.


Please Provide Feedback
