Use delegate selectors

Harness runs tasks by using Harness Delegate to connect your environment to resources. Harness selects the best delegate based on previous use or round-robin selection. For more information, go to How Harness Manager picks delegates.

In some cases, you might want Harness to select specific delegates. In these cases, you can use the Delegate Selector settings in pipelines, connectors, and so on, with corresponding delegate tags.

note

If no delegate is selected for a CD step's Delegate Selector setting, Harness prioritizes the delegate that was successfully used for the infrastructure definition connector.

For more information, go to Which delegate is used during pipeline execution?.

Delegate tags

A delegate tag with the same name as your delegate is automatically added to your delegate during the configuration process. You can add one or more comma-separated tags on the helm command line or in the Kubernetes YAML file, as shown in the following example.

...
env:
....
- name: DELEGATE_TAGS
value: "tag1,tag2"
...

For Docker delegates, you can add tags using the following flag for your docker run command.

-e DELEGATE_TAGS="tag1, tag2, tag3"

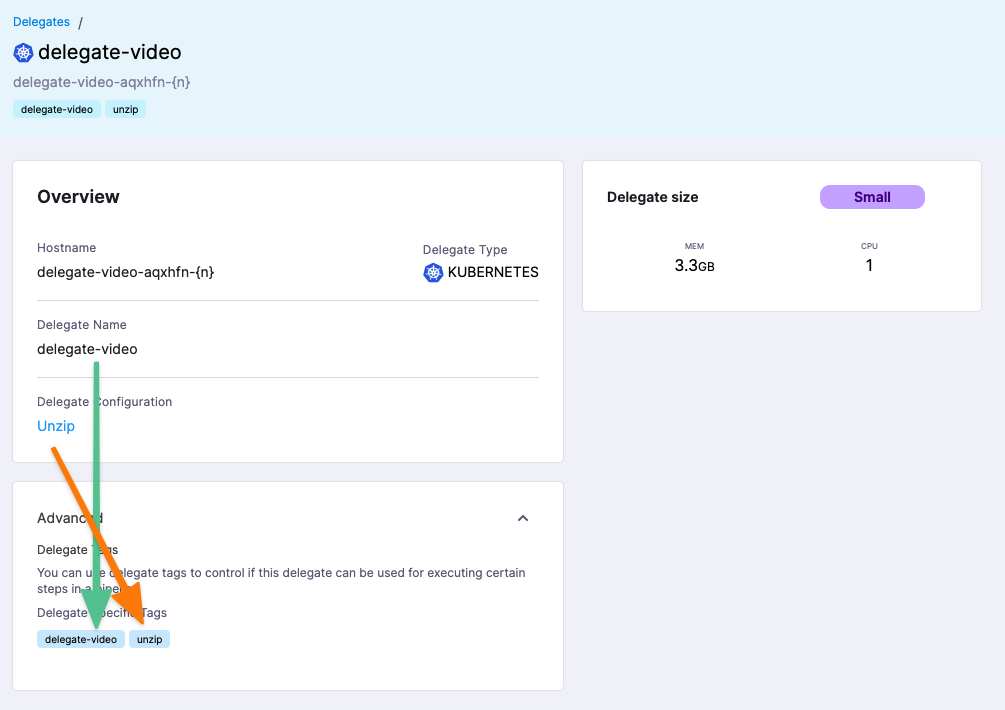

You can also add tags to the Tags field during the setup process:

For detailed information on how delegates are selected during execution, go to Delegate overview.

You can select a delegate based on its tags in the Delegate Selector settings of Harness entities like pipelines and connectors.

How does Harness handle multiple tags?

When you use multiple delegate tags in the Delegate Selector settings of a step, Harness selects only the delegate(s) that have all the selectors.

This means that if there are multiple tags, the delegate must match all of them to be selected. For instance, if you have a delegate with three tags and you only provide two of them in the Delegate Selector settings, the delegate is still eligible for selection as long as the two tags are present for that delegate.

Delegate selector priority

You can use delegate selectors at multiple places, such as the pipeline, stage, and step levels.

It's important to know which delegate selectors are given priority so that you ensure the correct delegate is used when you want it used.

The delegate selector priority is:

  1. Step
  2. Step Group
  3. Stage
  4. Pipeline
  5. Connector

The step level has the highest priority. Any delegate selected in a step's Delegate Selector setting overrides any delegates selected in 2-5 above.

A connector can be used in multiple places in a pipeline, such as a stage infrastructure's Cloud Provider setting or even in certain step settings.

Step and step group delegate selector

Delegates can be selected for steps and step groups in their Advanced settings.

Here is a step example:

Here is a step group example:

info

Step and step group delegator selectors are not available for Harness CI because CI stages run in self-contained build pods.

Select a delegate for a connector using tags

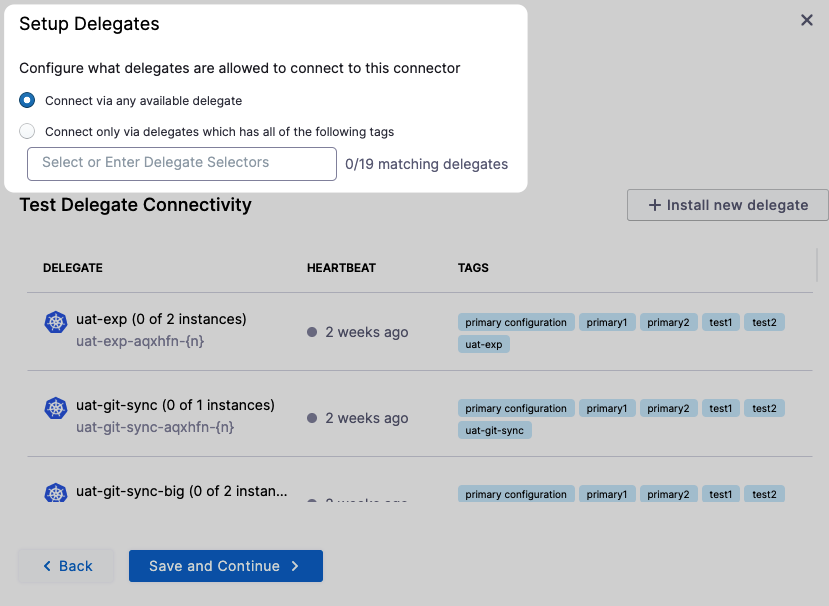

When you add a connector, you are given the option of connecting to your third-party account using any available delegate or specific delegates.

You select specific delegates using their tags.

You only need to select one of a delegate's tags to select it. All delegates with the tag are selected.

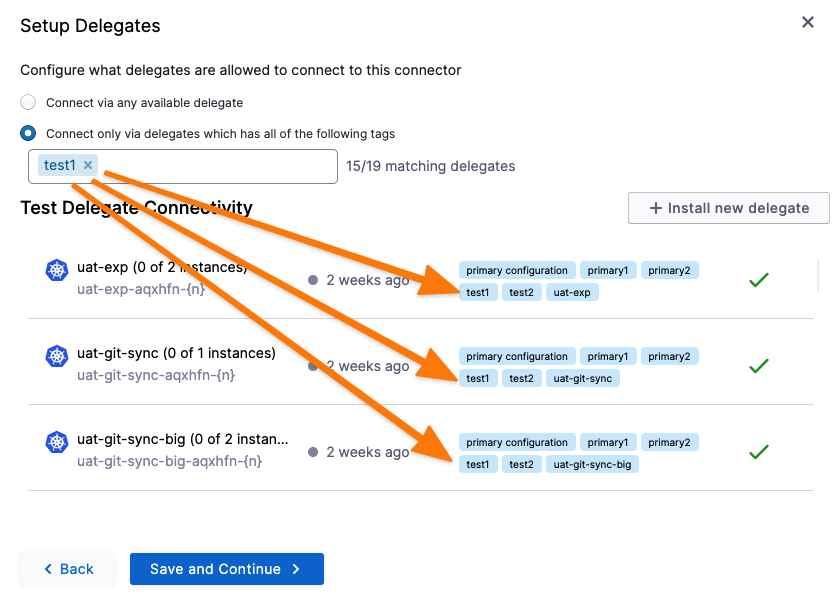

Here, the tag is test1, and you can see multiple delegates match it:

Pipeline delegate selector

Delegates can be selected for an entire pipeline in the pipeline Advanced Options settings.

Stage delegate selector

Delegates can be selected for an entire stage in the stage Advanced settings.

Infrastructure connector

Delegates can be selected for the connector used in a stage's Infrastructure settings, such as a CD stage's Cluster Details > Connector setting.

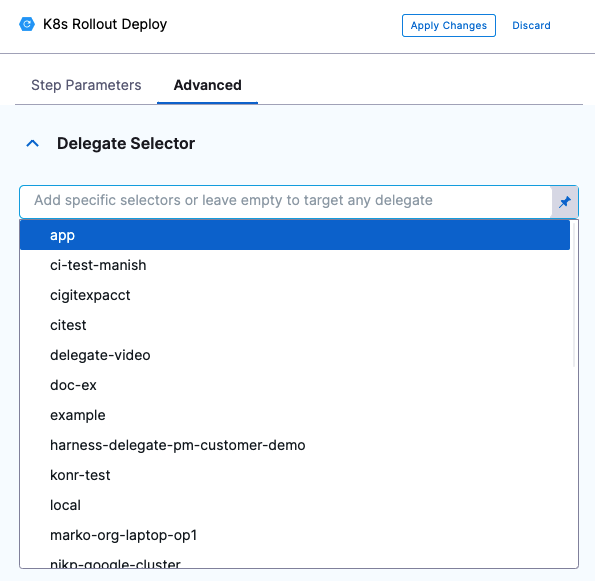

Select a delegate for a step using tags

You can select one or more delegates for each pipeline step.

In each step, in Advanced, in the Delegate Selector option:

You only need to select one of a delegate's tags to select it. All delegates with the tag are selected.

Modify tags using Harness API

Go to Delegate Group Tags Resource.

Define delegate selectors as a fixed value, runtime input, or expression

Delegate selectors in pipeline, stage, step, and step group can be defined as a fixed value, runtime input, or expression.

If you're using expressions, there are two options, either the entire list of delegate selectors can be an expression or elements of delegate selectors can be expressions.

In this example, we'll define a delegate selector in a step as an expression.

To define a delegate selector in a step as an expression:

  1. Open your pipeline and select your step.

  2. Select Advanced.

  3. Expand the Delegate Selector option.

  4. Select the Define Delegate Selector pencil icon. Harness displays the Fixed value, Runtime input, or Expression options. In this example, we'll define an expression.

  5. Select Expression.

    note

    Under Define Delegate Selector, the Delegate Selector option is selected by default. You can also use Delegate Selection Expression List to use the entire list of delegate selectors as an expression. In this example, we'll use the default Define Delegate Selector option.

  6. Enter your expression, for example <+org.description>.

    note

    You can also select a built-in expression from the list Harness generates as you type.

  7. (Optional) Select +Add to enter additional expressions.

  8. (Optional) Select *YAML to view your updated pipeline YAML.

  9. Select Save.
