Verify Deployments with Custom Health Source

Updated 1 month ago by Renu Bhaskaran

Harness offers support for all major APM vendors and log providers, but there are cases where a customized APM or log provider is needed. The Custom Health Source lets you customize APMs and log providers of your choice.

This topic covers how to add and configure Custom Health as a Health Source for the Verify step.

In this topic:

Before You Begin

Add Custom Health as a Verification Provider

Review: CV Setup Options

To use the Verify step, you will need a Harness Service Reliability Management Monitored Service. In the simplest terms, a Harness Monitored Service is a Service and Environment combination that Harness monitors for:

  • Any changes, such as deployments, infrastructure changes, and incidents
  • Any health trend deviations using logs and metrics obtained from APM and Logging tools, respectively

No matter where you set up the Monitored Service, once it's set up, it's available to both Service Reliability Management and CD modules.

In this topic, we set up the Harness Monitored Service as part of the Verify step setup.

Step 1: Add Verify Step

There are two ways to add the Verify step:

  • When selecting the stage deployment strategy:
    The Verify step can be enabled in a CD stage the first time you open the Execution settings and select the deployment strategy. When you select the deployment strategy you want to use, there is also an Enable Verification option. Select the Enable Verification option.
    Harness will automatically add the Verify step. For example, here is a stage where Canary strategy and the Enable Verification option were selected.
  • Add the Verify step to an existing Execution setup: You can also add the Verify step to the Execution section of a CD stage in a Pipeline you previously created. Simply click Add Step after the deployment step, and then select Verify.

Step 2: Enter a Name and Timeout

In Name, enter a name for the step.

In Timeout, enter a timeout value for the step.

You can use:

  • w for weeks
  • d for days
  • h for hours
  • m for minutes
  • s for seconds
  • ms for milliseconds

The maximum is 53w. Timeouts can be set at the Pipeline level also.

Step 3: Select a Continuous Verification Type

In Continuous Verification Type, select a type that matches your deployment strategy.

Step 4: Create a Monitored Service

In Monitored Service, click Click to autocreate a monitored service.

Harness automatically creates a Monitored Service using a concatenation of the Service and Environment names. For example, a Service named todolist and an Environment named dev will result in a Monitored Service named todolist_dev.

If the stage Service or Environment settings are Runtime Inputs, the Monitored Service and Health Sources settings will show up in the Runtime Input settings when you run the Pipeline.

Step 5: Add Health Sources

A Health Source is basically a mapping of a Harness Service to the service in a deployment environment monitored by an APM or logging tool.

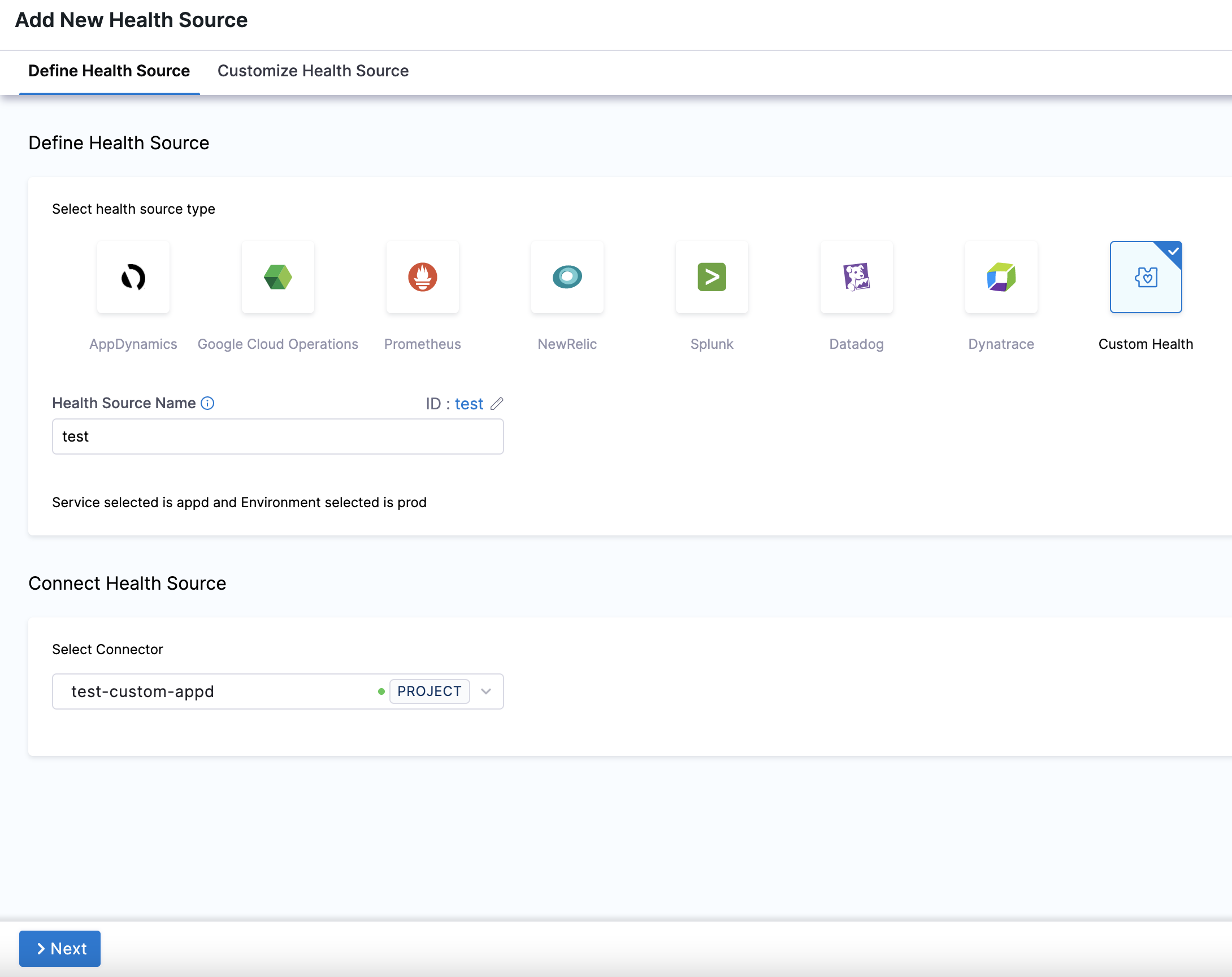

In Health Sources, click Add. The Add New Health Source settings appear.

  1. In Select health source type, select Custom Health.
  2. In Health Source Name, enter a name for the Health Source. For example Quickstart.
  3. In Connect Health Source, click Select Connector.
  4. In Connector settings, you can either choose an existing connector or click New Connector.
  5. Click Apply Selected. The Connector is added to the Health Source.
  6. In Select Feature, select the feature to be monitored. You can either select Custom Health Metrics or Custom Health Logs.
  7. Click Next.

Option: Custom Health Metrics

  1. If you select Custom Health Metrics, the Customize Health Source settings appear as:
  2. Click Map Metric(s) to Harness Services.
  3. In Metric Name, enter the name of the metric.
  4. In Group Name, click Add New and enter a name for the metric group.
  5. Click Query specifications and mapping.
  6. In Query Type you can choose either Service Based (used for Health Score and SLI) or Host Based (used for CV).
If you select the query type as Host Based (Continuous Verification), the verification won't happen for SLI and Health Score (Service Based), and vice versa.
  1. In Request Method, you can select GET or POST. If you select POST, you need to define the body format.
  2. In Path, enter the complete path of the metric.
  3. In Start and End Time Placeholders, enter the following:
    1. In Start time placeholder, enter the start time placeholder in the metric path.
    2. In Unit, select the preferred unit of measurement.
    3. In End time placeholder, enter the end time placeholder in the metric path.
    4. In Unit, select the preferred unit of measurement.
  4. Click Fetch Records to retrieve records from the provided URL.
  5. Click Metric values and charts.
  6. In Timestamp Format, enter a static value in dd/mm/yy format.
  7. Click Assign. Select the services for which you want to apply the metric. You can select Health Score or SLI or both options.
The subsequent steps depend on the service you select in this step.
  1. In Risk Category, select a risk type. Available options for risk types are:
    • Errors
    • Infrastructure
    • Performance/Throughput
    • Performance/Other
    • Performance/Response Time
  2. In Deviation compared to Baseline, select one of the options based on the selected risk type. Available options are:
    • Higher value is higher risk - Select this option if a high value of the selected risk type is a risk.
    • Lower value is higher risk - Select this option if lower value of the selected risk type is a risk.
  3. Click Submit.

Option: Custom Health Logs

  1. If you select Custom Health Logs, the Customize Health Source settings appear as:
  2. Click Query specifications and mapping.
  3. In Query Name, enter a name for the query. For example Custom Log Query.
  4. In Request Method, you can select GET or POST. If you select POST, you need to define the body format.
  5. In Path, enter the complete path of the metric. For example,v2/logs/events/search.
  6. In Start and End Time Placeholders, enter the following:
    1. In Start time placeholder, enter the start time placeholder in the metric path. For example, start_time.
    2. In Unit, select the preferred unit of measurement. For example, Milliseconds.
    3. In End time placeholder, enter the end time placeholder in the metric path. For example, end_time.
    4. In Unit, select the preferred unit of measurement. For example, Milliseconds.
  7. In Body, enter the request body. For example,{"filter":{"query":","from":start_time,"to":end_time}}.
  8. Click Fetch Records to retrieve records from the provided URL.
  9. Once the response is retrieved, click JSON path selection.
    1. In Log Message JSON path, click the plus icon to select the path to the log message from the data source. For example,$.data.[*].attributes.message.
    2. In Timestamp Field/Locator JSON Path, click the plus icon to select the path to the log message from the data source. For example,$.data.[*].attributes.timestamp.
    3. In Provide Service Instance to map to Harness Service Instance, click the plus icon to select the Service instance from the data source. For example,$.data.[*].attributes.tags.[4].
  10. Click Submit.

Step 7: Select Duration

Select how long you want Harness to analyze and monitor the APM data points. Harness waits for 2-3 minutes to allow enough time for the data to be sent to the APM tool before it analyzes the data. This wait time is standard with monitoring tools.

The recommended Duration is 15 min for APM and infrastructure providers.

Step 8: Specify Artifact Tag

In Artifact Tag, use a Harness expression to reference the artifact in the stage Service settings.

The expression <+serviceConfig.artifacts.primary.tag> refers to the primary artifact.

Option: Advanced Settings

In Advanced, you can select the following options:

See Advanced Settings.

Step 9: Deploy and Review Results

When you are done setting up the Verify step, click Apply Changes.

Now you can run the Pipeline. Click Run.

In Run Pipeline, select the tag for the artifact if a tag wasn't added in the Artifact Details settings.

Click Run Pipeline.

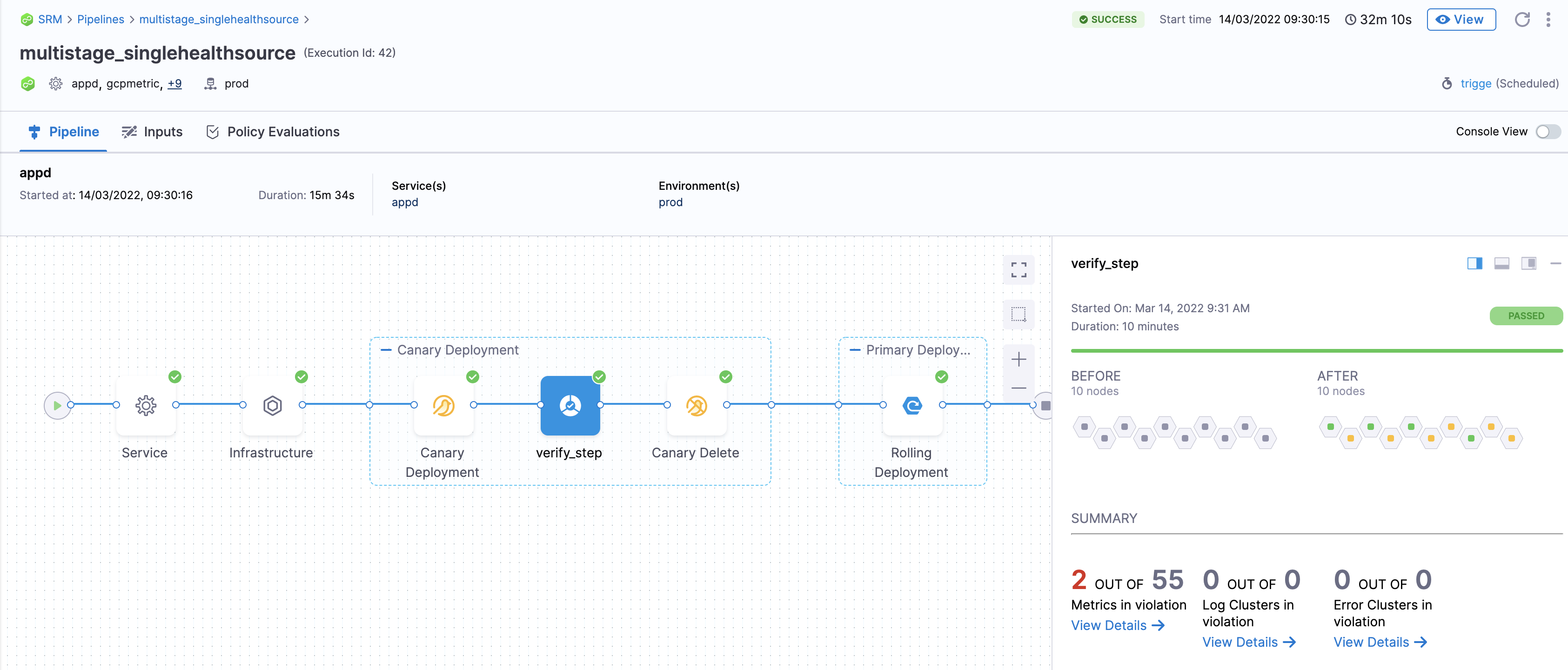

When the Pipeline is running, click the Verify step.

The verification takes a few minutes.

Summary

The Summary section shows the number of metrics and logs that are in violation.

Console View

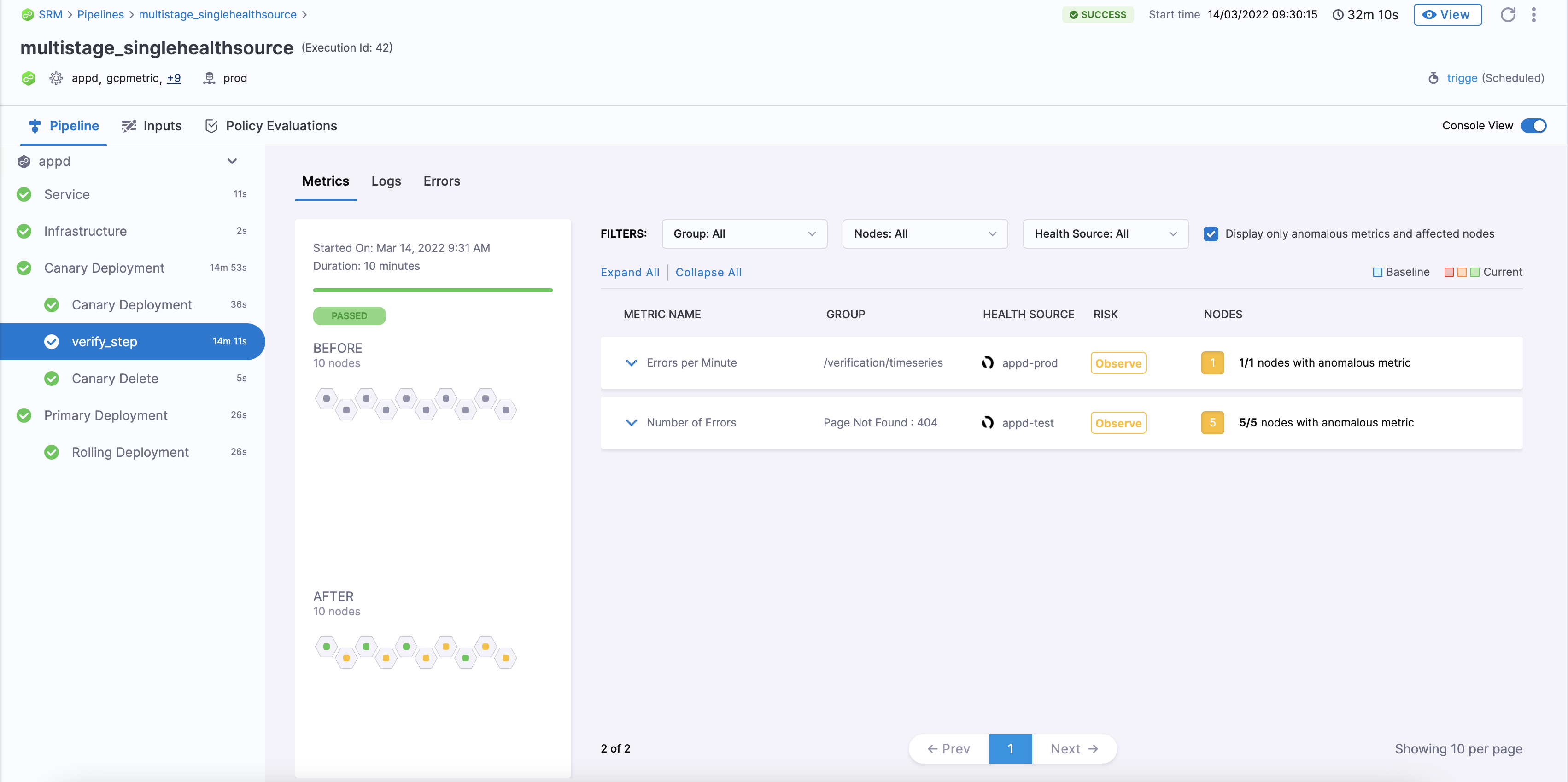

Click Console View or simply click View Details in Summary to take a deeper look at verification.

If you have more than one Health Source, you can use the Health Source dropdown to select each one.

You can use the search option to search for any specific metric you want.
