Define a MacOS Build Infrastructure in AWS

Updated 5 days ago by Doug Bothwell

Currently, this feature is behind the Feature Flag CI_VM_INFRASTRUCTURE Contact Harness Support to enable the feature.

This topic describes how to set up a build infrastructure using VMs on an MacOS EC2. Once you set up this infrastructure, your Harness Pipelines can use these VMs to build your software and run your tests safely and at scale.

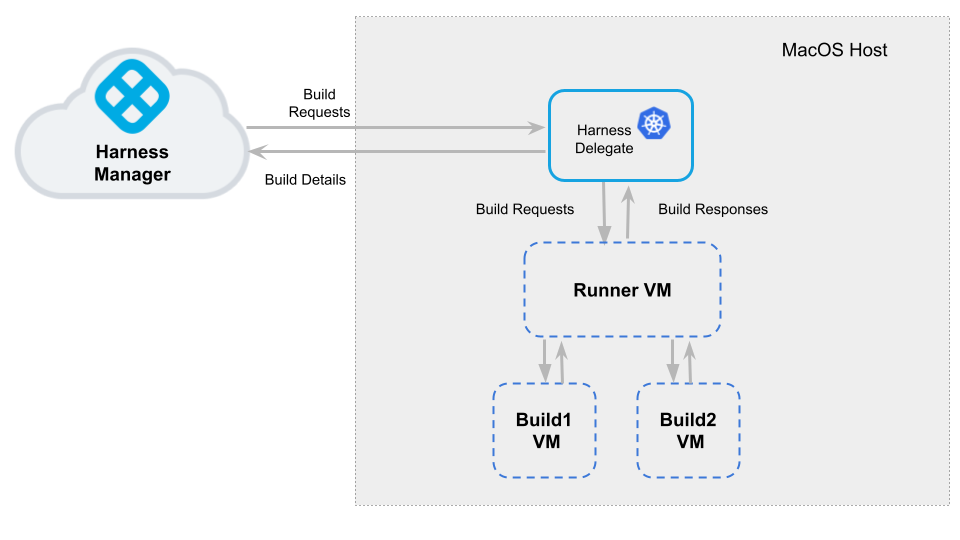

The following diagram shows the architecture of a CI build infrastructure on MacOS. The Delegate receives build requests from your Harness Manager. Then it forwards the requests to a Runner VM that starts, runs, and terminates the build VMs as needed.

Before You Begin

This topic assumes you're familiar with the following:

Step 1: Set up the MacOS EC2 Instance

AWS EC2 Requirements

  • Each MacOS EC2 instance requires a Dedicated Host fully dedicated to that EC2. See Amazon EC2 Mac Instances in the AWS docs for pricing information, additional requirements, and best practices.
  • EC2 instance type = mac1.metal
  • While not required, enabling Instance auto-placement can be useful if you have multiple available hosts and don’t want to explicitly specify the host for each EC2.
  • Minimum requirements for the root volume of your EC2:
    • Type: gp3
    • Size: 500GB
    • IOPS: 6000
    • Throughput: 256
  • The EC2 should have TCP ports 22, 5900, and 9079 open to inbound connections from hosts that interact with the EC2.
  • This workflow uses Anka software by Veertu to create and manage VMs on the EC2. Anka is licensed software and requires a license key to activate.
    Veertu maintains a set of Anka Community AMIs in AWS. These AMIs are preconfigured with all required hardware and software to create and manage VMs using Anka. You can use Marketplace AMIs with an hourly billing option, in which case a license key is not required.
    See Running on AWS EC2 Mac in the Anka docs for more useful information.

Set Up the EC2

If you want to use a standard MacOS AMI, rather than an Anka Community AMI, do the following:

  • Launch a new EC2 based on the hardware and software requirements above. Then do the following:
  • SSH into the EC2. Then download and install the Anka software on the EC2:

    FULL_FILE_NAME="$(curl -Ls -r 0-1 -o /dev/null -w %{url_effective} https://veertu.com/downloads/anka-virtualization-latest | cut -d/ -f5)" curl -S -L -o ./$FULL_FILE_NAME https://veertu.com/downloads/anka-virtualization-latest sudo installer -pkg $FULL_FILE_NAME -tgt /

The following steps are required for all EC2s, regardless of the AMI type, except as noted. Run these commands on the EC2 unless otherwise specified.

  • Make sure your software is up to date:
    # get the list of installers
    softwareupdate --list-full-installers

    # install the latest version, such as 12.4, 12.3.1, etc.
    softwareupdate --fetch-full-installer --full-installer-version {LATEST_VERSION}
  • Change the AWS EC2 password:
    # To find the default password, search for "/usr/bin/dscl" in the install script output
    sudo /usr/bin/dscl . -passwd /Users/ec2-user {DEFAULT_PASSWORD} {NEW_PASSWORD}
  • Go to a separate terminal window (i.e., not SSH’d with your EC2). Then VNC into the EC2 with your new password:
    open vnc://ec2-user:{NEW_PASSWORD}@{EC2_IP}
    Leave this window open. You will use it to install Docker Desktop and the Drone Runner in a later step.
  • Activate your license key. Return to your SSH session with the EC2, activate your Anka license, and accept the EULA. Here's an example session.
    sudo anka license activate {LICENSE}
    # License activated. The fulfillment ID: {FULFILLMENT_ID}
    sudo anka license accept-eula
    # EULA accepted
  • Save the fulfillment ID that gets returned. Veertu will request this if your EC2  gets terminated unexpectedly. See Licensing in the Anka docs.
  • Step 2: Create a VM on the EC2

To create a VM, enter the following on the EC2:

anka --debug  create {VM_NAME} --ram-size 15G --cpu-count 6 --disk-size 100G --app /Applications/Install\ macOS\ Monterey.app
This process can take an hour or more. There will be extended periods where the script doesn't generate any messages or notifications. Be patient and do not kill the process. To verify that the create process is still running, open a new SSH session on the EC2 and enter ps.

When the script finishes, enter anka list and anka show {VM_UUID} to confirm that the VM was created and is running. To start a VM, enter anka start {VM_NAME}. Here's an example session:

anka list
+---------------------+--------------------------------------+----------------------+---------+
| name | uuid | creation_date | status |
+---------------------+--------------------------------------+----------------------+---------+
| harness-delegate-vm | bc7210af-8fe8-48cd-82af-a994f5cf1bea | Jun 13 14:07:18 2022 | running |
+---------------------+--------------------------------------+----------------------+---------+

# use the uuid shown in the ‘anka list’ output

anka show bc7210af-8fe8-48cd-82af-a994f5cf1bea
+---------+-----------------------------------------+
| uuid | bc7210af-8fe8-48cd-82af-a994f5cf1bea |
+---------+-----------------------------------------+
| name | harness-delegate-vm |
+---------+-----------------------------------------+
| created | Jun 13 14:07:18 2022 |
+---------+-----------------------------------------+
| vcpu | 4 - sys:0.2%, usr:0.1%, idle:99.7% |
+---------+-----------------------------------------+
| memory | 8G |
+---------+-----------------------------------------+
| display | 1024x768 vnc://:[email protected]:5901 |
+---------+-----------------------------------------+
| disk | 100GiB (22.16GiB on disk) |
+---------+-----------------------------------------+
| addons | 2.5.5.143 |
+---------+-----------------------------------------+
| network | shared 192.168.64.2 |
+---------+-----------------------------------------+
| status | running since Jun 13 16:17:43 2022 |
+---------+-----------------------------------------+

Step 3: Set Up the VM on the EC2

Return to the VNC window you opened previously. If you closed it, open a CLI on your local host (not SSH’d into the EC2) and enter: open vnc://ec2-user:{NEW_PASSWORD}@{EC2_IP}

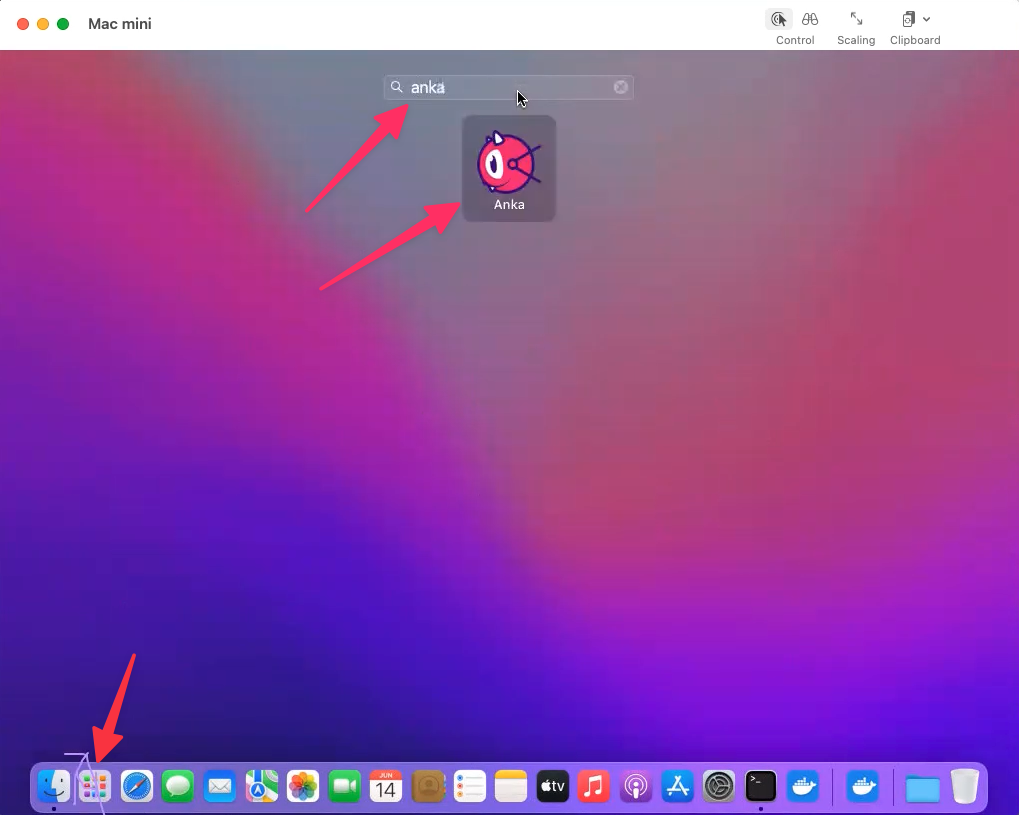

In the VNC window, click the Launchpad button in the Dock (bottom). Then search for Anka (top) and click the Anka icon. The Welcome to Anka screen appears.

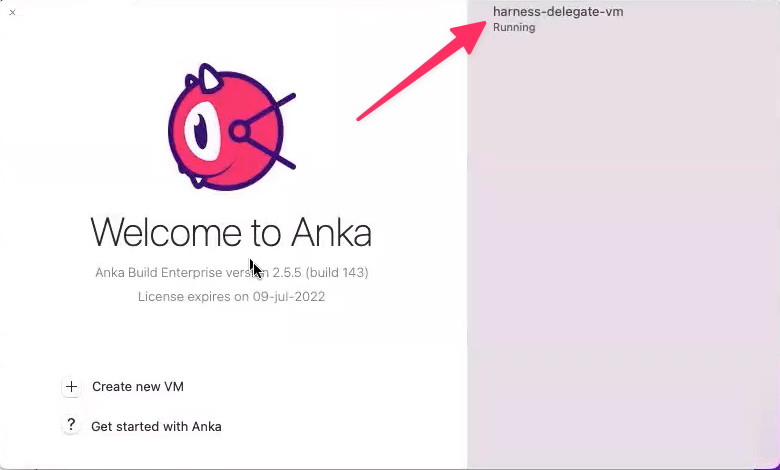

In the Welcome to Anka screen, click the button for the VM you just created on the right. This opens a second VNC window, for the VM, within the VNC window for the EC2.

In the new VNC window, do the following:

  • Open a CLI and add Homebrew and wget on the VM:
    /bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"
    brew install wget
  • Open a browser window in the UI, go to the Docker website, and download Docker Desktop for Mac Intel Chip: https://docs.docker.com/desktop/mac/install/
  • Run the Docker installer and accept the EULA that appears at the end of the install process.
  • In a CLI, enter the following to make sure that Docker is running correctly: docker run hello-world
  • Install any additional tools that will be used by your builds on the VM, such xcode.
  • Close the VM VNC window but leave the EC2 VNC window open. You will use this window in the next step.

Step 4: Install Docker Desktop and the Drone Runner on the EC2

In the EC2 VNC window, open a browser window in the UI, go to the Docker website, and download Docker Desktop for Mac Intel Chip: https://docs.docker.com/desktop/mac/install/

Run the installer and accept the Docker EULA that appears at the end of the install process.

Open a CLI and enter the following to make sure that Docker is installed and running: docker run hello-world

In the CLI, install tmux: brew install tmux

In the browser window, go to the following page: https://github.com/drone-runners/drone-runner-aws/releases

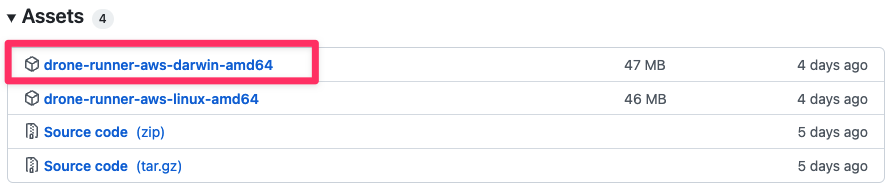

 Download the latest drone-runner-aws-darwin-amd64 executable:

Copy the binary from the Downloads folder and make sure it has the correct permissions to run. In a CLI, run the following:

mkdir ~/runner
cd ~/runner
cp ~/Downloads/drone-runner-aws-darwin-amd64 .
chmod +x drone-runner-aws-darwin-amd64

Step 5: Set Up Your Drone Environment on the EC2

To start the Drone Runner, you need to specify your environment variables (.env file) and your runner pool definition (pool.yml file).

Environment File

Your .env file should look like this:

DRONE_RUNNER_HOST=drone.runner.host
DRONE_RUNNER_NAME=droneRunnerName
DRONE_RUNNER_SECRET=bea26a2221fd8090ea38720fc445eca6
DRONE_DEBUG=true
DRONE_TRACE=true

DRONE_DEBUG and DRONE_DEBUG are optional. You can define the other settings as needed. The DRONE_RUNNER_SECRET is the default secret used by the Drone server to authenticate http requests.

Pool File

Your pool.yml file should look like this:

version: "1"
instances:
- name: osx-anka
default: true
type: anka
pool: 2
limit: 100
platform:
os: darwin
arch: amd64
spec:
account:
username: {ANKA_VM_USERNAME}
password: {ANKA_VM_PASSWORD}
vm_id: {VM_NAME}

You can leave all fields at their defaults except for username, password, and vm_id. Note the name field: you will specify this name when you set up your Harness Pipeline.

Step 6: Start the Drone Runner on the EC2

In a CLI window, enter the following:

cd ~/runner
brew install tmux
tmux new -d './drone-runner-aws-darwin-amd64 delegate --envfile=.env --pool=pool.yml |& tee runner.log'

The Runner might take a few minutes before it is completely up and running. When it is ready, you will see output like this:

DEBU[4334] got IP 192.168.64.5 cloud=anka name=droneRunnerName--4037200794235010051 pool=osx-anka
INFO[4335] Running script in VM cloud=anka name=droneRunnerName--4037200794235010051 pool=osx-anka

Step 7: Install the Harness Delegate on the EC2

In the Harness UI, go to the project where you want to install the Delegate.

Choose Project Setup > Delegate on the left.

In the Project Delegates page, click +New Delegate.

Select Amazon ECS for the Delegate type. Click Continue.

Enter a Delegate Name (must be unique). Click Continue.

Download the docker-compose.yml file.

Add the extra-hosts attribute and RUNNER_URL environment setting as follows:

version: "3.7"
services:
harness-ng-delegate:
restart: unless-stopped
deploy:
resources:
limits:
cpus: "0.5"
memory: 2048M
image: harness/delegate:latest
# —---------------------------------------
extra_hosts:
- "host.docker.internal:host-gateway"
# ----------------------------------------
environment:
- ACCOUNT_ID=H5W8iol5TNWc4G9h5A2MXg
- DELEGATE_TOKEN=0003d4379696997173fd0b996dd65b32
- MANAGER_HOST_AND_PORT=https://app.harness.io
- WATCHER_STORAGE_URL=https://app.harness.io/public/prod/premium/watchers
- WATCHER_CHECK_LOCATION=current.version
- DELEGATE_STORAGE_URL=https://app.harness.io
- DELEGATE_CHECK_LOCATION=delegateprod.txt
- CDN_URL=https://app.harness.io
- REMOTE_WATCHER_URL_CDN=https://app.harness.io/public/shared/watchers/builds
- DEPLOY_MODE=KUBERNETES
# —-----------------------------------------
- RUNNER_URL=http://host.docker.internal:3000/
# --------------------- --------------------
- DELEGATE_NAME=osx-delegate
- NEXT_GEN=true
- DELEGATE_DESCRIPTION=
- DELEGATE_TYPE=DOCKER
- DELEGATE_TAGS=
- PROXY_MANAGER=true
- INIT_SCRIPT=echo "Docker delegate init script executed."

Upload the modified docker-compose.yml file to your EC2 and move it to your ~/runner folder.

Start the Delegate in the EC2. Run the following in the /runner folder:

docker-compose -f docker-compose.yml up -d



In the Harness UI > Delegate Setup wizard, click Continue and wait for your Harness instance to connect to the Delegate. It might take a few minutes to verify the Delegate.

Once it is verified, close the wizard.

Step 7: Specify the Delegate in the Pipeline

In your Harness Project, go to a Pipeline that includes a Build Stage.

In the Infrastructure tab of the Build Stage, define your infrastructure as follows:

  • Type = AWS VMs
  • Pool Name = The name field in your pool.yml file.
  • OS = MacOS

Your MacOS build infrastructure is set up. You can now run your Build Stages on MacOS VMs.
