Create a Kubernetes Canary Deployment

Updated 1 month ago by Michael Cretzman

This topic will walk you through creating a Canary deployment in Harness for a Deployment workload.

Harness Canary and Blue/Green stage steps only support Kubernetes Deployment workloads. The Rolling Deployment step supports all other workloads except Jobs. The Apply step can deploy any workloads or objects.

In this topic:

Before You Begin

Review: What Workloads Can I Deploy?

Stages using Harness Canary and Blue/Green steps only support Kubernetes Deployment workloads.

The Rolling Deployment step supports all workloads except Jobs.

The Apply Step can deploy any workloads or objects.

In Harness, a workload is a Deployment, StatefulSet, or DaemonSet object deployed and managed to steady state.

Multiple Managed Workloads

With the Rolling Deployment step, you can deploy multiple managed workloads.

For Canary and Blue/Green steps, only one managed object may be deployed per step by default.

You can deploy additional objects using the Apply Step, but it's typically used for deploying Jobs controllers.

Review: Harness Canary Deployments

While you can add multiple steps to a Kubernetes Canary stage, you should simply use the Canary and Primary step groups generated by Harness. Kubernetes deployments have built-in controls for rolling out in a controlled way. The Canary group is a way to test the new build, run your verification, then roll out to the Primary group.

A Harness Kubernetes Canary deployment is a little different than a typical Canary deployment.

This is a standard Canary deployment:

Harness does this a little different:

In a typical Canary deployment, all nodes in a single environment are incrementally updated in small phases, with each phase requiring a verification/gate to proceed to the next phase.

This typical method isn't needed for Kubernetes because Kubernetes includes Rolling Update. Rolling Update is a built-in control for rolling out in a controlled way. It incrementally updates pod instances with new ones. New pods are scheduled on nodes with available resources.

A Harness Kubernetes Canary deployment uses two phases, a Canary and a Primary Deployment group:

  1. Group 1: Harness creates a Canary version of the Kubernetes Deployment object defined in your Service Definition Manifests section. Once that Deployment is verified, the Canary Delete step deletes it by default.
    Harness provides a Canary group as a way to test the new build, run your verification, then rollout to the following Primary Deployment group.
  2. Grouo 2: run the actual deployment using a Kubernetes Rolling Update with the number of pods you specify in the Manifests files (for example, replicas: 3).

When you add a Canary Strategy to a stage, Harness automatically generates the steps for Canary and Primary Deployment groups.

If you're new to Kubernetes RollingUpdate deployments, see Performing a Rolling Update from Kubernetes. That guide summaries Rolling Update and provides an interactive online tutorial.
Although it isn't covered here, you can also scale your Workloads between the Canary and Rolling steps if you like. You simply add a new Phase and use the Scale step. See Scale Kubernetes Pods.

Visual Summary

Here's a short video walking through a simple Canary deployment:

This video uses a publicly available manifest on Kubernetes GitHub account: https://github.com/kubernetes/website/blob/master/content/en/examples/application/nginx-app.yaml.

Step 1: Define the Service and Infrastructure

Create your CD Pipeline stage.

To set up your Service and Infrastructure in the stage, follow the steps in these topics:

Once the Service and Infrastructure are set up, you can add the execution steps.

Step 2: Add the Execution Steps

In the stage's Execution, click Add Step, and select the Canary strategy.

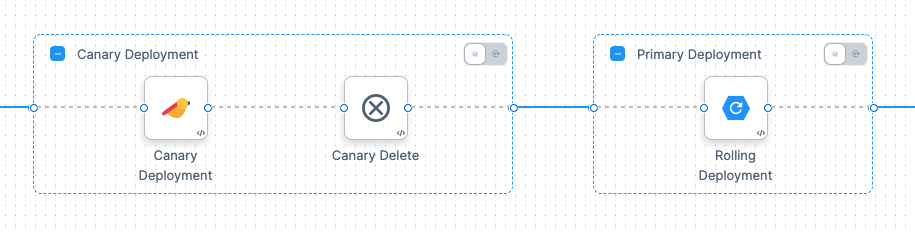

Harness adds all the steps you need to perform the Canary strategy:

That's it. Harness will perform the Canary and Rollout steps using your manifests and artifacts.

Let's look at the default settings for the Canary Deployment step.

Review: Canary Deployment Group

Click the Canary Deployment step.

Canary Deployment Step

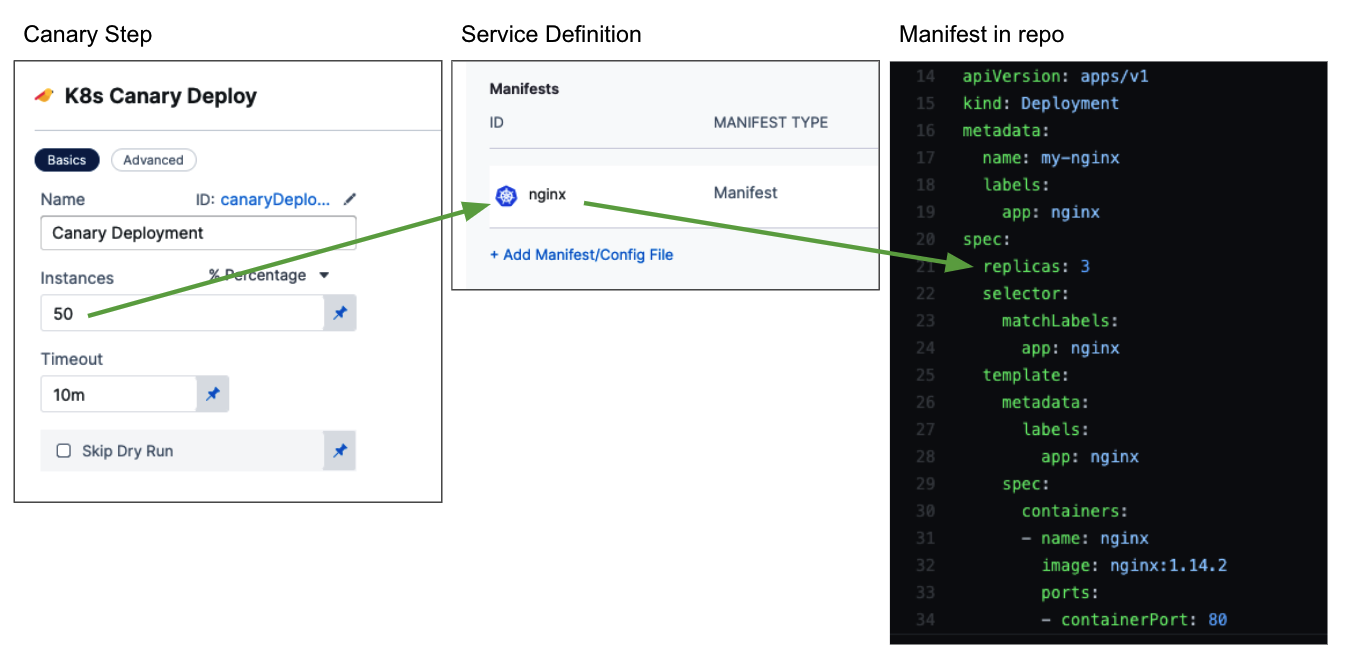

In this step, you define how many pods are deployed for a Canary test of the configuration files in your Service Definition Manifests section.

  • If you selected Instance Count, this is simply the number of pods.
  • If you selected Percentage, enter a percentage of the pods defined in your Service Definition Manifests files to deploy.

For example, if you have replicas: 4 in a manifest and you enter 50 for Percentage, then 2 pods are deployed in this step.

If you have replicas: 3 in a manifest in Service, and you enter 50 for Percentage, then Harness rounds up and 2 pods are deployed in this step.

Skip Dry Run: By default, Harness uses the --dry-run flag on the kubectl apply command during the Initialize step of this command, which prints the object that would be sent to the cluster without really sending it. If the Skip Dry Run option is selected, Harness will not use the --dry-run flag.

Canary Delete Step

Since the Canary Deployment step was successful, it is no longer needed. The Canary Delete step is used to clean up the workload deployed by the Canary Deployment step. See Canary Delete Step.

For step on deleting other Kubernetes resources, you can use the standard Delete step. See Delete Kubernetes Resources.

Review: Primary Deployment Rolling Update

The Primary Deployment group runs the actual deployment as a rolling update with the number of pods you specify in the Service Definition Manifests files (for example, replicas: 3).

Click Rolling Deployment. For details on its settings, see Kubernetes Rollout Step.

Similar to application-scaling, during a rolling update of a Deployment, the Kubernetes service will load-balance the traffic only to available pods (an instance that is available to the users of the application) during the update.

Rolling updates allow an update of a Deployment to take place with zero downtime by incrementally updating pod instances with new ones. The new pods are scheduled on nodes with available resources. The rolling update Deployment uses the number of pods you specified in the Service Definition Manifests (number of replicas).

Example: Canary Deployment

Let's look at how the stage steps deploy the workload.

Canary Deployment Step in Deployment

Let's look at an example where the Canary Deployment step is configured to deploy a Percentage of 50. Here is the step in the Harness Deployments page:

You can see Percentage is 2 in Input.

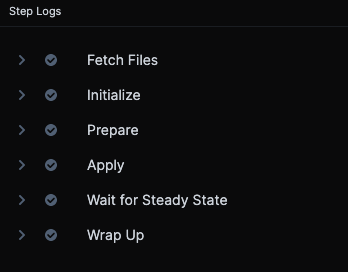

In Details you can see the logs for the step.

Let's look at the PrepareApply, and Wait for Steady State sections of the step's deployment log, with comments added:

Prepare

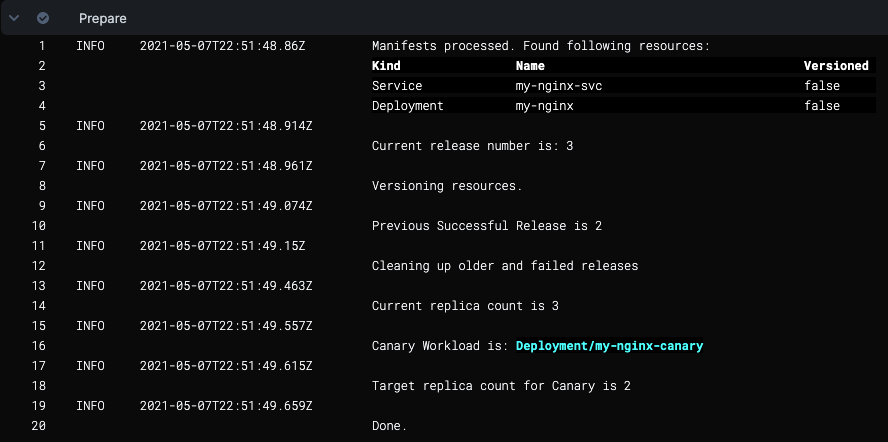

Here is the log from the Prepare section:

The name of the Deployment workload in the Service Definition Manifests file is my-nginx.

As you can see, Harness appends the name with -canarymy-nginx-canary. This is to identify Canary Deployment step workloads in your cluster.

The next section is Apply.

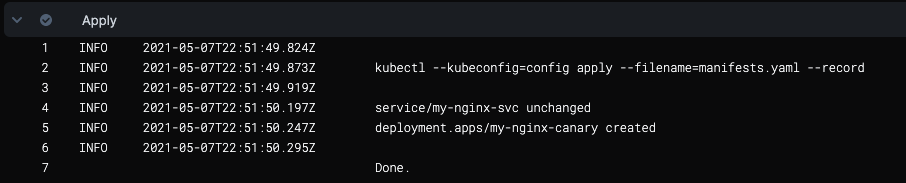

Apply

Here you will see the manifests in the Service Definition Manifests section applied using kubectl as a single file, manifests.yaml.

Next, Harness logs the steady state of the pods.

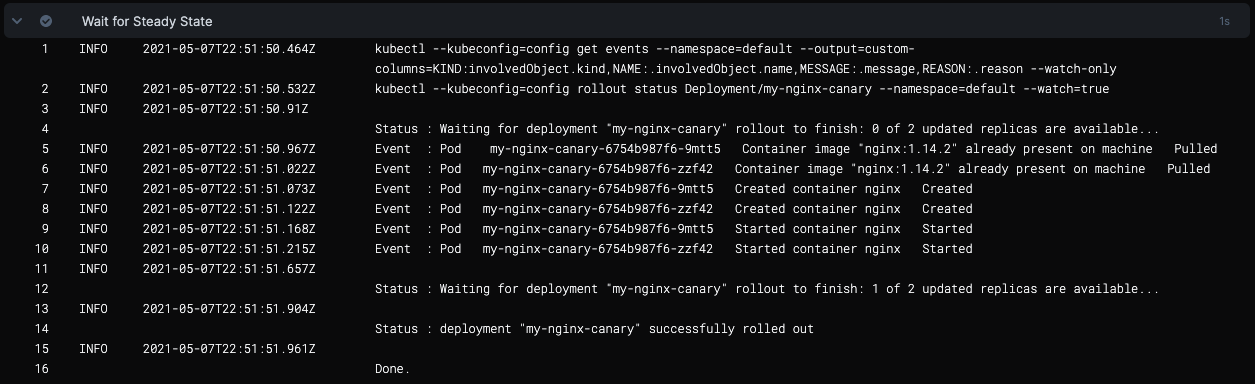

Wait for Steady State

Harness displays the status of each pod deployed and confirms steady state.

Wrap Up

The Wrap Up log is long and describes all of the container and pod information for the step, using the kubectl command:

kubectl --kubeconfig=config describe --filename=manifests.yaml

Primary Step in Deployment

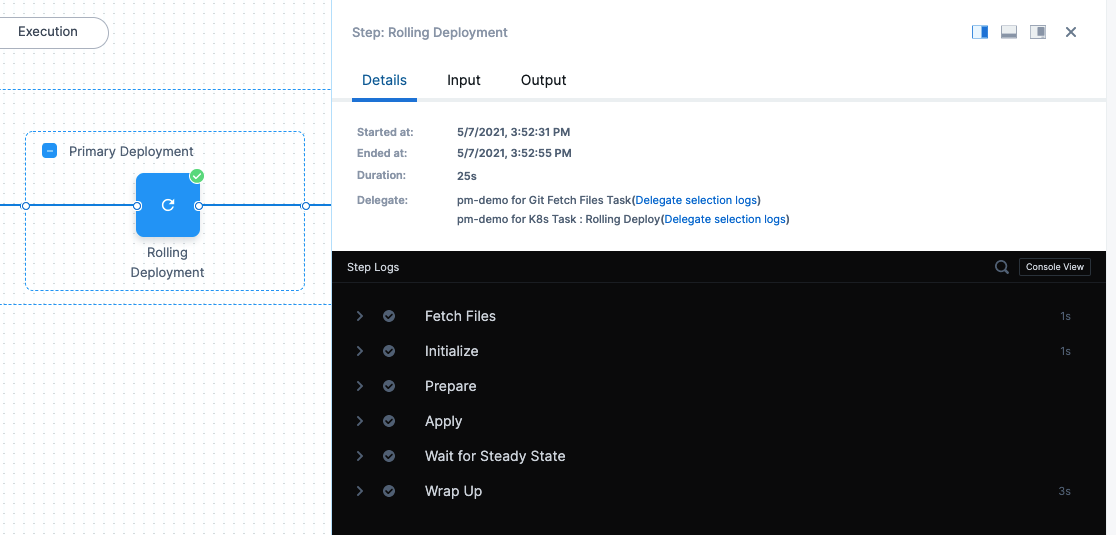

Let's look at an example where the Primary Deployment section deploys the Service Definition Manifests objects. Here is the step in the Harness Deployments page:

Before we look at the logs, let's look at the Service Definition Manifests files it's deploying.

Here is the Deployment object YAML from our Service Manifests section:

apiVersion: apps/v1
kind: Deployment
metadata:
name: my-nginx
labels:
app: nginx
spec:
replicas: 3
...

Let's look at the InitializePrepare, and Apply stages of the Rollout Deployment.

Initialize

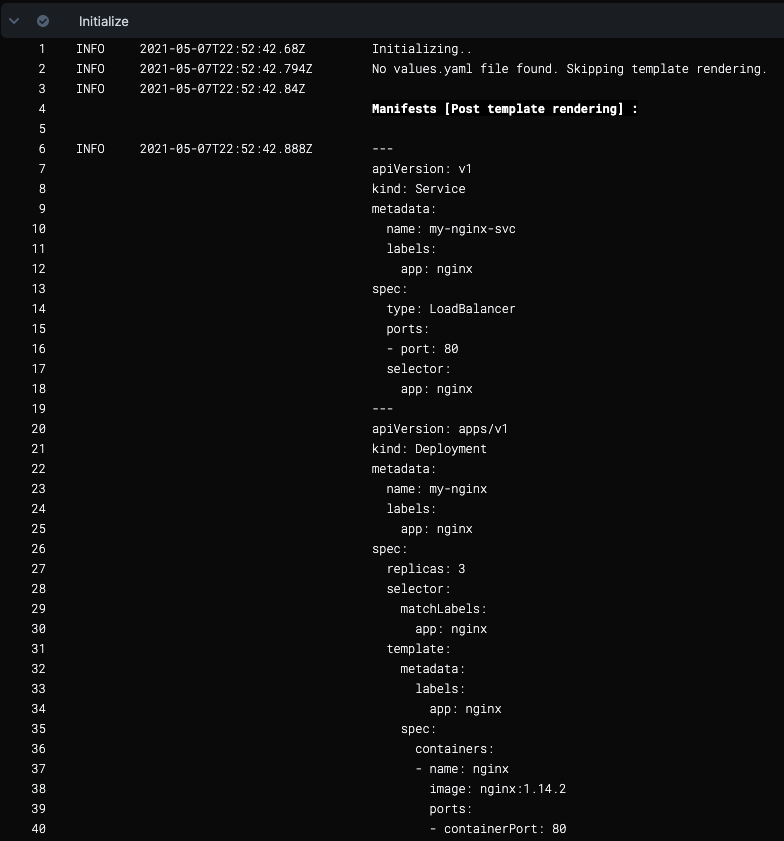

In the Initialize section of the Rollout Deployment step, you can see the same object descriptions as the Service Definition Manifests section:

Now that Harness has ensured that manifests can be used, it will process the manifests.

Prepare

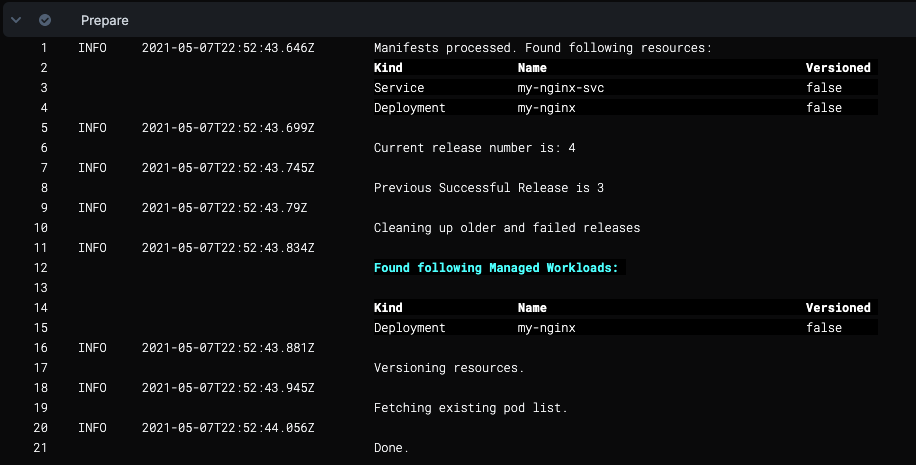

In the Prepare section, you can see that Harness versions release (for more information, see Kubernetes Releases and Versioning).

Now Harness can apply the manifests.

Apply

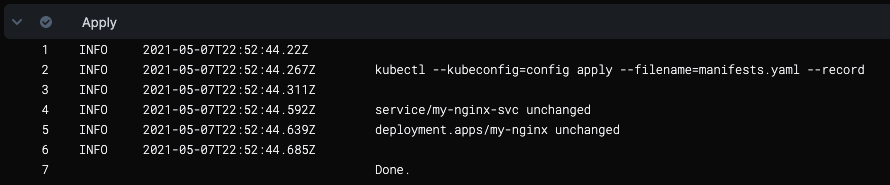

The Apply section shows the kubectl commands for applying your manifests.

Now that the manifests are applied, you can see the container and pod details described in Wrap Up.

Wrap Up

Wrap Up is long and uses a kubectl describe command to provide information on all containers and pods deployed:

kubectl --kubeconfig=config get events --namespace=default --output=custom-columns=KIND:involvedObject.kind,NAME:.involvedObject.name,NAMESPACE:.involvedObject.namespace,MESSAGE:.message,REASON:.reason --watch-only

Here is a sample from the output that displays the Kubernetes RollingUpdate:

kubectl --kubeconfig=config rollout status Deployment/my-nginx --namespace=default --watch=true

Status : my-nginx deployment "my-nginx" successfully rolled out

As you look through the description in Wrap Up you can see label added:

add label: harness.io/track-stable

You can use the harness.io/track-stable selector for managing traffic to these pods, or for testing the pods. For more information, see  Kubernetes Releases and Versioning.

The stage is deployed.

Now that you have successfully deployed your artifact to your Kubernetes cluster pods using your Harness Pipeline, look at the completed workload in the deployment environment of your Kubernetes cluster.

Or you can simply connect to your cluster in a terminal and see the pod(s) deployed:

john_doe@cloudshell:~ (project-15454)$ kubectl get pods
NAME READY STATUS RESTARTS AGE
my-nginx-7df7559456-xdwg5 1/1 Running 0 9h

Rollback

See Kubernetes Rollback.

Notes

  • Harness does not roll back Canary deployments because your production is not affected during Canary. Canary catches issues before moving to production. Also, you might want to analyze the Canary deployment. The Canary Delete step is useful to perform cleanup when required.
