Add Custom Fields

Updated 2 months ago by Archana Singh

Dashboards provide the flexibility to add custom fields to the query. Using custom fields you can build new ad hoc custom dimensions and measures in Explore. Adding custom fields to the query allows to gain deeper insights into your data.

This topic talks about how to add custom fields (dimensions and measures) to your dashboard query and how to utilize them to improve the data analysis.

In this topic:

Before You Begin

Review: Scope of Custom Fields

Custom fields are a combination of first-class dimensions and predefined functions like concat, contains, case, and so on. They can't be used to pull data from any third party or external source.

Step: Add Custom Fields

To get started with the custom fields, you need to select an Explore for your tile.

  1. Create a Dashboard. See Step 1: Create a Dashboard.
  2. Add tiles to your Dashboard. See Step 2: Add Tiles to a Dashboard.
  3. Select an Explore for your tile.
  4. Give your tile a name. This will be the name of the tile on the dashboard.
  5. In Custom Fields, click Add.
  6. You can create the following types of custom fields:
    • Custom Dimension
    • Custom Measure
    • Table Calculation
    • For more information, see Custom Field Types.

Create Custom Dimension

Perform the following steps to create a Custom Dimension.

  1. In Custom Fields, click Add, and then click Custom Dimension.
  2. In Edit custom dimension, in Expression, enter the expression for your dimension. For supported functions and operators see, Functions and operators.
  3. (Optional) Select the format for your dimension.
  4. In Name, enter a name for your dimension. The name will appear in Custom Fields to identify your dimension.
  5. Once you're done, click Save.
  6. Once you have set up your query, click Run.
  7. Click Save to save the query as a tile on your dashboard.

Examples: Custom Dimension

Let’s take a look at some of the custom dimension examples with the corresponding visualizations.

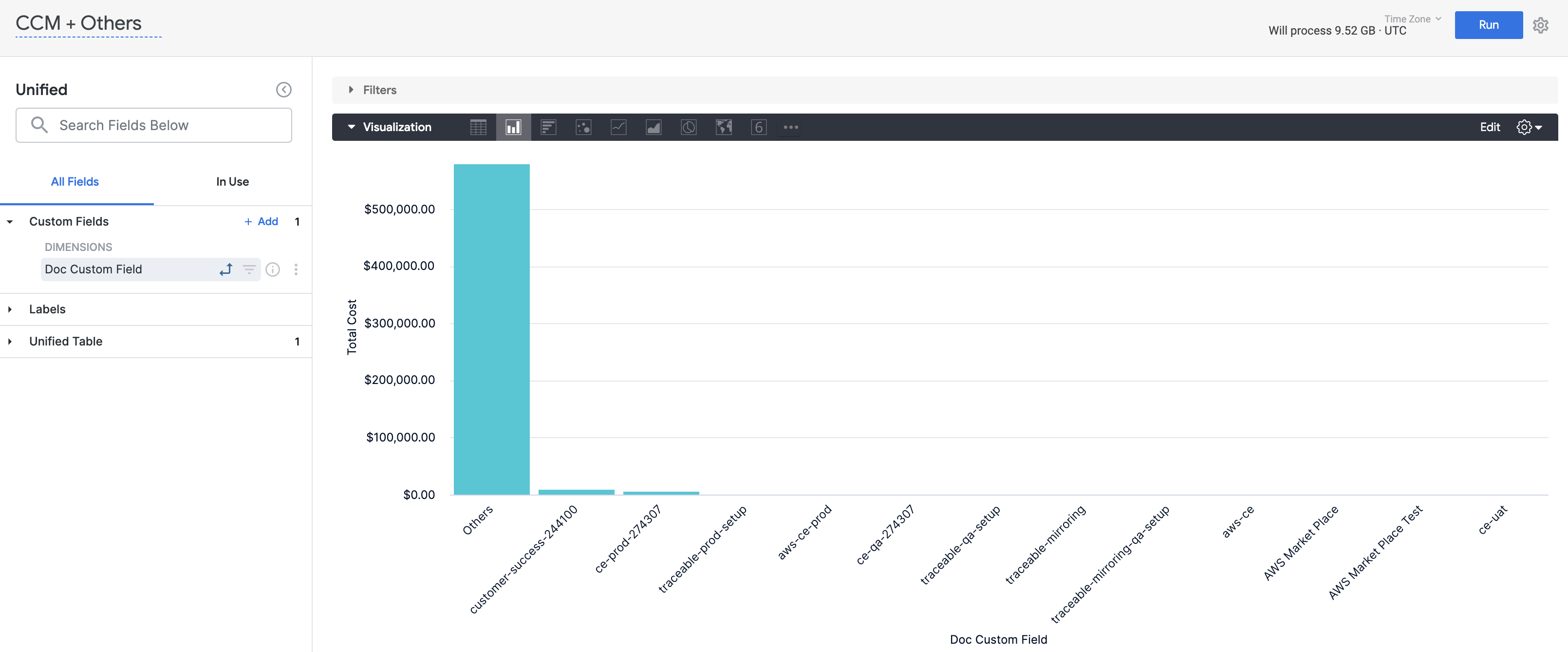

Example 1: Filter Based on the String Data Type

This custom field is a regex search on all cloud cost management accounts for the string ce. Any account, project, or subscription without this string is bucketed under Others. You can use custom fields to get more specific and granular data for your analysis.

case(when(matches_filter(${unified_table.aws_gcp_azure_account_project_subscription}, `%ce%`),
${unified_table.aws_gcp_azure_account_project_subscription}),
"Others"
)

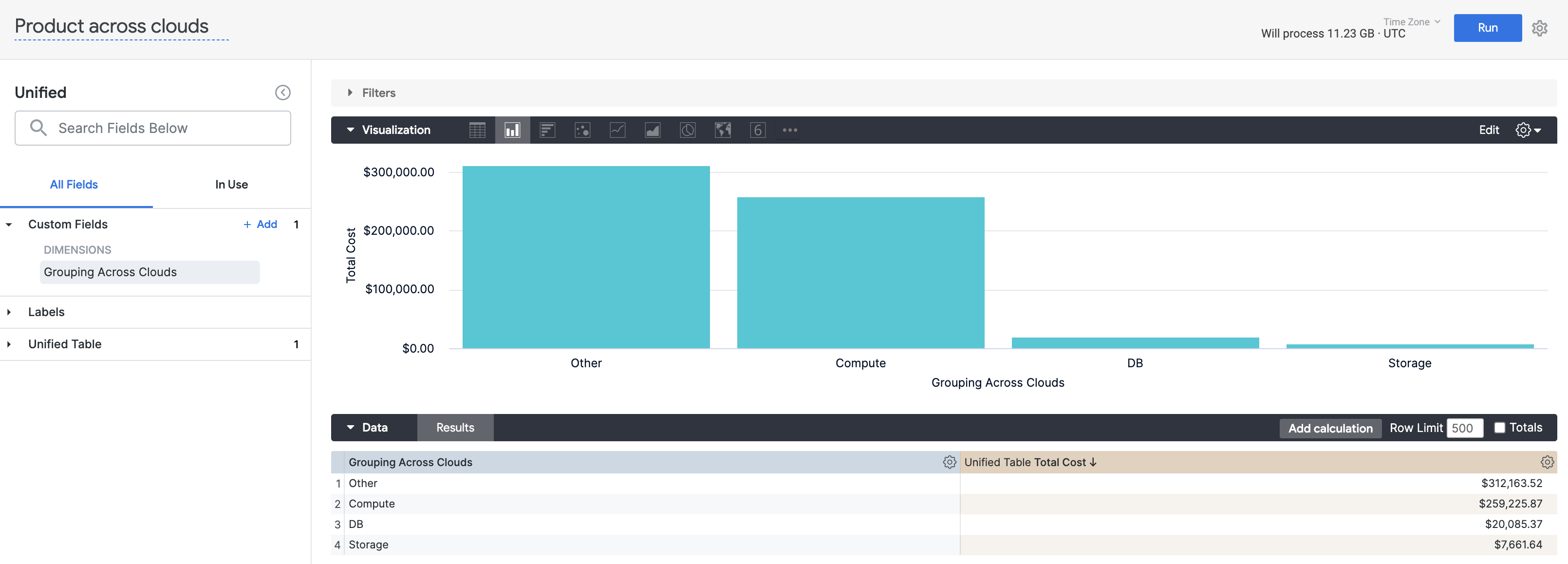

Example 2: Group Resources Across Your Environment

This example shows how you can group resources across your cloud environment.

case(
when(${unified_table.product} = "Amazon Simple Storage Service" OR ${unified_table.product} = "Cloud Storage", "Storage"),
when(${unified_table.product} = "Amazon DynamoDB" OR ${unified_table.product} = "Cloud SQL", "DB"),
when(${unified_table.product} = "Amazon Elastic Compute Cloud" OR ${unified_table.product} = "Compute Engine", "Compute"),
"Other"
)

Create Custom Measure

Perform the following steps to create a Custom Measure.

  1. In Custom Fields, click Add, and then click Custom Measure.
  2. In Edit custom measure, in Field to measure select the field for which you want to create measure. For example, Resource ID.
  3. Select the Measure type. For example, Count distinct or List of unique values.
  4. In Name, enter a name for your custom measure. The name will appear in Custom Fields to identify your measure.
  5. (Optional) You can add filters to further narrow the results.
  6. Once you're done, click Save.
  7. Once you have set up your query, click Run.
  8. Click Save to save the query as a tile on your dashboard.

Use Table Calculation

Table calculations make it easy to create ad hoc metrics. They are similar to formulas that are found in spreadsheet tools like Excel. Table calculations appear as green columns in the data table, rather than as blue columns (dimensions) or orange columns (measures).

Table calculations can perform mathematical, logical (true/false), lexical (text-based), and date-based calculations on the dimensions, measures, and other table calculations in your query.

Perform the following steps to use Table Calculation for your custom fields.

In Custom Fields, click Add, and then click Table Calculation. For details, see Using Table Calculation.
