Create a Pipeline Template

Updated 5 days ago by Rashmi Nanda Sahoo

Harness Templates let you standardize builds for all your services and distribute them across teams. Simply put, Templates are reusable builds with a common configuration that conforms to organizational standards, making maintenance easier and less prone to errors.

A Pipeline Template lets you distribute reusable pipelines across your team or among multiple teams. Instead of building pipelines from scratch, Pipeline templates simplify the process by having parameters already built-in.

For example, you can automate your build and deploy services by adding a Pipeline Template. You can link the following Templates to your Pipeline Template:

  • Build stage - To push the artifact to the registry, run tests, and security scans.
  • Staging deploy stage - To deploy to Dev, QA.
  • Approval stage - To add approval stages for PROD.
  • Prod deploy stage - To deploy to Production.

This topic walks you through the steps to create a Pipeline Template.

Before You Begin

Limitations

Failure strategy and notification settings can only be provided when you create a Template.

Review: Permissions Requirements

You need Create/Edit, Delete, and Access permissions on Templates to create a Pipeline Template. See Permissions Reference.

Review: Pipeline Template Scope

You can add Templates at any scope in Harness.

The following table shows what it means to add Templates at different scopes or hierarchies:

Scope

When to add Templates?

Account

To share Step/Stage/Pipeline Templates with users in the Account, as well as users within the Organizations and Projects created within this Account.

Organization

To share Step/Stage/Pipeline Templates with users in the Organization as well as within the Projects created within the Org.

Project

To share Step/Stage/Pipeline Templates with users within the Project.

Visual Summary

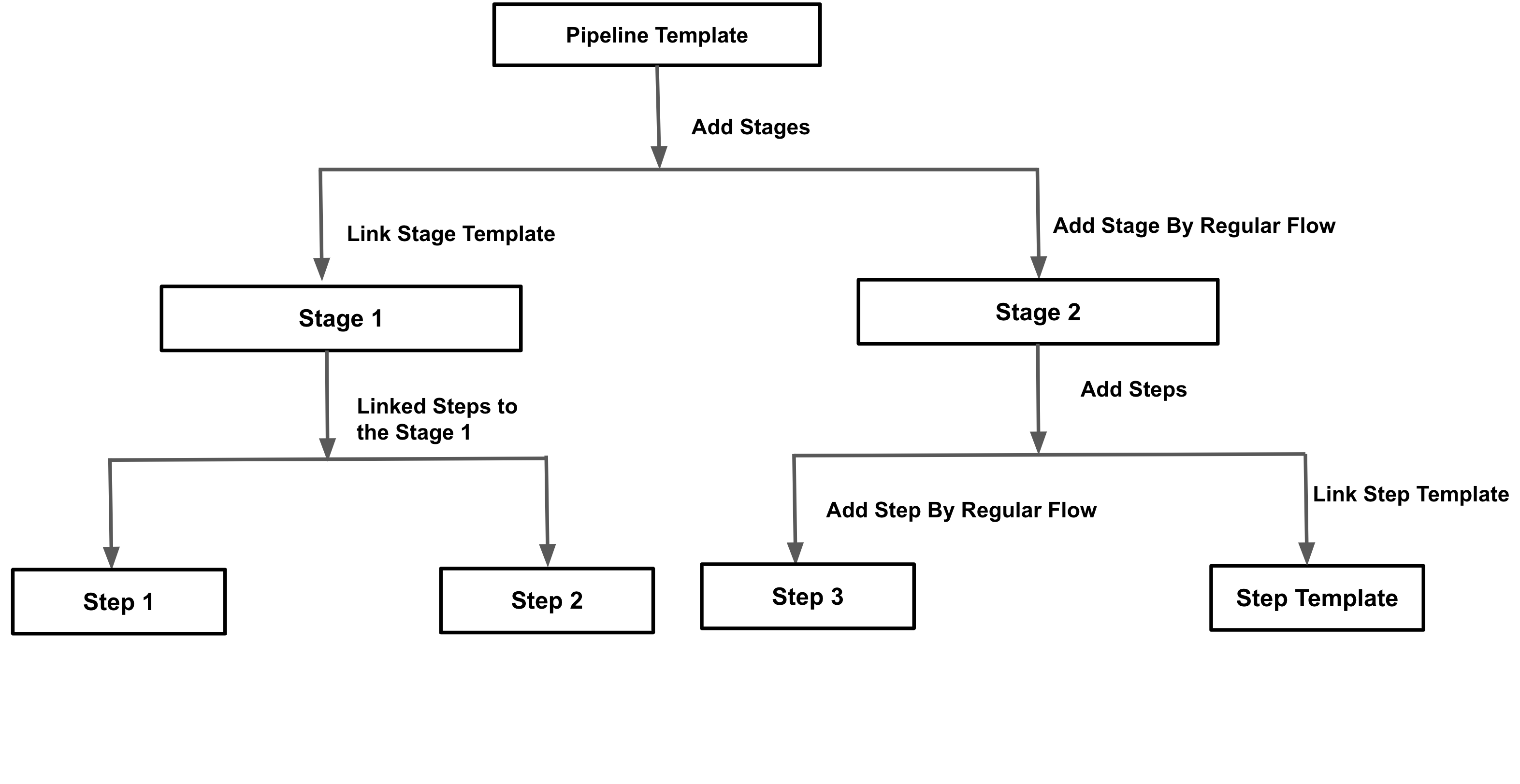

Here is a quick overview of Pipeline Templates:

  • You can add a Pipeline Template to Account, Org, or Project scope.
  • You can either link an existing Stage Template or add a stage to your Pipeline Template.
  • For any new step that you add to your Pipeline stage, you can either link to a Step Template or add a step.

Step 1: Add a Template

First, we'll create a Project-level Template in the Deployments module. You can do this in any Project.

Navigate to the Deployments module and in Projects select the desired project.

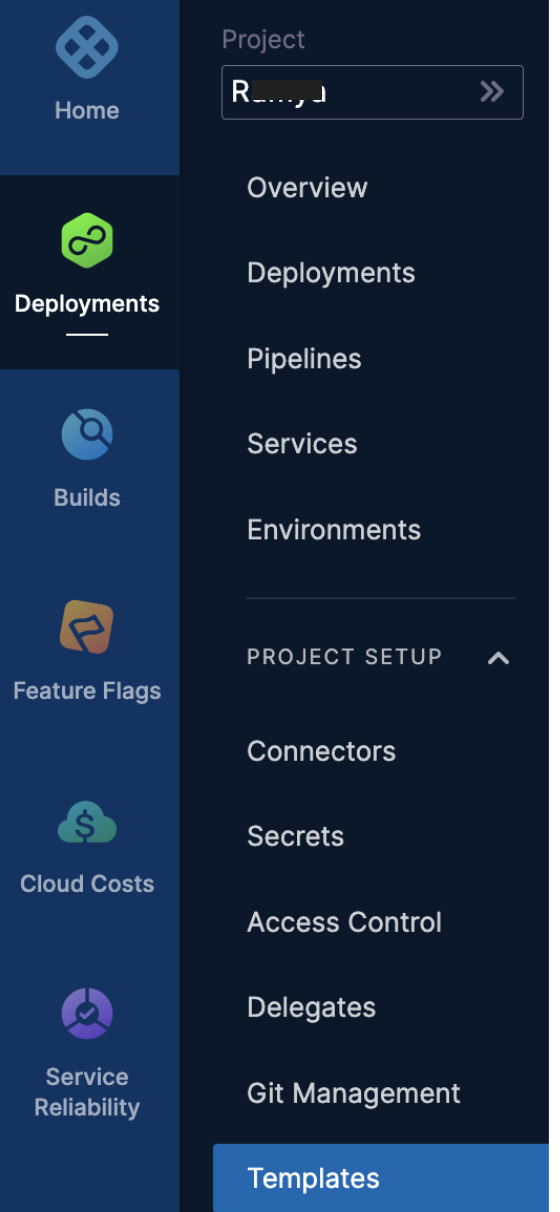

Select Templates under Project Setup.

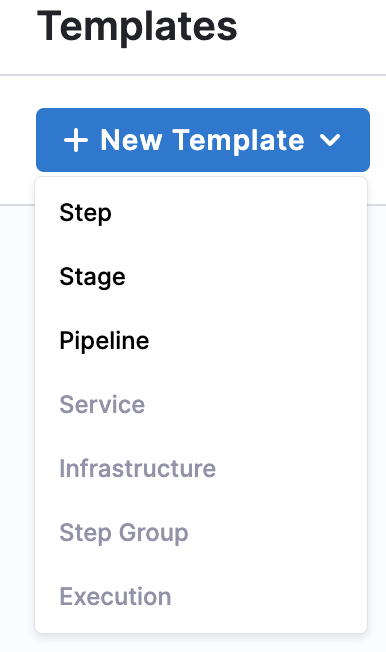

In Templates, click New Template.

Select Pipeline to create a Pipeline Template.

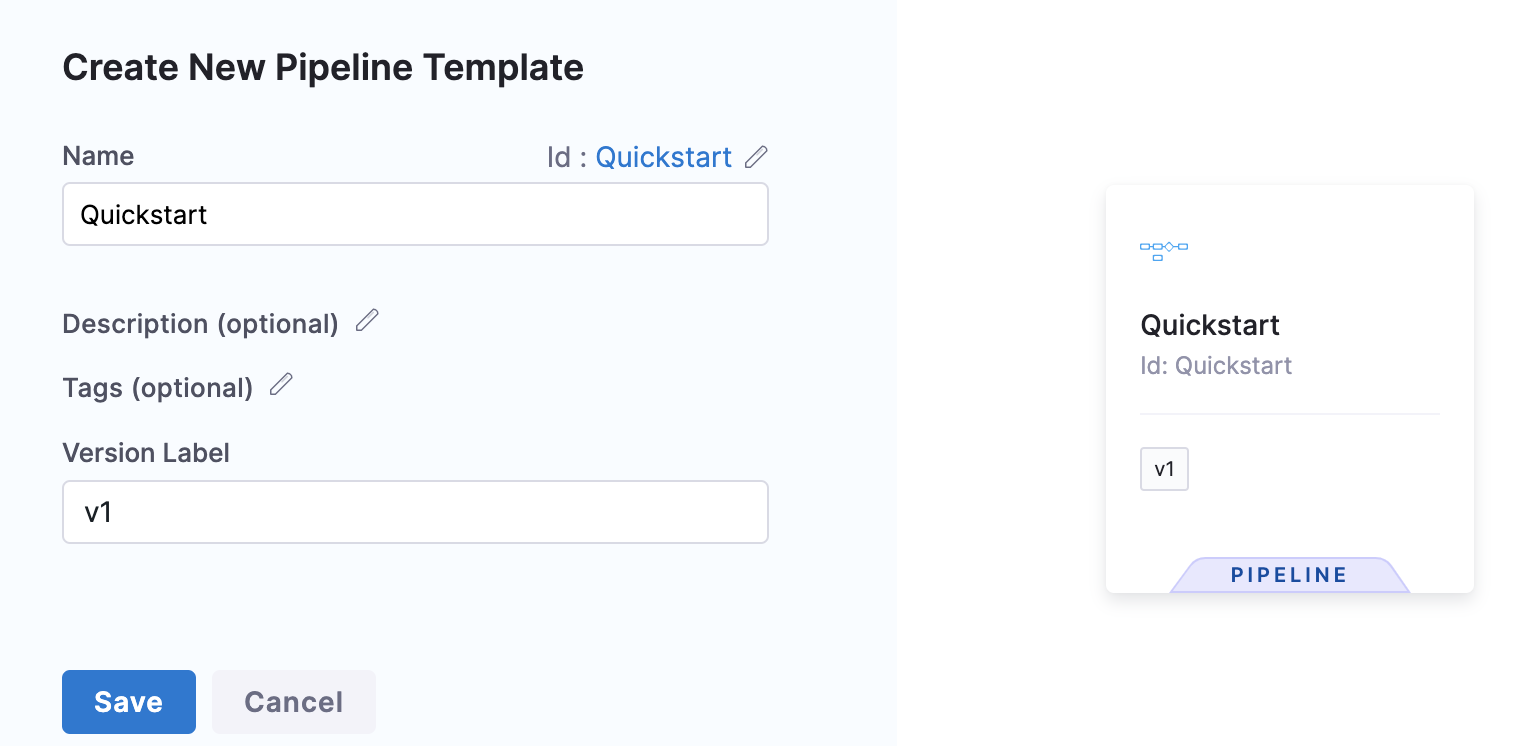

The Create New Pipeline Template settings appear.

In Name, enter a name for the Pipeline. For example Quickstart.

In Version Label, enter the version of the stage. For example v1. Versioning a Template enables you to create a new Template without modifying the existing one. For more information, see Versioning.

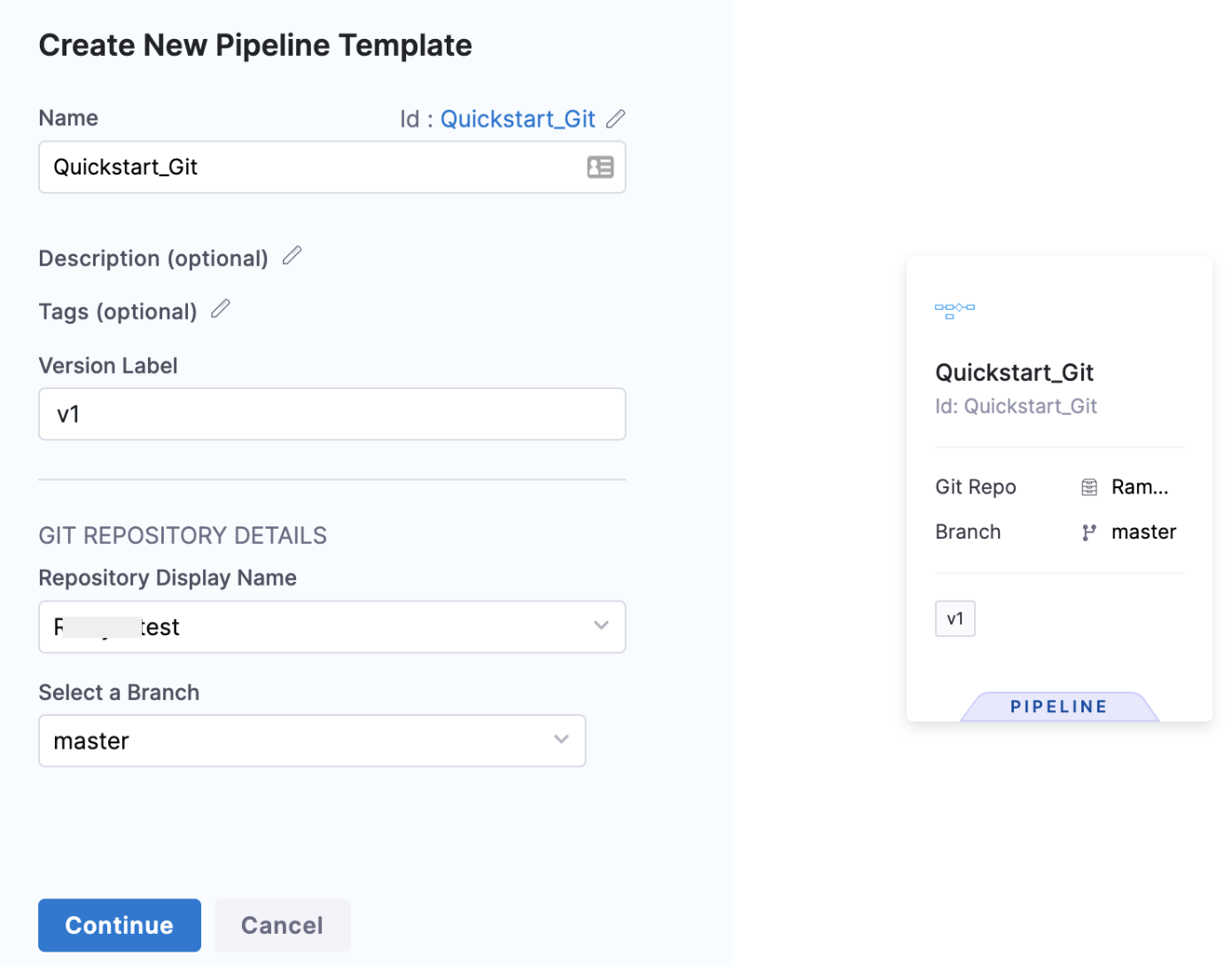

You'll see the Git Repository Details option only if you're creating a Template on a Git-enabled Project. For more information on Git Sync, see Harness Git Sync.

In Git Repository Details, in Repository Display Name, select your Git repository and Branch.

Once you've entered all the details, click Continue.

Step 2: Add a Stage

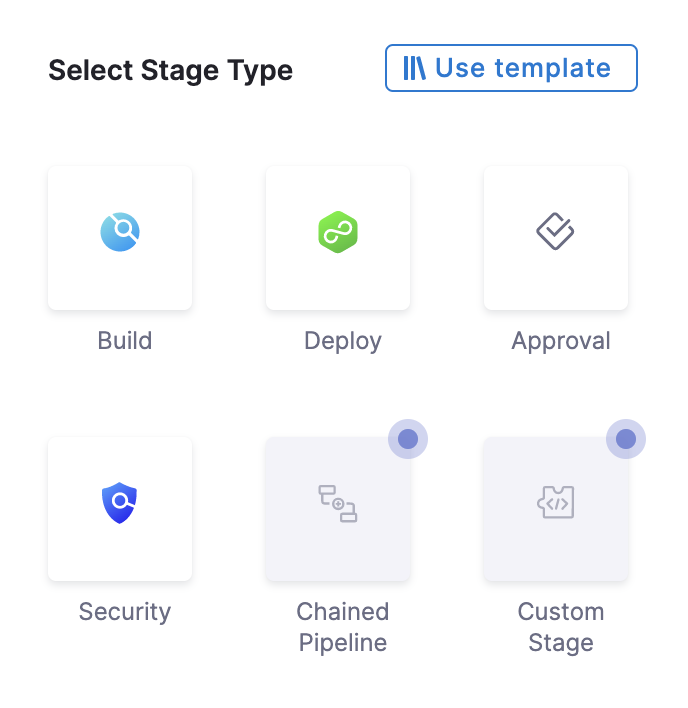

Click Add Stage. The Select Stage Type settings appear.

Select Deploy. The Deploy stage type is a CD Stage that enables you to deploy any Service to your target environment.

You can also select Build for CI, and Approval for Manual and Jira Approval Stages. More options will be added soon. This document uses the Deploy stage type.

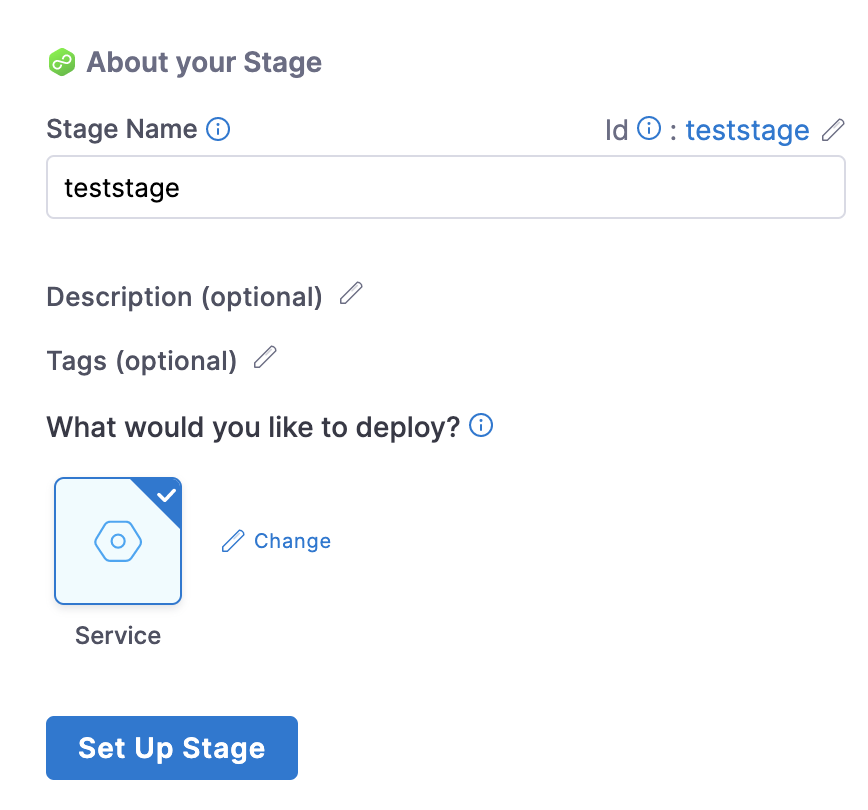

The About Your Stage settings appear.

In Stage Name, enter a name for your Stage.

Select the entity that this stage should deploy. Currently, for Deploy, only Service can be deployed and it is selected by default.

Click Set Up Stage.

Step 3: Add Service Details

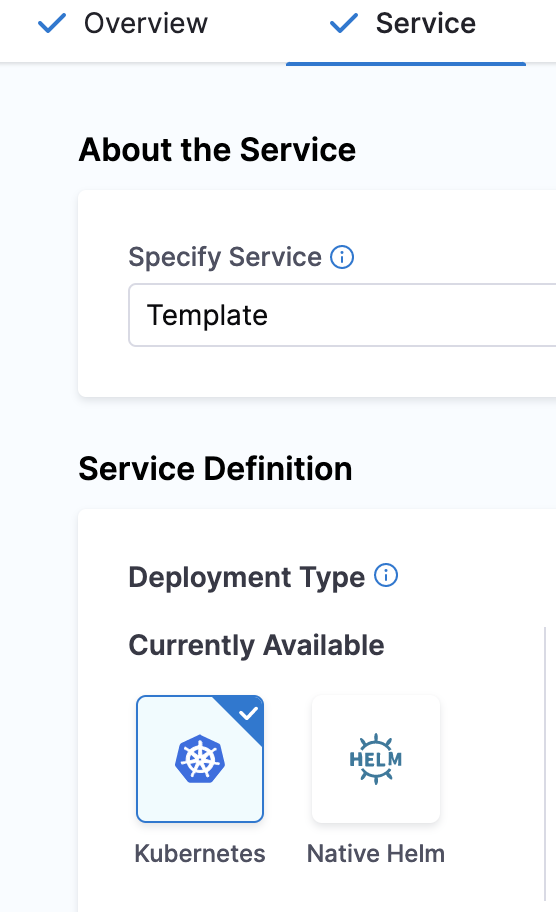

In About the Service, select the Service that you want to deploy from the Specify Service drop-down list. You can also use Fixed Values, Runtime Inputs, and Expressions.

Use Runtime Inputs instead of variable expressions: when you update Template settings in a Stage or step Template, use Runtime Inputs instead of variable expressions. When Harness tries to resolve variable expressions to specific Stage-level settings using fully-qualified names, it can cause issues at runtime. Every Pipeline where the Stage or step Template is inserted must use the same names for fully-qualified name references to operate. With Runtime Inputs, you can supply values for a setting at deployment runtime.

In Service Definition, select the Deployment Type. Deployment Type defines how your Service will be deployed.

Step 4: Add Infrastructure Details

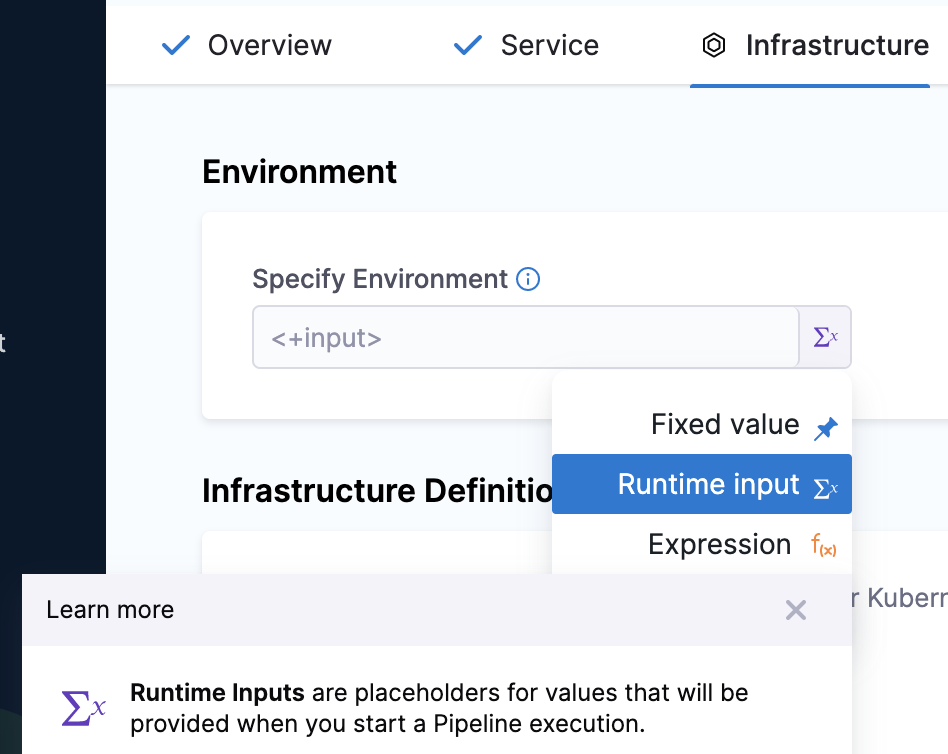

In Infrastructure, in Specify Environment, select the setting for your Pipeline execution, for example, Runtime input. Harness Pipelines allow you to use Fixed Values, Runtime Inputs, and Expressions. Environments represent your deployment targets logically (QA, Prod, etc). You can add the same Environment to as many stages as you need.

In Infrastructure Definition, select the method for Harness to reach your Kubernetes Cluster. Infrastructure Definitions represent the physical infrastructure of the Environment. They are the actual clusters, hosts, etc. For example, the target Infrastructure Definition for a Kubernetes deployment. By separating Environments and Infrastructure Definitions, you can use the same Environment in multiple stages while changing the target infrastructure settings with each stage.

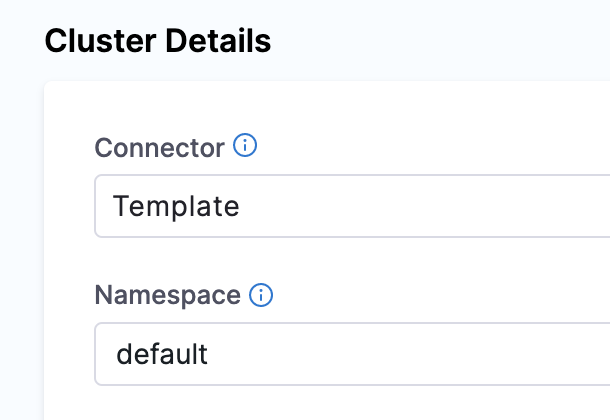

In Cluster Details, enter Connector and Namespace details. Harness Pipelines allow you to use Fixed Values, Runtime Inputs, and Expressions also.

In Connector, select a Connector from the drop-down list. To create a new Connector, see Kubernetes Cluster Connector Settings Reference and Add a Kubernetes Cluster Connector.

In Namespace, enter the namespace. For example, default.

Click Next. The Execution Strategies settings appear.

Step 5: Define Execution Strategies

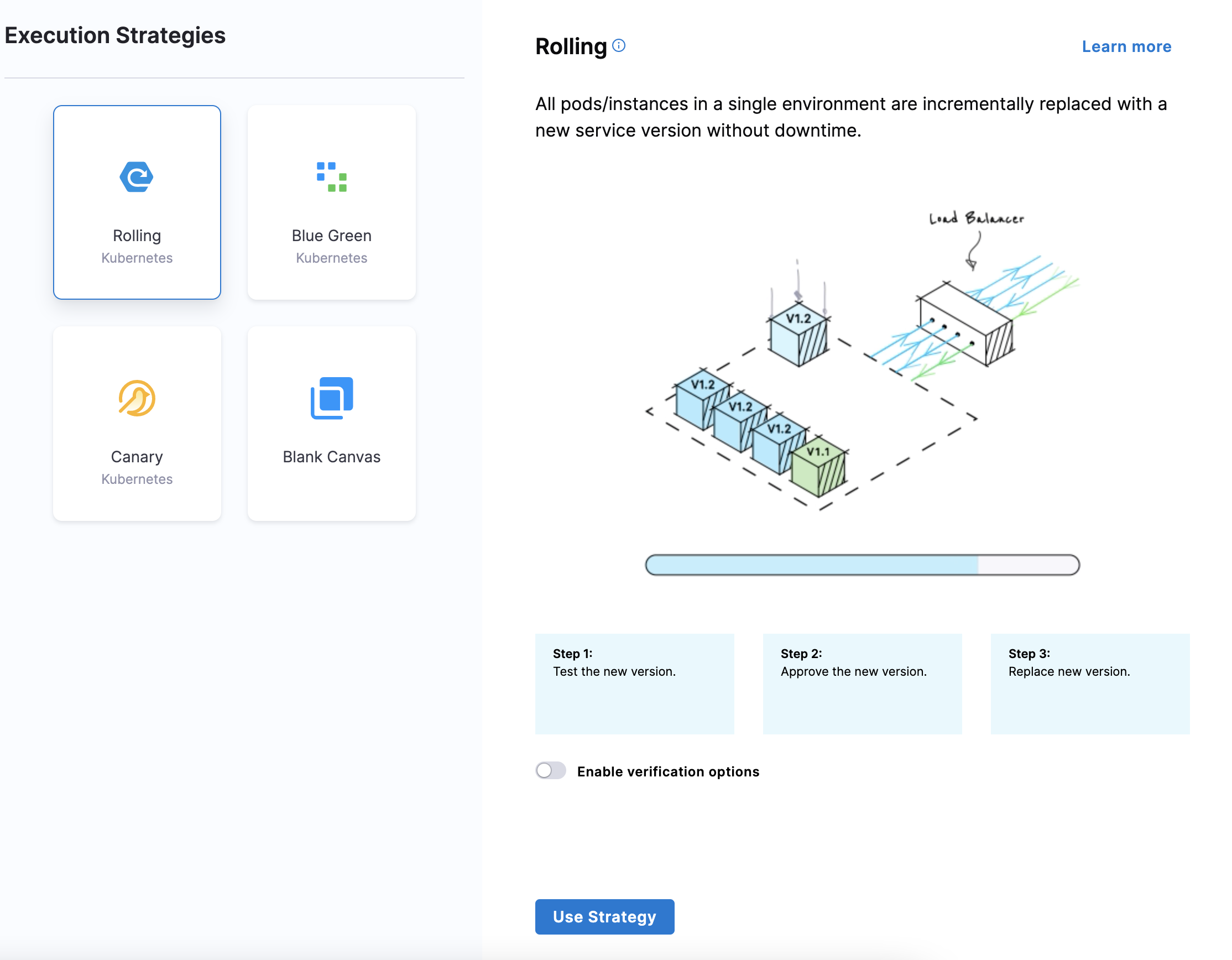

In Execution Strategies, select the deployment strategy for your Pipeline Template. We've used Rolling in this document. For more information on different execution strategies, see Deployment Concepts and Strategies.

Click Use Strategy.

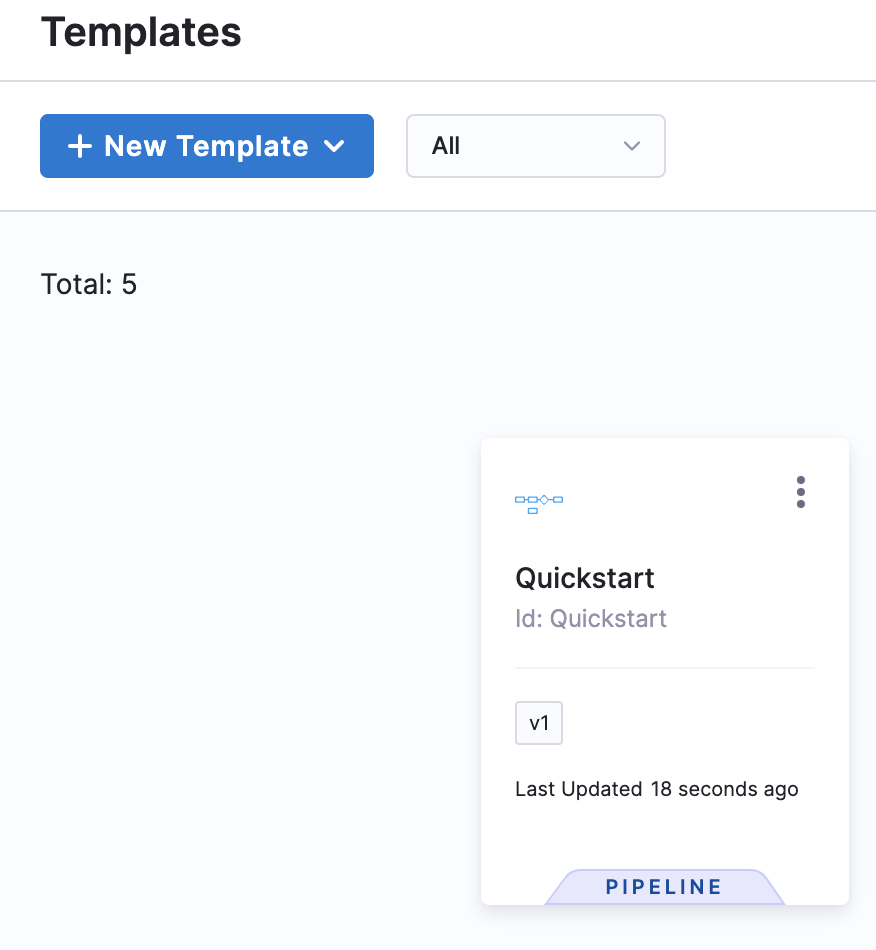

Click Save. The Pipeline Template is published successfully.

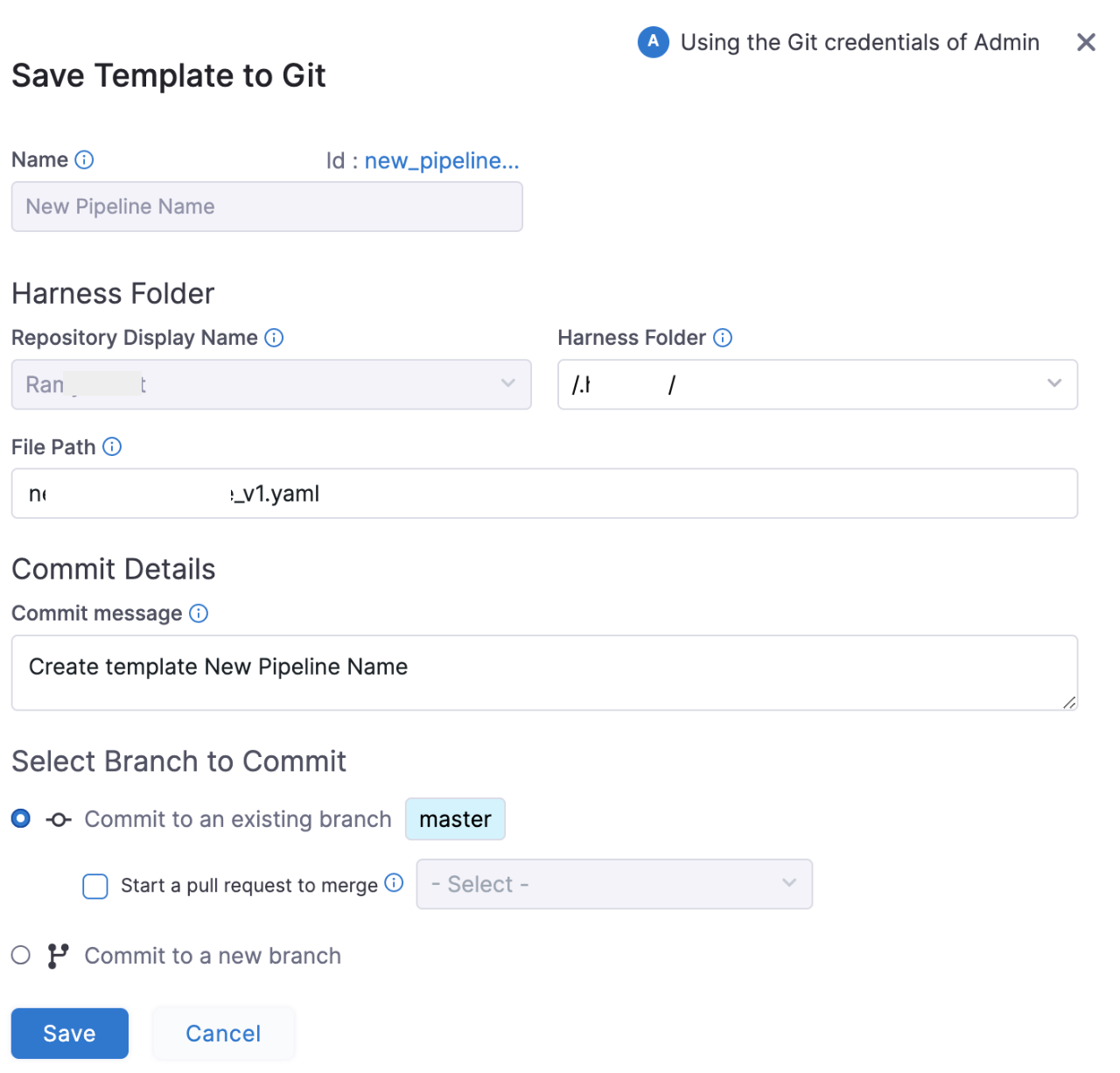

If you're using a Project which is Git-enabled, you need to provide Save Template to Git settings.

In Harness Folder, enter the name of the folder in your repo where you want to sync. The Harness Folder is the default folder in the repository where you are syncing your Project.

In File Path, enter a name for the YAML file. For example, enterExample.yaml. Harness will generate one automatically from the Pipeline name, but you can add your own.

In Commit message, enter a message for the commit that adds this Connector.

Click Save, and click Save again. You can save the Pipeline in two ways:

  • As new version
  • As a new Template

Click Save as new Template.

Save as new Template settings appear.

Click Continue. The Template is published successfully.
