Nexus Connector Settings Reference

Updated 1 week ago by Michael Cretzman

This topic provides settings and permissions for the Nexus Connector.

In this topic:

Nexus Permissions Required

Ensure the connected user account has the following permissions in the Nexus Server.

  • Repo: All repositories (Read)
  • Nexus UI: Repository Browser

If used as a Docker Repo, the user needs:

  • List images and tags
  • Pull images

See Nexus Managing Security.

Artifact Type Support

Legend:

  • M - Metadata. This includes Docker image and registry information. For AMI, this means AMI ID-only.
  • Blank - Not supported.

Docker Image

(Kubernetes/Helm)

AWS AMI

AWS CodeDeploy

AWS Lambda

JAR

RPM

TAR

WAR

ZIP

PCF

IIS

M

M

Docker Support

Nexus 3 Artifact Servers only.

Nexus Artifact Server

The Harness Nexus Artifact server connects your Harness account to your Nexus artifact resources. It has the following settings.

Name

The unique name for this Connector.

ID

See Entity Identifier Reference.

Description

Text string.

Tags

See Tags Reference.

Nexus Repository URL

The URL that you use to connect to your Nexus server. For example, https://nexus3.dev.mycompany.io.

Version

The Version field in the dialog lists the supported Nexus version, 3.x.

For Nexus 3.x, Harness supports only the Docker repository format as the artifact source.

Credentials

The username and password for the Nexus account.

The password uses a Harness Encrypted Text secret.

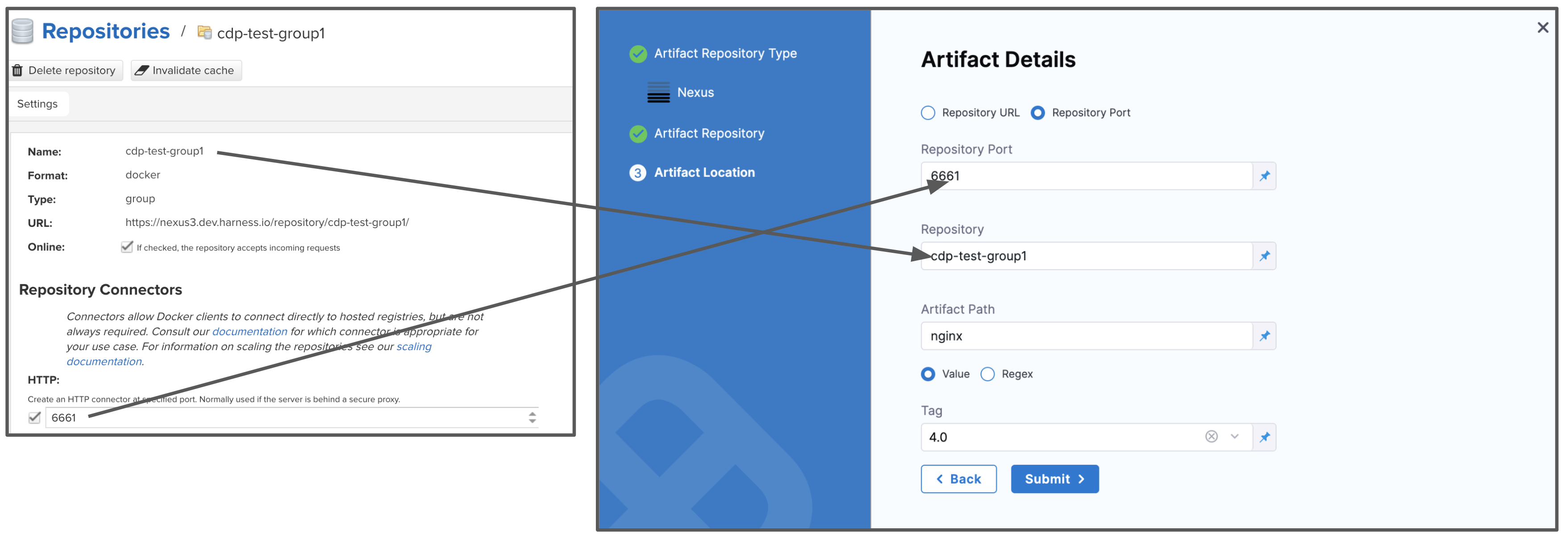

Nexus Artifact Details

Repository URL

The URL you would use in the Docker login to fetch the artifact. This is the same as the domain name and port you use for docker login hostname:port.

Repository Port

The port you use for docker login hostname:port. As a best practice, include the scheme and port. For example https://your-repo:443. If you cannot locate the scheme, you may omit it, for example your-repo:18080.

For more information, see Docker Repository Configuration and Client Connection and Using Nexus 3 as Your Repository – Part 3: Docker Images from Sonatype.

Repository

Name of the repository where the artifact is located.

Artifact Path

The name of the artifact you want to deploy. For example, nginx, private/nginx, public/org/nginx.

The repository and artifact path must not begin or end with /.

Tag

Select a Tag from the list.
