Install the Docker Delegate

Updated 1 month ago by Michael Cretzman

The Harness Delegate is a worker process you run in your deployment target environment, such as your local network, VPC, or cluster. The Delegate connects all of your artifact, infrastructure, collaboration, verification and other providers with the Harness Manager.

Most importantly, the Delegate performs all deployment operations.

There are several types of Delegates. This topic describes how to install the Docker Delegate.

In this topic:

Before You Begin

Review: System Requirements

The Docker Delegate has the following system requirements:

  • Default 0.5 CPU.
  • Default 768MB RAM: there is a cap of 768MB per Delegate, but when the Delegate is updating there might be two Delegates running. Hence, the minimum is 1.5GB. Ensure that you provide the minimum memory for the Delegate and enough memory for the host/node system.

Step 1: Download the Docker Delegate

The Delegate can be installed at the Harness account, Organization, or Project level.

You can install a Delegate as part of setting up a Connector or independent of another process.

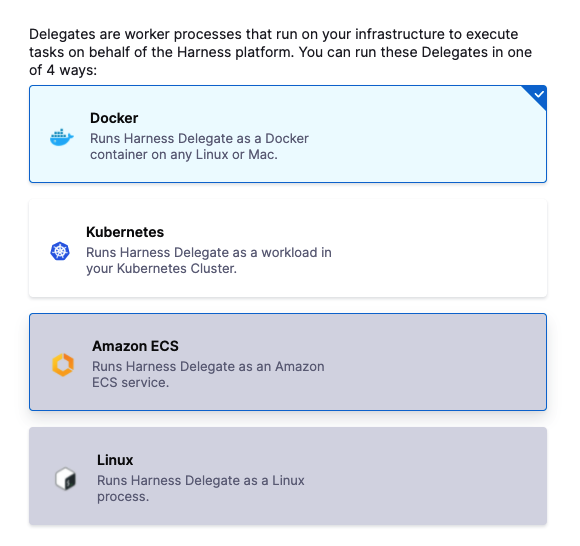

Once you have selected New Delegate on a Delegates page or as part of setting up a Connector, the Delegates selection page appears.

Click Docker and then click Continue.

Step 2: Name and Tag the Delegate

Enter a name for the Delegate. This is the name you will see when the Delegate is listed in Harness.

Add Tags to the Delegate. By default, Harness adds a Tag using the name you enter, but you can more. Simply type them in and press Enter.

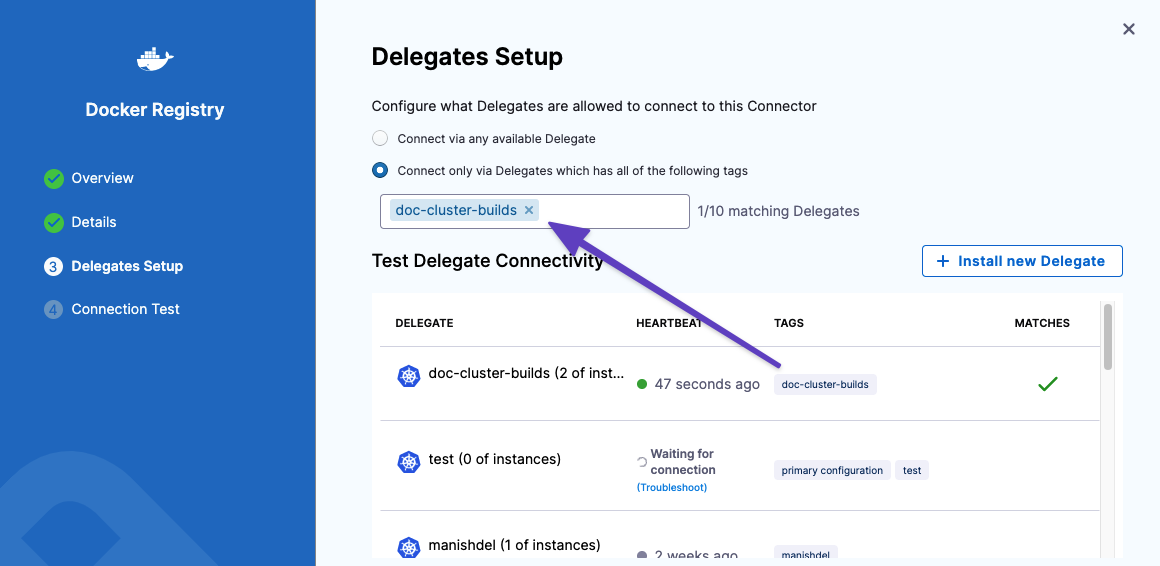

These Tags are useful for selecting the Delegate when creating a Connector.

Click Continue.

Step 3: Run the Docker Delegate Script

If you system already has a Delegate image, then Harness doesn't pull the latest image when you run docker-compose. Simply run docker pull harness/delegate to pull the latest.

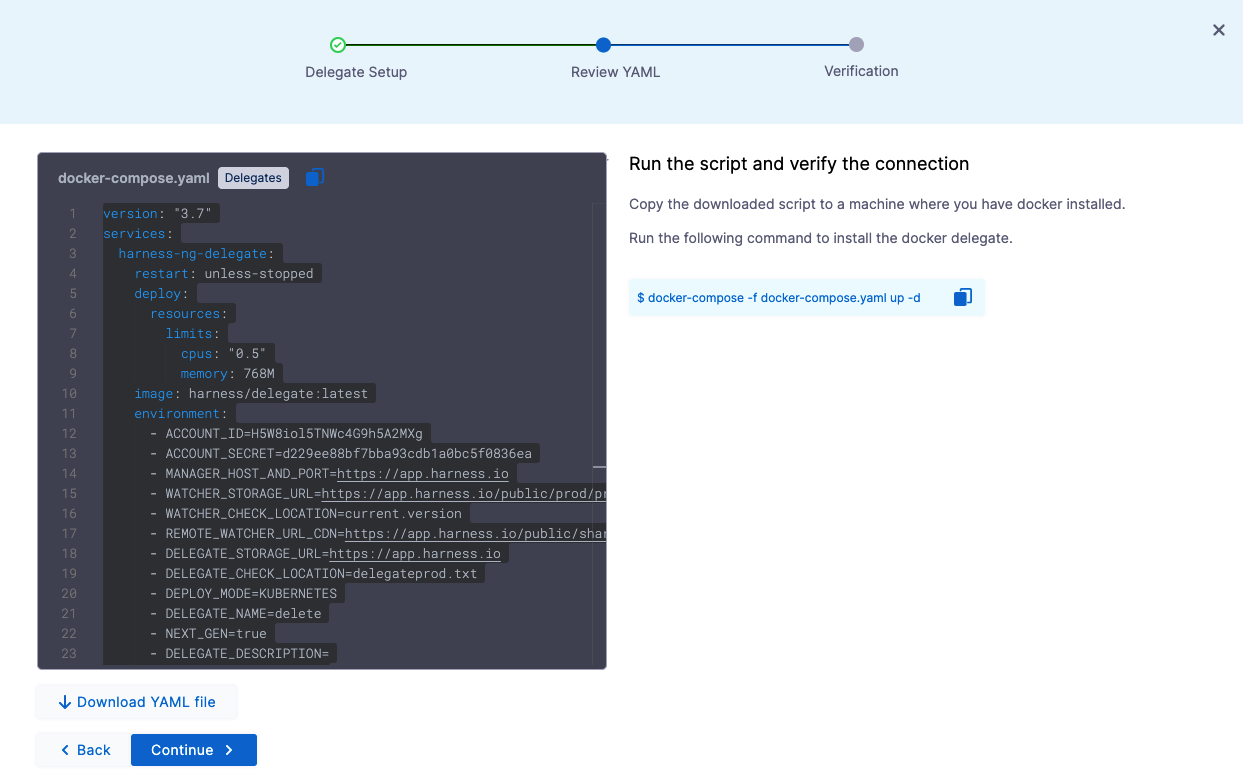

Now you can see the YAML file for the Delegate:

Click Download YAML file and copy the Docker compose file to a machine where you have Docker installed.

Run the following command to install the Delegate in Docker:

docker-compose -f docker-compose.yaml up -d

The Delegate installs. Type docker ps to see the container:

CONTAINER ID        IMAGE                     COMMAND                  CREATED             STATUS                          PORTS                    NAMES
6b242707a57a harness/delegate:latest "/bin/sh -c './entry…" 3 days ago Up 32 seconds local-docker_harness-ng-del

Next, the Delegate registers with Harness and appears in the Delegate list.

Note the Connected status. If there is a connectivity error, you will see Not Connected. If there's an error, ensure the Docker host can connect to https://app.harness.io.

That's it. The Delegate is installed and registered and connected.

Harness Docker Delegate Environment Variables

The following table lists each of the environment variables in the Harness Docker Delegate YAML.

Name

Description

Example

ACCOUNT_ID

The Harness account Id for the account where this Delegate will attempt to register.

- ACCOUNT_ID=H5W8i2828282828Xg

ACCOUNT_SECRET

The Harness account token used to register the Delegate.

- ACCOUNT_SECRET=d229ee88bf7bbxxxx6ea

MANAGER_HOST_AND_PORT

The Harness SaaS manager URL. https indicates port 443.

- MANAGER_HOST_AND_PORT=https://app.harness.io

WATCHER_STORAGE_URL

The URL for the Watcher versions.

See Delegate Installation Overview.

- WATCHER_STORAGE_URL=https://app.harness.io/public/prod/premium/watchers

WATCHER_CHECK_LOCATION

The Delegate version location for the Watcher to check for.

- name: WATCHER_CHECK_LOCATION
value: current.version

REMOTE_WATCHER_URL_CDN

The CDN URL for Watcher builds.

- name: REMOTE_WATCHER_URL_CDN
value: https://app.harness.io/public/shared/watchers/builds

DELEGATE_STORAGE_URL

The URL where published Delegate jars are stored.

- name: DELEGATE_STORAGE_URL
value: https://app.harness.io

DELEGATE_CHECK_LOCATION

The storage location hosting the published Delegate versions.

- name: DELEGATE_CHECK_LOCATION
value: delegateprod.txt

DEPLOY_MODE

Deployment mode: Kubernetes, Docker, etc.

- name: DEPLOY_MODE
value: DOCKER

DELEGATE_NAME

The name of the Delegate. This is the name that will appear in Harness when the Delegate is registered.

You can automate Delegate creation by omitting the name, and then have a script copying the Delegate YAML file and add a unique name to value for each new Delegate you want to register.

See Automate Delegate Installation.

- name: DELEGATE_NAME
value: qa

NEXT_GEN

Indicates that this Delegate will register in Harness NextGen.

If it set to false, the Delegate will attempt to register in Harness FirstGen.

- name: NEXT_GEN
value: "true"

DELEGATE_DESCRIPTION

The description added to the Delegate in the Harness Manager or YAML before registering.

It appears in the Delegate details page in the Harness Manager.

- name: DELEGATE_DESCRIPTION
value: ""

DELEGATE_TYPE

The type of Delegate.

- name: DELEGATE_TYPE
value: "DOCKER"

DELEGATE_TAGS

The Tags added to the Delegate in the Harness Manager or YAML before registering.

Tags are generated by Harness using the Delegate name but you can also add your own Tags.

Tags appear in the Delegate details page in the Harness Manager.

See Tags Reference and Select Delegates with Tags.

- name: DELEGATE_TAGS
value: ""

DELEGATE_TASK_LIMIT

The maximum number of tasks the Delegate can perform at once.

All of the operations performed by the Delegate are categorized as different types of tasks.

- name: DELEGATE_TASK_LIMIT
value: "50"

DELEGATE_ORG_IDENTIFIER

The Harness Organization where the Delegate will register.

Delegates at the account-level do not have a value for this variable.

- name: DELEGATE_ORG_IDENTIFIER
value: "engg"

DELEGATE_PROJECT_IDENTIFIER

The Harness Project where the Delegate will register.

Delegates at the account or Org-level do not have a value for this variable.

- name: DELEGATE_PROJECT_IDENTIFIER
value: ""

PROXY_MANAGER

Indicates whether to use the Harness Manager or a proxy. If you use true (the default) you are indicating that you proxy outbound traffic to Harness.

- PROXY_MANAGER=true

INIT_SCRIPT

You can run scripts on the Delegate using INIT_SCRIPT.

For example, if you wanted to install software on the Delegate pod, you can enter the script in INIT_SCRIPT and then apply the Delegate YAML.

A multiline script must follow the YAML spec for literal scalar style.

See Run Scripts on Delegates.

- |
INIT_SCRIPT=
echo hello world!

USE_CDN

Makes the Delegate use a CDN for new versions.

- name: USE_CDN
value: "true"

CDN_URL

The CDN URL for Delegate versions.

- name: CDN_URL
value: https://app.harness.io

VERSION_CHECK_DISABLED

By default, the Delegate always checks for new versions (via the Watcher).

- name: VERSION_CHECK_DISABLED
value: "false"
