Create a step template

The Harness Template Library enables you to standardize and create step templates that can be re-used across pipelines and teams that use Harness.

To demonstrate how to create, configure, and use step templates, this topic adds a CD Run step template to a CD pipeline. You can also create templates for CI Run steps or any other step type in Harness.

This topic assumes you're familiar with Harness' key concepts.

Objectives

You'll learn how to:

  • Create a Run step template.
  • Define template parameters.
  • Use the run step template in a pipeline.

Step 1: Create a template

You can create a step template from your account, org, or project. ​This topic explains the steps to create a step template from the project scope.

To create a inline step template from the project scope, do the following:

  1. In your Harness, go to your project.

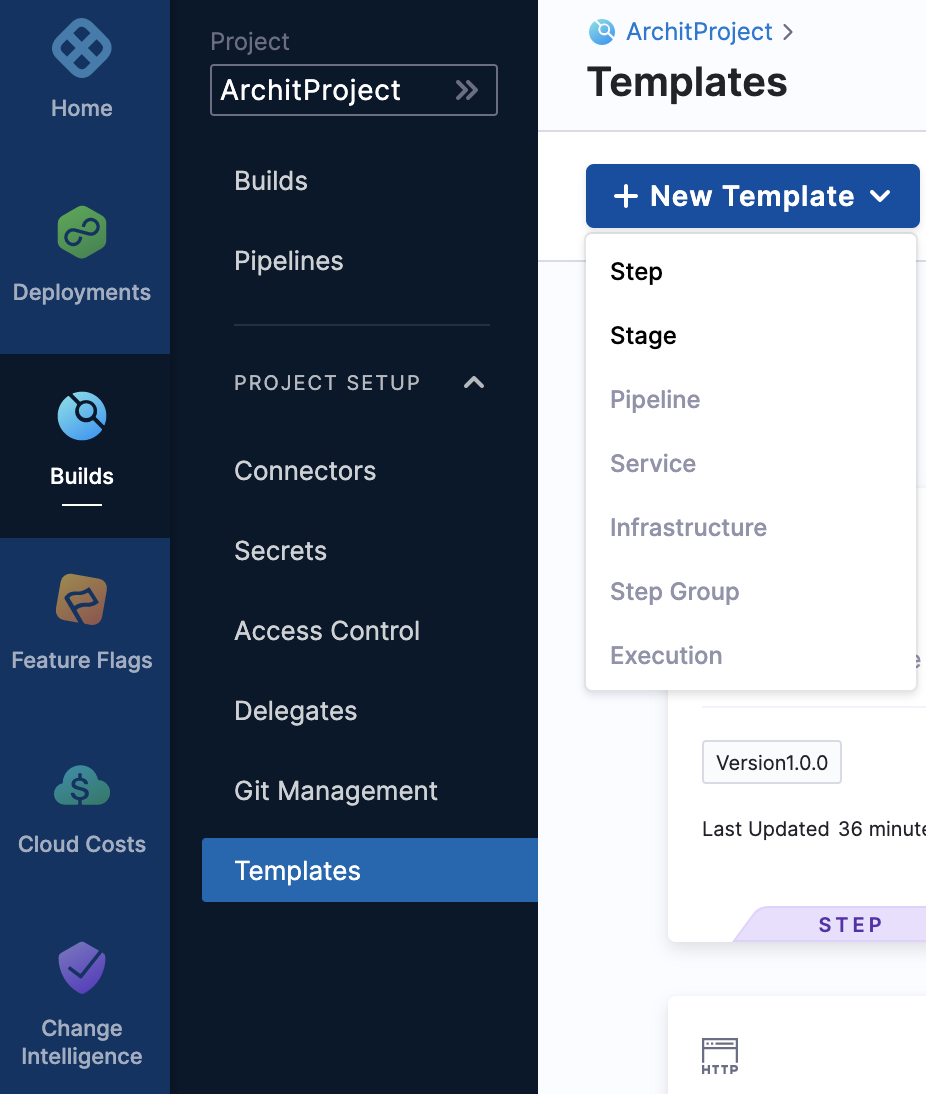

  2. Select Project Settings, then, under Project-level resources, select Templates.
  3. Select + New Template, and then select Step. The Create New Step Template settings open.
  4. In Name, enter a name for the template.​
  5. (Optional) Select the pencil icon to enter a Description.
  6. (Optional) Select the pencil icon to add Tags.
  7. In Version Label, enter the version of the stage, for example, v1. Versioning a template enables you to create a new template without modifying the existing one. For more information, go to Versioning.
  8. Under How do you want to set up your template?, select Inline.
  9. Select Start. The Step Library panel opens.

Step 2: Add step parameters

To add step parameters, do the following:

  1. Follow the steps above to create a template.

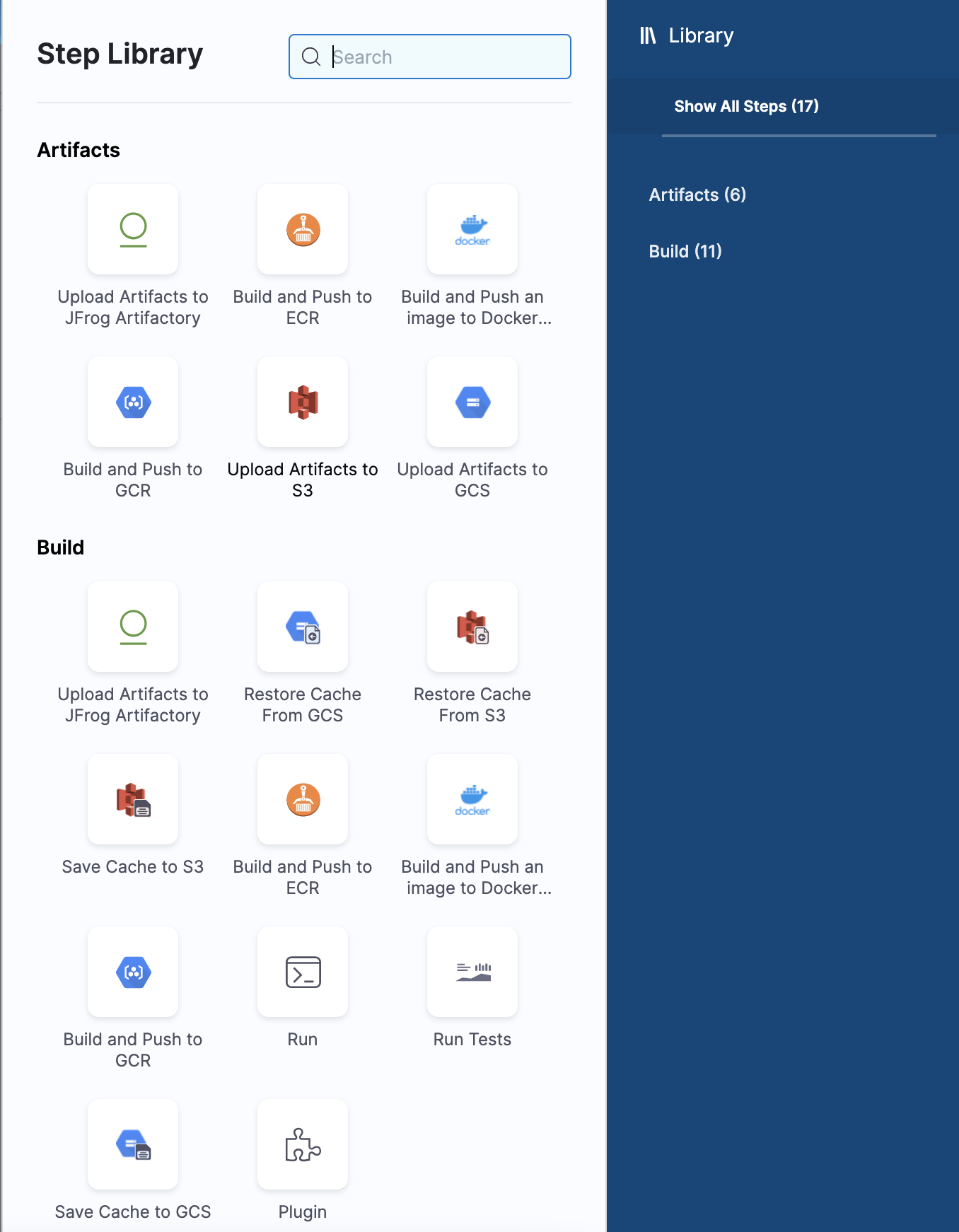

  2. In Step Library, select Run under Build.

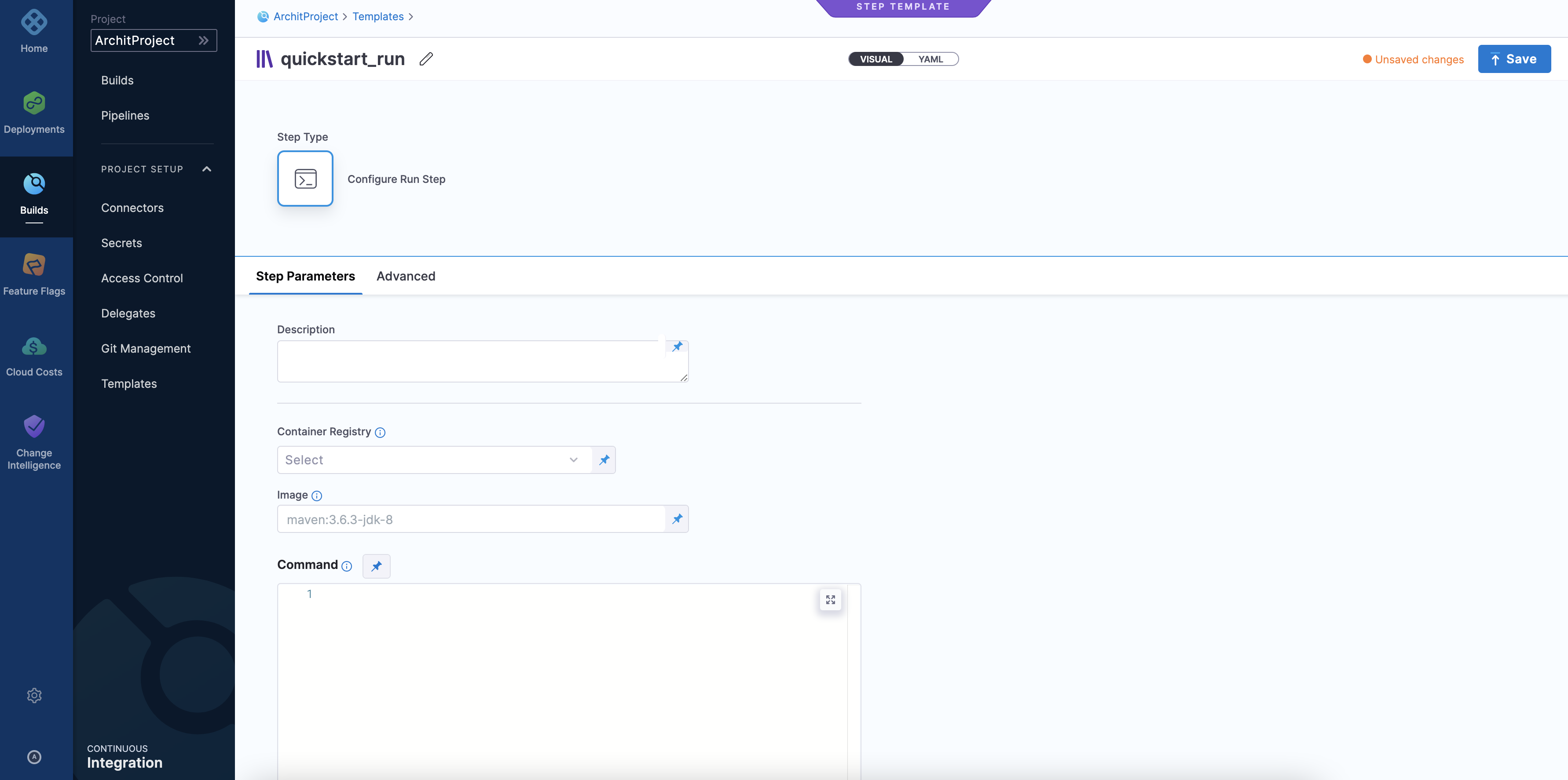

    The Step Parameters settings open.

  3. Select Container Registry, and then select Runtime input, which lets you add values when you start a pipeline execution.

  4. In Image, select Runtime input. You can use any Docker image from any Docker registry, including private registries.

  5. In Command, select Runtime input.

  6. Select Save. The new template displays under the Templates list.

    Use Runtime Inputs instead of variable expressions: when you want to template settings in a Stage or step template, use Runtime inputs instead of variable expressions. When Harness tries to resolve variable expressions to specific stage-level settings using fully-qualified names, it can cause issues at runtime. Every pipeline where the stage or step template is inserted must utilize the exact same names for fully-qualified name references to operate. With runtime inputs, you can supply values for a setting at deployment runtime.

Step 3: Add the run step template to a pipeline

To add the run step template to a pipeline, do the following:

  1. Follow the steps above to create a template.

  2. Go to your pipeline, and then select Add Step. The Step Library panel opens.

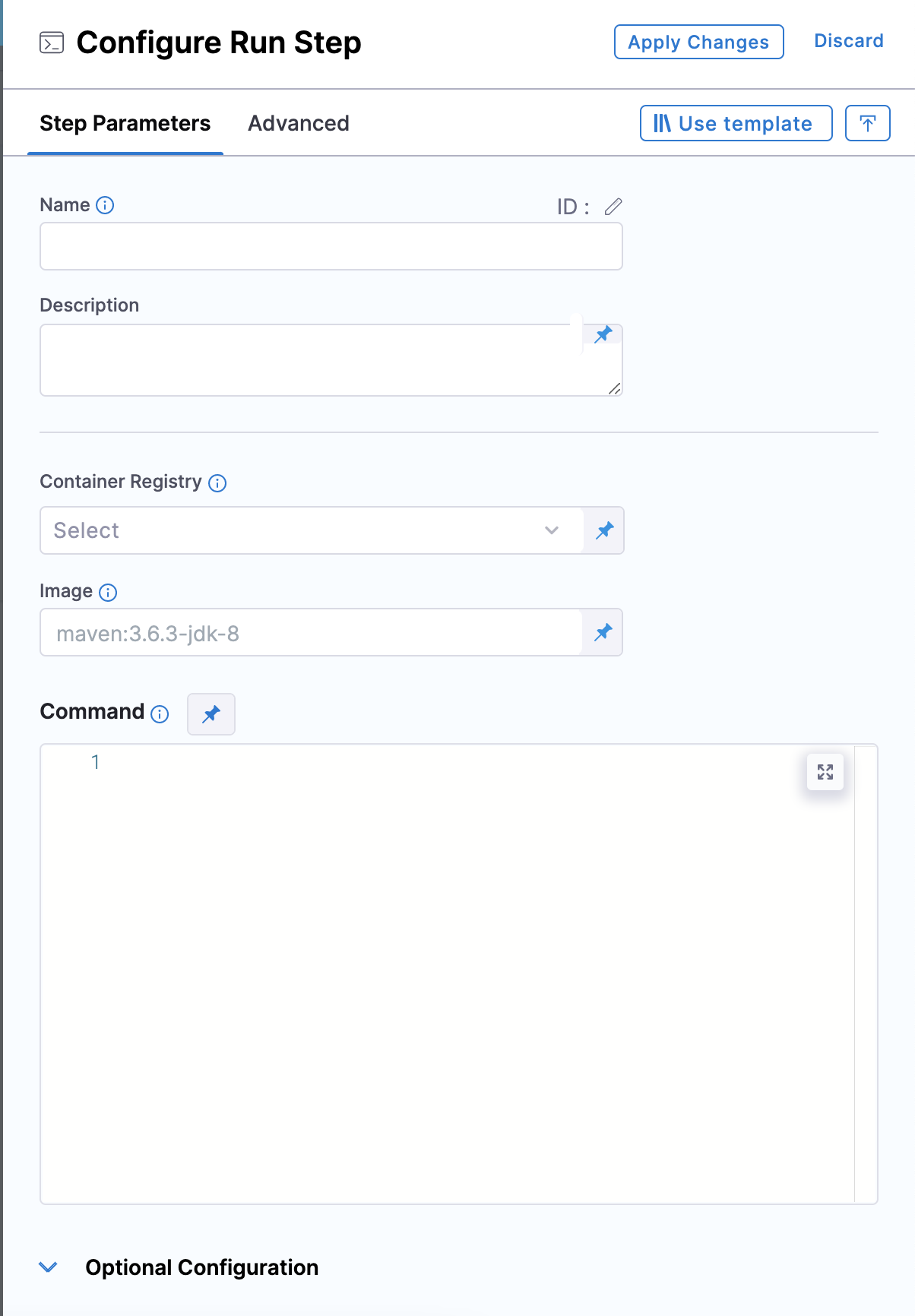

  3. In Step Library, select Run under Build. The Configure Run Step settings open.

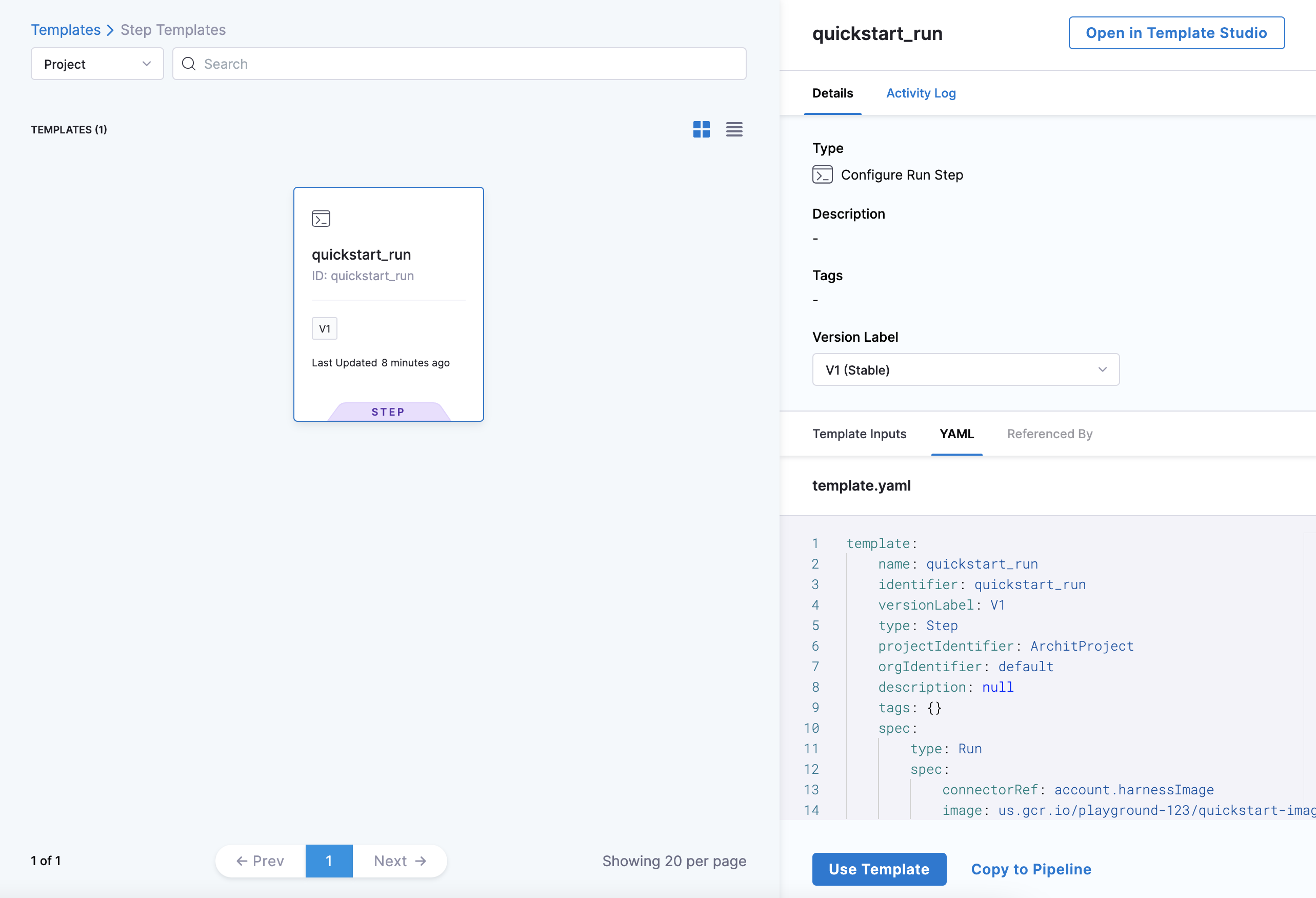

  4. Select Use Template. The next page lists all the project-level templates.

  5. Select the template that you created.

  6. Select the Activity Log to track all template events. It shows you details like who created the template and template version changes.

  7. In Details, from the Version Label list, select Always use the stable version. This ensures that any changes that you make to this version are propagated automatically to the pipelines using this template.

  8. Select Use Template.

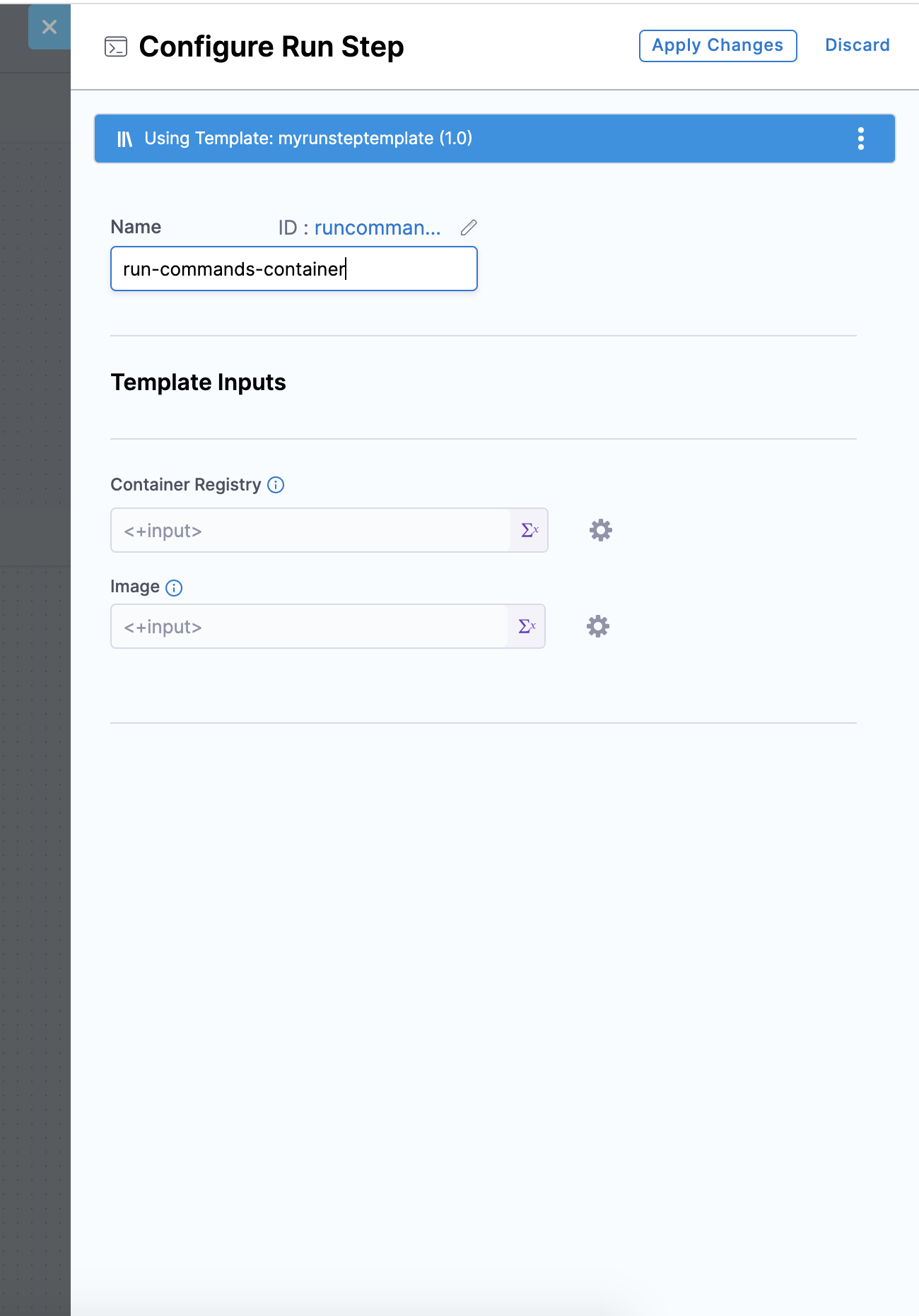

  9. In Container Registry, select Runtime input.

  10. In Image, select Runtime input.

  11. In Command, select Runtime input.

  12. Select Apply Changes.

  13. Click Save.
