Use Kustomize for Kubernetes Deployments

Updated 1 week ago by Michael Cretzman

Harness supports Kustomize kustomizations in your Kubernetes deployments. You can use overlays, multibase, plugins, sealed secrets, patches, etc, just as you would in any native kustomization.

New to Kustomize? In a nutshell, kustomizations let you create specific Kubernetes deployments while leaving the original manifests untouched. You drop a kustomization.yaml file next to your Kubernetes YAML files and it defines new behavior to be performed during deployment.
Please review the video Kustomize: Deploy Your App with Template Free YAML (30min).

Before You Begin

Visual Summary

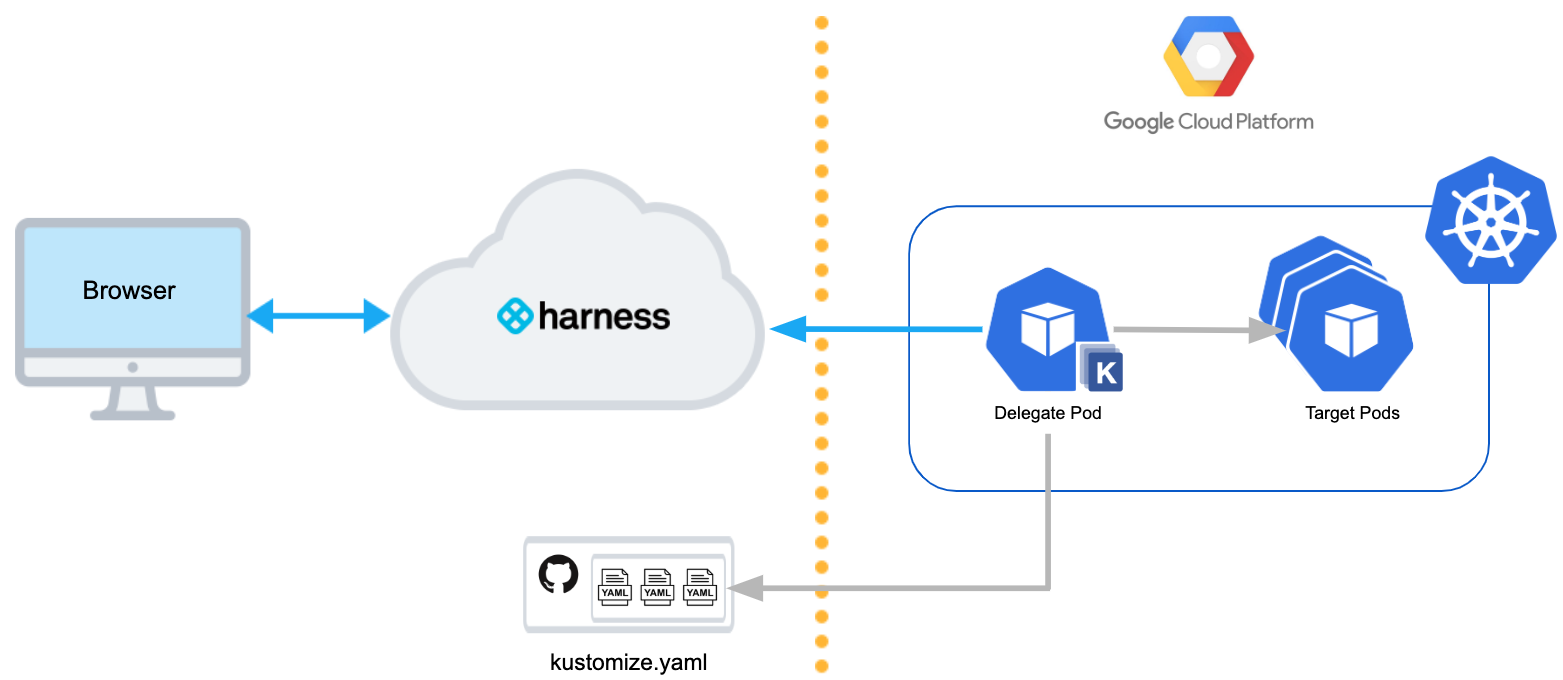

The following diagram shows a very simple topology for implementing Kustomize.

Limitations

  • Harness supports Kustomize and Kustomize Patches for Rolling, Canary, Blue Green strategies, and the Kubernetes Apply and Delete steps.
  • Harness does not use Kustomize for rollback. Harness renders the templates using Kustomize and then passes them onto kubectl. A rollback works exactly as it does for native Kubernetes.
  • You cannot use Harness variables in the base manifest or kustomization.yaml. You can only use Harness variables in kustomize patches you add in Kustomize Patches Manifest Details.
  • Kustomize binary versions:
    Harness includes Kustomize binary versions 3.5.4 and 4.0.0. By default, Harness uses 3.5.4. To use 4.0.0, you must enable the feature flag NEW_KUSTOMIZE_BINARY in your account. Contact Harness Support to enable the feature.
  • Harness will not follow symlinks in the Kustomize and Kustomize Patches files it pulls.

Video

Here's a quick video showing you how to add Kustomize templates and Patches files in Harness. It covers other types like Helm Charts, also.

Review: Kustomize and Harness Delegates

All Harness Delegates include Kustomize by default. There is no installation required.

Your Delegate hosts, typically a pod in the target cluster, require outbound HTTPS/SSH connectivity to Harness and your Git repo.

The Delegate you use for Kustomize deployments must have access to the Git repo containing your Kustomize and resource files.

The remainder of this topic assumes you have a running Harness Delegate and Cloud Provider Connector.

For details on setting those up, see:

Step 1: Add Manifests and Kustomization

Let's look at an example of connecting Harness to the repo containing the kustomization. We'll use a publicly available helloword kustomization cloned from Kustomize.

All connections and operations are performed by Harness Delegates. You can add the Delegate separately or as part of adding the kustomization files.

In you Harness CD Pipeline, in a Deploy stage, click Service.

In Service Definition, in Deployment Type, click Kubernetes.

In Manifests, click Add Manifest.

What about Artifacts? In this example the kustomization uses a publicly-available NGINX Docker image from DockerHub, and the location of the image is hardcoded in the manifest. The Artifacts section is only used when the public artifact is not hardcoded in the manifest or the repo is private. In those cases, you add the image in Artifacts with a Connector for the repo and then reference the image in a Kustomize Patch file (image: <+artifact.image>). See Option: Kustomize Patches below.

In Specify Manifest Type, click Kustomize, and click Continue.

In Specify Kustomize Store, select your Git provider, such as GitHub.

If you already have a Git Connector that points to your Kustomization files, then select that. If not, click New GitHub Connector.

The Git Connector settings appear. Enter the settings described in Connect to a Git Repo.

Click Continue.

In Manifest Details, enter the following settings, test the connection, and click Submit. We are going to provide connection and path information for a kustomization located at https://github.com/wings-software/harness-docs/blob/main/kustomize/helloWorld/kustomization.yaml.

  • Manifest Identifier: enter kustomize.
  • Git Fetch Type: select Latest from Branch.
  • Branch: enter main.
  • Kustomize Folder Path:
    kustomize/helloWorld

This is the path from the repo root.

The Kustomize Plugin Path is described below in Option: Use Plugins in Deployments.

The kustomization is now listed.

Click Next at the bottom of the Service tab.

Now that the kustomization is defined, you can define the target cluster for your deployment.

Skip Versioning for Service

In Manifest Details, in Advanced, you can select Skip Versioning for Service.

By default, Harness versions ConfigMaps and Secrets are deployed into Kubernetes clusters. Harness uses a ConfigMap for release versioning.

In some cases, you might want to skip versioning.

When you enable Skip Resource Versioning, Harness will not perform versioning of ConfigMaps and Secrets for the deployment.

If you have enabled Skip Resource Versioning for a few deployments and then disable it, Harness will start versioning ConfigMaps and Secrets.

Review: Artifact Sources and Kustomization

You can list artifacts in two ways:

  • Artifacts can be hardcoded in the deployment YAML file deployed using your Kustomization files.
  • You can add artifacts to the Service Artifacts section and reference them in Kustomize Patch files using the Harness variable <+artifact.image>. See Option: Kustomize Patches below, and Built-in Harness Variables Reference.

Option: Kustomize Patches

You cannot use Harness variables in the base manifest or kustomization.yaml. You can only use Harness variables in kustomize patches you add in Kustomize Patches Manifest Details.

Kustomize patches override values in the base manifest. Harness supports the patchesStrategicMerge patches type.

For example, let's say you have a simple kustomization.yaml for your application folder like this:

resources:
- namespace.yaml
- deployment.yaml
- service.yaml
- configmap.yaml

And you have an overlay for a production environment that points to the application folder like this:

resources:
- ../../application
namePrefix: nonpro-
configMapGenerator:
- name: example-config
namespace: default
#behavior: replace
files:
- configs/config.json
patchesStrategicMerge:
- env.yaml

The patchesStrategicMerge label identifies the location of the patch env.yaml, which looks like this:

apiVersion: apps/v1
kind: Deployment
metadata:
name: example-deploy
spec:
template:
spec:
containers:
- name: example-app
env:
- name: ENVIRONMENT
value: Production

As you can see, it patches a new environment variable name: ENVIRONMENT.

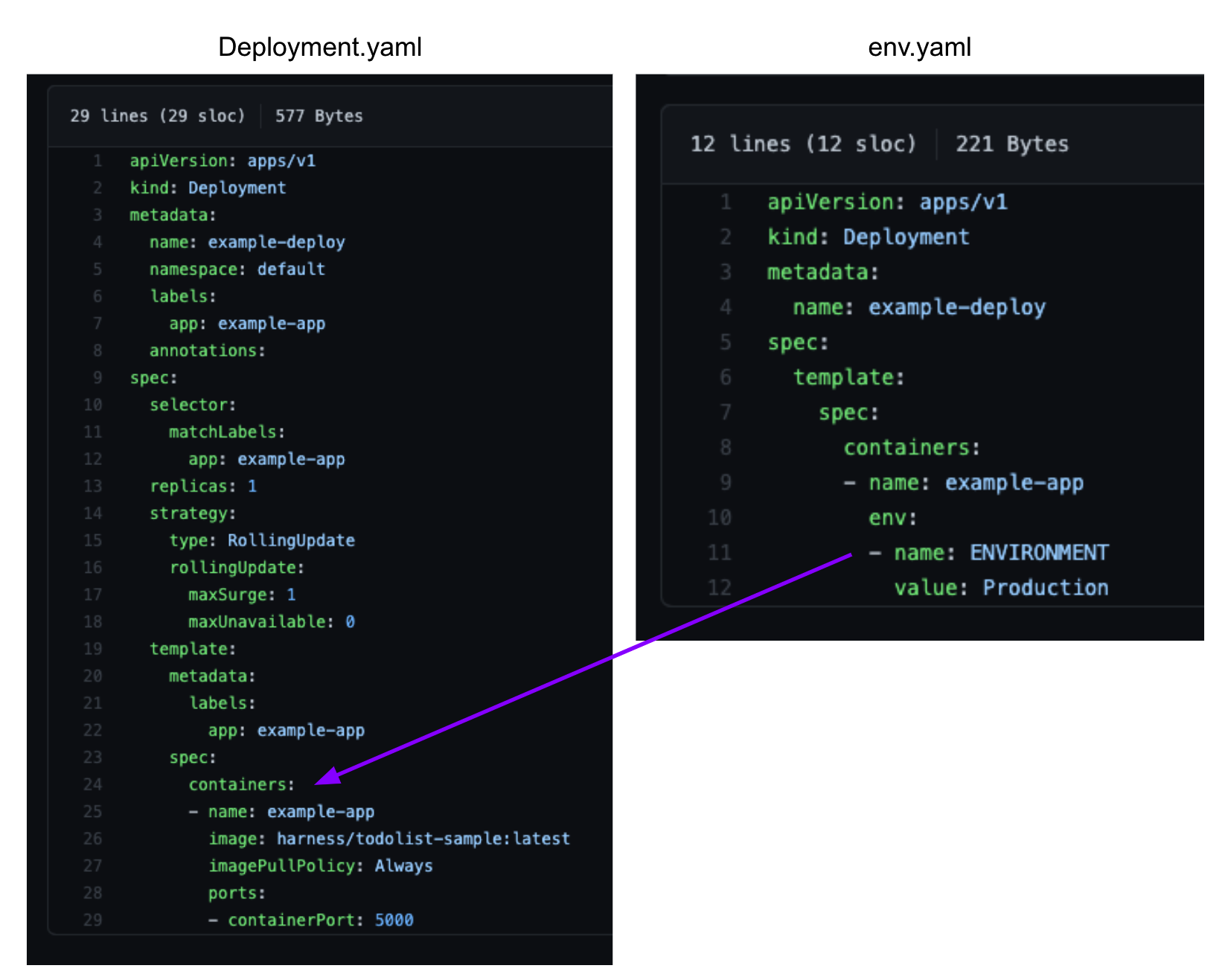

Here's what the patching looks like side-by-side:

When the kustomization.yaml is deployed, the patch is rendered and the environment variable is added to the deployment.yaml that is deployed.

Adding Kustomize Patches

You cannot use Harness variables in the base manifest or kustomization.yaml. You can only use Harness variables in kustomize patches you add in Kustomize Patches Manifest Details.

In the Stage's Service, in Manifests, click Add Manifest.

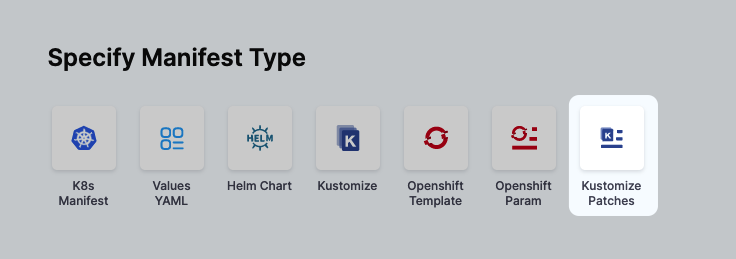

In Specify Manifest Type, select Kustomize Patches, and click Continue.

In Specify Kustomize Patches Store, select your Git provider and Connector. See Connect to a Git Repo.

The Git Connector should point to the Git account or repo where you Kustomize files are located. In Kustomize Patches you will specify the path to the actual patch files.

Click Continue.

In Manifest Details, enter the path to your patch file(s):

  • Manifest Identifier: enter a name that identifies the patch file(s). You don't have to add the actual filename.
  • Git Fetch Type: select whether to use the latest branch or a specific commit Id.
  • Branch/Commit Id: enter the branch or commit Id.
  • File/Folder Path: enter the path to the patch file(s) from the root of the repo. Click Add File to add each patch file. The files you add should be the same files listed in patchesStrategicMerge of the main kustomize file in your Service.
The order in which you add file paths for patches in File/Folder Path is the same order that Harness applies the patches during the kustomization build.
Small patches that do one thing are recommended. For example, create one patch for increasing the deployment replica number and another patch for setting the memory limit.

Click Submit. The patch file(s) is added to Manifests.

When the main kustomization.yaml is deployed, the patch is rendered and its overrides are added to the deployment.yaml that is deployed.

How Harness Uses patchesStrategicMerge

If the patchesStrategicMerge label is missing from the kustomization YAML file, but you have added Kustomize Patches to your Harness Service, Harness will add the Kustomize Patches you added in Harness to the patchesStrategicMerge in the kustomization file.

If you have hardcoded patches in patchesStrategicMerge, but not add these patches to Harness as Kustomize Patches, Harness will ignore them.

Using Harness Variables in Patches

Kustomize does not natively support variable substitution but Harness supports variable substitution using Harness variable expressions in Kustomize patches.

This allows you to configure any patch YAML labels as Harness variables expressions and replace those values at Pipeline runtime.

Let's look at an example.

Here is the deployment.yaml used by our kustomization:

apiVersion: apps/v1
kind: Deployment
metadata:
name: example-deploy
namespace: default
labels:
app: example-app
annotations:
spec:
selector:
matchLabels:
app: example-app
replicas: 1
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
template:
metadata:
labels:
app: example-app
spec:
containers:
- name: example-app
image: harness/todolist-sample:latest
imagePullPolicy: Always
ports:
- containerPort: 5000

You cannot use Harness variables in the base manifest or kustomization.yaml. You can only use Harness variables in kustomize patches you add in Kustomize Patches Manifest Details.

You add the patch files that will patch deployment.yaml to Kustomize Patches Manifest Details. Only these patch files can use Harness variables.

We're going to use variables for replicas and image.

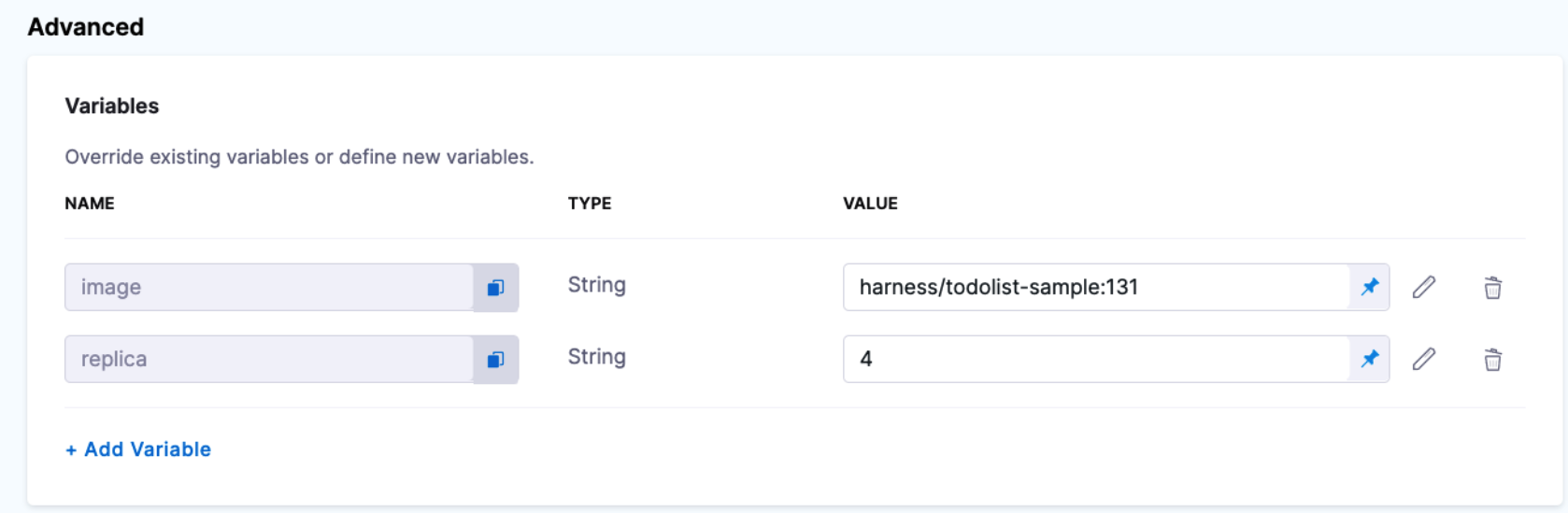

Let's look at the Harness variables in our Pipeline stage. Here are two Service-level variables:

One variable is for the image and another for the replicas count.

A patch using these variables will look like this:

apiVersion: apps/v1
kind: Deployment
metadata:
name: example-deploy
namespace: default
spec:
template :
spec:
containers:
- name: example-app
image: <+serviceConfig.serviceDefinition.spec.variables.image>

---
apiVersion: apps/v1
kind: Deployment
metadata:
name: example-deploy
namespace: default
spec:
replicas: <+serviceConfig.serviceDefinition.spec.variables.replica>

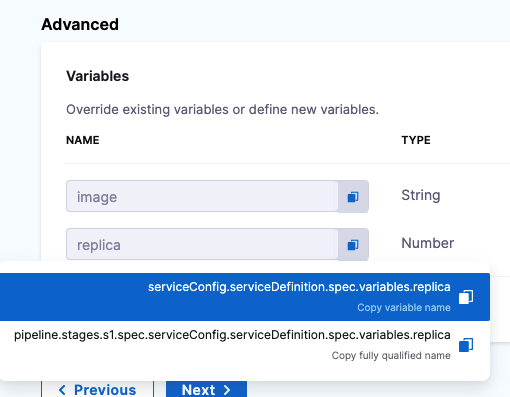

To get those variable references, you simply copy them:

Add this patch in the Kustomize Patches Manifest Details:

Now, when the Pipeline is run, the values for the two variables are rendered in the patch YAML and then the patch is applied to the deployment.yaml.

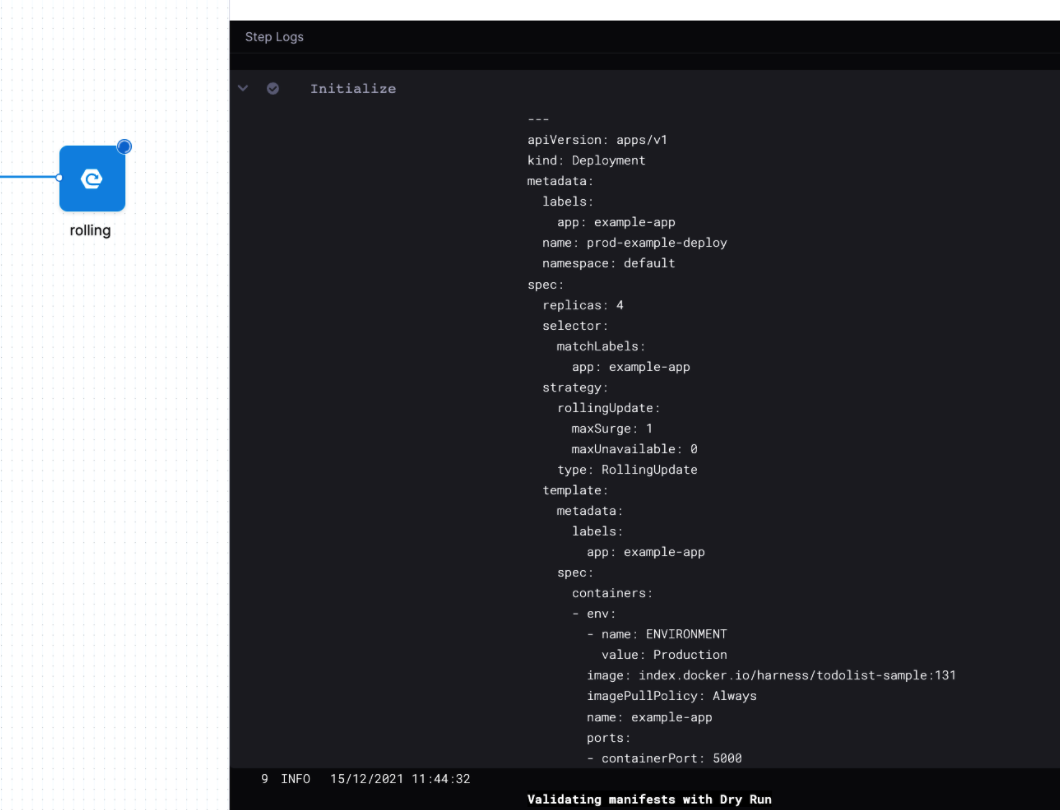

If you look at the Initialize phase of the deployment step (in Rolling, Canary, etc), you can see the variable values rendered in the Deployment manifest.

Using Harness Secrets in Patches

You can also use Harness secrets in patches.

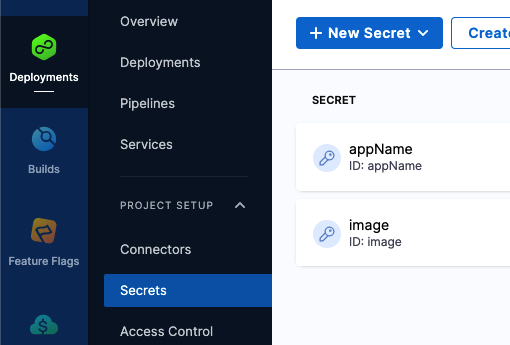

For example, let's say we have two secrets, one for image and one for app:

The following patch uses these secrets for image and app, referencing them using the expression <+secrets.getValue("[secret name]")>.

apiVersion: apps/v1
kind: Deployment
metadata:
name: example-deploy
namespace: default
spec:
template :
spec:
containers:
- name: example-app
image: <+secrets.getValue("image")>

---
apiVersion: v1
kind: Service
metadata:
name: example-service
namespace: default
spec:
selector:
app: <+secrets.getValue("appName")>

The secret output in the manifest will be asterisks (*). The secret value is not displayed.

See Add Text Secrets.

Option: Overlays and Multibases

An overlay is a kustomization that depends on another kustomization, creating variants of the common base. In simple terms, overlays change pieces of the base kustomization.yaml. These are commonly used in patches.

A multibase is a type of overlay where copies of the base use the base but make additions, like adding a namespace.yaml. Basically, you are declaring that the overlays aren't just changing pieces of the base, but are new bases.

In both overlays and multibases, the most common example is staging and production variants that use a common base but make changes/additions for their environments. A staging overlay could add a configMap and a production overlay could have a higher replica count and persistent disk.

You can add overlay YAML files to the Service Manifests section just as you would add the standard kustomization.yaml.

Harness will look for the resources section of the overlay file to find the kustomization.yaml for the overlay and apply them both.

resources:
- ../../application

In some cases you might want to deploy the standard kustomization.yaml in one stage and then the overlay in another. In this case, when you create the new stage, select Propagate from, select the standard kustomization.yaml stage, and then select Stage Overrides.

In Manifests, add the overlay kustomization.yaml and any patch files.

See Propagate and Override CD Services.

Option: Use Plugins in Deployments

Kustomize offers a plugin framework to generate and/or transform a kubernetes resource as part of a kustomization.

You can add your plugins to the Harness Delegate(s) and then reference them in the Harness Service you are using for the kustomization.

When Harness deploys, it will apply the plugin you reference just like you would with the --enable_alpha_plugins parameter.

Add Plugins to Delegate using INIT Script

To add a plugin to the Delegate, you can install it manually or use the INIT_SCRIPT environment variable in the Delegate config file to install it.

For steps on running scripts in Delegate config files, see Run Scripts on Delegates.

Once the plugin is installed, you add its path to the Harness Service you are using for the kustomization. See Path to Plugin in Service Manifest.

For example, here is a ConfigMap generator plugin script:

MY_PLUGIN_DIR=$HOME/K_PLUGINS/kustomize/plugin/myDevOpsTeam/sillyconfigmapgenerator
mkdir -p $MY_PLUGIN_DIR
cat <<'EOF' >$MY_PLUGIN_DIR/SillyConfigMapGenerator
#!/bin/bash
# Skip the config file name argument.
shift
today=`date +%F`
echo "
kind: ConfigMap
apiVersion: v1
metadata:
name: the-map
data:
today: $today
altGreeting: "$1"
enableRisky: "$2"
"
EOF
cat $MY_PLUGIN_DIR/SillyConfigMapGenerator
chmod +x $MY_PLUGIN_DIR/SillyConfigMapGenerator
readlink -f $MY_PLUGIN_DIR/SillyConfigMapGenerator

Each plugin is added to its own directory, following this convention:

$XDG_CONFIG_HOME/kustomize/plugin
/${apiVersion}/LOWERCASE(${kind})

The default value of XDG_CONFIG_HOME is $HOME/.config. See Extending Kustomize from Kustomize.

In the script example above, you can see that the plugin is added to its own folder following the plugin convention:

$HOME/K_PLUGINS/kustomize/plugin/myDevOpsTeam/sillyconfigmapgenerator

Note the location of the plugin because you will use that location in the Harness Service to indicate where the plugin is located (described below).

Plugins can only be applied to Harness Kubernetes Delegates.

Path to Plugin in Service Manifest

In the Harness Service that uses the Kustomization and plugin, in Manifests, select the existing Kustomize manifest or click Add Manifest and add a new as described in Step 1: Add Manifests and Kustomization above.

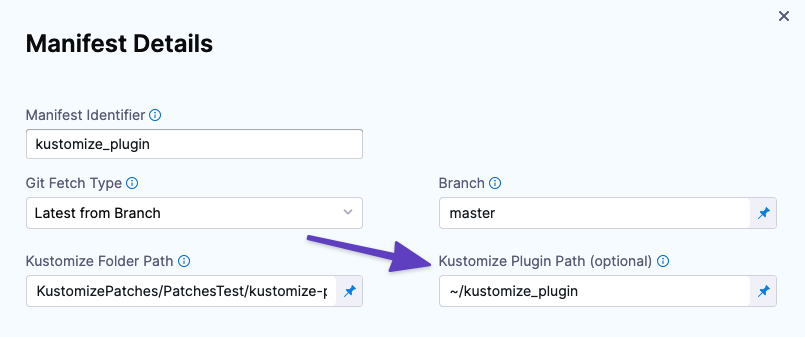

In Manifest Details, provide the path to the plugin on the Delegate host.

Click Submit. Harness is now configured to use the plugin when it deploys using Kustomize.

Delegate Selection

You might have multiple Delegates installed in your infrastructure, so you have to make certain that Harness uses the Delegate with the plugin installed.

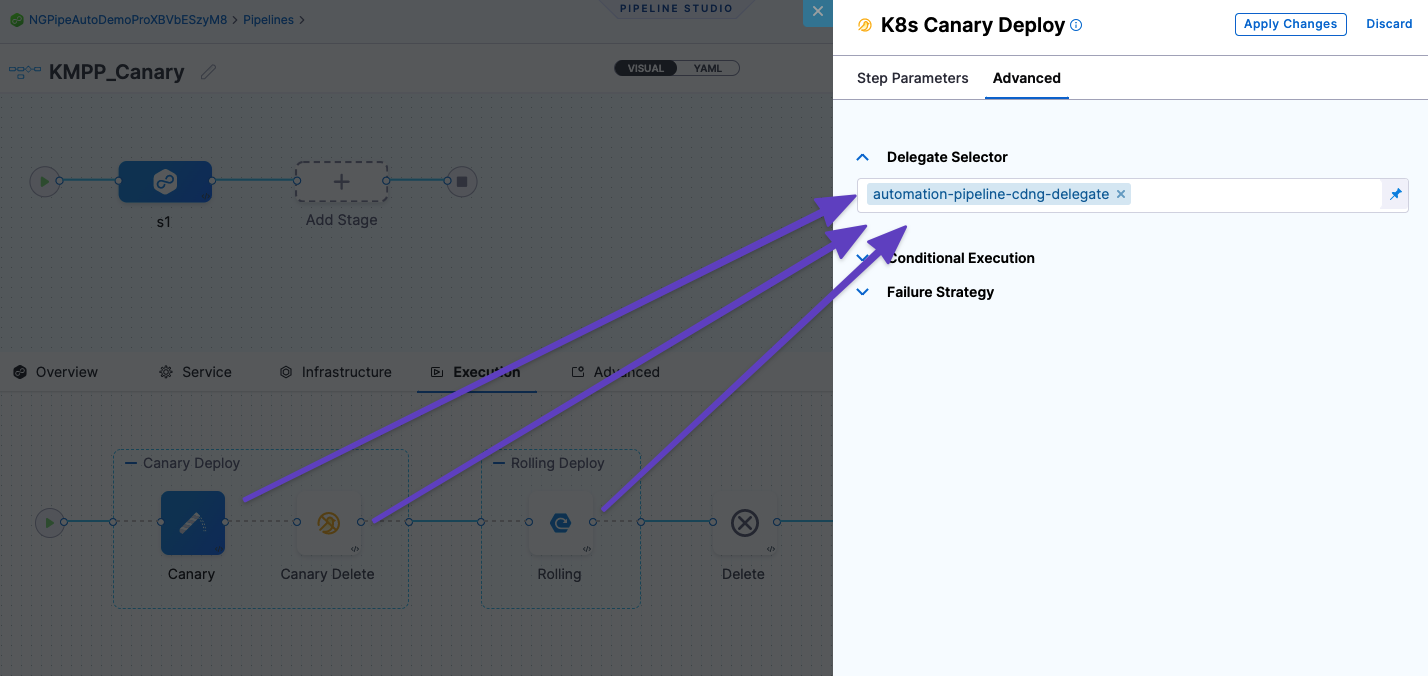

Each Execution step has a Delegate Selector setting where you can select the Delegate used by that the step.

For example, if your stage Execution has Canary, Canary Delete, and Rolling steps, open each step, select Advanced, and then select the Delegate Selector for the Delegate that has the plugin installed.

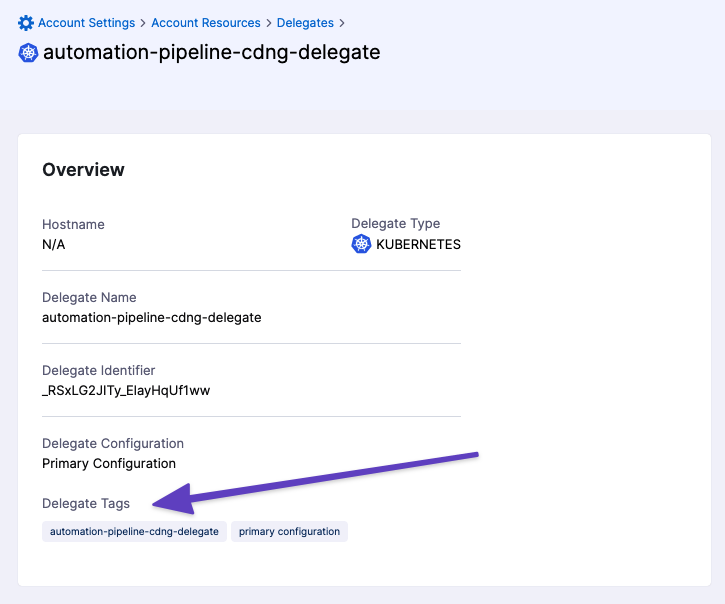

The Delegate Selector setting lists the Delegate Tags for all Delegates. You can see these Tags by looking at the Delegate details:

Now the Delegate with the plugin installed is used for the Pipeline steps, and the plugin is located using the path you provided in Manifests.

Change the Default Path for the Kustomize Binary

The Harness Delegate ships with the 3.5.4 release of Kustomize.

If you want to use a different release of Kustomize, add it to a location on the Delegate, update the following Delegate files, and restart the Delegate.

Kubernetes Delegate

Update the value environment variable in harness-delegate.yaml:

...
name: KUSTOMIZE_PATH
value: "<path>"
...

See Install a Kubernetes Delegate.

Docker Delegate

Add the Kustomize path environment variable in the Delegate Docker compose file:

- KUSTOMIZE_PATH=<path>

See Install the Docker Delegate.
