Add an AWS connector

Use a Harness AWS connector to integrate AWS with Harness. Use AWS with Harness to obtain artifacts, communicate with AWS services, provision infrastructure, and deploy microservices and other workloads.

If you want to connect Harness to Elastic Kubernetes Service (Amazon EKS), you can use the platform-agnostic Kubernetes cluster connector or an AWS connector configured for EKS.

This topic explains how to set up an AWS connector.

Configure roles and policies

The necessary IAM roles and policies needed by the AWS account used in the connector depend on which AWS service you are using with Harness and which operations you want Harness to perform in AWS. For an extensive description of roles and policies, go to the AWS Connector Settings Reference.

AWS connectors can also inherit IAM roles from Harness Delegates running in AWS. If you want your connector to inherit from a delegate, make sure the delegate has the necessary roles.

warning

The DescribeRegions action is required for all AWS connectors regardless of what AWS service you are using for your target infrastructure.

If you find that the IAM role associated with your AWS connector doesn't have the policies required by the AWS service you want to access, you can modify or change the role assigned to the AWS account or the Harness Delegate that your AWS connector is using. You may need to wait up to five minutes for the change to take effect.

tip

The AWS IAM Policy Simulator is a useful tool for evaluating policies and access.

Create the AWS connector

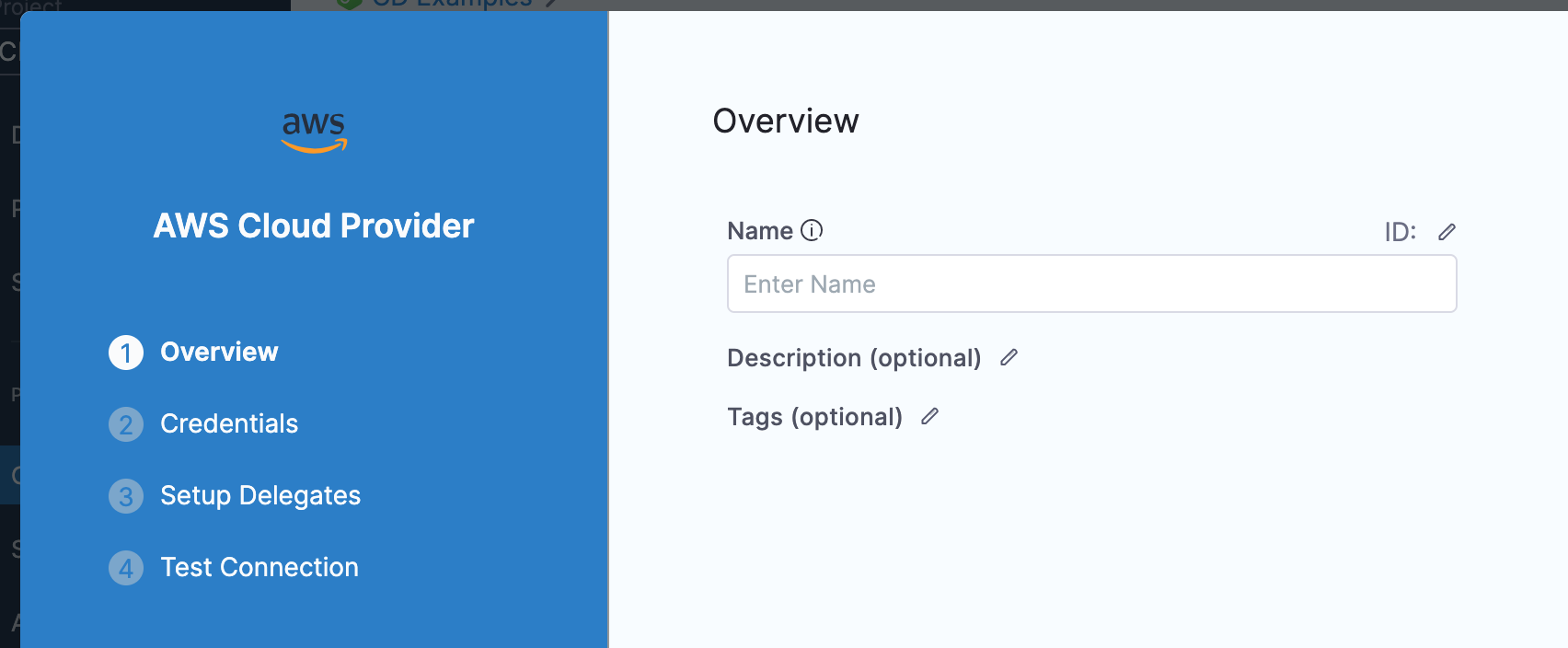

  1. Open a Harness project, and select Connectors under Project Setup. You can also create connectors at the account or organization levels.

  2. Select New Connector, and then select AWS under Cloud Providers.

  3. Input a Name for the connector. Description and Tags are optional. Harness automatically creates an Id (entity identifier) for the connector based on the Name.

  4. Select Continue to proceed to Configure credentials.

Configure credentials

Review the following information carefully to ensure you select the correct credentials configuration for your AWS connector.

  1. Select one of the following four primary options:

    • Assume IAM Role on Delegate: With this option, the connector inherits authentication credentials from the Harness Delegate that is running in AWS. For example, you can select a Harness Delegate running in Amazon Elastic Kubernetes Service (EKS). However, this option is not valid for IAM roles for service accounts (IRSA).
      • If the Harness Delegate in your EKS cluster uses IAM roles for service accounts, you must select Use IRSA, not Assume IAM Role on Delegate.
      • If you deploy pods to Fargate nodes in an EKS cluster, and your nodes needs IAM credentials, you must configure IRSA in your AWS EKS configuration and select the Use IRSA option for your connector credentials. This is due to Fargate limitations.
    • AWS Access Key: Provide an Access Key and Secret Access Key for the IAM role you want the connector to use.
    • Use IRSA: Required if you use IAM roles for service accounts, including IRSA in EKS clusters with OIDC Provider. Additional configuration is required, as explained in Use IRSA.
    • Use OIDC: Select this option to connect to AWS with OIDC. This requires the user to create an OIDC identity provider in AWS and add it in a trust relationship with an IAM role that Harness will assume when doing any AWS operations with this connector.
    note

    The Use OIDC credential option is currently behind the feature flag CDS_AWS_OIDC_AUTHENTICATION. Contact Harness Support to enable the feature.

  2. To use cross-account ARN, select Enable cross-account access (STS Role). This option is available for all authentication methods, but it may not be supported by all pipeline steps. For more information about cross-account access in AWS connectors, go to the AWS connector settings reference.

  3. By default, Harness uses the us-east-1 region to test the credentials for AWS connectors. If you want to use a different region or an AWS GovCloud account, select it in the Test Region field. For more information about AWS GovCloud support, go to the AWS connector settings reference.

  4. Select Continue to proceed to Select Connectivity Mode.

Use IRSA

The Use IRSA option allows the Harness Kubernetes delegate in AWS EKS to use a specific IAM role when making authenticated requests to resources. This option is also necessary if the delegate uses IRSA on an EKS cluster with OIDC Provider.

info

The below mentioned configuration has been tested exclusively on clusters created with eksctl, hence if you are creating cluster using some other way like terraform, cloudformation etc. there could be some unknown issue

By default, the Harness Kubernetes delegate uses a ClusterRoleBinding to the default service account. Instead, with this option, you can use AWS IAM roles for service accounts (IRSA) to associate a specific IAM role with the service account used by the Harness Kubernetes delegate.

  1. Verify your firewall policy and make sure to whitelist all AWS endpoints for the services you're using. For more details, go to view AWS service endpoints.
  2. Modify your delegate YAML, as described below.
Configure delegate YAML for IRSA

Setting up IRSA credentials requires a few more steps than other methods, but it is a simple process.

  1. Create the IAM role with the policies you want the Delegate to use. The policies you select depend on what AWS resources you are deploying via the delegate.

  2. In the cluster where the delegate will be installed, create a service account and attach the IAM role to it. Here is an example of how to create a new service account in the cluster where you will install the delegate and attach the IAM policy to it:

    eksctl create iamserviceaccount \
    --name=cdp-admin \
    --namespace=harness-delegate-ng \
    --cluster=test-eks \
    --attach-policy-arn=<policy-arn> \
    --approve \
    --override-existing-serviceaccounts —region=us-east-1
  3. In Harness, download the Harness Kubernetes delegate YAML file. For instructions, go to Install a Kubernetes delegate.

  4. Open the delegate YAML file in text editor.

  5. Add the service account with access to IAM role to the delegate YAML. There are two sections in the Delegate YAML that you must update:

    1. Update the ClusterRoleBinding by replacing the subject name default with the name of the service account with the attached IAM role, for example:

      ---
      apiVersion: rbac.authorization.k8s.io/v1beta1
      kind: ClusterRoleBinding
      metadata:
      name: harness-delegate-cluster-admin
      subjects:
      - kind: ServiceAccount
      name: default // Change to relevant service account name, such as myserviceaccount
      namespace: harness-delegate-ng
      roleRef:
      kind: ClusterRole
      name: cluster-admin
      apiGroup: rbac.authorization.k8s.io
      ---
    2. Add serviceAccountName to Deployment.template.spec. For example:

    ...
    spec:
    serviceAccountName: myserviceaccount // New line. Use the same service account name you used in the ClusterRole Binding.
    containers:
    - image: harness/delegate:latest
    imagePullPolicy: Always
    name: harness-delegate-instance
    ports:
    - containerPort: 8080
    ...
    info

    For legacy delegate, add serviceAccountName to the Statefulset spec.

  6. Save the delegate YAML file.

  7. If you haven't already installed the delegate, Install the Kubernetes delegate in your EKS cluster and register the delegate with Harness. When you install the delegate in the cluster, the SA you added is used, and the environment variables AWS_ROLE_ARN and AWS_WEB_IDENTITY_TOKEN_FILE are added automatically by EKS.

info

To use an AWS connector with IRSA in a CI stage, you must configure your Kubernetes cluster build infrastructure to use the same service account name specified in your delegate YAML.

Select connectivity mode

Harness uses AWS connectors during pipeline runs to authenticate and perform operations with AWS.

  1. Select how you want Harness to connect to AWS:
    • Connect through Harness Platform: Use a direct, secure communication between Harness and AWS. This connectivity mode is required for Harness Cloud build infrastructure.
    • Connect through a Harness Delegate: Harness communicates with AWS through a Harness Delegate in AWS. You must choose this option if you chose Use IRSA or Assume IAM Role on Delegate for the connector credentials.
  2. If connecting through a Harness Delegate, select either:
    • Use any available Delegate: Harness selects an available delegate at runtime. To learn how Harness selects delegates, go to Delegate overview.
    • Only use Delegates with all of the following tags: Use Tags to match one or more suitable delegates.
  3. Select Save and Continue to run the connection test. If the test succeeds, select Finish. The connection test confirms that your authentication and delegate selections are valid.
tip

The Secure Connect option is for secure connect with Harness Cloud.

Troubleshoot AWS connector errors

If the connection test fails due to a credentials issue, use the AWS CLI or console to check the credentials. The AWS IAM Policy Simulator is useful for evaluating policies and access.

Due to the limited scope of the initial connection test, credentials can pass the connection test and then fail when you use the connector in a pipeline. This can happen if the IAM role the connector uses doesn't have the roles and policies needed for the pipeline's operations. For example, if a pipeline has a Run step that uses an AWS connector, the connector might need specific roles or policies to be able to execute the operations required by the Run step.

If you experience any errors with AWS connectors, verify that the IAM roles and policies are correct, and that the connector credentials are correct. For example:

  • The DescribeRegions action is required for all AWS Cloud Providers regardless of what AWS service you are using for your target infrastructure.
  • If the Harness Delegate in your EKS cluster uses IAM roles for service accounts, make sure the connector credentials are set to Use IRSA, not Assume IAM Role on Delegate.

For a list of roles and policies, go to the AWS Connector Settings Reference.
