Build and Push an Artifact

Updated 2 weeks ago by Michael Cretzman

Once you've defined a build farm in the CI stage's Infrastructure, you can add a Build and Push step to build your codebase and push the artifact to a repo. The following repos are supported:

  • Docker
  • Azure Container Registry (ACR)
  • Google Container Registry (GCR)
  • Amazon Elastic Container Registry (ECR)

For setting up a build farm, see: Set Up Build Infrastructure.

This topic describes a simple one-step build workflow, minus testing: build the code in a build farm and then push it to a repo. For a quick summary of a build, push, and test Pipeline, see CI Pipeline Quickstart.

For details about each build and push step, see CI Technical Reference.

In this topic:

Before You Begin

You should be familiar with the following:

Visual Summary

Here's a short video showing how to set up a Build and Push step.

Step 1: Create the CI Stage

In your Harness Pipeline, click Add Stage, and then click CI.

Step 2: Add the Codebase

Do one of the following:

  • If this is the first CI stage in the Pipeline, in the CI stage settings, enable Clone Codebase.
  • If you have an existing Pipeline with a CI stage, click Codebase on the right.

In Connector, select an existing Connector to your codebase repo, or create a new one. See Code Repo Connectors.

You can see the URL for the repo account below Repository Name. Don't add the URL into Repository Name.

In Repository Name, enter the name of the repo containing the codebase.

For example, if the account URL is https://github.com/mycompany and the repo in that account is myapp, you can simply enter myapp in Repository Name.

You specify the codebase repo here, but you enter the Git branch or tag when you deploy the Pipeline.

Step 3: Define the Build Farm Infrastructure

In the CI stage Infrastructure, define the build farm for the codebase.

The following example uses a Kubernetes cluster build farm.

In Select a Kubernetes Cluster, select or create a Kubernetes Connector. This Connector connects Harness to the cluster to use as the build farm. See Kubernetes Cluster Connector Settings Reference.

In Namespace, enter the Kubernetes namespace to use. You can use a text string, a Runtime Input (<+input>), or an expression. See Runtime Inputs.

See Define Kubernetes Cluster Build Infrastructure.

Step 4: Add the Build and Push Step

In the stage's Execution, add a Build and Push step. See the following topics, based on the registry provider:

For all Build and Push steps, you select or create a Connector for the target repo, add repo-specific information, and specify Dockerfile information.

Option: Add a Tag using Harness Expression

When you push the image to a repo, you tag the image so you can identify it later.

For example, in one stage you push the image, and in a future stage you pull it using its name and tag so you can run integration tests on it.

You can tag the image in any way, but a Harness expression can be very useful.

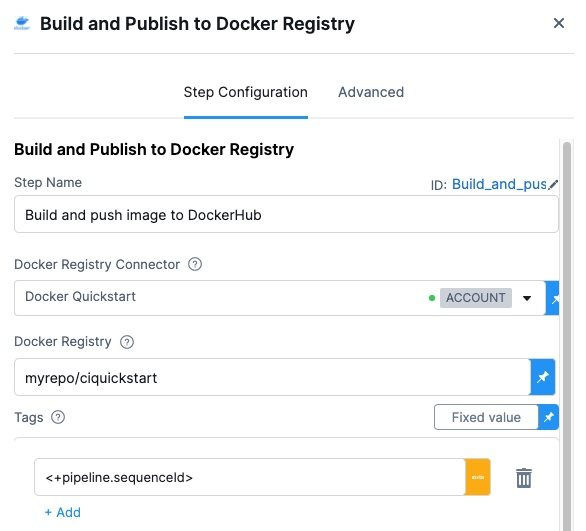

Let's look at an example:

The <+pipeline.sequenceId> tags this image in future stages. For example, harnessdev/ciquickstart:<+pipeline.sequenceId>.

In the Configure Service Dependency Step in a later Stage in the Pipeline, you identify the image location using <+pipeline.sequenceId>.

The <+pipeline.sequenceId> is a built-in Harness variable that represents the Build ID number, for example Build ID: 9.

After the Pipeline runs you'll see a Build ID:

And this Build ID tags the image you push in one stage of your Pipeline, and pull in the image in future stages of your Pipeline.

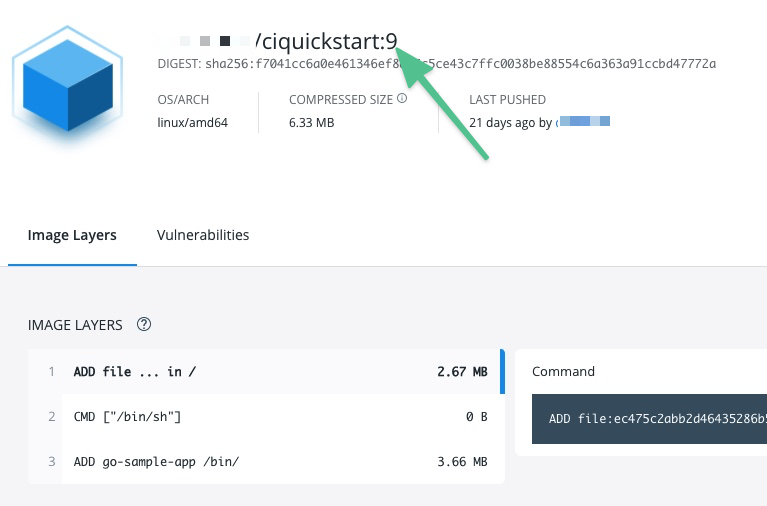

You'll also see the ID as the tag on the image in your repo:

Option: Build a Docker Image without Pushing

Suppose you want to test the Dockerfile used in your Codebase and verify that the resulting image is correct, before you push it to your Docker repository. To enable this in your Pipeline, do the following.

  1. In your CI Pipeline, go to the Build Stage that includes the Build and Push an Image to Docker Repository step that you want to customize.
  2. In the Build Stage Overview, expand the Advanced pane.
  3. Click Add Variable and enter the following:
    1. NAME = PLUGIN_NO_PUSH
    2. TYPE = String
    3. VALUE = true
  4. Save and run the Pipeline.

Step 5: Specify Codebase Branch or Tag at Pipeline Execution

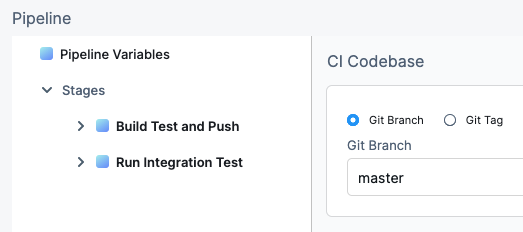

Once you click Run Pipeline, provide the Git branch or tag to use for the execution.

Enter the branch or tag and click Run Pipeline.

Step 6: View the Results

You can see the logs for the Build and Push Step in the Pipeline as it runs.

Here's an example that pushes to a Docker repository:

/kaniko/executor --dockerfile=Dockerfile --context=dir://. --destination=cretzman/ciquickstart:13

Retrieving image manifest alpine:3.12
Retrieving image alpine:3.12
Retrieving image manifest alpine:3.12
Retrieving image alpine:3.12
Built cross stage deps: map[]
Retrieving image manifest alpine:3.12
Retrieving image alpine:3.12
Retrieving image manifest alpine:3.12
Retrieving image alpine:3.12
Executing 0 build triggers
Unpacking rootfs as cmd ADD go-sample-app /bin/ requires it.
LABEL maintainer="John Doe <[email protected]>"
Applying label maintainer=John Doe <[email protected]>
Using files from context: [/step-exec/workspace/go-sample-app]
ADD go-sample-app /bin/
Taking snapshot of files...
ENTRYPOINT ["/bin/go-sample-app"]

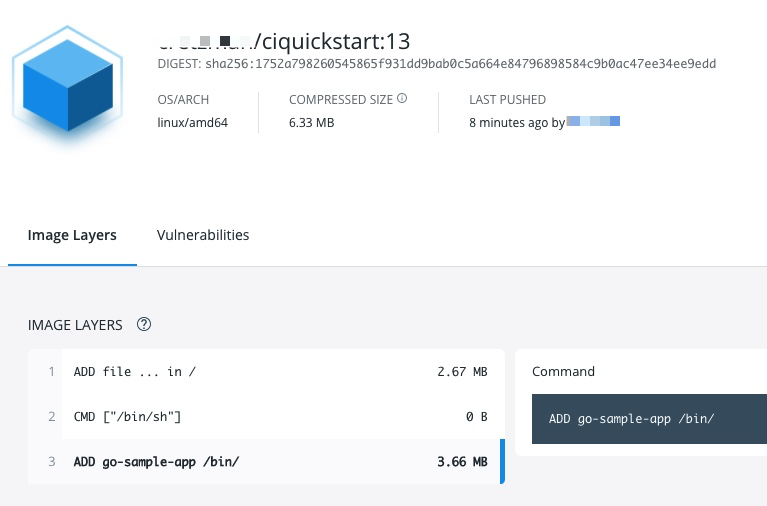

On Docker Hub, you can see the image that you pushed.

In your Harness project's Builds, you can see the build listed.

Configure As Code

Here's an example of the stage with a Build and Push step set up:

pipeline:
name: CI Quickstart
identifier: CI_Quickstart
properties:
ci:
codebase:
connectorRef: account.CI_Quickstart
repoName: goHelloWorldServer
build: <+input>
stages:
- stage:
name: Build Test and Push
identifier: Build_Test_and_Push
type: CI
spec:
cloneCodebase: true
execution:
steps:
- step:
type: BuildAndPushDockerRegistry
name: Build and push image to DockerHub
identifier: Build_and_push_image_to_DockerHub
spec:
connectorRef: account.Docker_Quickstart
repo: cretzman/ciquickstart
tags:
- <+pipeline.sequenceId>
infrastructure:
type: KubernetesDirect
spec:
connectorRef: account.cidelegate
namespace: harness-delegate-uat
serviceDependencies: []
projectIdentifier: CI_Quickstart
orgIdentifier: default
