Manage Pipelines in Git Repos

Updated 4 months ago by Michael Cretzman

Currently, this feature is in Beta. Once the feature is released to a general audience, it will be available for Harness Professional, Essentials, Trial, and Community Editions.

Once you have enabled Harness Git Experience in your Project, you can create Pipelines and resources and store their YAML files in your Git repo's branches and folders. Git is the single source of truth. The Pipelines and resources are stored in the repo first, and then synced with Harness.

This topic provides an example of adding a Pipeline and storing it in the Git repo set up in the Harness Git Experience for the Project. The process is the same for other resources.

In this topic:

Before You Begin

Make sure that you've added a Source Code Manager (SCM) and enabled Harness Git Experience in your Project.

Limitations

Do not enable Harness Git Experience on a Project that already has Pipelines and resources. You must enable Harness Git Experience on a new Project when you first create the Project.

This is a temporary limitation.

Step 1: Create the Pipeline

You can't save Pipelines to Git until you have added a SCM to your Harness account and enabled Harness Git Experience in your Project.

In your Harness Project, click Builds. If you don't have the Builds module, use another module.

In Builds, click Pipelines.

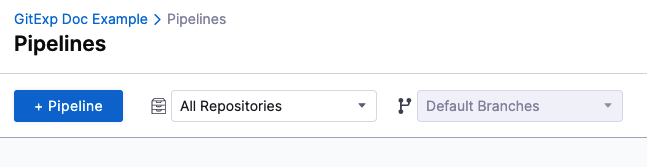

At the top of the page is All Repositories.

You select the repo and branch here to display the Pipelines stored in them. It does not affect the repo and branch where you create a new Pipeline. You will select that repo and branch in the Create New Pipeline settings next.

Click +Pipelines to create a new Pipeline. The Create New Pipeline settings appear.

Give the Pipeline a name such as Example.

In Git Repository Details, select the repo and branch where you want to store the Pipeline YAML file in. You will select a folder in that repo and branch later.

Click Start.

We're simply demonstrating Harness Git Experience so we'll create a very simple Pipeline.

Click Add Stage and then click Build.

In About Your Stage, enter the name helloworld.

Disable Clone Codebase.

Click Set Up Stage.

Next, you can just paste the following YAML into the Pipeline to create a very simple Pipeline.

Click YAML and then paste in the follow YAML.

pipeline:
name: Example
identifier: Example
projectIdentifier: GitExp_Doc_Example
orgIdentifier: default
tags: {}
stages:
- stage:
name: helloworld
identifier: helloworld
description: ""
type: CI
spec:
cloneCodebase: true
execution:
steps:
- step:
type: Run
name: example
identifier: example
spec:
connectorRef: <+input>
image: <+input>
command: echo "hello world"
privileged: false
serviceDependencies: []
infrastructure:
type: KubernetesDirect
spec:
connectorRef: <+input>
namespace: default

Replace projectIdentifier: GitExp_Doc_Example with identifier of your Project.

You can see the Project ID right after projects in the URL of the page:

https://app.harness.io/.../projects/GitExp_Doc_Example/...

Click Save.

The Pipeline is ready. Now we can save it to Git.

Step 2: Save Pipeline to Git

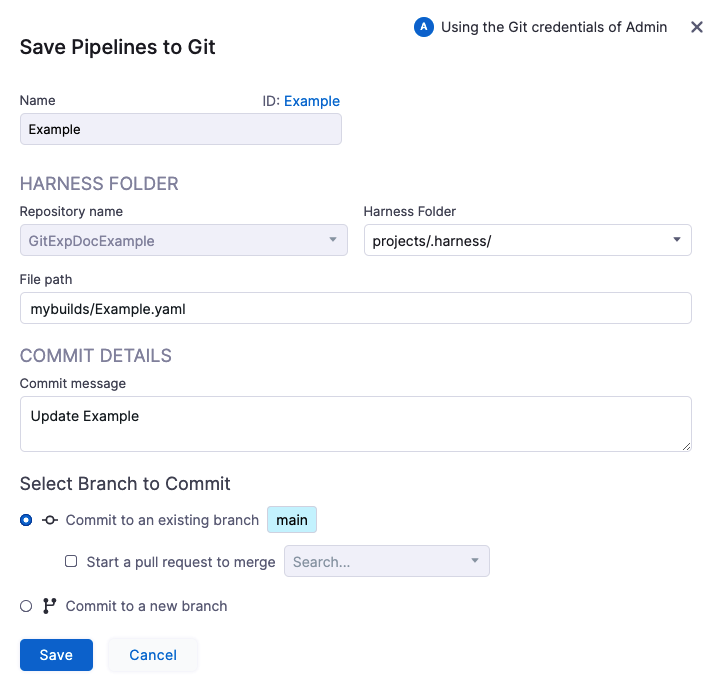

When you click Save, the Save Pipelines to Git settings appear.

In Harness Folder, select one of the folders set up in the Project's Git Experience settings. See Enable Git Experience in a Project.

The YAML file for the Pipeline will be saved to this folder. But you can add subfolders in File Path.

In File Path, enter a name for the YAML file, such as Example.yaml. Harness will generate one automatically from the Pipeline name, but you can add your own.

To enter a subfolder of the Harness Folder you selected, enter the folder name in front of the file name like mybuilds/Example.yaml.

In this example, we use mybuilds/Example.yaml.

In Commit Details, enter a message.

In Select Branch to Commit, commit to an existing or new branch.

  • Existing branch: you can start a pull request if you like.
  • New branch: enter the new branch name. You can start a pull request if you like.

Here's a simple example:

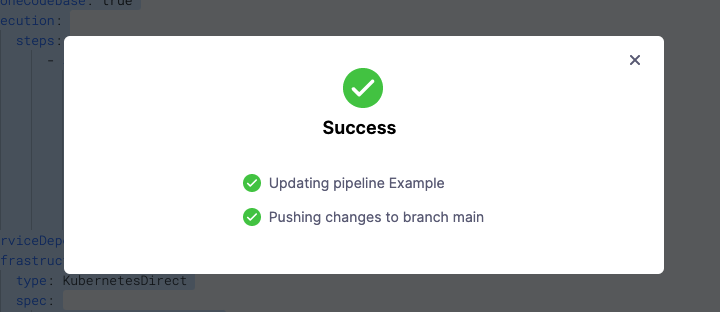

Click Save.

The Pipeline is saved to the repo branch and folder.

Step 3: View the Pipeline in Git

In your Git repo, locate the branch, folder, and file.

Harness created a .harness folder under the folder you selected in Harness Folder.

If you added a folder to File Path, open that folder.

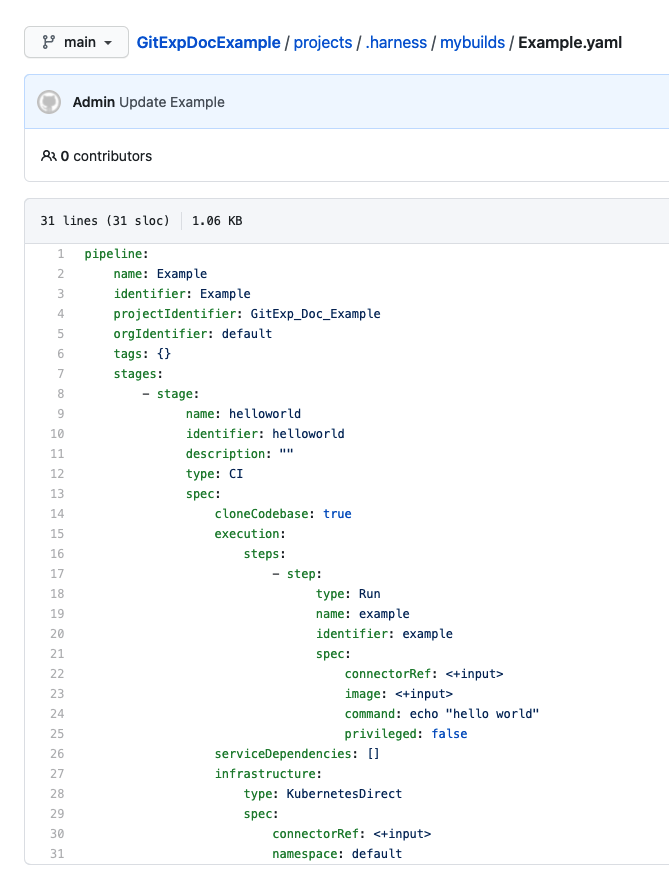

Click the YAML file for your Pipeline. The YAML is displayed.

Step 4: View the Pipeline in Git Experience

In your Harness Project, click Project Setup, and then click Git Management.

In Git Management, click Entities.

In Entities by repositories, expand the Project name.

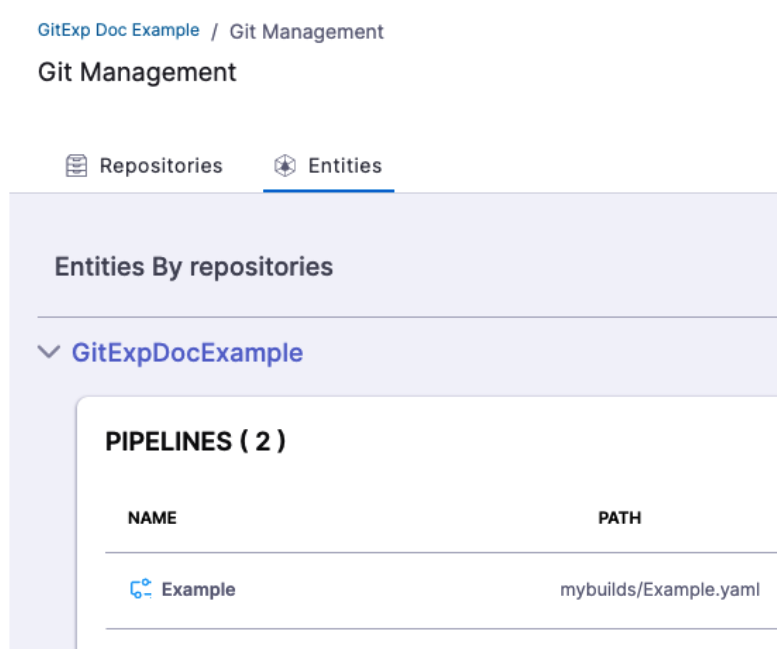

The Pipeline is listed along with its file path in the repo.

Now you have a Pipeline stored in Git.

See Also

See Git Experience How-tos.
