Create a Custom Load Balancer for GCP

Updated 1 month ago by Archana Singh

Currently, this feature is in Beta and behind Feature Flag. Contact Harness Support to enable the feature.

A load balancer distributes user traffic across multiple instances of your applications. Load balancing reduces the chances of performance issues in your applications by spreading the load.

This topic describes how to create a custom load balancer for creating AutoStopping Rules for Google Compute Engine VM(s).

In this topic:

Before You Begin

Why do You Need a Custom Load Balancer?

A single custom load balancer can be set up to handle multiple AutoStopping Rules from the same VPC. Since VPC spans multiple regions, it allows saving costs by using a single custom load balancer for multiple rules.

How Does Custom Load Balancer Work?

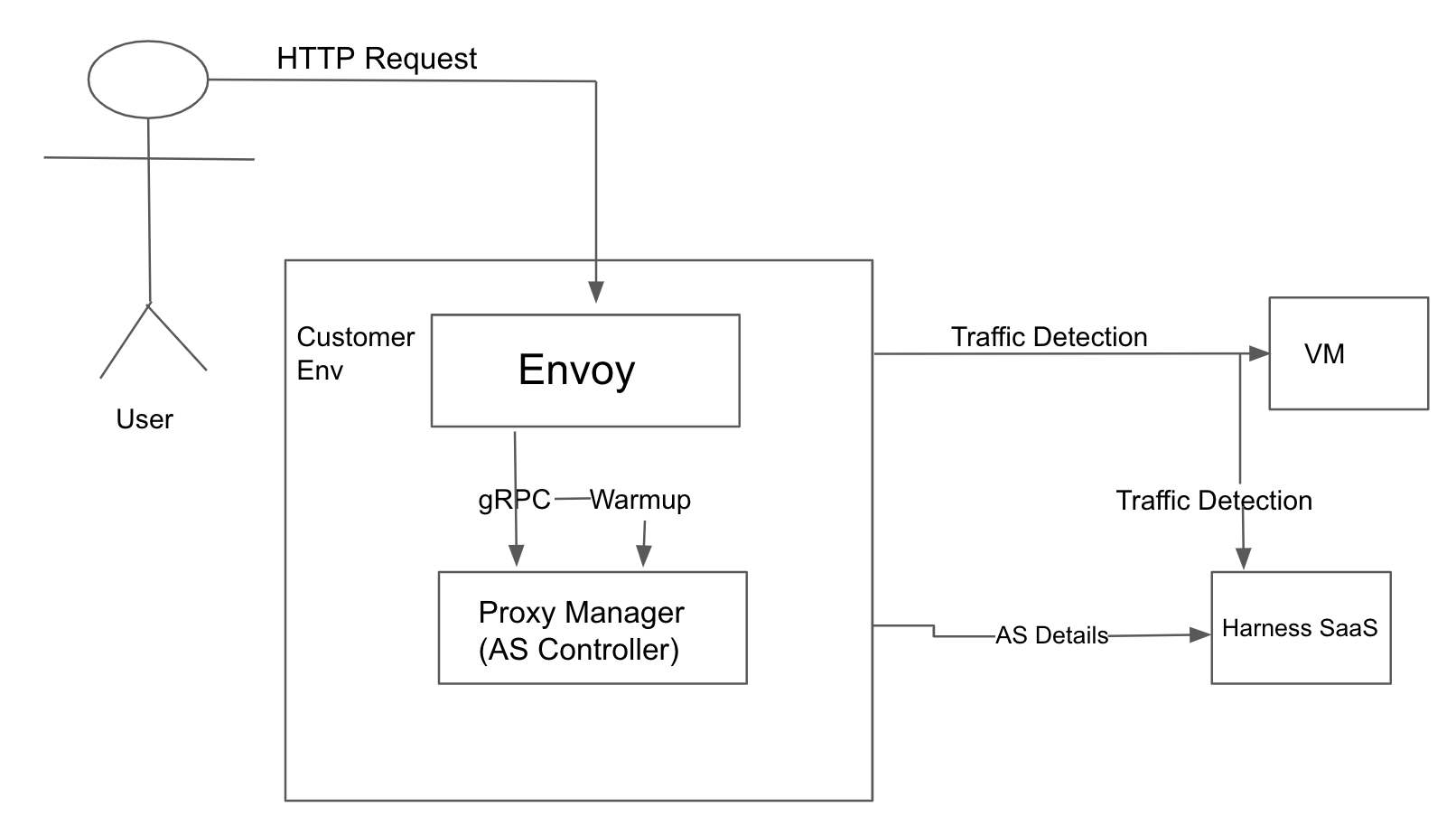

Harness' intelligent cloud AutoStopping Rules use Envoy and other proprietary services for the custom load balancer that routes traffic to configured Google Compute Engine VMs.

Envoy consists of clusters and listeners. Clusters are the AWS application load balancer (ALB) target group's target equivalent. Listeners represent the incoming port through which requests are routed to clusters based on route configurations and route path matches.

Review: Custom Load Balancer Requirements

  • Harness creates and manages a custom load balancer, allowing you to use your preferred instance type.
  • The load balancer must be located in the same VPC as the virtual machines that it will manage.
  • Multiple AutoStopping rules can use a single load balancer to manage virtual machines in different regions and zones but within the same VPC.

Create a Custom Load Balancer

The following steps are involved to create a custom load balancer for GCP:

Choose a Domain Name

Perform the following steps to create a new custom load balancer for GCP.

  1. In Cloud Costs, click New AutoStopping Rule.
  2. In AutoStopping Rules, select GCP. It is the cloud account in which your workloads are running that you want to manage using AutoStopping rules.
  3. If you have already linked your GCP account and want to use that account, then select the GCP account from the Connect to your GCP account drop-down list.
  4. If you have not added your cloud account, click Connect to your GCP account drop-down list and then click New Connector. For the detailed steps, see Create a GCP Connector.
  5. Define an AutoStopping Rule. See Step: Define an AutoStopping Rule.
  6. In Select the resources to be managed by the AutoStopping Rule, select GCE VM(s). See Step: Select the Resources to be Managed by the AutoStopping Rule.
  7. (Optional) Set up advanced configuration. See Step: Set Up Advanced Configuration.
  8. In Setup Access, select DNS Link.
  9. In Select a load balancer, click New Load Balancer to add a load balancer.
  10. In Create a new Load Balancer, in Provide a name for the Load balancer, enter a name for your load balancer. This name will appear in your load balancer list.
  11. In Enter Domain Name, enter the domain name. A domain name is required to route traffic to the load balancer. For example, autostopping.yourcompany.com.
  12. Click Continue.

Configure a Custom Load Balancer

Harness creates and manages a custom load balancer, allowing you to use your preferred instance type. The load balancer must be located in the same VPC as the virtual machines that it will manage. Multiple AutoStopping rules can use a single load balancer to manage virtual machines in different regions and zones but within the same VPC.

Provide the following details to configure the custom load balancer:

  1. Select a Region from the drop-down list to install the Access Point.
  2. Select a Zone from the drop-down list.
  3. Select VPC.
  4. Select Network tags.
  5. Select Subnet.
  6. Select Machine type.
  7. Once you're done, click Save Load Balancer.

    Your load balancer is now listed.
