Manage a Harness Pipeline Repo Using Git Experience

Updated 2 days ago by Doug Bothwell

Currently, this feature is in Beta and behind the feature flag NG_GIT_EXPERIENCE. Contact Harness Support to enable the feature.​

Git Experience enables you to store and manage your Harness Pipelines and configs in your Git repos. You can store your Harness configs in the same repo with your code. You can also store your Harness configs in a separate repo from your codebase.

This topic describes the second workflow. We start with two code repos in Git, for a front-end service and a back-end service. Then we create Pipelines, Input Sets, and Triggers for the two codebases in a separate Harness repo.

Before You Begin

This topic assumes that you are familiar the following:

This topic also assumes you have a Git repo with the codebase you want to build and at least one branch.

Initial Setup

Step 1: Create the Harness Repo

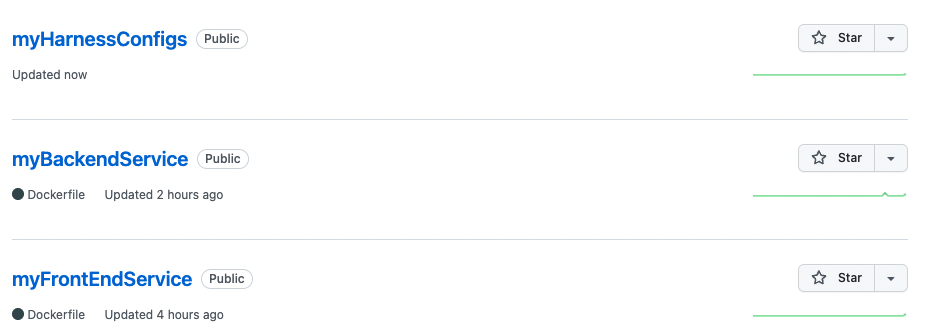

Log in to your Git provider and create a new repo. In this workflow we call it myHarnessConfigs.

Step 2: Create a New Pipeline

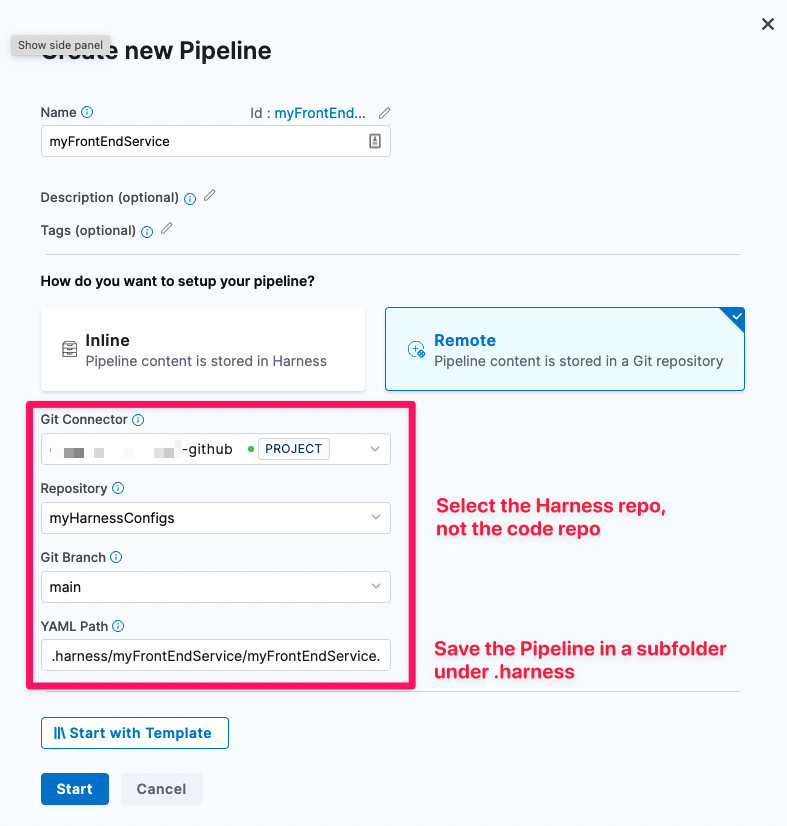

In the Harness Pipeline Studio, go to your CI project and then click Pipelines > +New Pipeline. The Create New Pipeline window appears.

Enter a name that corresponds to the code repo for the Pipeline. In this case we use the same name as the repo: myFrontEndService. Under "How do you want to set up your pipeline," select Remote.

Select the Git Connector and the Git repo where you want to save (in this case, we select myHarnessConfigs).

For the YAML path, enter .harness/{PIPELINE_SUBFOLDER}/{PIPELINE_NAME}.yml. The root folder .harness is required. The {PIPELINE_SUBFOLDER} is not required, but it is good practice if you want to store multiple Pipelines in the same repo. This makes it much easier to manage all of your Harness configs.

In this case, we save the Pipeline YAML as ./harness/myFrontEndService/myFrontEndService.yaml.

Click Start. You can now set up your Pipeline.

Step 3: Set Up Your Build Stage and Codebase

In the Pipeline Studio, click Add Stage and select Build for the stage type.

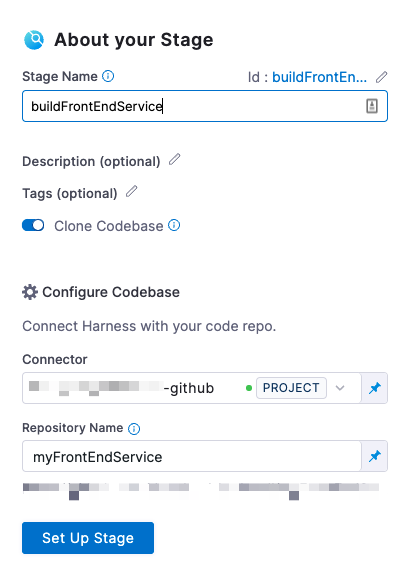

In About your Stage, select the Git repo with the codebase that you want the Pipeline to build. Click Set Up Stage.

Set up your Build Stage in the Pipeline Studio: define the build infrastructure and add at least one Step. Click Save. The Save Pipelines to Git window appears.

Select the branch where you want to save the Pipeline and click Save. You generally want to save it to the default branch on the first save. You can then create different branches in the Harness repo if you want to create different versions of your Pipeline and other configs.

Step 4: Create an Input Set

With Git Experience enabled, any Input Sets you create get stored in the same repo and branch as the Pipeline definition. In this step, you will create a simple Input Set and save it with your Pipeline.

Click Run. The Run Pipeline screen appears.

Under Build Type, select Git Branch.

For the Branch Name, select Expression and enter <+trigger.targetBranch> as a runtime expression.

Click Save as Input Set. The Save InputSets to Git screen appears.

Select Commit to an existing branch.

Enter the name and YAML path for the Input Set. For the YAML path, use the same format as you did with the Pipeline: .harness root folder, Pipeline subfolder, filename. In this example, we enter .harness/myFrontEndService/trigger-target-branch.yaml.

Click Save and save the Input Set into the default branch in your Harness repo.

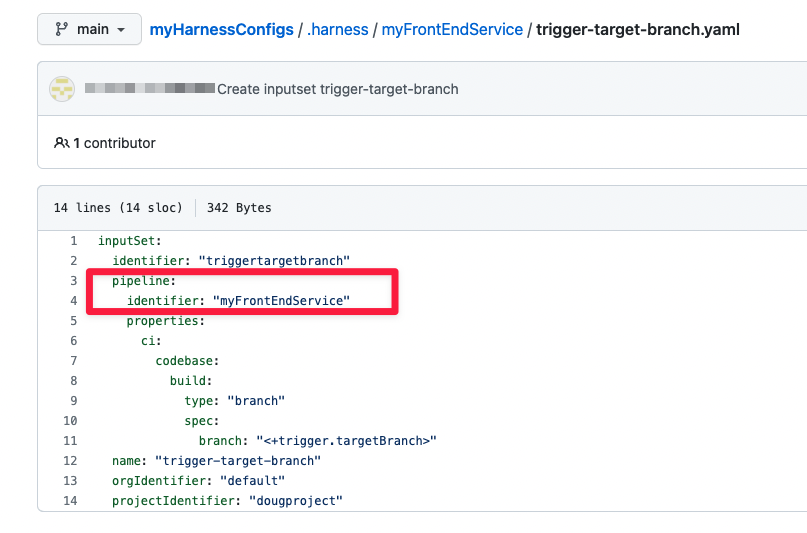

Every Input Set is associated with a specific Pipeline, which is specified by the pipeline : identifier element in the Input Set YAML.

Step 5: Create a Trigger

Now that you have a Pipeline and Input Set in your default branch, you create a Trigger that uses the Input Set you just created.

In the Pipeline Studio, click Triggers and create a new Trigger Note the following:

  • In the Configuration tab > Repository Name field, make sure you specify the codebase repo and not the Harness repo.
  • In the Pipeline Input Repo > Pipeline Input, select the Input Set you just created.
  • In the Pipeline Input Repo > Pipeline Reference Branch, specify the default branch in the Harness repo where you initially saved the Pipeline. When the Trigger receives a payload, it looks in your Harness configs repo and uses the Pipeline in the branch specified by this field.
    The default setting for the Pipeline Reference Branch field is <+trigger.branch>. This is a reasonable default the Trigger is webhook-based AND your code and Harness configs are in the same repo. The second condition does not apply in this case. Therefore, you must set this field manually.
  • For information on other fields, Trigger Pipelines using Git Event Payload Conditions.

In the Pipeline Input tab, select the Input Set you just created and click Create Trigger.

You now have a Pipeline, Input Set, and Trigger that you can use in new branches that you create from the default branch.

Unlike Pipelines and Input Sets, Trigger definitions are saved in the Harness database and not in your Git repo. Each Trigger is associated with a specific Pipeline, which is specified by the pipelineIdentifier element in the Trigger YAML.

Next Steps

You now have a Pipeline, Input Set, and Trigger for your codebase. The Pipeline and Input set are one repo, myHarnessConfigs. The code is in another repo, myFrontEndService. Note that both repos have the same default branch, main. When your Trigger receives a matching payload, it starts a build using the Pipeline in myHarnessConfigs. The Trigger uses its pipelineBranchName element in its YAML definition and uses the Pipeline in this branch (main) to run the build.

Set up More Pipelines

Follow the previous workflow for each additional codebase you want to build in Harness. When saving multiple Pipelines in the same repo, remember to save your Pipelines and Input Sets in separate subfolders. In this example, we've added a Pipeline and Input Set for our myBackEndService codebase:

% pwd
~/myHarnessConfigs/.harness
% ls -aR
. .. myBackEndService myFrontEndService
./myBackEndService:
. .. myBackEndService.yaml trigger-target-branch.yaml
./myFrontEndService:
. .. myFrontEndService.yaml trigger-target-branch.yaml

Create Branch-Specific Pipelines

You might find that you can use the default Pipeline, Input Set, and Trigger you just created for most of your builds, regardless of which codebase branch gets updated. The codebase sends a payload; the payload includes the updated branch; the Trigger builds from this branch using the runtime expression <+trigger.targetBranch>.

Git Experience enables you to create branches in your Harness repo so you can create different versions of the same Pipeline for different uses cases. For example, suppose you want your Pipeline to push to different registries depending on the updated branch. Updates to main push to a public registry; updates to all other branches push to a private registry. To implement this, do the following:

  1. Customize your default Pipeline and click Enter.
  2. Select Commit to a new branch and enter the branch name. In this case, we save the Pipeline in a new branch push-to-private:
  3. Customize the Input Sets and Triggers for the new Pipeline as needed. For this specific use case, you would add a condition to the Trigger so it uses the Pipeline in push-to-private when it receives a payload from any branch except main.
  4. In the Trigger editor > Pipeline Input field, make sure that the Pipeline Reference Branch field references the new branch:
