Install a Harness GitOps Agent

Updated 3 days ago by Michael Cretzman

Currently, this feature is behind the feature flags ARGO_PHASE1 and ARGO_PHASE2_MANAGED. Contact Harness Support to enable the feature.

A Harness GitOps Agent is a worker process that runs in your environment and performs GitOps tasks.

You need to set up an Agent before you can set up a Cluster, Repository, or Application, as the Agent is selected in all three of these.

Typically, you install the Agent in the target cluster, but you can install it any cluster and it can connect to remote clusters using the credentials you provide.

Before You Begin

Review: Requirements

The Harness GitOps Agent has the following requirements:

  • vCPUs, Memory, Disk Size: the Harness GitOps Agent only needs 1vCPUs, 2GB memory, 20GB disk, but you'll also be running Kubernetes and your deployed services. Consider the total CPU and memory needs for the Agent and the applications and services in your cluster.
  • Networking: outbound HTTPS for the Harness connection to app.harness.io, github.com, and hub.docker.com. Allow TCP port 22 for SSH.
  • Kubernetes service account with the permissions need to create your desired state. The Harness GitOps Agent requires either cluster-admin or admin permissions in the target namespace:
    • Create Deployment, Service, StatefulSet, Network Policy, Service Account, Role, ClusterRole, RoleBinding, ClusterRoleBinding, ConfigMap, Secret.
    • Permission to apply CustomResourceDefinition.
      For more information, see User-Facing Roles from Kubernetes.

Review: Using Existing Argo CD Projects

Currently, using existing Argo CD Projects is behind the feature flag GITOPS_BYO_ARGO. Contact Harness Support to enable the feature.

Typically, when you set up a Harness GitOps Agent you install a new Harness GitOps Agent in your target cluster along with other services (Repo server, Redis cache, Application controller).

In some cases, you might already have an Argo CD Project running in your target cluster. In this case, you can select this Project when you set up the Harness GitOps Agent.

You can use an existing Argo CD Project when you already have services deployed to different environments from that Argo CD instance.

If you don't use an existing Argo CD Project, you will create GitOps Applications, Repos, Clusters, etc in Harness. You'll also have to delete these from any existing Argo CD Project in the cluster (if necessary).

In both cases, you will install the Harness GitOps Agent process.

If you use an existing Argo CD instance, then Harness will use the following existing processes in the cluster:

  • Repo server
  • Redis cache
  • Application controller

If you do not use an existing Argo CD instance, then Harness will install the following:

  • GitOps agent
  • Repo server
  • Redis cache
  • Application controller

See Harness GitOps Basics.

Step 1: Add an Agent

Ensure your Harness Project has the Continuous Delivery module enabled.

In your Harness Project, click GitOps.

The Harness GitOps Overview, Applications, and Settings appear. If this is the first time GitOps has been set up in the Project, the Applications will be empty.

All entities other than Applications are in Settings.

Click Settings. The Harness GitOps settings appear.

Click GitOps Agents.

Click New GitOps Agent. The Agent wizard appears.

Option: Harness GitOps Agent with No Existing Argo CD Project

In Getting started with Harness GitOps, you have the option of installing a new Harness GitOps Agent with or without an existing Argo CD instances.

Click No, and then click Start.

In Name, enter the name for the new Agent.

In Namespace, enter the namespace where you want to install the Harness GitOps Agent. Typically, this is the target namespace for your deployment. For this quickstart, we use default.

Click Next. The Review YAML settings appear.

This is the manifest YAML for the Harness GitOps Agent. You will download this YAML file and run it in your Harness GitOps Agent cluster.

Option: Harness GitOps Agent with Existing Argo CD Project

Currently, this feature is behind the feature flag GITOPS_BYO_ARGO. Contact Harness Support to enable the feature.

In Getting started with Harness GitOps, you have the option of installing a new Harness GitOps Agent with or without an existing Argo CD instances.

Click Yes, and then click Start.

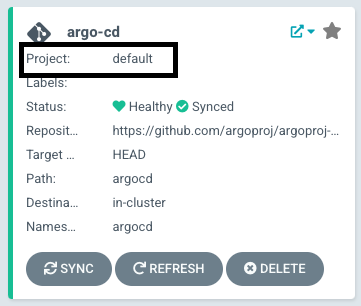

In Name, enter the name for the existing Agent CD Project. For example, default in the this example:

In Namespace, enter the namespace where you want to install the Harness GitOps Agent. Typically, this is the target namespace for your deployment. For this quickstart, we use default.

Click Next. The Review YAML settings appear.

This is the manifest YAML for the Harness GitOps Agent. You will download this YAML file and run it in your Harness GitOps Agent cluster.

Once you have installed the Agent, Harness will start importing all the entities from the existing Argo CD Project.

Step 2: Install the Agent

Click Download & Continue. You are prompted to save the YAML file.

Open a terminal and navigate to the folder where you downloaded the YAML file.

In the same terminal, log into the Kubernetes cluster where you want to install the Agent.

For example, here's a typical GKE login:

gcloud container clusters get-credentials <cluster_name> --zone us-central1-c --project <project_name>

Run the following command to apply the YAML file you downloaded (in this example, default was the namespace entered in the Namespace setting):

kubectl apply -f gitops-agent.yaml -n default

In the following output example you can see all of the Harness GitOps objects created in Kubernetes.

This example output is for installing a new Harness GitOps Agent without using an existing Argo CD instance.

% kubectl apply -f harness-gitops-agent.yaml -n default
customresourcedefinition.apiextensions.k8s.io/applications.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/appprojects.argoproj.io created
serviceaccount/argocd-application-controller created
serviceaccount/argocd-redis created
serviceaccount/example-agent created
role.rbac.authorization.k8s.io/example-agent created
role.rbac.authorization.k8s.io/argocd-application-controller created
clusterrole.rbac.authorization.k8s.io/argocd-application-controller-default created
clusterrole.rbac.authorization.k8s.io/example-agent created
rolebinding.rbac.authorization.k8s.io/argocd-application-controller created
rolebinding.rbac.authorization.k8s.io/argocd-redis created
clusterrolebinding.rbac.authorization.k8s.io/argocd-application-controller-default created
rolebinding.rbac.authorization.k8s.io/example-agent created
clusterrolebinding.rbac.authorization.k8s.io/example-agent created
configmap/argocd-cm created
configmap/argocd-cmd-params-cm created
configmap/argocd-gpg-keys-cm created
configmap/argocd-rbac-cm created
configmap/argocd-ssh-known-hosts-cm created
configmap/argocd-tls-certs-cm created
secret/argocd-secret created
service/argocd-metrics created
service/argocd-redis created
service/argocd-repo-server created
deployment.apps/argocd-redis created
deployment.apps/argocd-repo-server created
statefulset.apps/argocd-application-controller created
networkpolicy.networking.k8s.io/argocd-application-controller-network-policy created
networkpolicy.networking.k8s.io/argocd-redis-network-policy created
networkpolicy.networking.k8s.io/argocd-repo-server-network-policy created
secret/example-agent created
configmap/example-agent created
deployment.apps/example-agent created
configmap/example-agent-upgrader created
role.rbac.authorization.k8s.io/example-agent-upgrader created
rolebinding.rbac.authorization.k8s.io/example-agent-upgrader created
serviceaccount/example-agent-upgrader created
Warning: batch/v1beta1 CronJob is deprecated in v1.21+, unavailable in v1.25+; use batch/v1 CronJob
cronjob.batch/example-agent-upgrader created

Back in Harness, click Continue.

Harness indicates that the Harness GitOps Agents is registered.

Click Finish.

The Agents list shows the new Agent as Healthy and Connected.

In your cloud platform Kubernetes cluster you can see the agent workload:

Now that you have the Harness GitOps Agent installed, running, and registered, you can configure the remaining components.

Review: Argo CD and Harness Project Mapping

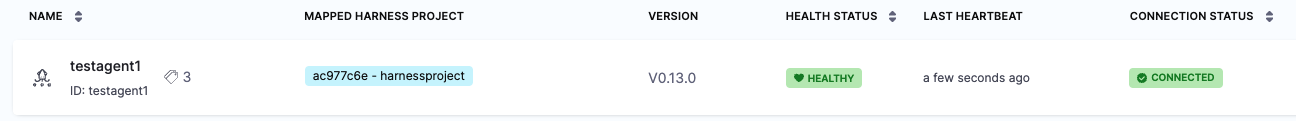

Once you have installed the Agent, Harness will create its own Argo CD Project in the cluster and name it with a random string. It will then map this new Argo CD Project to a Harness Project identifier (Id). You will see this mapping in Harness:

If you used an existing Argo CD Project, you will see the existing Argo CD Project mapped to your Harness Project Id:

See Entity Identifier Reference.
