Plan Terraform Provisioning with the Terraform Plan Step

Updated 2 months ago by Michael Cretzman

This topic describes how to run a Terraform script as a Terraform plan using the Harness Terraform Plan step.

You can run the Terraform Plan step to provision any resource, including the target infrastructure for a deployment.

This topic covers using the Terraform Plan step for non-target infrastructure.

For steps on using the Terraform Plan to provision the target infrastructure for a deployment, see Provision Target Deployment Infra Dynamically with Terraform.

In this topic:

Before You Begin

Review: Terraform Plan and Apply Steps

Typically the Terraform Plan step is used with the Terraform Apply step.

First, you add the Terraform Plan step and define the Terraform script for it to use.

Next, you add the Terraform Apply step, select Inherit from Plan in Configuration Type, and reference the Terraform Plan step using the same Provisioner Identifier.

For steps on using the Terraform Apply step, see:

You can also simply run the Terraform Plan without applying the plan using the Terraform Apply step.

Step 1: Add the Terraform Plan Step

In the Terraform Plan step, you connect Harness to your repo and add Terraform scripts.

You can add the Terraform Plan step in the stage's Infrastructure in Dynamic Provisioning. Dynamic Provisioning is used to provision the target infrastructure for the stage's deployment. Consequently, if you add Terraform Plan there, you must use a Terraform Apply step to apply the plan.

See Provision Target Deployment Infra Dynamically with Terraform.

You can also add a Terraform Plan step anywhere in the Execution steps for the stage. In that case, you aren't required to use a Terraform Apply step.

The Terraform Plan step has the following settings.

Name

In Name, enter a name for the step, for example, plan.

The name is very important. It's used to refer to settings in this step.

For example, if the name of the stage is Terraform and the name of the step is plan, and you want to echo its timeout setting, you would use:

<+pipeline.stages.Terraform.spec.execution.steps.plan.timeout>

Timeout

In Timeout, enter how long Harness should wait to complete the Terraform Plan step before failing the step.

Command

In Command, select Apply or Destroy.

  • Apply: The plan will be applied by a Terraform Apply step later in your stage. Even though you are only running a Terraform plan in this step, you identify that this step can be used with a Terraform Apply step later.
  • Destroy: The plan will be applied by a Terraform Destroy step later in your stage.

Provisioner Identifier

Enter a unique value in Provisioner Identifier.

The Provisioner Identifier identifies the provisioning done in this step. You use the Provisioner Identifier in additional steps to refer to the provisioning done in this step.

The most common use of Provisioner Identifier is between the Terraform Plan and Terraform Apply steps. For the Terraform Apply step, to apply the provisioning from the Terraform Plan step, you use the same Provisioner Identifier.

You also use the same Provisioner Identifier with the Terraform Destroy step to remove the provisioned resources.

You also use the same Provisioner Identifier with the Terraform Rollback step to rollback the provisioned resources.

Provisioner Identifier Scope

The Provisioner Identifier is a Project-wide setting. You can reference it across Pipelines in the same Project.

For this reason, it's important that all your Project members know the Provisioner Identifiers. This will prevent one member building a Pipeline from accidentally impacting the provisioning of another member's Pipeline.

Secret Manager

Select a Secrets Manager to use for encrypting/decrypting and saving the Terraform plan file.

See Harness Secrets Manager Overview.

A Terraform plan is a sensitive file that could be misused to alter resources if someone has access to it. Harness avoids this issue by never passing the Terraform plan file as plain text.

Harness only passes the Terraform plan between the Harness Manager and Delegate as an encrypted file using a Secrets Manager.

When the terraform plan command runs on the Harness Delegate, the Delegate encrypts the plan and saves it to the Secrets Manager you selected. The encrypted data is passed to the Harness Manager.

When the plan is applied, the Harness Manager passes the encrypted data to the Delegate.

The Delegate decrypts the encrypted plan and applies it using the terraform apply command.

Configuration File Repository

Configuration File Repository is where the Terraform script and files you want to use are located.

Here, you'll add a connection to the Terraform script repo.

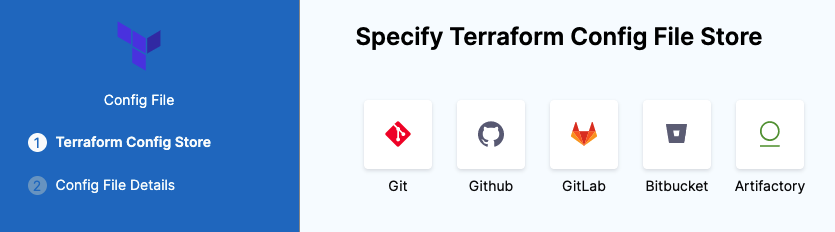

Click the edit icon.

The Config Files settings appear.

In Connector, select or create a Connector for your Git repo. For steps, see Connect to a Git Repo.

In Git Fetch Type, select Latest from Branch or Specific Commit ID. When you run the Pipeline, Harness will fetch the script from the repo.

If you think the script might change often, you might want to use Specific Commit ID. For example, if you are going to be fetching the script multiple times in your Pipeline, Harness will fetch the script each time. If you select Latest from Branch and the branch changes between fetches, different scripts are run.

In Branch, enter the name of the branch to use.

In Folder Path, enter the path from the root of the repo to the folder containing the script.

For example, here's a Terraform script repo, the Harness Connector to the repo, and the Config Files settings for the branch and folder path:

Click Submit.

Your Terraform Plan step is now ready. You can now configure a Terraform Apply, Destory, or Rollback step that can use the Terraform script from this Terraform Plan step.

The following sections cover common Terraform Plan step options.

Option: Workspace

Harness supports Terraform workspaces. A Terraform workspace is a logical representation of one your infrastructures, such as Dev, QA, Stage, Production.

Workspaces are useful when testing changes before moving to a production infrastructure. To test the changes, you create separate workspaces for Dev and Production.

A workspace is really a different state file. Each workspace isolates its state from other workspaces. For more information, see When to use Multiple Workspaces from Hashicorp.

Here's an example script where a local value names two workspaces, default and production, and associates different instance counts with each:

locals {
counts = {
"default"=1
"production"=3
}
}

resource "aws_instance" "my_service" {
ami="ami-7b4d7900"
instance_type="t2.micro"
count="${lookup(local.counts, terraform.workspace, 2)}"
tags {
Name = "${terraform.workspace}"
}
}

In the workspace interpolation sequence, you can see the count is assigned by applying it to the Terraform workspace variable (terraform.workspace) and that the tag is applied using the variable also.

Harness will pass the workspace name you provide to the terraform.workspace variable, thus determining the count. If you provide the name production, the count will be 3.

In the Workspace setting, you can simply select the name of the workspace to use.

You can also use a stage variable in Workspace.

Later, when the Pipeline is deployed, you specify the value for the stage variable and it is used in Workspace.

This allows you to specify a different workspace name each time the Pipeline is run.

You can even set a Harness Trigger where you can set the workspace name used in Workspace.

Option: Terraform Var Files

The Terraform Var Files section is for entering and/or linking to Terraform script Input variables.

You can use inline or remote var files.

Harness supports all Terraform input types and values.

Inline Variables

You can add inline variables just like you would in a tfvar file.

Click Add Terraform Var File, and then click Add Inline.

The Add Inline Terraform Var File settings appear.

In Identifier, enter an identifier so you can refer to variables using expressions if needed.

For example, if the Identifier is myvars you could refer to its content like this:

<+pipeline.stages.MyStage.spec.infrastructure.infrastructureDefinition.provisioner.steps.plan.spec.configuration.varFiles.myvars.spec.content>

Provide the input variables and values for your Terraform script. Harness follows the same format as Terraform.

For example, if your Terraform script has the following:

variable "region" {
type = string
}

In Add Inline Terraform Var File, you could enter:

region = "asia-east1-a"

Inline Variable Secrets

If you are entering secrets (for credentials, etc.), use Harness secret references in the value of the variable:

secrets_encryption_kms_key = "<+secrets.getValue("org.kms_key")>"

See Add Text Secrets.

Remote Variables

You can connect Harness to remote variable files.

Click Add Terraform Var File, and then click Add Remote.

Select your Git provider (GitHub, etc.) and then select or create a Connector to the repo where the files are located. Typically, this is the same repo where your Terraform script is located, so you can use the same Connector.

Click Continue. The Var File Details settings appear.

In Identifier, enter an identifier so you can refer to variables using expressions if needed.

For example, if the Identifier is myremotevars you could refer to its content like this:

<+pipeline.stages.MyStage.spec.infrastructure.infrastructureDefinition.provisioner.steps.plan.spec.configuration.varFiles.myremotevars.spec.store.spec.paths>

In Git Fetch Type, select Latest from Branch or Specific Commit ID.

In Branch, enter the name of the branch.

In File Paths, add one or more file paths from the root of the repo to the variable file.

Click Submit. The remote file(s) are added.

Option: Backend Configuration

The Backend Configuration section contains the remote state values.

Enter values for each backend config (remote state variable).

For example, if your config.tf file has the following backend:

terraform {
backend "gcs" {
bucket = "tf-state-prod"
prefix = "terraform/state"
}
}

In Backend Configuration, you provide the required configuration variables for that backend type. See Configuration variables in Terraform's gcs Standard Backend doc.

You can use Harness secrets for credentials. See Add Text Secrets.

Option: Targets

You can use the Targets setting to target one or more specific modules in your Terraform script, just like using the terraform plan -target command. See Resource Targeting from Terraform.

You simply identify the module using the standard format module.name, like you would using terraform plan -target="module.s3_bucket".

If you have multiple modules in your script and you don't select one in Targets, all modules are used.

Option: Environment Variables

If your Terraform script uses environment variables, you can provide values for those variables here.

For example:

TF_LOG_PATH=./terraform.log
TF_VAR_alist='[1,2,3]'

You can use Harness encrypted text for values. See Add Text Secrets.

Option: Advanced Settings

In Advanced, you can use the following options:
