Harness YAML Quickstart

Updated 2 weeks ago by Michael Cretzman

This quickstart shows you how to create a Harness Pipelines using YAML. It's not an exhaustive reference for all of the YAML entries, but a quick procedure to get you started with Harness Pipeline YAML.

Harness includes visual and YAML editors for creating and editing Pipelines, Triggers, Connectors, and other entities. Everything you can do in the visual editor you can also do in YAML.

A quick run through on how to use the YAML builder will get you up and coding Harness Pipelines in minutes. Let's get started.

For details of the YAML schema, see YAML Reference: Pipelines.

Objectives

You'll learn how to:

  1. View a Pipeline in the YAML builder.
  2. Review the Pipeline YAML schema structure.
  3. Use keyboard shortcuts for adding entries and selecting commands.
  4. Find and replace YAML.
  5. Verify and resolve YAML errors with the YAML builder's assistance.

Before You Begin

Visual Summary

Here's a very quick video showing you how to build a Pipeline using YAML:

Step 1: Start a New Pipeline

In your Harness Project, click New Pipeline.

Enter the name YAML Example for the Pipeline and click Start.

The Pipeline is created.

Click YAML to view the YAML editor.

You can see the Pipeline YAML. Here's an example:

pipeline:
name: YAML Example
identifier: YAML_Example
projectIdentifier: CD_Examples
orgIdentifier: default
tags: {}

Place your cursor after tags: {} and hit Enter.

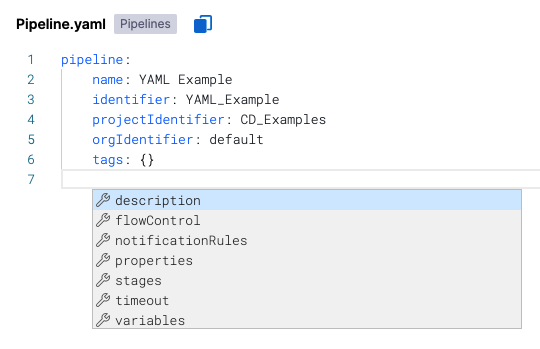

Press Ctrl + Space. The major Pipeline sections are displayed.

Completing the Pipeline in YAML is simply the process of filing out these sections.

Let's look at the YAML structure of a Pipeline.

Review: Basic Pipeline Structure

The following outline shows the basic hierarchy of the Pipeline YAML.

This outline is shown to help you gain a general idea of the structure of a Pipeline and help you know which entry to make next as you develop your Pipeline in YAML.

Here are the Pipeline settings and major sections:

pipeline:
name: YAML Example
identifier: YAML_Example
projectIdentifier: CD_Examples
orgIdentifier: default
tags: {}
description:
stages:
-
notificationRules:
-
flowControl:

properties:

timeout:
variables:
-

The following steps walk through adding the YAML for the stages section of the Pipeline.

For details of the YAML schema, see YAML Reference: Pipelines.

Step 2: Add a Stage

The basic Stage YAML looks like this:

    stages:
- stage:
identifier:
name:
type:
description:
tags:
spec:
serviceConfig:

infrastructure:

execution:
steps:
-
variables:
-
when:
pipelineStatus:
failureStrategies:
- onFailure:
errors:
- null

In identifier, enter a unique Id for the stage, such as mystage. In the Visual editor the Id is generated automatically. In YAML, you have to enter an Id.

In name, enter a name for the stage, such as mystage.

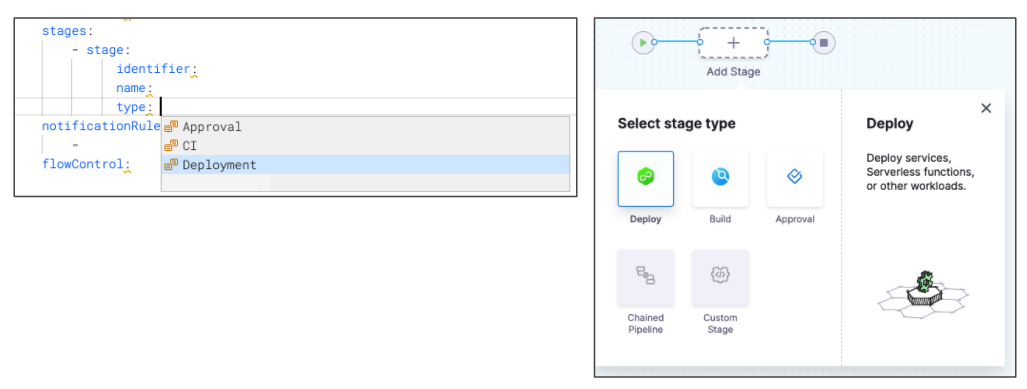

In type, you select the type of Stage you want to add. This is the same as clicking Add Stage in the Visual editor.

For details on each type, see:

For this quickstart, we're going to use the Deployment type.

In type, select Deployment.

Next, we'll add a spec that defines the Service, Environment, and Execution for the stage.

Stage Spec

The Stage spec contains the three major sections of the Stage:

              spec:
serviceConfig:

infrastructure:

execution:
steps:
-

These correspond to the Stage sections in the Visual editor:

Stage Service

In serviceConfig, press Enter, and then Ctrl + Space.

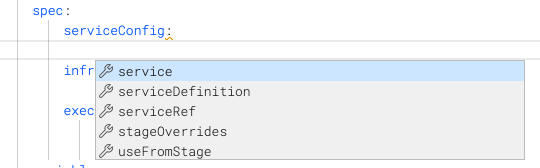

You can see the serviceConfig options:

For this quickstart, we'll just use service and serviceDefinition. We're just looking at the structure so we'll use Runtime Inputs wherever we can:

              spec:
serviceConfig:
service:
identifier: myservice
name: myservice
serviceDefinition:
type: Kubernetes
spec:
manifests:
- manifest:
identifier: <+input>
type: K8sManifest
spec:
store:
type: Github
spec:
connectorRef: <+input>
gitFetchType: Branch
branch: <+input>
folderPath: <+input>
repoName: <+input>

This stage simply adds a Service named myservice and a Service Definition using Kubernetes manifests.

For details on adding manifests to a Service Definition, see Add Kubernetes Manifests.

The connectorRef setting is for the Harness Connector that connects to the Git repo where the manifests are located. In the Visual editor you can create/select Connectors inline, but in the YAML editor, you must use the name of an existing Connector. In this example, we simply use a Runtime Input (connectorRef: <+input>) and we can add the Connector later.

Stage Infrastructure

In infrastructure, press Enter, and then Ctrl + Space.

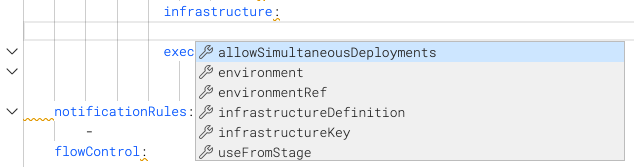

You can see the infrastructure options:

For this quickstart, we'll just use environment and infrastructureDefinition. We're just looking at the structure so we'll use Runtime Inputs wherever we can:

                  infrastructure:
environment:
identifier: myinfra
name: myinfra
type: PreProduction
infrastructureDefinition:
type: KubernetesDirect
spec:
connectorRef: <+input>
namespace: <+input>
releaseName: <+input>

In infrastructureDefinition, you can see that we are using a Kubernetes Cluster Connector for a platform-agnostic direct connection to the target cluster.

Stage Execution

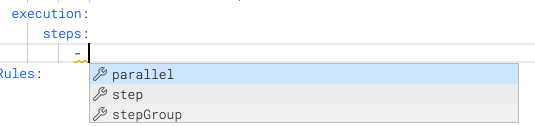

In execution, in steps, press Enter, type -, and then press Space.

You can see the steps options:

Click step. The step settings appear.

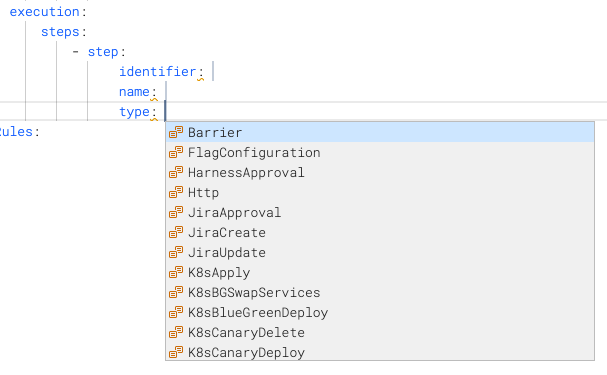

In type, press Ctrl + Space to see the steps you can add.

For this quickstart, we'll just use ShellScript. Here's an example:

                          - step:
identifier: ssh
name: ssh
type: ShellScript
description: <+input>
spec:
shell: Bash
source:
type: Inline
spec:
script: echo "hello world"
timeout: <+input>
onDelegate: false
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: Abort
when:
stageStatus: Success

The step Failure Strategy is set using failureStrategies and the Conditional Execution is set using when.

Stage Conditional Execution

You can add the Stage Conditional Execution settings before or after stage. To add them after, make sure you indent to the same depth as stage identifier. and then press Ctrl + Space.

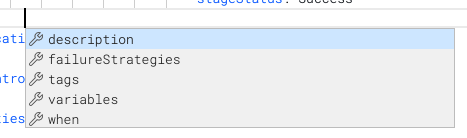

You can see the remaining options:

Click when. The pipelineStatus setting appears.

Press Ctrl + Space and select Success.

Stage Failure Strategy

Create a new line under pipelineStatus: Success , indent to the same level as when, and the remaining options appear.

Click failureStrategies. The Failure Strategy settings appear.

Here's an example:

              failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: Abort

Stage Variables

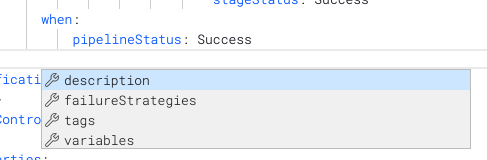

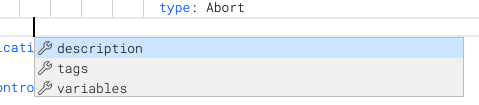

Create a new line, indent to the same level as failureStrategies, and the remaining options appear.

Click variables. On the new line, press Ctrl + Space. The variables options appear.

Here's an example:

              variables:
- name: myvar
type: String
value: myval

The Pipeline stage is now complete.

Click Save.

For details of the YAML schema, see YAML Reference: Pipelines.

Review: Autocomplete

The YAML editor has an autocomplete feature that makes it very easy to see what entries are available.

The keyboard command for autocomplete is Ctrl + Space.

If an entry already has a value, the autocomplete will not show you other options. You need to delete the value and then enter Ctrl + Space.

Let's look at an example.

Navigate to rollbackSteps: [] at the bottom of the stage.

Delete the [], press Enter, type -, and press Space.

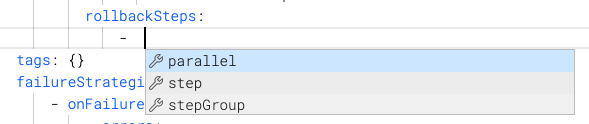

You can see the available options:

Click step. The default step settings appear:

                      rollbackSteps:
- step:
identifier:
name:
type:

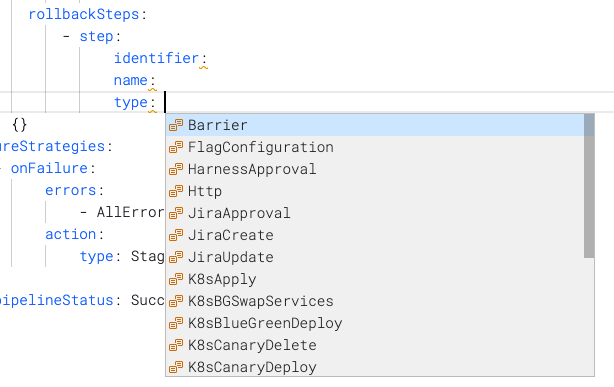

In type, press Ctrl + Space to see the options. You can see all of the available steps:

This shows you how easy it is to view settings with autocomplete.

Review: Find and Replace YAML

Click Cmd/Ctrl + f to see the Find and Replace settings.

You can quickly find and replace anything in the YAML.

Review: Command Palette

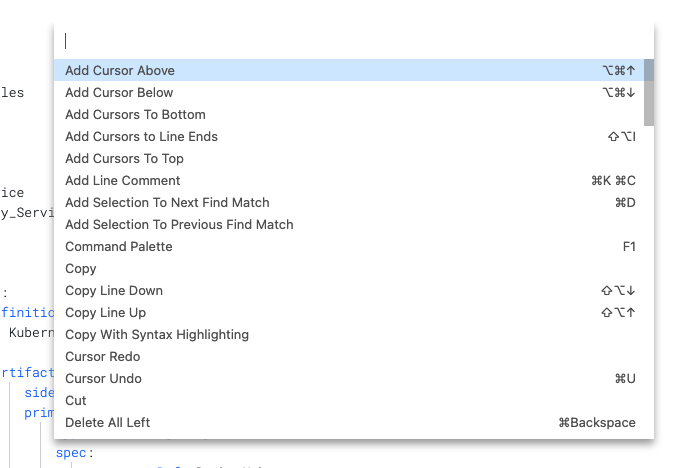

The command palette keyboard command is F1.

The command palette displays all of the commands and the keyboard shortcuts for most commands.

Review: Validating YAML

Ad you edit your YAML you will see Invalid to highlight that your YAML is incomplete.

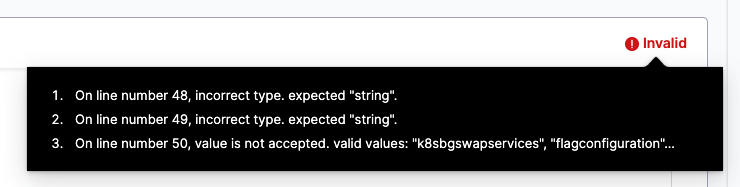

Hover over Invalid to see where the errors are:

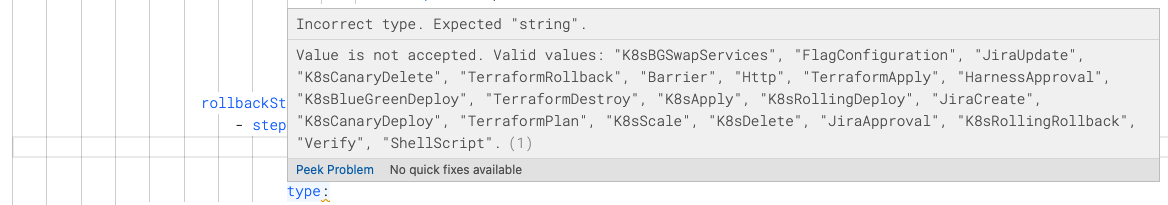

You can also hover over any incomplete entry to see what is expected:

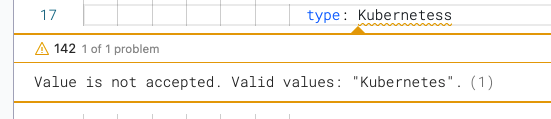

Click Peek Problem to see suggestions and valid values also:

Next Steps

In this tutorial, you learned how to:

  1. View a Pipeline in the YAML builder.
  2. Review the Pipeline YAML schema structure.
  3. Use keyboard shortcuts for adding entries and selecting commands.
  4. Find and replace YAML.
  5. Verify and resolve YAML errors with the YAML builder's assistance.
