Kubernetes infrastructure

When you set up a Deploy stage, you specify the Kubernetes cluster and namespace where you want to deploy your service. In Harness, this is called the Infrastructure Definition.

A Harness Infrastructure Definition includes specific infrastructure details for the deployment, such as the Harness connector that provides credentials for the cluster and the cluster namespace.

The Infrastructure Definition can point to a pre-existing cluster and namespace or Harness can dynamically provision the namespace using your provisioning scripts/templates. You must use an existing cluster in either use case.

This topic explains how to set up the Infrastructure Definition for your deployments.

note

For Amazon Elastic Kubernetes Service (Amazon EKS) and OpenShift, use Specify a Vendor Agnostic Kubernetes Cluster.

Important notes

  • When using names in Harness Kubernetes stages, remember that Kubernetes service and pod names follow RFC-1035 and must consist of lowercase alphanumeric characters or '-', start with an alphabetic character, and end with an alphanumeric character.

Harness role permissions required

The following Harness role is required:

  • Environments: View/Create, Edit, Access, Delete.

For more information on roles, go to Add and manage roles.

Pre-existing and dynamically provisioned infrastructure

There are two methods of specifying the deployment target infrastructure:

  • Pre-existing: the target infrastructure already exists and you simply need to provide the required settings.
  • Dynamically provisioned: the target infrastructure will be dynamically provisioned on-the-fly as part of the deployment process.

These methods are described below.

For details on Harness provisioning, go to Provisioning overview.

Pre-existing infrastructure

For a pre-existing infrastructure, you provide Harness with the target cluster and namespace for the deployment.

First, you select/add a Harness environment, then you add an Infrastructure Definition to that environment and define a connection method to connect Harness to your target platform.

To define the target infrastructure, do the following:

  1. In your Harness project, in Deploy, select Environments.
  2. Select an existing environment or select New Environment, name the new environment, and select whether it is a production or pre-production environment.
  3. In the environment, select Infrastructure Definitions.
  4. Select Infrastructure Definition to add a new infrastructure definition.
  5. Enter a name for the new infrastructure definition.
  6. In Deployment Type, select Kubernetes.
  7. Next, select the connection method you want to use.

Each of the connection methods are described below.

Direct

This method avoids vendor-specific settings. A direct connection is a vendor-agnostic connection to the Kubernetes cluster.

A direct connection uses a Harness Kubernetes cluster connector to connect a cluster on any platform.

note

For details on using OpenShift, go to Using OpenShift with Harness Kubernetes.

Enter the following settings.

Here is the YAML for the Harness Kubernetes Cluster connector used in the Infrastructure Definition.

connector:
name: doc-immut
identifier: docimmut
description: ""
orgIdentifier: default
projectIdentifier: CD_Docs
type: K8sCluster
spec:
credential:
type: InheritFromDelegate
delegateSelectors:
- doc-immut

The InheritFromDelegate credential is used in this example. This credential is used when a Harness Delegate is running inside the target cluster.

Here is the YAML for an Infrastructure Definition.

infrastructureDefinition:
name: Cluster 1
identifier: Kubernetes
description: ""
tags: {}
orgIdentifier: default
projectIdentifier: CD_Docs
environmentRef: Kubernetes
deploymentType: Kubernetes
type: KubernetesDirect
spec:
connectorRef: docimmut
namespace: default

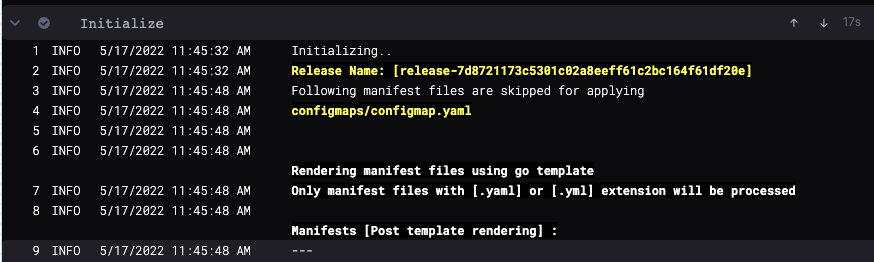

releaseName: release-<+INFRA_KEY_SHORT_ID>
allowSimultaneousDeployments: false

Google Kubernetes Engine (GKE)

  • GCP Workload Identity: if you installed the Harness Kubernetes Delegate in a GCP Kubernetes cluster (GKE) that has GCP Workload Identity enabled, the GCP Connector will use the GCP Workload Identity if it inherits its credentials from that Delegate (using the Use the credentials of a specific Harness Delegate option).

Here is the YAML for the GCP connector used in the Infrastructure Definition.

connector:
name: kubernetes-delegate
identifier: kubernetesdelegate
description: ""
orgIdentifier: default
projectIdentifier: CD_Docs
type: Gcp
spec:
credential:
type: InheritFromDelegate
delegateSelectors:
- kubernetes-delegate
executeOnDelegate: true

Here is the YAML for a GKE Infrastructure Definition. In this example, the cluster parameter is set as a runtime input so you can select the cluster to use when you deploy.

infrastructureDefinition:
name: K8s GKE
identifier: K8s_GKE
description: ""
tags: {}
orgIdentifier: default
projectIdentifier: CD_Docs
environmentRef: k8s_env
deploymentType: Kubernetes
type: KubernetesGcp
spec:
connectorRef: kubernetesdelegate
cluster: <+input>
namespace: test
releaseName: release-<+INFRA_KEY_SHORT_ID>
allowSimultaneousDeployments: false

Microsoft Azure Kubernetes Service (AKS)

Here is the YAML for a AKS Infrastructure Definition. In this example, AKS parameters are set as runtime inputs so you can select the cluster to use when you deploy.

infrastructureDefinition:
name: K8s Azure
identifier: K8s_Azure
description: ""
tags: {}
orgIdentifier: default
projectIdentifier: CD_Docs
environmentRef: k8s_env
deploymentType: Kubernetes
type: KubernetesAzure
spec:
connectorRef: account.foo
subscriptionId: <+input>
resourceGroup: <+input>
cluster: <+input>
namespace: mynamespace
releaseName: release-<+INFRA_KEY_SHORT_ID>
allowSimultaneousDeployments: false

AWS Elastic Kubernetes Service (EKS)

Here is the YAML for an EKS Infrastructure Definition.

infrastructureDefinition:
name: K8s EKS
identifier: K8s_EKS
description: ""
tags: {}
orgIdentifier: default
projectIdentifier: CD_Docs
environmentRef: k8s_env
deploymentType: Kubernetes
type: KubernetesAws
spec:
connectorRef: eks
cluster: ap-south-1/Cluster-test
namespace: mynamespace
releaseName: release-<+INFRA_KEY_SHORT_ID>
allowSimultaneousDeployments: false

Rancher

Harness supports the ability to perform Kubernetes deployments into Rancher-managed Kubernetes clusters.

You can use Harness Kubernetes and Native Helm deployment types to deploy into Rancher-managed clusters.

This documentation assumes you are familiar with Rancher, have a Rancher account, and have set up Kubernetes clusters in its UI. If you are new to Rancher, go to Setting up Kubernetes Clusters in Rancher from Rancher.

Here's a short video that demonstrates Harness Rancher integration:

To use Rancher with Harness, you set up a Harness Rancher connector. Next, you set up a Rancher infrastructure definition in a Harness environment. Lastly, you select that infrastructure definition in the Harness pipeline stage that is deploying to the Rancher cluster.

To set up a Harness Rancher connector you need:

  • The URL of the Rancher endpoint.
    • This is the domain name you use to connect to Rancher, such as https://rancher-internal.dev.mycompany.io. Make sure to include the URL scheme.
  • The bearer token for the Rancher account to use.
    • The Rancher bearer token you use must be able to use the /v3/clusters/{clusterName}?action=generateKubeconfig and /v3/clusters APIs. The Rancher user account you use to generate the token must have the Rancher Cluster Owner role or a Global Permission that enables cluster administration. Go to Cluster and Project Roles and Global Permissions from Rancher.
    • For steps on creating a bear token, go to API Keys from Rancher.
    • When you create the token, you can scope it to specific clusters. A scope will limit the API key so that it will only work against the Kubernetes API of the specified clusters. If you scope the bearer token to specific clusters, Harness will only be able to query and target that list of clusters when deploying.
    • If you set an expiration period for the token, make sure that its expiration date will not impact your Harness deployments.

Here is the YAML for the Rancher connector used in the Infrastructure Definition.

connector:
name: Rancher
identifier: Rancher
description: ""
accountIdentifier: ACCOUNT_ID
orgIdentifier: default
projectIdentifier: Docs
type: Rancher
spec:
credential:
type: ManualConfig
spec:
rancherUrl: https://rancher-internal.QA.MY_COMPANY.io/
auth:
type: BearerToken
spec:
passwordRef: TOKEN_NAME

Here is the YAML for a Rancher Infrastructure Definition. In this example, cluster and namespace are set as runtime inputs so you can select the cluster and namespace to use when you deploy.

infrastructureDefinition:
name: Rancher
identifier: Rancher
description: ""
tags: {}
orgIdentifier: default
projectIdentifier: Docs
environmentRef: Kubernetes
deploymentType: Kubernetes
type: KubernetesRancher
spec:
connectorRef: Rancher
cluster: <+input>
namespace: <+input>
releaseName: release-<+INFRA_KEY_SHORT_ID>
allowSimultaneousDeployments: false

Dynamically provisioned infrastructure

Here is a summary of the steps to dynamically provision the target infrastructure for a deployment:

  1. Add dynamic provisioning to the CD stage:

    1. In a Harness Deploy stage, in Environment, enable the option Provision your target infrastructure dynamically during the execution of your Pipeline.
    2. Select the type of provisioner that you want to use.

    Harness automatically adds the provisioner steps for the provisioner type you selected. 3. Configure the provisioner steps to run your provisioning scripts. 4. Select or create a Harness infrastructure in Environment.

  2. Map the provisioner outputs to the Infrastructure Definition:

    1. In the Harness infrastructure, enable the option Map Dynamically Provisioned Infrastructure.
    2. Map the provisioning script/template outputs to the required infrastructure settings.

These steps are explained in detail below.

Adding dynamic provisioning to the stage

To add dynamic provisioning to a Harness pipeline Deploy stage, do the following:

  1. In a Harness Deploy stage, in Environment, enable the option Provision your target infrastructure dynamically during the execution of your Pipeline.

  2. Select the type of provisioner that you want to use.

    Harness automatically adds the necessary provisioner steps.

  3. Set up the provisioner steps to run your provisioning scripts.

For documentation on each of the required steps for the provisioner you selected, go to the following topics:

Mapping provisioner output

Once you set up dynamic provisioning in the stage, you must map outputs from your provisioning script/template to specific settings in the Harness Infrastructure Definition used in the stage.

  1. In the same CD Deploy stage where you enabled dynamic provisioning, select or create (New Infrastructure) a Harness infrastructure.

  2. In the Harness infrastructure, in Cluster Details, enable the option Map Dynamically Provisioned Infrastructure.

    The Cluster Details section adds a Provisioner setting and configures it as a runtime input.

  3. Map the provisioning script/template outputs to the required infrastructure settings.

To provision the target deployment infrastructure, Harness needs specific infrastructure information from your provisioning script. You provide this information by mapping specific Infrastructure Definition settings in Harness to outputs from your script.

For example, for the Kubernetes direct connection Infrastructure Definition, Harness needs the name of the namespace to provision. In your script, you must add an output for that name. For example, see the default_namespace output in this Terraform script excerpt:


provider "kubernetes" {
config_context_cluster = "docs-tf" # Name of your Kubernetes cluster
host = "<KUBE_HOST>" # Kubernetes API server host
client_certificate = "<CLIENT_CERT>" # Path to client certificate
client_key = "<CLIENT_KEY>" # Path to client key
cluster_ca_certificate = "<CLUSTER_CA>" # Path to cluster CA certificate
}

resource "kubernetes_namespace" "example" {
metadata {
name = "example-namespace"
}
}
...

output "default_namespace" {
value = kubernetes_namespace.example.metadata[0].name
}

In the Harness Infrastructure Definition, you map that output to the Namespace setting using an expression in the format <+provisioner.OUTPUT_NAME>, such as <+provisioner.default_namespace>.

Mapping requirements for connection methods

The following table shows the Infrastructure Definition settings that are mapped to provisioner outputs for each connection method.

Infra typeInfra settings that require mapping
DirectNamespace, Release Name (optional)
GCPNamespace, Cluster, Release Name (optional)
AzureNamespace, Cluster
AWSNamespace, Cluster, Release Name (optional)
RancherNamespace, Cluster, Release Name (optional)

Here are examples for each connection method:

Here's an example of a dynamic provisioning script using Terraform and how to map its namespace output to the required Harness Infrastructure Definition settings for the connection method.

Terraform provisioner example

provider "kubernetes" {
config_context_cluster = "docs-tf" # Name of your Kubernetes cluster
host = "<KUBE_HOST>" # Kubernetes API server host
client_certificate = "<CLIENT_CERT>" # Path to client certificate
client_key = "<CLIENT_KEY>" # Path to client key
cluster_ca_certificate = "<CLUSTER_CA>" # Path to cluster CA certificate
}

resource "kubernetes_namespace" "example" {
metadata {
name = "example-namespace"
}
}

resource "kubernetes_service_account" "example" {
metadata {
name = "example-service-account"
namespace = kubernetes_namespace.example.metadata[0].name
}
}

resource "kubernetes_cluster_role_binding" "example" {
metadata {
name = "example-cluster-role-binding"
namespace = kubernetes_namespace.example.metadata[0].name
}

role_ref {
api_group = "rbac.authorization.k8s.io"
kind = "ClusterRole"
name = "cluster-admin"
}

subject {
kind = "ServiceAccount"
name = kubernetes_service_account.example.metadata[0].name
namespace = kubernetes_namespace.example.metadata[0].name
}
}

resource "kubernetes_deployment" "example" {
metadata {
name = "example-deployment"
namespace = kubernetes_namespace.example.metadata[0].name
}

spec {
replicas = 2

selector {
match_labels = {
app = "example-app"
}
}

template {
metadata {
labels = {
app = "example-app"
}
}

spec {
container {
image = "nginx:latest"
name = "example-container"
}
}
}
}
}

output "default_namespace" {
value = kubernetes_namespace.example.metadata[0].name
}

Here is what the mapping looks like in the Harness Infrastructure Definition:

picture 2

Namespaces

You can use the value of the Infrastructure Definition Namespace setting in your manifest.

You reference the Namespace setting value in your values YAML using the Harness expression: <+infra.namespace>.

For example, if you entered default in Namespace, in your values.yaml you can use:

name: myApp
replicas: 2

image: <+artifact.image>

createNamespace: true
namespace: <+infra.namespace>

And then in the Namespace object manifest (and any object manifest that uses the namespace) you reference the values.yaml value for namespace:

 {{- if .Values.createNamespace}}
apiVersion: v1
kind: Namespace
metadata:
name: {{.Values.namespace}}
{{- end}}

Now your values YAML and manifest are templated for use with any stage.

For more information about manifests in Harness, see Add Kubernetes Manifests.

info

If you omit the namespace key and value from a manifest in your Service Definition, Harness automatically uses the namespace you entered in the Harness Environment  Infrastructure Definition settings Namespace field.

Release Name

The Release name setting is located in Advanced section of the Cluster Details in the Infrastructure Definition. You do not need to edit it.

During deployment Harness creates a ConfigMap listing the resources of the release and uses the Release name for tracking them.

The Release name is a combination of release- and a unique string created using the Harness expression <+INFRA_KEY_SHORT_ID>.

For example, in a Kubernetes deployment you can see harness.io/release-name=release-2f9eadcc06e2c2225265ab3cbb1160bc5eacfd4f.

In Harness, the Release Name is displayed in the logs of the deployment step:

The release name must be unique across the cluster. release-<+INFRA_KEY_SHORT_ID> ensures a unique name.

release- is used as a prefix because Kubernetes service and pod names must follow RFC-1035 and must consist of lowercase alphanumeric characters or '-', start with an alphabetic character, and end with an alphanumeric character.

For more information on INFRA_KEY and INFRA_KEY_SHORT_ID please navigate to our variables page

See Kubernetes Releases and Versioning.
